'Regeneration, test 2' test case implementation. More...

Inheritance diagram for SatRegenerationTest2:

Collaboration diagram for SatRegenerationTest2:

Public Member Functions
	SatRegenerationTest2 ()
virtual	~SatRegenerationTest2 ()

Private Member Functions
virtual void	DoRun (void)
void	OrbiterPhyTraceCb (Time time, SatEnums::SatPacketEvent_t event, SatEnums::SatNodeType_t type, uint32_t nodeId, Mac48Address address, SatEnums::SatLogLevel_t level, SatEnums::SatLinkDir_t dir, std::string packetInfo)
void	PhyTraceCb (Time time, SatEnums::SatPacketEvent_t event, SatEnums::SatNodeType_t type, uint32_t nodeId, Mac48Address address, SatEnums::SatLogLevel_t level, SatEnums::SatLinkDir_t dir, std::string packetInfo)

Private Attributes
Ptr< SatHelper >	m_helper
uint32_t	m_packetsDroppedFeeder
uint32_t	m_packetsDroppedGw
uint32_t	m_packetsDroppedUser
uint32_t	m_packetsDroppedUt
uint32_t	m_packetsReceivedFeeder
uint32_t	m_packetsReceivedGw
uint32_t	m_packetsReceivedUser
uint32_t	m_packetsReceivedUt

Detailed Description

'Regeneration, test 2' test case implementation.

This case tests physical regeneration on satellite. It is based on a SIMPLE scenario, with losses on uplink, forward and return.

Expected result: Packets are lost on uplink with expect drop rate No packets are lost on downlink All packets received on uplink are received on GW/UT

Definition at line 287 of file satellite-regeneration-test.cc.

Constructor & Destructor Documentation

◆ SatRegenerationTest2()

SatRegenerationTest2::SatRegenerationTest2 ( )

Definition at line 326 of file satellite-regeneration-test.cc.

References m_packetsDroppedFeeder, m_packetsDroppedGw, m_packetsDroppedUser, m_packetsDroppedUt, m_packetsReceivedFeeder, m_packetsReceivedGw, m_packetsReceivedUser, and m_packetsReceivedUt.

◆ ~SatRegenerationTest2()

SatRegenerationTest2::~SatRegenerationTest2 ( )

virtual

Definition at line 342 of file satellite-regeneration-test.cc.

Member Function Documentation

◆ DoRun()

void SatRegenerationTest2::DoRun ( void )

privatevirtual

Set regeneration mode

Set constant 10% losses on Uplink

Set simulation output details

Definition at line 424 of file satellite-regeneration-test.cc.

References ns3::SatPhyRxCarrierConf::EM_CONSTANT, ns3::SatEnvVariables::GetInstance(), m_helper, m_packetsDroppedFeeder, m_packetsDroppedGw, m_packetsDroppedUser, m_packetsDroppedUt, m_packetsReceivedFeeder, m_packetsReceivedGw, m_packetsReceivedUser, m_packetsReceivedUt, OrbiterPhyTraceCb(), PhyTraceCb(), ns3::SatEnums::REGENERATION_PHY, and ns3::SatHelper::SIMPLE.

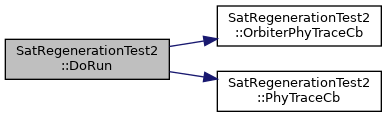

Here is the call graph for this function:

◆ OrbiterPhyTraceCb()

void SatRegenerationTest2::OrbiterPhyTraceCb	(	Time	time,
		SatEnums::SatPacketEvent_t	event,
		SatEnums::SatNodeType_t	type,
		uint32_t	nodeId,
		Mac48Address	address,
		SatEnums::SatLogLevel_t	level,
		SatEnums::SatLinkDir_t	dir,
		std::string	packetInfo )

private

Definition at line 347 of file satellite-regeneration-test.cc.

References ns3::SatEnums::LD_FORWARD, ns3::SatEnums::LD_RETURN, m_packetsDroppedFeeder, m_packetsDroppedUser, m_packetsReceivedFeeder, m_packetsReceivedUser, ns3::SatEnums::PACKET_DROP, and ns3::SatEnums::PACKET_RECV.

Referenced by DoRun().

Here is the caller graph for this function:

◆ PhyTraceCb()

void SatRegenerationTest2::PhyTraceCb	(	Time	time,
		SatEnums::SatPacketEvent_t	event,
		SatEnums::SatNodeType_t	type,
		uint32_t	nodeId,
		Mac48Address	address,
		SatEnums::SatLogLevel_t	level,
		SatEnums::SatLinkDir_t	dir,
		std::string	packetInfo )
