This class represents the Frame header (FHDR) used in a LoraWAN network. More...

#include "lora-frame-header.h"

Inheritance diagram for ns3::LoraFrameHeader:

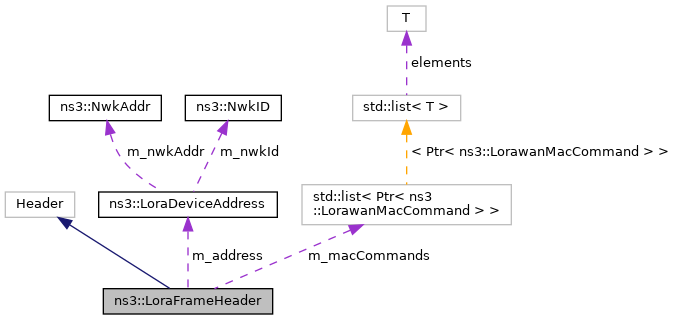

Collaboration diagram for ns3::LoraFrameHeader:

Public Member Functions
	LoraFrameHeader ()

	~LoraFrameHeader ()

void	AddCommand (Ptr< LorawanMacCommand > macCommand)
	Add a predefined command to the list. More...

void	AddDevStatusReq ()
	Add a DevStatusReq command. More...

void	AddDutyCycleAns (void)
	Add a DutyCycleAns command. More...

void	AddDutyCycleReq (uint8_t dutyCycle)
	Add a DutyCycleReq command. More...

void	AddLinkAdrAns (bool powerAck, bool dataRateAck, bool channelMaskAck)
	Add a LinkAdrAns command. More...

void	AddLinkAdrReq (uint8_t dataRate, uint8_t txPower, std::list< int > enabledChannels, int repetitions)
	Add a LinkAdrReq command. More...

void	AddLinkCheckAns (uint8_t margin, uint8_t gwCnt)
	Add a LinkCheckAns command. More...

void	AddLinkCheckReq (void)
	Add a LinkCheckReq command. More...

void	AddNewChannelReq (uint8_t chIndex, double frequency, uint8_t minDataRate, uint8_t maxDataRate)
	Add a NewChannelReq command. More...

void	AddRxParamSetupAns ()
	Add a RxParamSetupAns command. More...

void	AddRxParamSetupReq (uint8_t rx1DrOffset, uint8_t rx2DataRate, double frequency)
	Add a RxParamSetupReq command. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the contents of the buffer into a LoraFrameHeader object. More...

bool	GetAck (void) const
	Get the Ack bit value. More...

LoraDeviceAddress	GetAddress (void) const
	Get this header's device address value. More...

bool	GetAdr (void) const
	Get the Adr value. More...

bool	GetAdrAckReq (void) const
	Get the AdrAckReq value. More...

std::list< Ptr< LorawanMacCommand > >	GetCommands (void)
	Return a list of pointers to all the MAC commands saved in this header. More...

uint16_t	GetFCnt (void) const
	Get the FCnt value. More...

uint8_t	GetFOptsLen (void) const
	Get the FOptsLen value. More...

bool	GetFPending (void) const
	Get the FPending value. More...

uint8_t	GetFPort (void) const
	Get the FPort value. More...

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetLorawanMacCommand (void)
	Return a pointer to a LorawanMacCommand, or 0 if the LorawanMacCommand does not exist in this header. More...

virtual uint32_t	GetSerializedSize (void) const
	Return the size required for serialization of this header. More...

virtual void	Print (std::ostream &os) const
	Print the header in a human-readable format. More...

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the header. More...

void	SetAck (bool ack)
	Set the Ack bit. More...

void	SetAddress (LoraDeviceAddress address)
	Set the address. More...

void	SetAdr (bool adr)
	Set the Adr value. More...

void	SetAdrAckReq (bool adrAckReq)
	Set the AdrAckReq value. More...

void	SetAsDownlink (void)
	State that this is a downlink message. More...

void	SetAsUplink (void)
	State that this is an uplink message. More...

void	SetFCnt (uint16_t fCnt)
	Set the FCnt value. More...

void	SetFPending (bool fPending)
	Set the FPending value. More...

void	SetFPort (uint8_t fPort)
	Set the FPort value. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Attributes
bool	m_ack

LoraDeviceAddress	m_address

bool	m_adr

bool	m_adrAckReq

uint16_t	m_fCnt

Buffer	m_fOpts

uint8_t	m_fOptsLen

bool	m_fPending

uint8_t	m_fPort

bool	m_isUplink

std::list< Ptr< LorawanMacCommand > >	m_macCommands
	List containing all the LorawanMacCommand instances that are contained in this LoraFrameHeader. More...

Detailed Description

This class represents the Frame header (FHDR) used in a LoraWAN network.

Although the specification divides the FHDR from the FPort field, this implementation considers them as a unique entity (i.e., FPort is treated as if it were a part of FHDR).

Remarks: Prior to using it, this class needs to be informed of whether the header is for an uplink or downlink message. This is necessary due to the fact that UL and DL messages have subtly different structure and, hence, serialization and deserialization schemes.

Definition at line 48 of file lora-frame-header.h.

Constructor & Destructor Documentation

◆ LoraFrameHeader()

ns3::LoraFrameHeader::LoraFrameHeader ( )

Definition at line 36 of file lora-frame-header.cc.

◆ ~LoraFrameHeader()

ns3::LoraFrameHeader::~LoraFrameHeader ( )

Definition at line 48 of file lora-frame-header.cc.

Member Function Documentation

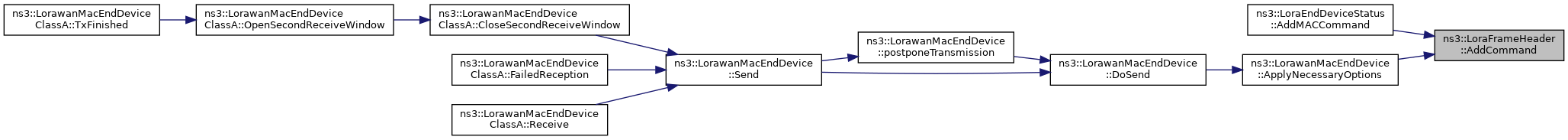

◆ AddCommand()

void ns3::LoraFrameHeader::AddCommand ( Ptr< LorawanMacCommand > macCommand )

Add a predefined command to the list.

Definition at line 582 of file lora-frame-header.cc.

References m_fOptsLen, and m_macCommands.

Referenced by ns3::LoraEndDeviceStatus::AddMACCommand(), and ns3::LorawanMacEndDevice::ApplyNecessaryOptions().

Here is the caller graph for this function:

◆ AddDevStatusReq()

void ns3::LoraFrameHeader::AddDevStatusReq ( void )

Add a DevStatusReq command.

Definition at line 546 of file lora-frame-header.cc.

References m_fOptsLen, and m_macCommands.

◆ AddDutyCycleAns()

void ns3::LoraFrameHeader::AddDutyCycleAns ( void )

Add a DutyCycleAns command.

Definition at line 507 of file lora-frame-header.cc.

References m_fOptsLen, and m_macCommands.

◆ AddDutyCycleReq()

void ns3::LoraFrameHeader::AddDutyCycleReq ( uint8_t dutyCycle )

Add a DutyCycleReq command.

This command accepts an 8-bit integer as dutyCycle. The actual dutyCycle that will be implemented in the end-device will then be, in fraction form, 1/2^(dutyCycle).

Parameters

dutyCycle The dutyCycle in 8-bit form.

Definition at line 495 of file lora-frame-header.cc.

References m_fOptsLen, and m_macCommands.

◆ AddLinkAdrAns()

void ns3::LoraFrameHeader::AddLinkAdrAns	(	bool	powerAck,
		bool	dataRateAck,
		bool	channelMaskAck
	)

Add a LinkAdrAns command.

Parameters

powerAck	Whether the power can be set or not.
dataRateAck	Whether the data rate can be set or not.
channelMaskAck	Whether the channel mask is coherent with the device's current state or not.

Definition at line 484 of file lora-frame-header.cc.

References m_fOptsLen, and m_macCommands.

◆ AddLinkAdrReq()

void ns3::LoraFrameHeader::AddLinkAdrReq	(	uint8_t	dataRate,
		uint8_t	txPower,
		std::list< int >	enabledChannels,
		int	repetitions
	)

Add a LinkAdrReq command.

Parameters

dataRate	The data rate at which the receiver should transmit.
txPower	The power at which the receiver should transmit, encoded according to the LoRaWAN specification of the region.
enabledChannels	A list containing the indices of channels enabled by this command.
repetitions	The number of repetitions the receiver should send when transmitting.

Definition at line 457 of file lora-frame-header.cc.

References m_fOptsLen, and m_macCommands.

◆ AddLinkCheckAns()

void ns3::LoraFrameHeader::AddLinkCheckAns	(	uint8_t	margin,
		uint8_t	gwCnt
	)

Add a LinkCheckAns command.

Parameters

margin	The demodulation margin the LinkCheckReq packet was received with.
gwCnt	The number of gateways the LinkCheckReq packet was received by.

Definition at line 446 of file lora-frame-header.cc.

References m_fOptsLen, and m_macCommands.

◆ AddLinkCheckReq()

void ns3::LoraFrameHeader::AddLinkCheckReq ( void )

Add a LinkCheckReq command.

Definition at line 434 of file lora-frame-header.cc.

References m_fOptsLen, and m_macCommands.

◆ AddNewChannelReq()

void ns3::LoraFrameHeader::AddNewChannelReq	(	uint8_t	chIndex,
		double	frequency,
		uint8_t	minDataRate,
		uint8_t	maxDataRate
	)

Add a NewChannelReq command.

Definition at line 558 of file lora-frame-header.cc.

References m_fOptsLen, and m_macCommands.

◆ AddRxParamSetupAns()

void ns3::LoraFrameHeader::AddRxParamSetupAns ( void )

Add a RxParamSetupAns command.

Definition at line 534 of file lora-frame-header.cc.

References m_fOptsLen, and m_macCommands.

◆ AddRxParamSetupReq()

void ns3::LoraFrameHeader::AddRxParamSetupReq	(	uint8_t	rx1DrOffset,
		uint8_t	rx2DataRate,
		double	frequency
	)

Add a RxParamSetupReq command.

Parameters

rx1DrOffset	The requested data rate offset for the first receive window.
rx2DataRate	The requested data rate for the second receive window.
frequency	The frequency at which to listen for the second receive window.

Definition at line 519 of file lora-frame-header.cc.

References m_fOptsLen, and m_macCommands.

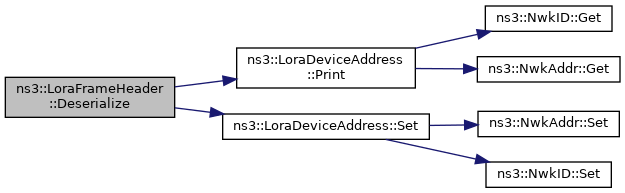

◆ Deserialize()

uint32_t ns3::LoraFrameHeader::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the contents of the buffer into a LoraFrameHeader object.

Parameters

start A pointer to the buffer we need to deserialize.

Returns: The number of consumed bytes.

Definition at line 112 of file lora-frame-header.cc.

References m_ack, m_address, m_adr, m_adrAckReq, m_fCnt, m_fOptsLen, m_fPending, m_fPort, m_isUplink, m_macCommands, ns3::LoraDeviceAddress::Print(), and ns3::LoraDeviceAddress::Set().

Here is the call graph for this function:

◆ GetAck()

bool ns3::LoraFrameHeader::GetAck ( void ) const

Get the Ack bit value.

Returns: True if the ACK bit is set, false otherwise.

Definition at line 391 of file lora-frame-header.cc.

References m_ack.

Referenced by ns3::LorawanMacEndDevice::ParseCommands().

Here is the caller graph for this function:

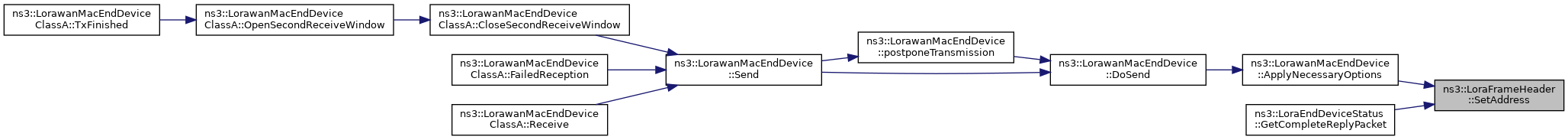

◆ GetAddress()

LoraDeviceAddress ns3::LoraFrameHeader::GetAddress ( void ) const

Get this header's device address value.

Returns: The address value stored in this header.

Definition at line 353 of file lora-frame-header.cc.

References m_address.

Referenced by ns3::LoraNetworkStatus::GetEndDeviceStatus(), ns3::LoraNetworkScheduler::OnReceivedPacket(), ns3::LoraNetworkStatus::OnReceivedPacket(), ns3::LoraConfirmedMessagesComponent::OnReceivedPacket(), and ns3::LorawanMacEndDeviceClassA::Receive().

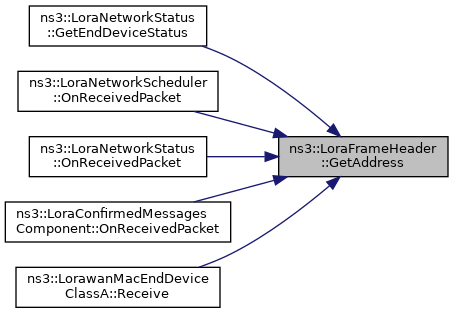

Here is the caller graph for this function:

◆ GetAdr()

bool ns3::LoraFrameHeader::GetAdr ( void ) const

Get the Adr value.

Returns: The Adr value.

Definition at line 366 of file lora-frame-header.cc.

References m_adr.

Referenced by ns3::LoraAdrComponent::BeforeSendingReply().

Here is the caller graph for this function:

◆ GetAdrAckReq()

bool ns3::LoraFrameHeader::GetAdrAckReq ( void ) const

Get the AdrAckReq value.

Returns: The AdrAckReq value.

Definition at line 378 of file lora-frame-header.cc.

References m_adrAckReq.

◆ GetCommands()

std::list< Ptr< LorawanMacCommand > > ns3::LoraFrameHeader::GetCommands ( void )

Return a list of pointers to all the MAC commands saved in this header.

Definition at line 574 of file lora-frame-header.cc.

References m_macCommands.

Referenced by ns3::LorawanMacEndDevice::ParseCommands().

Here is the caller graph for this function:

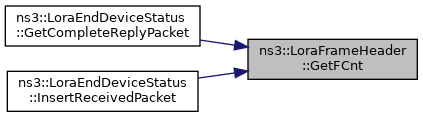

◆ GetFCnt()

uint16_t ns3::LoraFrameHeader::GetFCnt ( void ) const

Get the FCnt value.

Returns: The FCnt value.

Definition at line 428 of file lora-frame-header.cc.

References m_fCnt.

Referenced by ns3::LoraEndDeviceStatus::GetCompleteReplyPacket(), and ns3::LoraEndDeviceStatus::InsertReceivedPacket().

Here is the caller graph for this function:

◆ GetFOptsLen()

uint8_t ns3::LoraFrameHeader::GetFOptsLen ( void ) const

Get the FOptsLen value.

Remarks: This value cannot be set since it's directly extracted from the number and kind of MAC commands.

Returns: The FOptsLen value.

Definition at line 409 of file lora-frame-header.cc.

References m_macCommands.

◆ GetFPending()

bool ns3::LoraFrameHeader::GetFPending ( void ) const

Get the FPending value.

Returns: The FPending value.

Definition at line 403 of file lora-frame-header.cc.

References m_fPending.

◆ GetFPort()

uint8_t ns3::LoraFrameHeader::GetFPort ( void ) const

Get the FPort value.

Returns: The FPort value.

Definition at line 341 of file lora-frame-header.cc.

References m_fPort.

◆ GetInstanceTypeId()

TypeId ns3::LoraFrameHeader::GetInstanceTypeId ( void ) const

virtual

Definition at line 61 of file lora-frame-header.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetLorawanMacCommand()

template<typename T >

Ptr< T > ns3::LoraFrameHeader::GetLorawanMacCommand ( void )

inline

Return a pointer to a LorawanMacCommand, or 0 if the LorawanMacCommand does not exist in this header.

Definition at line 336 of file lora-frame-header.h.

References m_macCommands.

Referenced by ns3::LoraLinkCheckComponent::BeforeSendingReply().

Here is the caller graph for this function:

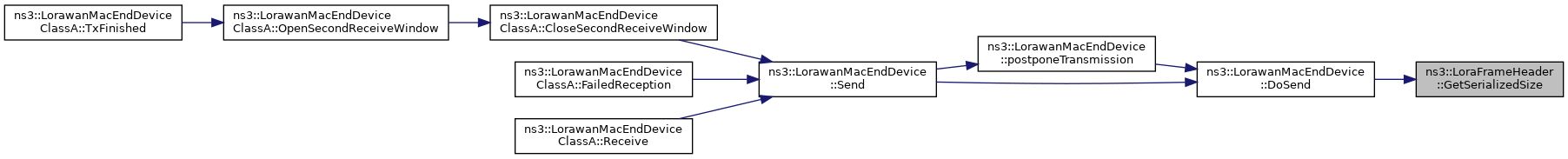

◆ GetSerializedSize()

uint32_t ns3::LoraFrameHeader::GetSerializedSize ( void ) const

virtual

Return the size required for serialization of this header.

Returns: The serialized size in bytes

Definition at line 67 of file lora-frame-header.cc.

References m_fOptsLen.

Referenced by ns3::LorawanMacEndDevice::DoSend().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::LoraFrameHeader::GetTypeId ( void )

static

Definition at line 53 of file lora-frame-header.cc.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

◆ Print()

void ns3::LoraFrameHeader::Print ( std::ostream & os ) const

virtual

Print the header in a human-readable format.

Parameters

os	The std::ostream on which to print the header.

Definition at line 298 of file lora-frame-header.cc.

References m_ack, m_address, m_adr, m_adrAckReq, m_fCnt, m_fOptsLen, m_fPending, m_fPort, m_macCommands, and ns3::LoraDeviceAddress::Print().

Here is the call graph for this function:

◆ Serialize()

void ns3::LoraFrameHeader::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the header.

See Page 15 of LoraWAN specification for a representation of fields.

Parameters

start A pointer to the buffer that will be filled with the serialization.

Definition at line 81 of file lora-frame-header.cc.

References ns3::LoraDeviceAddress::Get(), m_ack, m_address, m_adr, m_adrAckReq, m_fCnt, m_fOptsLen, m_fPending, m_fPort, and m_macCommands.

Here is the call graph for this function:

◆ SetAck()

void ns3::LoraFrameHeader::SetAck ( bool ack )

Set the Ack bit.

Parameters

ack	Whether or not to set the ACK bit.

Definition at line 384 of file lora-frame-header.cc.

References m_ack.

◆ SetAddress()

void ns3::LoraFrameHeader::SetAddress ( LoraDeviceAddress address )

Set the address.

Parameters

address The LoraDeviceAddress to set.

Definition at line 347 of file lora-frame-header.cc.

References m_address.

Referenced by ns3::LorawanMacEndDevice::ApplyNecessaryOptions(), and ns3::LoraEndDeviceStatus::GetCompleteReplyPacket().

Here is the caller graph for this function:

◆ SetAdr()

void ns3::LoraFrameHeader::SetAdr ( bool adr )

Set the Adr value.

Parameters

Adr	The Adr to set.

Definition at line 359 of file lora-frame-header.cc.

References m_adr.

Referenced by ns3::LorawanMacEndDevice::ApplyNecessaryOptions().

Here is the caller graph for this function:

◆ SetAdrAckReq()

void ns3::LoraFrameHeader::SetAdrAckReq ( bool adrAckReq )

Set the AdrAckReq value.

Parameters

adrAckReq The AdrAckReq to set.

Definition at line 372 of file lora-frame-header.cc.

References m_adrAckReq.

Referenced by ns3::LorawanMacEndDevice::ApplyNecessaryOptions().

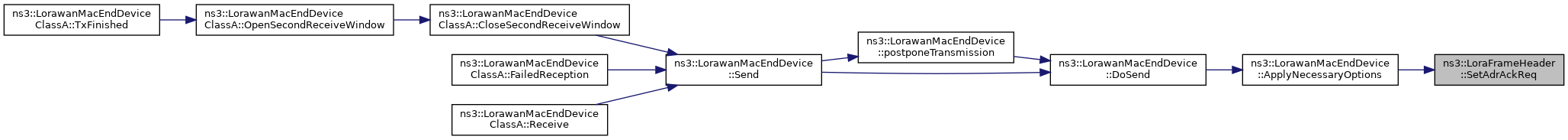

Here is the caller graph for this function:

◆ SetAsDownlink()

void ns3::LoraFrameHeader::SetAsDownlink ( void )

State that this is a downlink message.

This method needs to be called at least once before any serialization or deserialization.

Definition at line 327 of file lora-frame-header.cc.

References m_isUplink.

Referenced by ns3::LorawanMacEndDeviceClassA::Receive().

Here is the caller graph for this function:

◆ SetAsUplink()

void ns3::LoraFrameHeader::SetAsUplink ( void )

State that this is an uplink message.

This method needs to be called at least once before any serialization or deserialization.

Definition at line 319 of file lora-frame-header.cc.

References m_isUplink.

Referenced by ns3::LorawanMacEndDevice::ApplyNecessaryOptions(), ns3::LoraAdrComponent::BeforeSendingReply(), ns3::LoraLinkCheckComponent::BeforeSendingReply(), ns3::LoraEndDeviceStatus::GetCompleteReplyPacket(), ns3::LoraEndDeviceStatus::InsertReceivedPacket(), ns3::LoraNetworkScheduler::OnReceivedPacket(), ns3::LoraNetworkStatus::OnReceivedPacket(), and ns3::LoraConfirmedMessagesComponent::OnReceivedPacket().

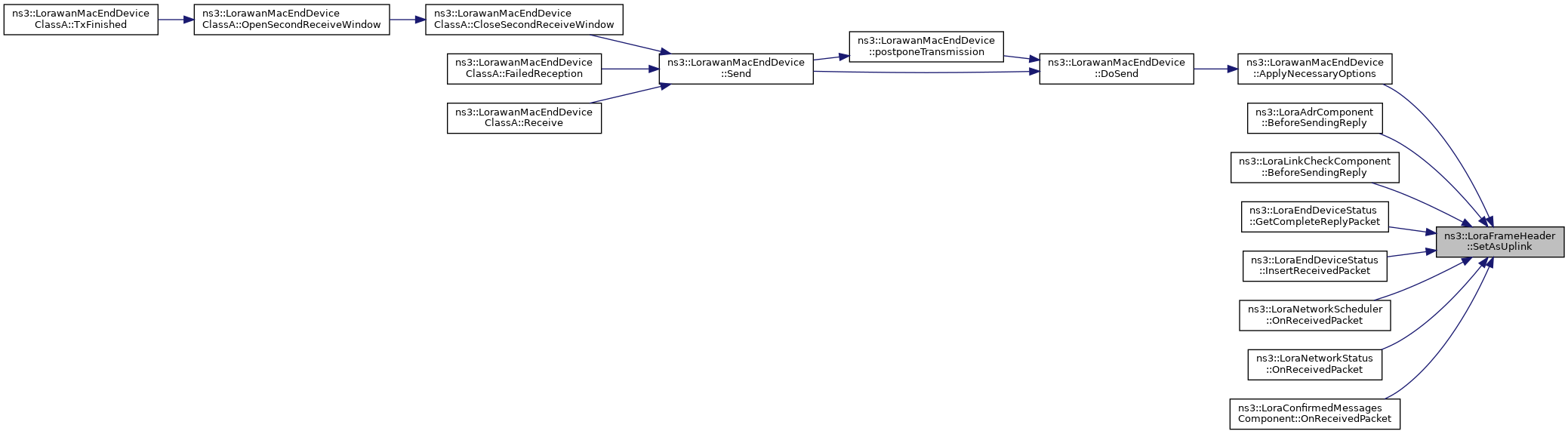

Here is the caller graph for this function:

◆ SetFCnt()

void ns3::LoraFrameHeader::SetFCnt ( uint16_t fCnt )

Set the FCnt value.

Parameters

FCnt	The FCnt to set.

Definition at line 422 of file lora-frame-header.cc.

References m_fCnt.

Referenced by ns3::LorawanMacEndDevice::ApplyNecessaryOptions(), and ns3::LoraEndDeviceStatus::GetCompleteReplyPacket().

Here is the caller graph for this function:

◆ SetFPending()

void ns3::LoraFrameHeader::SetFPending ( bool fPending )

Set the FPending value.

Parameters

fPending The FPending to set.

Definition at line 397 of file lora-frame-header.cc.

References m_fPending.

◆ SetFPort()

void ns3::LoraFrameHeader::SetFPort ( uint8_t fPort )

Set the FPort value.

Parameters

fPort The FPort to set.

Definition at line 335 of file lora-frame-header.cc.

References m_fPort.

Referenced by ns3::LorawanMacEndDevice::ApplyNecessaryOptions().

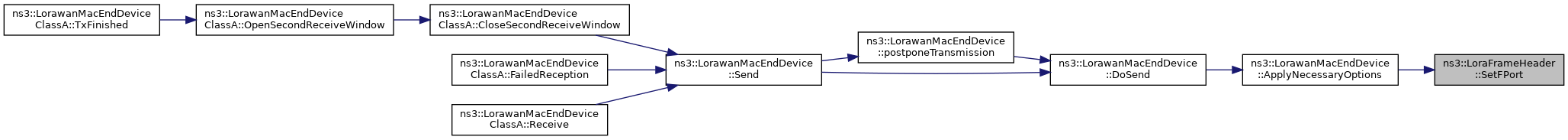

Here is the caller graph for this function:

Member Data Documentation

◆ m_ack

bool ns3::LoraFrameHeader::m_ack

private

Definition at line 317 of file lora-frame-header.h.

Referenced by Deserialize(), GetAck(), Print(), Serialize(), and SetAck().

◆ m_address

LoraDeviceAddress ns3::LoraFrameHeader::m_address

private

Definition at line 313 of file lora-frame-header.h.

Referenced by Deserialize(), GetAddress(), Print(), Serialize(), and SetAddress().

◆ m_adr

bool ns3::LoraFrameHeader::m_adr

private

Definition at line 315 of file lora-frame-header.h.

Referenced by Deserialize(), GetAdr(), Print(), Serialize(), and SetAdr().

◆ m_adrAckReq

bool ns3::LoraFrameHeader::m_adrAckReq

private

Definition at line 316 of file lora-frame-header.h.

Referenced by Deserialize(), GetAdrAckReq(), Print(), Serialize(), and SetAdrAckReq().

◆ m_fCnt

uint16_t ns3::LoraFrameHeader::m_fCnt

private

Definition at line 321 of file lora-frame-header.h.

Referenced by Deserialize(), GetFCnt(), Print(), Serialize(), and SetFCnt().

◆ m_fOpts

Buffer ns3::LoraFrameHeader::m_fOpts

private

Definition at line 323 of file lora-frame-header.h.

◆ m_fOptsLen

uint8_t ns3::LoraFrameHeader::m_fOptsLen

private

Definition at line 319 of file lora-frame-header.h.

Referenced by AddCommand(), AddDevStatusReq(), AddDutyCycleAns(), AddDutyCycleReq(), AddLinkAdrAns(), AddLinkAdrReq(), AddLinkCheckAns(), AddLinkCheckReq(), AddNewChannelReq(), AddRxParamSetupAns(), AddRxParamSetupReq(), Deserialize(), GetSerializedSize(), Print(), and Serialize().

◆ m_fPending

bool ns3::LoraFrameHeader::m_fPending

private

Definition at line 318 of file lora-frame-header.h.

Referenced by Deserialize(), GetFPending(), Print(), Serialize(), and SetFPending().

◆ m_fPort

uint8_t ns3::LoraFrameHeader::m_fPort

private

Definition at line 311 of file lora-frame-header.h.

Referenced by Deserialize(), GetFPort(), Print(), Serialize(), and SetFPort().

◆ m_isUplink

bool ns3::LoraFrameHeader::m_isUplink

private

Definition at line 331 of file lora-frame-header.h.

Referenced by Deserialize(), SetAsDownlink(), and SetAsUplink().

◆ m_macCommands

std::list<Ptr<LorawanMacCommand> > ns3::LoraFrameHeader::m_macCommands

private

List containing all the LorawanMacCommand instances that are contained in this LoraFrameHeader.

Definition at line 329 of file lora-frame-header.h.

Referenced by AddCommand(), AddDevStatusReq(), AddDutyCycleAns(), AddDutyCycleReq(), AddLinkAdrAns(), AddLinkAdrReq(), AddLinkCheckAns(), AddLinkCheckReq(), AddNewChannelReq(), AddRxParamSetupAns(), AddRxParamSetupReq(), Deserialize(), GetCommands(), GetFOptsLen(), GetLorawanMacCommand(), Print(), and Serialize().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/lora-frame-header.h
/builds/sns3/satellite/satellite/model/lora-frame-header.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ LoraFrameHeader()

◆ ~LoraFrameHeader()

Member Function Documentation

◆ AddCommand()

◆ AddDevStatusReq()

◆ AddDutyCycleAns()

◆ AddDutyCycleReq()

◆ AddLinkAdrAns()

◆ AddLinkAdrReq()

◆ AddLinkCheckAns()

◆ AddLinkCheckReq()

◆ AddNewChannelReq()

◆ AddRxParamSetupAns()

◆ AddRxParamSetupReq()

◆ Deserialize()

◆ GetAck()

◆ GetAddress()

◆ GetAdr()

◆ GetAdrAckReq()

◆ GetCommands()

◆ GetFCnt()

◆ GetFOptsLen()

◆ GetFPending()

◆ GetFPort()

◆ GetInstanceTypeId()

◆ GetLorawanMacCommand()

◆ GetSerializedSize()

◆ GetTypeId()

◆ Print()

◆ Serialize()

◆ SetAck()

◆ SetAddress()

◆ SetAdr()

◆ SetAdrAckReq()

◆ SetAsDownlink()

◆ SetAsUplink()

◆ SetFCnt()

◆ SetFPending()

◆ SetFPort()

Member Data Documentation

◆ m_ack

◆ m_address

◆ m_adr

◆ m_adrAckReq

◆ m_fCnt

◆ m_fOpts

◆ m_fOptsLen

◆ m_fPending

◆ m_fPort

◆ m_isUplink

◆ m_macCommands
