Class representing the NetworkId component of a LoraDeviceAddress (7 bits). More...
#include "lora-device-address.h"
Public Member Functions | |
| NwkID (uint8_t nwkId=0) | |
| uint8_t | Get (void) const |
| Get an uint8_t representation of the 7-bit network ID. | |
| void | Set (uint8_t nwkId) |
| Set the NwkID, starting from a 8-bit representation of a 7-bit integer. | |
Private Attributes | |
| uint8_t | m_nwkId |
| 8-bit integer representation of the network id | |
Detailed Description
Class representing the NetworkId component of a LoraDeviceAddress (7 bits).
Definition at line 38 of file lora-device-address.h.
Constructor & Destructor Documentation
◆ NwkID()
| ns3::NwkID::NwkID | ( | uint8_t | nwkId = 0 | ) |
Definition at line 39 of file lora-device-address.cc.
References m_nwkId.
Member Function Documentation

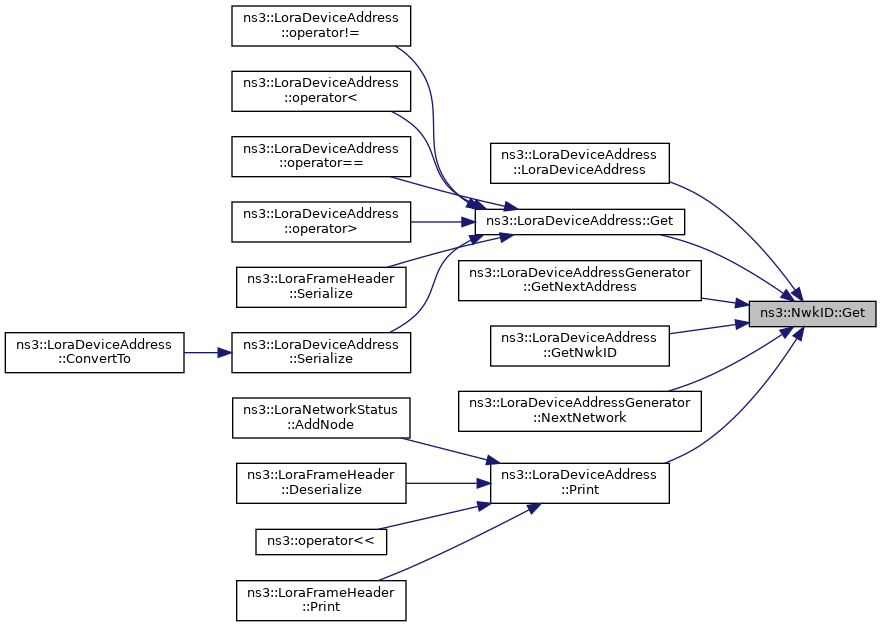

◆ Get()
| uint8_t ns3::NwkID::Get | ( | void | ) | const |
Get an uint8_t representation of the 7-bit network ID.
- Returns
- The Network Id.
Definition at line 57 of file lora-device-address.cc.
References m_nwkId.
Referenced by ns3::LoraDeviceAddress::LoraDeviceAddress().

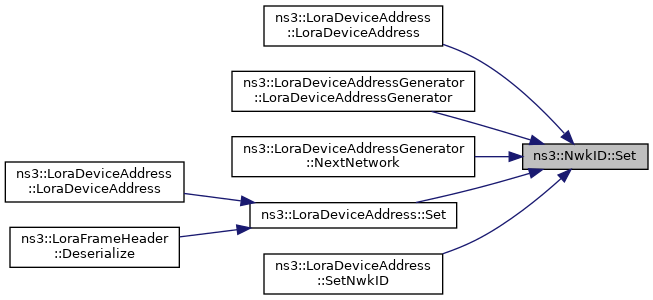

◆ Set()
| void ns3::NwkID::Set | ( | uint8_t | nwkId | ) |
Set the NwkID, starting from a 8-bit representation of a 7-bit integer.
This method will ignore the most significant bit of the argument. This means that all arguments such that nwkId > 127 will actually be considered as nwkId mod 127.
- Parameters
-
nwkId The Network Id value to set.
Definition at line 45 of file lora-device-address.cc.
References m_nwkId.
Member Data Documentation
◆ m_nwkId
|
private |
8-bit integer representation of the network id
Definition at line 62 of file lora-device-address.h.
The documentation for this class was generated from the following files:
- /builds/sns3/satellite/satellite/model/lora-device-address.h
- /builds/sns3/satellite/satellite/model/lora-device-address.cc
