SatAntennaGainPattern class holds the antenna gain pattern data for a one single spot-beam. More...

#include "satellite-antenna-gain-pattern.h"

Inheritance diagram for ns3::SatAntennaGainPattern:

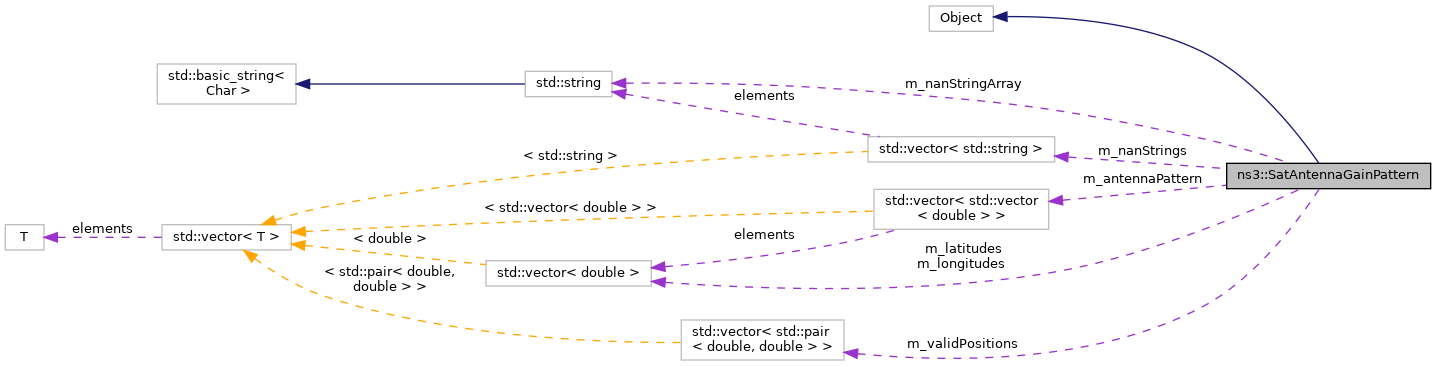

Collaboration diagram for ns3::SatAntennaGainPattern:

Public Member Functions
	SatAntennaGainPattern ()
	Default constructor.
	SatAntennaGainPattern (std::string filePathName, GeoCoordinate defaultSatellitePosition)
	Constructor with initialization parameters.
	~SatAntennaGainPattern ()
double	GetAntennaGain_lin (GeoCoordinate coord, Ptr< SatMobilityModel > mobility) const
	Calculate the antenna gain value for a certain {latitude, longitude} point.
double	GetCenterLatitude (Ptr< SatMobilityModel > mobility) const
	Get latitude of this beam with best gain, based on satellite given in mobility model.
double	GetCenterLongitude (Ptr< SatMobilityModel > mobility) const
	Get latitude of this beam with best gain, based on satellite given in mobility model.
void	GetSatelliteOffset (double &latOffset, double &lonOffset, Ptr< SatMobilityModel > mobility) const
GeoCoordinate	GetValidRandomPosition (Ptr< SatMobilityModel > mobility) const
	Get a valid random position under this spot-beam coverage.
bool	IsValidPosition (GeoCoordinate coord, TracedCallback< double > cb, Ptr< SatMobilityModel > mobility) const
	Check if a given position is under this spot-beam coverage.
virtual void	NotifyConstructionCompleted () override
	Notifier called once the ObjectBase is fully constructed.

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID.

Private Member Functions
void	ReadAntennaPatternFromFile (std::string filePathName)
	Read the antenna gain pattern from a file.

Private Attributes
std::vector< std::vector< double > >	m_antennaPattern
	Container for the antenna pattern from one spot-beam.
double	m_centerLatitude
	Latitude with best gain.
double	m_centerLongitude
	Longitude with best gain.
GeoCoordinate	m_defaultSatellitePosition
std::string	m_filePathName
double	m_latDefaultSatellite
	Latitude of default satellite for antenna gain pattern.
double	m_latInterval
	Interval between latitudes, must be constant.
std::vector< double >	m_latitudes
	All valid latitudes from the file.
double	m_lonDefaultSatellite
	Longitude of default satellite for antenna gain pattern.
std::vector< double >	m_longitudes
	All valid latitudes from the file.
double	m_lonInterval
	Interval between longitudes, must be constant.
double	m_maxLat
	Maximum latitude value of the antenna gain pattern.
double	m_maxLon
	Minimum longitude value of the antenna gain pattern.
double	m_minAcceptableAntennaGainInDb
	Minimum acceptable antenna gain for a serving spot-beam.
double	m_minLat
	Minimum latitude value of the antenna gain pattern.
double	m_minLon
	Minimum longitude value of the antenna gain pattern.
std::vector< std::string >	m_nanStrings
Ptr< UniformRandomVariable >	m_uniformRandomVariable
	Uniform random variable used for beam selection.
std::vector< std::pair< double, double > >	m_validPositions
	Container for valid positions.

Static Private Attributes
static const std::string	m_nanStringArray [4] = {"nan", "NaN", "Nan", "NAN"}
	Valid Not-a-Number (NaN) strings.

Detailed Description

SatAntennaGainPattern class holds the antenna gain pattern data for a one single spot-beam.

In initialization phase, the gain pattern is read from a file to a container. Current implementation assumes that the antenna pattern is using a constant longitude-latitude grid of samples. This assumption is made to enable fast look-ups from the container (= vector<vector<double>>).

Antenna gain patter is used also for spot-beam selection. In initialization phase a valid positions list is constructed based on a minimum accepted antenna gain set as an attribute. This approach is selected to speed up the random UT positioning.

Antenna gain value for a given longitude and latitude position is calculated by using 4-point bilinear interpolation.

Definition at line 55 of file satellite-antenna-gain-pattern.h.

Constructor & Destructor Documentation

◆ SatAntennaGainPattern() [1/2]

ns3::SatAntennaGainPattern::SatAntennaGainPattern ( )

Default constructor.

Definition at line 64 of file satellite-antenna-gain-pattern.cc.

References m_antennaPattern, m_latDefaultSatellite, m_latInterval, m_latitudes, m_lonDefaultSatellite, m_longitudes, m_lonInterval, m_maxLat, m_maxLon, m_minAcceptableAntennaGainInDb, m_minLat, m_minLon, m_nanStrings, m_uniformRandomVariable, and m_validPositions.

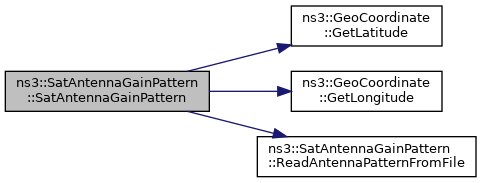

◆ SatAntennaGainPattern() [2/2]

ns3::SatAntennaGainPattern::SatAntennaGainPattern	(	std::string	filePathName,
		GeoCoordinate	defaultSatellitePosition )

Constructor with initialization parameters.

Parameters

filePathName	Path of file to read antenna gain patterns
defaultSatellitePosition	Position of satellite associated to this pattern

Definition at line 84 of file satellite-antenna-gain-pattern.cc.

References m_defaultSatellitePosition, m_filePathName, m_nanStringArray, and m_nanStrings.

◆ ~SatAntennaGainPattern()

ns3::SatAntennaGainPattern::~SatAntennaGainPattern ( )

inline

Definition at line 86 of file satellite-antenna-gain-pattern.h.

Member Function Documentation

◆ GetAntennaGain_lin()

double ns3::SatAntennaGainPattern::GetAntennaGain_lin	(	GeoCoordinate	coord,
		Ptr< SatMobilityModel >	mobility ) const

Calculate the antenna gain value for a certain {latitude, longitude} point.

Parameters

mobility The mobility model of the associated satellite

Returns: The gain value in linear format

4-point bilinear interpolation R(x, y1) = (x2 - x)/(x2 - x1) * Q(x1, y1)) + (x - x1)/(x2 - x1) * Q(x2, y1); R(x, y2) = (x2 - x)/(x2 - x1) * Q(x1, y2)) + (x - x1)/(x2 - x1) * Q(x2, y2); R = (y2 - y)/(y2 - y1) * R(x, y1) + (y - y1)/(y2 - y1) * R(x, y2);

Definition at line 381 of file satellite-antenna-gain-pattern.cc.

References ns3::SatUtils::DbToLinear(), ns3::GeoCoordinate::GetLatitude(), ns3::GeoCoordinate::GetLongitude(), GetSatelliteOffset(), m_antennaPattern, m_latInterval, m_latitudes, m_longitudes, m_lonInterval, m_maxLat, m_maxLon, m_minLat, and m_minLon.

Referenced by IsValidPosition().

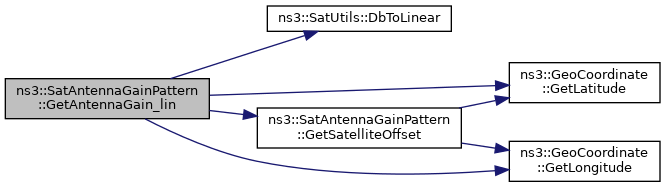

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCenterLatitude()

double ns3::SatAntennaGainPattern::GetCenterLatitude ( Ptr< SatMobilityModel > mobility ) const

Get latitude of this beam with best gain, based on satellite given in mobility model.

Parameters

mobility The mobility model of the associated satellite

Returns: Latitude with best gain.

Definition at line 271 of file satellite-antenna-gain-pattern.cc.

References ns3::GeoCoordinate::GetLatitude(), m_centerLatitude, and m_latDefaultSatellite.

Here is the call graph for this function:

◆ GetCenterLongitude()

double ns3::SatAntennaGainPattern::GetCenterLongitude ( Ptr< SatMobilityModel > mobility ) const

Get latitude of this beam with best gain, based on satellite given in mobility model.

Parameters

mobility The mobility model of the associated satellite

Returns: Longitude with best gain.

Definition at line 288 of file satellite-antenna-gain-pattern.cc.

References ns3::GeoCoordinate::GetLongitude(), m_centerLongitude, and m_lonDefaultSatellite.

Here is the call graph for this function:

◆ GetSatelliteOffset()

void ns3::SatAntennaGainPattern::GetSatelliteOffset	(	double &	latOffset,
		double &	lonOffset,
		Ptr< SatMobilityModel >	mobility ) const

Definition at line 249 of file satellite-antenna-gain-pattern.cc.

References ns3::GeoCoordinate::GetLatitude(), ns3::GeoCoordinate::GetLongitude(), m_latDefaultSatellite, and m_lonDefaultSatellite.

Referenced by GetAntennaGain_lin(), and GetValidRandomPosition().

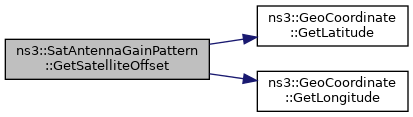

Here is the call graph for this function:

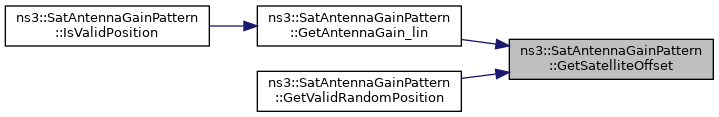

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatAntennaGainPattern::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 49 of file satellite-antenna-gain-pattern.cc.

References m_minAcceptableAntennaGainInDb.

◆ GetValidRandomPosition()

GeoCoordinate ns3::SatAntennaGainPattern::GetValidRandomPosition ( Ptr< SatMobilityModel > mobility ) const

Get a valid random position under this spot-beam coverage.

Parameters

mobility The mobility model of the associated satellite

Returns: A valid random GeoCoordinate

Definition at line 305 of file satellite-antenna-gain-pattern.cc.

References GetSatelliteOffset(), m_latInterval, m_lonInterval, m_uniformRandomVariable, and m_validPositions.

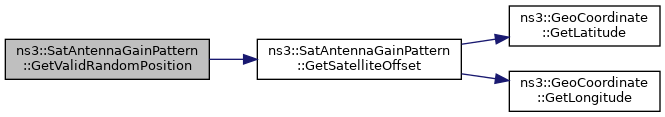

Here is the call graph for this function:

◆ IsValidPosition()

bool ns3::SatAntennaGainPattern::IsValidPosition	(	GeoCoordinate	coord,
		TracedCallback< double >	cb,
		Ptr< SatMobilityModel >	mobility ) const

Check if a given position is under this spot-beam coverage.

Parameters

coord	The position to check for validity
mobility	The mobility model of the associated satellite

Returns: Whether or not the given position is valid for this spot-beam

Definition at line 369 of file satellite-antenna-gain-pattern.cc.

References GetAntennaGain_lin(), ns3::GeoCoordinate::GetLatitude(), ns3::GeoCoordinate::GetLongitude(), ns3::SatUtils::LinearToDb(), and m_minAcceptableAntennaGainInDb.

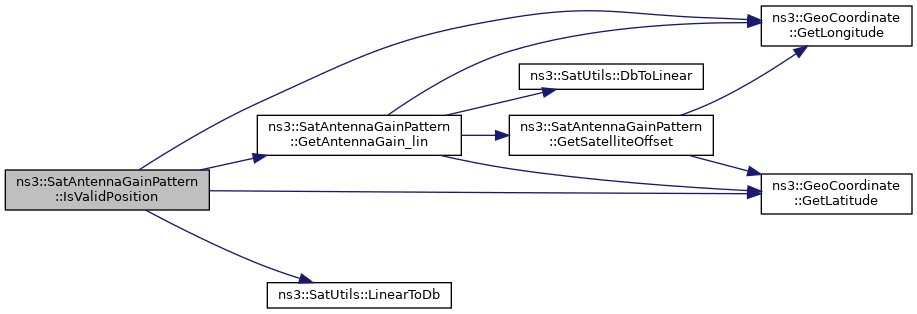

Here is the call graph for this function:

◆ NotifyConstructionCompleted()

void ns3::SatAntennaGainPattern::NotifyConstructionCompleted ( )

overridevirtual

Notifier called once the ObjectBase is fully constructed.

This method is invoked once all member attributes have been initialized. Subclasses can override this method to be notified of this event but if they do this, they must chain up to their parent's NotifyConstructionCompleted method.

Definition at line 95 of file satellite-antenna-gain-pattern.cc.

References m_defaultSatellitePosition, m_filePathName, m_latDefaultSatellite, m_lonDefaultSatellite, m_uniformRandomVariable, and ReadAntennaPatternFromFile().

Here is the call graph for this function:

◆ ReadAntennaPatternFromFile()

void ns3::SatAntennaGainPattern::ReadAntennaPatternFromFile ( std::string filePathName )

private

Read the antenna gain pattern from a file.

Parameters

filePathName Path and file name of the antenna pattern file

Definition at line 109 of file satellite-antenna-gain-pattern.cc.

References m_antennaPattern, m_centerLatitude, m_centerLongitude, m_latInterval, m_latitudes, m_longitudes, m_lonInterval, m_maxLat, m_maxLon, m_minAcceptableAntennaGainInDb, m_minLat, m_minLon, m_nanStrings, and m_validPositions.

Referenced by NotifyConstructionCompleted().

Here is the caller graph for this function:

Member Data Documentation

◆ m_antennaPattern

std::vector<std::vector<double> > ns3::SatAntennaGainPattern::m_antennaPattern

private

Container for the antenna pattern from one spot-beam.

Outer vector holds gain values for all latitudes
Inner vector holds gain values for all longitudes for a certain latitude

Definition at line 146 of file satellite-antenna-gain-pattern.h.

Referenced by SatAntennaGainPattern(), GetAntennaGain_lin(), and ReadAntennaPatternFromFile().

◆ m_centerLatitude

double ns3::SatAntennaGainPattern::m_centerLatitude

private

Latitude with best gain.

Definition at line 179 of file satellite-antenna-gain-pattern.h.

Referenced by GetCenterLatitude(), and ReadAntennaPatternFromFile().

◆ m_centerLongitude

double ns3::SatAntennaGainPattern::m_centerLongitude

private

Longitude with best gain.

Definition at line 184 of file satellite-antenna-gain-pattern.h.

Referenced by GetCenterLongitude(), and ReadAntennaPatternFromFile().

◆ m_defaultSatellitePosition

GeoCoordinate ns3::SatAntennaGainPattern::m_defaultSatellitePosition

private

Definition at line 233 of file satellite-antenna-gain-pattern.h.

Referenced by SatAntennaGainPattern(), and NotifyConstructionCompleted().

◆ m_filePathName

std::string ns3::SatAntennaGainPattern::m_filePathName

private

Definition at line 232 of file satellite-antenna-gain-pattern.h.

Referenced by SatAntennaGainPattern(), and NotifyConstructionCompleted().

◆ m_latDefaultSatellite

double ns3::SatAntennaGainPattern::m_latDefaultSatellite

private

Latitude of default satellite for antenna gain pattern.

Definition at line 219 of file satellite-antenna-gain-pattern.h.

Referenced by SatAntennaGainPattern(), GetCenterLatitude(), GetSatelliteOffset(), and NotifyConstructionCompleted().

◆ m_latInterval

double ns3::SatAntennaGainPattern::m_latInterval

private

Interval between latitudes, must be constant.

Definition at line 209 of file satellite-antenna-gain-pattern.h.

Referenced by SatAntennaGainPattern(), GetAntennaGain_lin(), GetValidRandomPosition(), and ReadAntennaPatternFromFile().

◆ m_latitudes

std::vector<double> ns3::SatAntennaGainPattern::m_latitudes

private

All valid latitudes from the file.

Definition at line 169 of file satellite-antenna-gain-pattern.h.

Referenced by SatAntennaGainPattern(), GetAntennaGain_lin(), and ReadAntennaPatternFromFile().

◆ m_lonDefaultSatellite

double ns3::SatAntennaGainPattern::m_lonDefaultSatellite

private

Longitude of default satellite for antenna gain pattern.

Definition at line 224 of file satellite-antenna-gain-pattern.h.

Referenced by SatAntennaGainPattern(), GetCenterLongitude(), GetSatelliteOffset(), and NotifyConstructionCompleted().

◆ m_longitudes

std::vector<double> ns3::SatAntennaGainPattern::m_longitudes

private

All valid latitudes from the file.

Definition at line 174 of file satellite-antenna-gain-pattern.h.

Referenced by SatAntennaGainPattern(), GetAntennaGain_lin(), and ReadAntennaPatternFromFile().

◆ m_lonInterval

double ns3::SatAntennaGainPattern::m_lonInterval

private

Interval between longitudes, must be constant.

Definition at line 214 of file satellite-antenna-gain-pattern.h.

Referenced by SatAntennaGainPattern(), GetAntennaGain_lin(), GetValidRandomPosition(), and ReadAntennaPatternFromFile().

◆ m_maxLat

double ns3::SatAntennaGainPattern::m_maxLat

private

Maximum latitude value of the antenna gain pattern.

Definition at line 199 of file satellite-antenna-gain-pattern.h.

Referenced by SatAntennaGainPattern(), GetAntennaGain_lin(), and ReadAntennaPatternFromFile().

◆ m_maxLon

double ns3::SatAntennaGainPattern::m_maxLon

private

Minimum longitude value of the antenna gain pattern.

Definition at line 204 of file satellite-antenna-gain-pattern.h.

Referenced by SatAntennaGainPattern(), GetAntennaGain_lin(), and ReadAntennaPatternFromFile().

◆ m_minAcceptableAntennaGainInDb

double ns3::SatAntennaGainPattern::m_minAcceptableAntennaGainInDb

private

Minimum acceptable antenna gain for a serving spot-beam.

Used for beam selection.

Definition at line 159 of file satellite-antenna-gain-pattern.h.

Referenced by SatAntennaGainPattern(), GetTypeId(), IsValidPosition(), and ReadAntennaPatternFromFile().

◆ m_minLat

double ns3::SatAntennaGainPattern::m_minLat

private

Minimum latitude value of the antenna gain pattern.

Definition at line 189 of file satellite-antenna-gain-pattern.h.

Referenced by SatAntennaGainPattern(), GetAntennaGain_lin(), and ReadAntennaPatternFromFile().

◆ m_minLon

double ns3::SatAntennaGainPattern::m_minLon

private

Minimum longitude value of the antenna gain pattern.

Definition at line 194 of file satellite-antenna-gain-pattern.h.

Referenced by SatAntennaGainPattern(), GetAntennaGain_lin(), and ReadAntennaPatternFromFile().

◆ m_nanStringArray

const std::string ns3::SatAntennaGainPattern::m_nanStringArray = {"nan", "NaN", "Nan", "NAN"}

staticprivate

Valid Not-a-Number (NaN) strings.

Definition at line 229 of file satellite-antenna-gain-pattern.h.

Referenced by SatAntennaGainPattern().

◆ m_nanStrings

std::vector<std::string> ns3::SatAntennaGainPattern::m_nanStrings

private

Definition at line 230 of file satellite-antenna-gain-pattern.h.

Referenced by SatAntennaGainPattern(), SatAntennaGainPattern(), and ReadAntennaPatternFromFile().

◆ m_uniformRandomVariable

Ptr<UniformRandomVariable> ns3::SatAntennaGainPattern::m_uniformRandomVariable

private

Uniform random variable used for beam selection.

Definition at line 164 of file satellite-antenna-gain-pattern.h.

Referenced by SatAntennaGainPattern(), GetValidRandomPosition(), and NotifyConstructionCompleted().

◆ m_validPositions

std::vector<std::pair<double, double> > ns3::SatAntennaGainPattern::m_validPositions

private

Container for valid positions.

Latitude
Longitude

Definition at line 153 of file satellite-antenna-gain-pattern.h.

Referenced by SatAntennaGainPattern(), GetValidRandomPosition(), and ReadAntennaPatternFromFile().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-antenna-gain-pattern.h
/builds/sns3/satellite/satellite/model/satellite-antenna-gain-pattern.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SatAntennaGainPattern() [1/2]

◆ SatAntennaGainPattern() [2/2]

◆ ~SatAntennaGainPattern()

Member Function Documentation

◆ GetAntennaGain_lin()

◆ GetCenterLatitude()

◆ GetCenterLongitude()

◆ GetSatelliteOffset()

◆ GetTypeId()

◆ GetValidRandomPosition()

◆ IsValidPosition()

◆ NotifyConstructionCompleted()

◆ ReadAntennaPatternFromFile()

Member Data Documentation

◆ m_antennaPattern

◆ m_centerLatitude

◆ m_centerLongitude

◆ m_defaultSatellitePosition

◆ m_filePathName

◆ m_latDefaultSatellite

◆ m_latInterval

◆ m_latitudes

◆ m_lonDefaultSatellite

◆ m_longitudes

◆ m_lonInterval

◆ m_maxLat

◆ m_maxLon

◆ m_minAcceptableAntennaGainInDb

◆ m_minLat

◆ m_minLon

◆ m_nanStringArray

◆ m_nanStrings

◆ m_uniformRandomVariable

◆ m_validPositions
