ns3::SatArqHeader Class Reference

ARQ header implementation contains the sequence number related to the packet in question. More...

#include "satellite-arq-header.h"

Inheritance diagram for ns3::SatArqHeader:

Collaboration diagram for ns3::SatArqHeader:

Public Member Functions
	SatArqHeader ()
	Constructor. More...
	~SatArqHeader ()
	Destructor for SatArqHeader. More...
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserializes information from buffer to this instance of SatArqHeader. More...
virtual TypeId	GetInstanceTypeId (void) const
	Get the type ID of instance. More...
uint8_t	GetSeqNo () const
	Get sequence number. More...
virtual uint32_t	GetSerializedSize (void) const
	Get serialized size of SatArqHeader. More...
virtual void	Print (std::ostream &os) const
	Print time stamp of this instance of SatArqHeader. More...
virtual void	Serialize (Buffer::Iterator start) const
	Serializes information to buffer from this instance of SatArqHeader. More...
void	SetSeqNo (uint8_t seqNo)
	Set sequence number. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_seqNo
	Sequence number represented by one Byte. More...

Detailed Description

ARQ header implementation contains the sequence number related to the packet in question.

Sequence number is identified with one byte, thus it may range between 0 - 255.

Definition at line 41 of file satellite-arq-header.h.

Constructor & Destructor Documentation

SatArqHeader()

ns3::SatArqHeader::SatArqHeader

(

)

Constructor.

Definition at line 34 of file satellite-arq-header.cc.

~SatArqHeader()

ns3::SatArqHeader::~SatArqHeader

(

)

Destructor for SatArqHeader.

Definition at line 39 of file satellite-arq-header.cc.

Member Function Documentation

Deserialize()

uint32_t ns3::SatArqHeader::Deserialize ( Buffer::Iterator  start )

virtual

Deserializes information from buffer to this instance of SatArqHeader.

Parameters

start

Buffer from which the information is deserialized

Returns

Serialized size of the buffer

Definition at line 67 of file satellite-arq-header.cc.

References GetSerializedSize(), and m_seqNo.

Here is the call graph for this function:

GetInstanceTypeId()

TypeId ns3::SatArqHeader::GetInstanceTypeId ( void  ) const

virtual

Get the type ID of instance.

Returns

the object TypeId

Definition at line 83 of file satellite-arq-header.cc.

References GetTypeId().

Here is the call graph for this function:

GetSeqNo()

uint8_t ns3::SatArqHeader::GetSeqNo

(

)

const

Get sequence number.

Returns

Sequence number

Definition at line 89 of file satellite-arq-header.cc.

References m_seqNo.

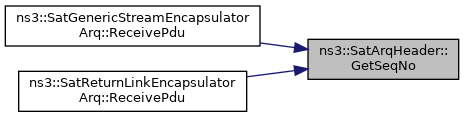

Referenced by ns3::SatGenericStreamEncapsulatorArq::ReceivePdu(), and ns3::SatReturnLinkEncapsulatorArq::ReceivePdu().

Here is the caller graph for this function:

GetSerializedSize()

uint32_t ns3::SatArqHeader::GetSerializedSize ( void  ) const

virtual

Get serialized size of SatArqHeader.

Returns

Serialized size in bytes

Definition at line 52 of file satellite-arq-header.cc.

Referenced by Deserialize().

Here is the caller graph for this function:

GetTypeId()

TypeId ns3::SatArqHeader::GetTypeId ( void  )

static

Get the type ID.

Returns

the object TypeId

Definition at line 44 of file satellite-arq-header.cc.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

Print()

void ns3::SatArqHeader::Print ( std::ostream &  os ) const

virtual

Print time stamp of this instance of SatArqHeader.

Parameters

&os	Output stream to which tag timestamp is printed.

Definition at line 77 of file satellite-arq-header.cc.

References m_seqNo.

Serialize()

void ns3::SatArqHeader::Serialize ( Buffer::Iterator  start ) const

virtual

Serializes information to buffer from this instance of SatArqHeader.

Parameters

start

Buffer in which the information is serialized

Definition at line 59 of file satellite-arq-header.cc.

References m_seqNo.

SetSeqNo()

void ns3::SatArqHeader::SetSeqNo

(

uint8_t

seqNo

)

Set sequence number.

Parameters

seqNo

Sequence number

Definition at line 96 of file satellite-arq-header.cc.

References m_seqNo.

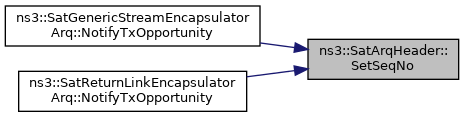

Referenced by ns3::SatGenericStreamEncapsulatorArq::NotifyTxOpportunity(), and ns3::SatReturnLinkEncapsulatorArq::NotifyTxOpportunity().

Here is the caller graph for this function:

Member Data Documentation

m_seqNo

uint8_t ns3::SatArqHeader::m_seqNo

private

Sequence number represented by one Byte.

Definition at line 107 of file satellite-arq-header.h.

Referenced by Deserialize(), GetSeqNo(), Print(), Serialize(), and SetSeqNo().

---

The documentation for this class was generated from the following files:

• /builds/sns3/satellite/satellite/model/satellite-arq-header.h
• /builds/sns3/satellite/satellite/model/satellite-arq-header.cc
