Container of Satellite channels pairs. More...

#include "satellite-beam-channel-pair.h"

Inheritance diagram for ns3::SatChannelPair:

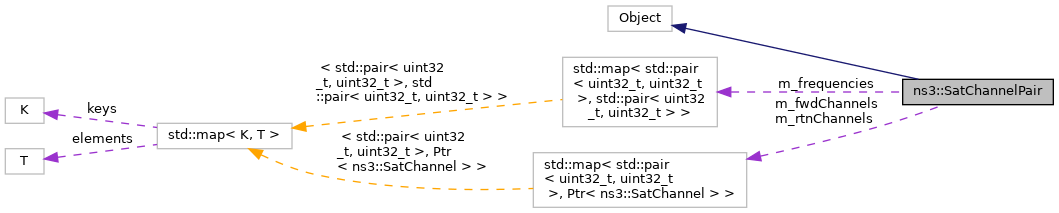

Collaboration diagram for ns3::SatChannelPair:

Public Types
typedef std::pair< Ptr< SatChannel >, Ptr< SatChannel > >	ChannelPair_t

Public Member Functions
	SatChannelPair ()
	Default constructor. More...

virtual	~SatChannelPair ()
	Destructor for SatChannel. More...

ChannelPair_t	GetChannelPair (uint32_t satId, uint32_t beamId) const
	Retrieve the channel pair associated to a beam. More...

Ptr< SatChannel >	GetForwardChannel (uint32_t satId, uint32_t frequencyId) const

Ptr< SatChannel >	GetReturnChannel (uint32_t satId, uint32_t frequencyId) const

bool	HasFwdChannel (uint32_t satId, uint32_t frequencyId) const
	Test if a channel pair has been stored for a given color. More...

bool	HasRtnChannel (uint32_t satId, uint32_t frequencyId) const

void	StoreChannelPair (uint32_t satId, uint32_t beamId, uint32_t fwdFrequencyId, Ptr< SatChannel > fwdChannel, uint32_t rtnFrequencyId, Ptr< SatChannel > rtnChannel)
	Store a pair of SatChannel for the given color and associate the given beam to said color. More...

void	UpdateBeamsForFrequency (uint32_t satId, uint32_t beamdId, uint32_t fwdFrequencyId, uint32_t rtnFrequencyId)
	Associate a new beam to a given color. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
std::map< std::pair< uint32_t, uint32_t >, std::pair< uint32_t, uint32_t > >	m_frequencies

std::map< std::pair< uint32_t, uint32_t >, Ptr< SatChannel > >	m_fwdChannels

std::map< std::pair< uint32_t, uint32_t >, Ptr< SatChannel > >	m_rtnChannels

Detailed Description

Container of Satellite channels pairs.

As a Satellite channel is mapped into a frequency band and act as data transmitter in a single direction, a pair of Satellite channels represent a bidirectionnal link between either an UT and the Satellite or a GW and the Satellite.

The main task of the SatChannelPair is to store such bidirectionnal link information on a per-beam basis.

Definition at line 49 of file satellite-beam-channel-pair.h.

Member Typedef Documentation

◆ ChannelPair_t

typedef std::pair<Ptr<SatChannel>, Ptr<SatChannel> > ns3::SatChannelPair::ChannelPair_t

Definition at line 53 of file satellite-beam-channel-pair.h.

Constructor & Destructor Documentation

◆ SatChannelPair()

ns3::SatChannelPair::SatChannelPair ( )

Default constructor.

Definition at line 46 of file satellite-beam-channel-pair.cc.

◆ ~SatChannelPair()

ns3::SatChannelPair::~SatChannelPair ( )

virtual

Destructor for SatChannel.

Definition at line 54 of file satellite-beam-channel-pair.cc.

References m_frequencies, m_fwdChannels, and m_rtnChannels.

Member Function Documentation

◆ GetChannelPair()

SatChannelPair::ChannelPair_t ns3::SatChannelPair::GetChannelPair	(	uint32_t	satId,
		uint32_t	beamId
	)		const

Retrieve the channel pair associated to a beam.

Parameters

satId	the ID of the satellite
beamId	the ID of the beam

Returns: a pair of SatChannel that has been associated to this beam

Definition at line 63 of file satellite-beam-channel-pair.cc.

References GetForwardChannel(), GetReturnChannel(), and m_frequencies.

Referenced by ns3::SatBeamHelper::InstallFeeder(), and ns3::SatBeamHelper::InstallUser().

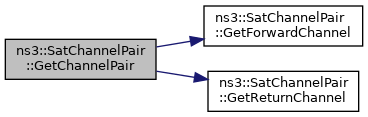

Here is the call graph for this function:

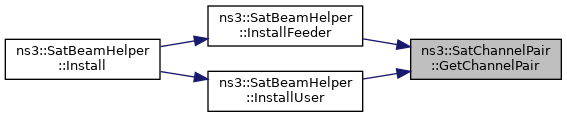

Here is the caller graph for this function:

◆ GetForwardChannel()

Ptr< SatChannel > ns3::SatChannelPair::GetForwardChannel	(	uint32_t	satId,
		uint32_t	frequencyId
	)		const

Definition at line 81 of file satellite-beam-channel-pair.cc.

References m_fwdChannels.

Referenced by GetChannelPair().

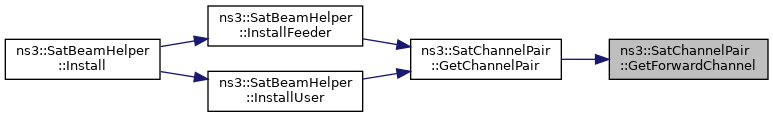

Here is the caller graph for this function:

◆ GetReturnChannel()

Ptr< SatChannel > ns3::SatChannelPair::GetReturnChannel	(	uint32_t	satId,
		uint32_t	frequencyId
	)		const

Definition at line 95 of file satellite-beam-channel-pair.cc.

References m_rtnChannels.

Referenced by GetChannelPair().

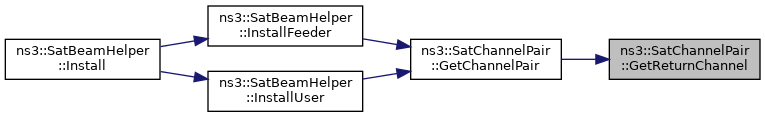

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatChannelPair::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 39 of file satellite-beam-channel-pair.cc.

◆ HasFwdChannel()

bool ns3::SatChannelPair::HasFwdChannel	(	uint32_t	satId,
		uint32_t	frequencyId
	)		const

Test if a channel pair has been stored for a given color.

Parameters

satId	the ID of the satellite
frequencyId	the ID of the color

Returns: whether or not this color already stores a pair of SatChannel

Definition at line 109 of file satellite-beam-channel-pair.cc.

References m_fwdChannels.

◆ HasRtnChannel()

bool ns3::SatChannelPair::HasRtnChannel	(	uint32_t	satId,
		uint32_t	frequencyId
	)		const

Definition at line 119 of file satellite-beam-channel-pair.cc.

References m_rtnChannels.

◆ StoreChannelPair()

void ns3::SatChannelPair::StoreChannelPair	(	uint32_t	satId,
		uint32_t	beamId,
		uint32_t	fwdFrequencyId,
		Ptr< SatChannel >	fwdChannel,
		uint32_t	rtnFrequencyId,
		Ptr< SatChannel >	rtnChannel
	)
