Class for interference input trace container. More...

#include "satellite-interference-input-trace-container.h"

Inheritance diagram for ns3::SatInterferenceInputTraceContainer:

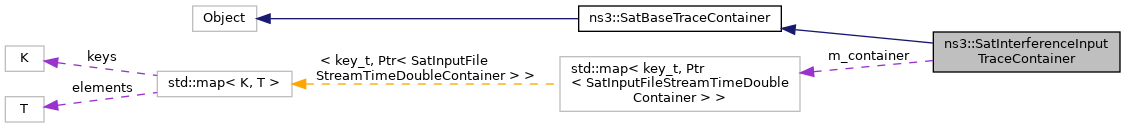

Collaboration diagram for ns3::SatInterferenceInputTraceContainer:

Public Types
typedef std::map< key_t, Ptr< SatInputFileStreamTimeDoubleContainer > >	container_t
	typedef for map of containers
typedef std::pair< Address, SatEnums::ChannelType_t >	key_t
	typedef for map key

Public Member Functions
	SatInterferenceInputTraceContainer ()
	Constructor.
	~SatInterferenceInputTraceContainer ()
	Destructor.
void	DoDispose ()
	Do needed dispose actions.
double	GetInterferenceDensity (key_t key)
	Function for getting the interference density.

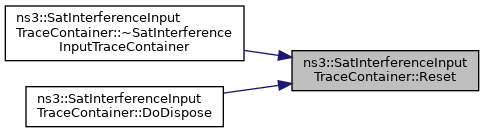

void	Reset ()
	Function for resetting the variables.
Public Member Functions inherited from ns3::SatBaseTraceContainer
	SatBaseTraceContainer ()
	Constructor.
virtual	~SatBaseTraceContainer ()
	Destructor.

Static Public Member Functions
static TypeId	GetTypeId (void)
	NS-3 type id function.
Static Public Member Functions inherited from ns3::SatBaseTraceContainer
static TypeId	GetTypeId (void)
	NS-3 type id function.

Private Member Functions
Ptr< SatInputFileStreamTimeDoubleContainer >	AddNode (std::pair< Address, SatEnums::ChannelType_t > key)
	Function for adding the node to the map.
Ptr< SatInputFileStreamTimeDoubleContainer >	FindNode (key_t key)
	Function for finding the container matching the key.

Private Attributes
container_t	m_container
	Map for containers.

Additional Inherited Members
Static Public Attributes inherited from ns3::SatBaseTraceContainer
static const uint32_t	CSINR_TRACE_DEFAULT_FADING_VALUE_INDEX = 1
	Default sinr value index for composite sinr traces.
static const uint32_t	CSINR_TRACE_DEFAULT_NUMBER_OF_COLUMNS = 2
	Default number of columns for composite sinr traces.
static const uint32_t	FADING_TRACE_DEFAULT_FADING_VALUE_INDEX = 1
	Default fading value index for fading traces.
static const uint32_t	FADING_TRACE_DEFAULT_NUMBER_OF_COLUMNS = 2
	Default number of columns for fading traces.
static const uint32_t	INTF_TRACE_DEFAULT_INTF_DENSITY_INDEX = 1
	Default interference density index for interference traces.
static const uint32_t	INTF_TRACE_DEFAULT_NUMBER_OF_COLUMNS = 2
	Default number of columns for interference traces.
static const uint32_t	POSITION_TRACE_DEFAULT_ALTITUDE_INDEX = 3
	Default altitude value index for positions traces.
static const uint32_t	POSITION_TRACE_DEFAULT_LATITUDE_INDEX = 1
	Default latitude value index for positions traces.
static const uint32_t	POSITION_TRACE_DEFAULT_LONGITUDE_INDEX = 2
	Default longitude value index for positions traces.
static const uint32_t	POSITION_TRACE_DEFAULT_NUMBER_OF_COLUMNS = 4
	Default number of columns for position traces.
static const uint32_t	RX_CNO_TRACE_DEFAULT_NUMBER_OF_COLUMNS = 2
	Default Rx power density index for Rx power traces.
static const uint32_t	RX_CNO_TRACE_DEFAULT_RX_POWER_DENSITY_INDEX = 1
	Default Rx power density index for Rx power traces.
static const uint32_t	RX_POWER_TRACE_DEFAULT_NUMBER_OF_COLUMNS = 2
	Default Rx C/N0 index for C/N0 traces.
static const uint32_t	RX_POWER_TRACE_DEFAULT_RX_POWER_DENSITY_INDEX = 1
	Default Rx C/N0 index for C/N0 traces.
