ns3::SatOnOffApplication Class Reference

This class implements Satellite specific OnOff application. More...

#include "satellite-on-off-application.h"

Inheritance diagram for ns3::SatOnOffApplication:

Collaboration diagram for ns3::SatOnOffApplication:

Public Member Functions
	SatOnOffApplication ()
	Constructor for Satellite specific on-off application.
virtual	~SatOnOffApplication ()
	Destructor Satellite specific on-off application.
void	EnableStatisticTags (bool enableStatus)
	Enable or disable statistic tags.
bool	IsStatisticTagsEnabled () const
	Get enable status of statistic tags.
void	SendPacketTrace (Ptr< const Packet > packet)
	Trace callback for on-off application Tx.

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Attributes
bool	m_isConnectedWithTraceSource
bool	m_isStatisticsTagsEnabled
	EnableStatisticsTags attribute.

Detailed Description

This class implements Satellite specific OnOff application.

It subclasses ns-3 'native' OnOffApplication to provide needed support for statics. Otherwise functionality of original OnOffApplication is not changed.

Definition at line 38 of file satellite-on-off-application.h.

Constructor & Destructor Documentation

SatOnOffApplication()

ns3::SatOnOffApplication::SatOnOffApplication

(

)

Constructor for Satellite specific on-off application.

Definition at line 56 of file satellite-on-off-application.cc.

References m_isConnectedWithTraceSource, and m_isStatisticsTagsEnabled.

~SatOnOffApplication()

ns3::SatOnOffApplication::~SatOnOffApplication ( )

virtual

Destructor Satellite specific on-off application.

Definition at line 63 of file satellite-on-off-application.cc.

Member Function Documentation

EnableStatisticTags()

void ns3::SatOnOffApplication::EnableStatisticTags

(

bool

enableStatus

)

Enable or disable statistic tags.

Parameters

enableStatus

Enable status for statistics

Definition at line 69 of file satellite-on-off-application.cc.

References m_isConnectedWithTraceSource, m_isStatisticsTagsEnabled, and SendPacketTrace().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

GetTypeId()

TypeId ns3::SatOnOffApplication::GetTypeId ( void )

static

Definition at line 40 of file satellite-on-off-application.cc.

References EnableStatisticTags(), and IsStatisticTagsEnabled().

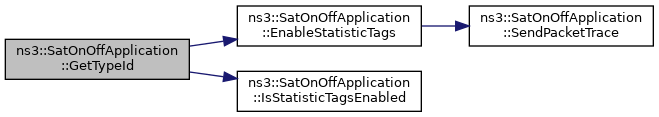

Here is the call graph for this function:

IsStatisticTagsEnabled()

bool ns3::SatOnOffApplication::IsStatisticTagsEnabled

(

)

const

Get enable status of statistic tags.

Returns

true if statistics are enabled, false if statistics are disabled

Definition at line 97 of file satellite-on-off-application.cc.

References m_isStatisticsTagsEnabled.

Referenced by GetTypeId().

Here is the caller graph for this function:

SendPacketTrace()

void ns3::SatOnOffApplication::SendPacketTrace

(

Ptr< const Packet >

packet

)

Trace callback for on-off application Tx.

Parameters

packet

Packet send by on-off application.

Definition at line 103 of file satellite-on-off-application.cc.

Referenced by EnableStatisticTags().

Here is the caller graph for this function:

Member Data Documentation

m_isConnectedWithTraceSource

bool ns3::SatOnOffApplication::m_isConnectedWithTraceSource

private

Definition at line 78 of file satellite-on-off-application.h.

Referenced by SatOnOffApplication(), and EnableStatisticTags().

m_isStatisticsTagsEnabled

bool ns3::SatOnOffApplication::m_isStatisticsTagsEnabled

private

EnableStatisticsTags attribute.

Definition at line 77 of file satellite-on-off-application.h.

Referenced by SatOnOffApplication(), EnableStatisticTags(), and IsStatisticTagsEnabled().

---

The documentation for this class was generated from the following files:

• /builds/sns3/satellite/satellite/model/satellite-on-off-application.h
• /builds/sns3/satellite/satellite/model/satellite-on-off-application.cc
