ns3::SatPositionAllocator Class Referenceabstract

Allocate a set of satellite positions. More...

#include "satellite-position-allocator.h"

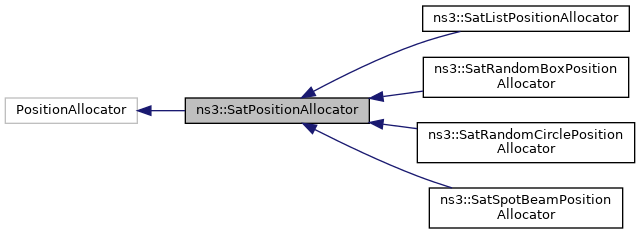

Inheritance diagram for ns3::SatPositionAllocator:
Collaboration diagram for ns3::SatPositionAllocator:

Public Member Functions

 SatPositionAllocator ()
 Default constructor.
virtual ~SatPositionAllocator ()
 Destructor for SatPositionAllocator.
virtual int64_t AssignStreams (int64_t stream)
virtual Vector GetNext (void) const
virtual GeoCoordinate GetNextGeoPosition (uint32_t satId=0) const =0
 Get next position.

Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID.

Private Attributes

bool m_GetAsGeoCoordinates

Detailed Description

Allocate a set of satellite positions.

The allocation strategy is implemented in inherited classes.

This is a pure abstract base class.

Definition at line 45 of file satellite-position-allocator.h.

Constructor & Destructor Documentation

◆ SatPositionAllocator()

ns3::SatPositionAllocator::SatPositionAllocator ( )

Default constructor.

Definition at line 62 of file satellite-position-allocator.cc.

References m_GetAsGeoCoordinates.

Referenced by ns3::SatListPositionAllocator::GetTypeId(), ns3::SatRandomBoxPositionAllocator::GetTypeId(), ns3::SatRandomCirclePositionAllocator::GetTypeId(), and ns3::SatSpotBeamPositionAllocator::GetTypeId().

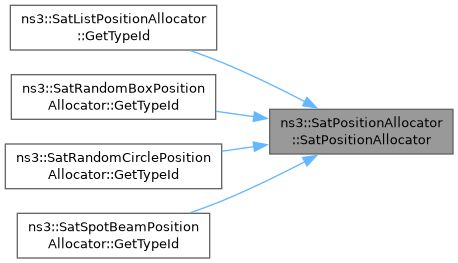

Here is the caller graph for this function:

◆ ~SatPositionAllocator()

ns3::SatPositionAllocator::~SatPositionAllocator ( )
virtual

Destructor for SatPositionAllocator.

Definition at line 67 of file satellite-position-allocator.cc.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::SatPositionAllocator::AssignStreams ( int64_t stream)
virtual

Reimplemented in ns3::SatRandomBoxPositionAllocator, ns3::SatRandomCirclePositionAllocator, and ns3::SatSpotBeamPositionAllocator.

Definition at line 89 of file satellite-position-allocator.cc.

◆ GetNext()

Vector ns3::SatPositionAllocator::GetNext ( void ) const
virtual

Definition at line 72 of file satellite-position-allocator.cc.

References ns3::GeoCoordinate::GetAltitude(), ns3::GeoCoordinate::GetLatitude(), ns3::GeoCoordinate::GetLongitude(), GetNextGeoPosition(), m_GetAsGeoCoordinates, and ns3::GeoCoordinate::ToVector().

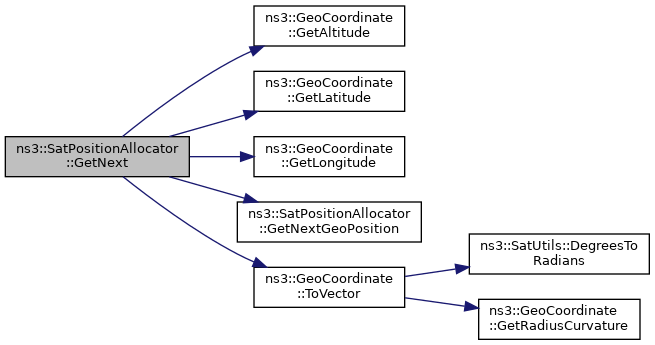

Here is the call graph for this function:

◆ GetNextGeoPosition()

virtual GeoCoordinate ns3::SatPositionAllocator::GetNextGeoPosition ( uint32_t satId = 0) const
pure virtual

Get next position.

Returns
The next chosen position.

Implemented in ns3::SatListPositionAllocator, ns3::SatRandomBoxPositionAllocator, ns3::SatRandomCirclePositionAllocator, and ns3::SatSpotBeamPositionAllocator.

Referenced by GetNext().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatPositionAllocator::GetTypeId ( void )
static

Get the type ID.

Returns
the object TypeId

Definition at line 48 of file satellite-position-allocator.cc.

References m_GetAsGeoCoordinates.

Member Data Documentation

◆ m_GetAsGeoCoordinates

bool ns3::SatPositionAllocator::m_GetAsGeoCoordinates
private

Definition at line 81 of file satellite-position-allocator.h.

Referenced by SatPositionAllocator(), GetNext(), and GetTypeId().

The documentation for this class was generated from the following files:
