Actual physical layer transmission container. More...

#include "satellite-signal-parameters.h"

Inheritance diagram for ns3::SatSignalParameters:

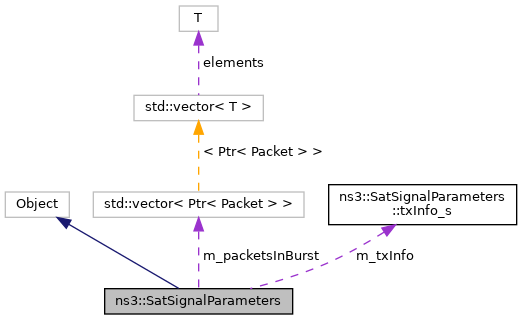

Collaboration diagram for ns3::SatSignalParameters:

Classes
struct	txInfo_s
	Struct for storing the packet specific Tx information. More...

Public Types
typedef std::vector< Ptr< Packet > >	PacketsInBurst_t
	Buffer for transmissions.

Public Member Functions
	SatSignalParameters ()
	default constructor
	SatSignalParameters (const SatSignalParameters &p)
	copy constructor
	~SatSignalParameters ()
Ptr< SatSignalParameters >	Copy ()
double	GetAdditionalInterference ()
double	GetInterferencePower ()
	Get interference power (I).
double	GetInterferencePowerInSatellite ()
	Get interference power in satellite (I).
std::vector< std::pair< double, double > >	GetInterferencePowerInSatellitePerFragment ()
	Get interference power in satellite per packet fragment.
std::vector< std::pair< double, double > >	GetInterferencePowerPerFragment ()
	Get interference power per packet fragment.
double	GetRxAciIfPowerInSatellite ()
double	GetRxExtNoisePowerInSatellite ()
double	GetRxNoisePowerInSatellite ()
double	GetRxPowerInSatellite ()
double	GetSinr ()
bool	HasSinrComputed ()
void	SetInterferencePower (std::vector< std::pair< double, double > > ifPowerPerFragment)
	Set interference power based on packet fragment.
void	SetInterferencePowerInSatellite (std::vector< std::pair< double, double > > ifPowerPerFragment)
	Set interference power in satellite based on packet fragment.
void	SetRxPowersInSatellite (double rxPowerW, double rxNoisePowerW, double rxAciIfPowerW, double rxExtNoisePowerW)
	Set various power after receiving the packet in the satellite.
void	SetSinr (double sinr, double additionalInterference)
	Set computed SINR.

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID.

Public Attributes
uint32_t	m_beamId
	The beam for the packet transmission.
double	m_carrierFreq_hz
	The carrier center frequency for the packet transmission.
uint32_t	m_carrierId
	The carrier for the packet transmission.
SatEnums::ChannelType_t	m_channelType
	The SatChannel instance received the packet.
Time	m_duration
	The duration of the packet transmission.
PacketsInBurst_t	m_packetsInBurst
	The packets being transmitted with this signal i.e.
Ptr< SatPhyTx >	m_phyTx
	The SatPhyTx instance that is making the transmission.
double	m_rxPower_W
	The RX power in Watts.
uint32_t	m_satId
	The sat for the packet transmission.
txInfo_s	m_txInfo
	Transmission information including packet type, modcod and waveform ID.
double	m_txPower_W
	The TX power in Watts.

Private Attributes
Ptr< SatInterferenceParameters >	m_ifParams

Detailed Description

Actual physical layer transmission container.

SatSignalParameters is passed through the SatChannel from the transmitter to the receiver. It includes e.g. the packet container (BBFrame in FWD link, FPDU in RTN link) as well as all the transmission related information (MODCODs, frequency, tx power, etc.).

Definition at line 129 of file satellite-signal-parameters.h.

Member Typedef Documentation

◆ PacketsInBurst_t

typedef std::vector<Ptr<Packet> > ns3::SatSignalParameters::PacketsInBurst_t

Buffer for transmissions.

Buffer just holds data as pointer to packets. Real length of buffer is simulated by duration of the PDU transmission.

Definition at line 150 of file satellite-signal-parameters.h.

Constructor & Destructor Documentation

◆ SatSignalParameters() [1/2]

ns3::SatSignalParameters::SatSignalParameters ( )

default constructor

Definition at line 37 of file satellite-signal-parameters.cc.

References m_beamId, m_carrierFreq_hz, m_carrierId, m_channelType, m_duration, m_ifParams, m_phyTx, m_rxPower_W, m_satId, and m_txPower_W.

Referenced by SatSignalParameters(), and Copy().

Here is the caller graph for this function:

◆ ~SatSignalParameters()

ns3::SatSignalParameters::~SatSignalParameters ( )

Definition at line 80 of file satellite-signal-parameters.cc.

References m_ifParams.

◆ SatSignalParameters() [2/2]

ns3::SatSignalParameters::SatSignalParameters ( const SatSignalParameters & p )

copy constructor

Definition at line 52 of file satellite-signal-parameters.cc.

References SatSignalParameters(), ns3::SatSignalParameters::txInfo_s::crdsaUniquePacketId, ns3::SatSignalParameters::txInfo_s::fecBlockSizeInBytes, ns3::SatSignalParameters::txInfo_s::frameType, m_beamId, m_carrierFreq_hz, m_carrierId, m_channelType, m_duration, m_ifParams, m_packetsInBurst, m_phyTx, m_rxPower_W, m_satId, m_txInfo, m_txPower_W, ns3::SatSignalParameters::txInfo_s::modCod, ns3::SatSignalParameters::txInfo_s::packetType, ns3::SatSignalParameters::txInfo_s::sliceId, and ns3::SatSignalParameters::txInfo_s::waveformId.

Here is the call graph for this function:

Member Function Documentation

◆ Copy()

Ptr< SatSignalParameters > ns3::SatSignalParameters::Copy ( )

Definition at line 87 of file satellite-signal-parameters.cc.

References SatSignalParameters().

Here is the call graph for this function:

◆ GetAdditionalInterference()

double ns3::SatSignalParameters::GetAdditionalInterference ( )

inline

Definition at line 322 of file satellite-signal-parameters.h.

References m_ifParams.

◆ GetInterferencePower()

double ns3::SatSignalParameters::GetInterferencePower ( )

inline

Get interference power (I).

Definition at line 244 of file satellite-signal-parameters.h.

References m_ifParams.

◆ GetInterferencePowerInSatellite()

double ns3::SatSignalParameters::GetInterferencePowerInSatellite ( )

inline

Get interference power in satellite (I).

Definition at line 271 of file satellite-signal-parameters.h.

References m_ifParams.

◆ GetInterferencePowerInSatellitePerFragment()

std::vector< std::pair< double, double > > ns3::SatSignalParameters::GetInterferencePowerInSatellitePerFragment ( )

inline

Get interference power in satellite per packet fragment.

Definition at line 279 of file satellite-signal-parameters.h.

References m_ifParams.

◆ GetInterferencePowerPerFragment()

std::vector< std::pair< double, double > > ns3::SatSignalParameters::GetInterferencePowerPerFragment ( )

inline

Get interference power per packet fragment.

Definition at line 252 of file satellite-signal-parameters.h.

References m_ifParams.

◆ GetRxAciIfPowerInSatellite()

double ns3::SatSignalParameters::GetRxAciIfPowerInSatellite ( )

inline

Definition at line 302 of file satellite-signal-parameters.h.

References m_ifParams.

◆ GetRxExtNoisePowerInSatellite()

double ns3::SatSignalParameters::GetRxExtNoisePowerInSatellite ( )

inline

Definition at line 307 of file satellite-signal-parameters.h.

References m_ifParams.

◆ GetRxNoisePowerInSatellite()

double ns3::SatSignalParameters::GetRxNoisePowerInSatellite ( )

inline

Definition at line 297 of file satellite-signal-parameters.h.

References m_ifParams.

◆ GetRxPowerInSatellite()

double ns3::SatSignalParameters::GetRxPowerInSatellite ( )

inline

Definition at line 292 of file satellite-signal-parameters.h.

References m_ifParams.

◆ GetSinr()

double ns3::SatSignalParameters::GetSinr ( )

inline

Definition at line 317 of file satellite-signal-parameters.h.

References m_ifParams.

◆ GetTypeId()

TypeId ns3::SatSignalParameters::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 96 of file satellite-signal-parameters.cc.

◆ HasSinrComputed()

bool ns3::SatSignalParameters::HasSinrComputed ( )

inline

Definition at line 327 of file satellite-signal-parameters.h.

References m_ifParams.

◆ SetInterferencePower()

void ns3::SatSignalParameters::SetInterferencePower ( std::vector< std::pair< double, double > > ifPowerPerFragment )

inline

Set interference power based on packet fragment.

Parameters

ifPowerPerFragment

Definition at line 235 of file satellite-signal-parameters.h.

References m_ifParams, and ns3::SatUtils::ScalarProduct().

Here is the call graph for this function:

◆ SetInterferencePowerInSatellite()

void ns3::SatSignalParameters::SetInterferencePowerInSatellite ( std::vector< std::pair< double, double > > ifPowerPerFragment )

inline

Set interference power in satellite based on packet fragment.

Parameters

ifPowerPerFragment

Definition at line 261 of file satellite-signal-parameters.h.

References m_ifParams, and ns3::SatUtils::ScalarProduct().

Here is the call graph for this function:

◆ SetRxPowersInSatellite()

void ns3::SatSignalParameters::SetRxPowersInSatellite	(	double	rxPowerW,
		double	rxNoisePowerW,
		double	rxAciIfPowerW,
		double	rxExtNoisePowerW )

Set various power after receiving the packet in the satellite.

Definition at line 103 of file satellite-signal-parameters.cc.

References m_ifParams.

◆ SetSinr()

void ns3::SatSignalParameters::SetSinr	(	double	sinr,
		double	additionalInterference )

Set computed SINR.

Definition at line 115 of file satellite-signal-parameters.cc.

References m_ifParams.

Member Data Documentation

◆ m_beamId

uint32_t ns3::SatSignalParameters::m_beamId

The beam for the packet transmission.

Definition at line 186 of file satellite-signal-parameters.h.

Referenced by SatSignalParameters(), and SatSignalParameters().

◆ m_carrierFreq_hz

double ns3::SatSignalParameters::m_carrierFreq_hz

The carrier center frequency for the packet transmission.

Definition at line 196 of file satellite-signal-parameters.h.

Referenced by SatSignalParameters(), and SatSignalParameters().

◆ m_carrierId

uint32_t ns3::SatSignalParameters::m_carrierId

The carrier for the packet transmission.

Definition at line 191 of file satellite-signal-parameters.h.

Referenced by SatSignalParameters(), and SatSignalParameters().

◆ m_channelType

SatEnums::ChannelType_t ns3::SatSignalParameters::m_channelType

The SatChannel instance received the packet.

Definition at line 224 of file satellite-signal-parameters.h.

Referenced by SatSignalParameters(), and SatSignalParameters().

◆ m_duration

Time ns3::SatSignalParameters::m_duration

The duration of the packet transmission.

Definition at line 202 of file satellite-signal-parameters.h.

Referenced by SatSignalParameters(), and SatSignalParameters().

◆ m_ifParams

Ptr<SatInterferenceParameters> ns3::SatSignalParameters::m_ifParams

private

◆ m_packetsInBurst

PacketsInBurst_t ns3::SatSignalParameters::m_packetsInBurst

The packets being transmitted with this signal i.e.

this is transmit buffer including packet pointers.

Definition at line 176 of file satellite-signal-parameters.h.

Referenced by SatSignalParameters().

◆ m_phyTx

Ptr<SatPhyTx> ns3::SatSignalParameters::m_phyTx

The SatPhyTx instance that is making the transmission.

Definition at line 219 of file satellite-signal-parameters.h.

Referenced by SatSignalParameters(), and SatSignalParameters().

◆ m_rxPower_W

double ns3::SatSignalParameters::m_rxPower_W

The RX power in Watts.

Definition at line 214 of file satellite-signal-parameters.h.

Referenced by SatSignalParameters(), and SatSignalParameters().

◆ m_satId

uint32_t ns3::SatSignalParameters::m_satId

The sat for the packet transmission.

Definition at line 181 of file satellite-signal-parameters.h.

Referenced by SatSignalParameters(), and SatSignalParameters().

◆ m_txInfo

txInfo_s ns3::SatSignalParameters::m_txInfo

Transmission information including packet type, modcod and waveform ID.

Definition at line 229 of file satellite-signal-parameters.h.

Referenced by SatSignalParameters().

◆ m_txPower_W

double ns3::SatSignalParameters::m_txPower_W

The TX power in Watts.

Equivalent Isotropically Radiated Power (EIRP).

Definition at line 208 of file satellite-signal-parameters.h.

Referenced by SatSignalParameters(), and SatSignalParameters().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-signal-parameters.h
/builds/sns3/satellite/satellite/model/satellite-signal-parameters.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Private Attributes

Detailed Description

Member Typedef Documentation

◆ PacketsInBurst_t

Constructor & Destructor Documentation

◆ SatSignalParameters() [1/2]

◆ ~SatSignalParameters()

◆ SatSignalParameters() [2/2]

Member Function Documentation

◆ Copy()

◆ GetAdditionalInterference()

◆ GetInterferencePower()

◆ GetInterferencePowerInSatellite()

◆ GetInterferencePowerInSatellitePerFragment()

◆ GetInterferencePowerPerFragment()

◆ GetRxAciIfPowerInSatellite()

◆ GetRxExtNoisePowerInSatellite()

◆ GetRxNoisePowerInSatellite()

◆ GetRxPowerInSatellite()

◆ GetSinr()

◆ GetTypeId()

◆ HasSinrComputed()

◆ SetInterferencePower()

◆ SetInterferencePowerInSatellite()

◆ SetRxPowersInSatellite()

◆ SetSinr()

Member Data Documentation

◆ m_beamId

◆ m_carrierFreq_hz

◆ m_carrierId

◆ m_channelType

◆ m_duration

◆ m_ifParams

◆ m_packetsInBurst

◆ m_phyTx

◆ m_rxPower_W

◆ m_satId

◆ m_txInfo

◆ m_txPower_W
