This abstract class defines and implements interface of configuration for super frames. More...

#include "satellite-frame-conf.h"

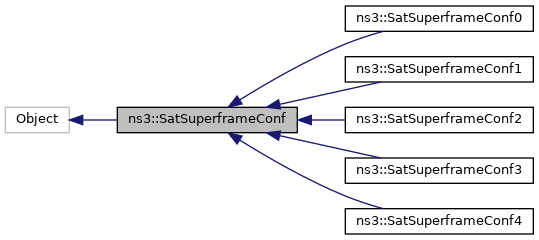

Inheritance diagram for ns3::SatSuperframeConf:

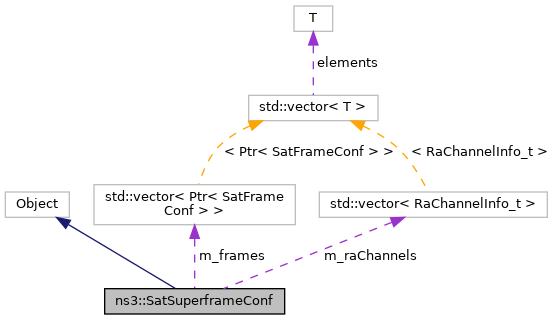

Collaboration diagram for ns3::SatSuperframeConf:

Public Types
enum	ConfigType_t { CONFIG_TYPE_0 , CONFIG_TYPE_1 , CONFIG_TYPE_2 , CONFIG_TYPE_3 , CONFIG_TYPE_4 }
	Enum for configuration types. More...
typedef std::vector< Ptr< SatFrameConf > >	SatFrameConfList_t
	Define type SatFrameConfList_t.
enum	SuperFrameConfiguration_t { SUPER_FRAME_CONFIG_0 , SUPER_FRAME_CONFIG_1 , SUPER_FRAME_CONFIG_2 , SUPER_FRAME_CONFIG_3 , SUPER_FRAME_CONFIG_4 }
	Configurable Super Frames. More...

Public Member Functions
	SatSuperframeConf ()
	Default constructor for SatSuperframeConf.
	~SatSuperframeConf ()
	Destructor for SatSuperframeConf.
void	Configure (double allocatedBandwidthHz, Time targetDuration, Ptr< SatWaveformConf > waveformConf)
	Configures super frame configuration according to set attributes.
virtual void	DoConfigure ()=0
	Do frame specific configuration as needed.
	FRAME_ATTRIBUTE_ACCESSOR_DEFINE (0)
	FRAME_ATTRIBUTE_ACCESSOR_DEFINE (1)
	FRAME_ATTRIBUTE_ACCESSOR_DEFINE (2)
	FRAME_ATTRIBUTE_ACCESSOR_DEFINE (3)
	FRAME_ATTRIBUTE_ACCESSOR_DEFINE (4)
	FRAME_ATTRIBUTE_ACCESSOR_DEFINE (5)
	FRAME_ATTRIBUTE_ACCESSOR_DEFINE (6)
	FRAME_ATTRIBUTE_ACCESSOR_DEFINE (7)
	FRAME_ATTRIBUTE_ACCESSOR_DEFINE (8)
	FRAME_ATTRIBUTE_ACCESSOR_DEFINE (9)
double	GetBandwidthHz () const
	Get bandwidth of the super frame.
double	GetCarrierBandwidthHz (uint32_t carrierId, SatEnums::CarrierBandwidthType_t bandwidthType) const
	Get the bandwidth of the requested carrier.
uint32_t	GetCarrierCount () const
	Get carrier count in the super frame.
Ptr< SatFrameConf >	GetCarrierFrameConf (uint32_t carrierId) const
	Get the frame configuration of the requested carrier.
double	GetCarrierFrequencyHz (uint32_t carrierId) const
	Get the center frequency of the requested carrier.
uint32_t	GetCarrierId (uint8_t frameId, uint16_t frameCarrierId) const
	Get carrier id of the super frame.
SatSuperframeConf::ConfigType_t	GetConfigType () const
	Get frame configuration type to be used in super frame.
Time	GetDuration () const
	Get duration of super frame.
double	GetFrameAllocatedBandwidthHz (uint8_t frameIndex) const
uint8_t	GetFrameAllocationChannelId (uint8_t frameIndex) const
double	GetFrameCarrierAllocatedBandwidthHz (uint8_t frameIndex) const
double	GetFrameCarrierRollOff (uint8_t frameIndex) const
double	GetFrameCarrierSpacing (uint8_t frameIndex) const
uint32_t	GetFrameCarrierSpreadingFactor (uint8_t frameIndex) const
Ptr< SatFrameConf >	GetFrameConf (uint8_t id) const
	Get frame conf of the super frame.
uint8_t	GetFrameCount () const
	Get number of frames to be used in super frame.
uint8_t	GetFrameGuardTimeSymbols (uint8_t frameIndex) const
uint32_t	GetLogonChannelIndex () const
uint8_t	GetMaxSubdivision () const
uint8_t	GetRaChannel (uint32_t carrierId) const
	Get the RA channel id (index) corresponding to given (global) carrier id.
uint8_t	GetRaChannelAllocationChannelId (uint8_t raChannel) const
	Get RA channel allocation channel ID.
uint8_t	GetRaChannelCount () const
	Get the number of the RA channels in super frame configuration.
uint8_t	GetRaChannelFrameId (uint8_t raChannel) const
	Get RA channel frame ID.
uint32_t	GetRaChannelTimeSlotPayloadInBytes (uint8_t raChannel) const
	Get the payload of the RA channel time slot in bytes.
uint16_t	GetRaSlotCount (uint8_t raChannel)
	Get RA channel time slot count.
SatFrameConf::SatTimeSlotConfContainer_t	GetRaSlots (uint8_t raChannel)
	Get RA channel time slots.
bool	IsFrameLogon (uint8_t frameIndex) const
bool	IsFrameRandomAccess (uint8_t frameIndex) const
bool	IsLogonEnabled () const
bool	IsRandomAccessCarrier (uint32_t carrierId) const
	Check if given carrier is random access carrier.
void	SetConfigType (SatSuperframeConf::ConfigType_t type)
	Set frame configuration type to be used in super frame.
void	SetFrameAllocatedBandwidthHz (uint8_t frameIndex, double bandwidthHz)
void	SetFrameAllocationChannelId (uint8_t frameIndex, uint8_t allocationChannel)
void	SetFrameCarrierAllocatedBandwidthHz (uint8_t frameIndex, double bandwidthHz)
void	SetFrameCarrierRollOff (uint8_t frameIndex, double rollOff)
void	SetFrameCarrierSpacing (uint8_t frameIndex, double spacing)
void	SetFrameCarrierSpreadingFactor (uint8_t frameIndex, uint32_t spreadingFactor)
void	SetFrameCount (uint8_t frameCount)
	Set number of frames to be used in super frame.
void	SetFrameGuardTimeSymbols (uint8_t frameIndex, uint8_t guardTimeSymbols)
void	SetFrameLogon (uint8_t frameIndex, bool logon)
void	SetFrameRandomAccess (uint8_t frameIndex, bool randomAccess)
void	SetMaxSubdivision (uint8_t maximumCarrierSubdivision)

Static Public Member Functions
static Ptr< SatSuperframeConf >	CreateSuperframeConf (SuperFrameConfiguration_t conf)
	Create pre-configured super frame configuration-.
static std::string	GetIndexAsFrameName (uint32_t index)
	Method to convert frame index to frame name.
template<class T>
static std::string	GetNumberAsString (T number)
	Template method to convert number to string.
static TypeId	GetTypeId (void)
	Get the type ID.

Static Public Attributes
static const uint8_t	m_maxFrameCount = 10

Private Types
typedef std::tuple< uint8_t, uint8_t, uint8_t >	RaChannelInfo_t

Private Member Functions
void	AddFrameConf (SatFrameConf::SatFrameConfParams_t frameConfParameters, double bandwidthInHz, double rollOff, double spacing, uint32_t spreadingFactor, uint8_t subdivisionLevel)
	Add frame configuration to super frame configuration.
uint8_t	GetCarrierFrame (uint32_t carrierId) const
	Get frame id where given global carrier ID belongs to.

Private Attributes
uint32_t	m_carrierCount
ConfigType_t	m_configType
Time	m_duration
double	m_frameAllocatedBandwidth [m_maxFrameCount]
uint8_t	m_frameAllocationChannel [m_maxFrameCount]
double	m_frameCarrierAllocatedBandwidth [m_maxFrameCount]
double	m_frameCarrierRollOff [m_maxFrameCount]
double	m_frameCarrierSpacing [m_maxFrameCount]
uint32_t	m_frameCarrierSpreadingFactor [m_maxFrameCount]
uint8_t	m_frameCount
uint8_t	m_frameGuardTimeSymbols [m_maxFrameCount]
bool	m_frameIsLogon [m_maxFrameCount]
bool	m_frameIsRandomAccess [m_maxFrameCount]
SatFrameConfList_t	m_frames
uint32_t	m_logonChannelIndex
bool	m_logonEnabled
uint8_t	m_maxCarrierSubdivision
std::vector< RaChannelInfo_t >	m_raChannels
double	m_usedBandwidthHz

Detailed Description

This abstract class defines and implements interface of configuration for super frames.

Definition at line 519 of file satellite-frame-conf.h.

Member Typedef Documentation

◆ RaChannelInfo_t

typedef std::tuple<uint8_t, uint8_t, uint8_t> ns3::SatSuperframeConf::RaChannelInfo_t

private

Definition at line 829 of file satellite-frame-conf.h.

◆ SatFrameConfList_t

typedef std::vector<Ptr<SatFrameConf> > ns3::SatSuperframeConf::SatFrameConfList_t

Define type SatFrameConfList_t.

Definition at line 537 of file satellite-frame-conf.h.

Member Enumeration Documentation

◆ ConfigType_t

enum ns3::SatSuperframeConf::ConfigType_t

Enum for configuration types.

Enumerator
CONFIG_TYPE_0	Configuration type 0.
CONFIG_TYPE_1	Configuration type 1.
CONFIG_TYPE_2	Configuration type 2.
CONFIG_TYPE_3	Configuration type 3.
CONFIG_TYPE_4	Configuration type 4 (ESSA).

Definition at line 542 of file satellite-frame-conf.h.

◆ SuperFrameConfiguration_t

enum ns3::SatSuperframeConf::SuperFrameConfiguration_t

Configurable Super Frames.

Enumerator
SUPER_FRAME_CONFIG_0	SUPER_FRAME_CONFIG_0.
SUPER_FRAME_CONFIG_1	SUPER_FRAME_CONFIG_1.
SUPER_FRAME_CONFIG_2	SUPER_FRAME_CONFIG_2.
SUPER_FRAME_CONFIG_3	SUPER_FRAME_CONFIG_3.
SUPER_FRAME_CONFIG_4	SUPER_FRAME_CONFIG_4.

Definition at line 525 of file satellite-frame-conf.h.

Constructor & Destructor Documentation

◆ SatSuperframeConf()

ns3::SatSuperframeConf::SatSuperframeConf ( )

Default constructor for SatSuperframeConf.

Definition at line 449 of file satellite-frame-conf.cc.

References CONFIG_TYPE_0, m_carrierCount, m_configType, m_duration, m_frameCount, m_logonChannelIndex, m_logonEnabled, and m_usedBandwidthHz.

◆ ~SatSuperframeConf()

ns3::SatSuperframeConf::~SatSuperframeConf ( )

Destructor for SatSuperframeConf.

Definition at line 461 of file satellite-frame-conf.cc.

Member Function Documentation

◆ AddFrameConf()

void ns3::SatSuperframeConf::AddFrameConf	(	SatFrameConf::SatFrameConfParams_t	frameConfParameters,
		double	bandwidthInHz,
		double	rollOff,
		double	spacing,
		uint32_t	spreadingFactor,
		uint8_t	subdivisionLevel )

private

Add frame configuration to super frame configuration.

Parameters

conf	Frame configuration to add super frame configuration

Definition at line 475 of file satellite-frame-conf.cc.

References ns3::SatFrameConf::SatFrameConfParams_t::m_btuConf, m_carrierCount, m_frames, ns3::SatFrameConf::SatFrameConfParams_t::m_isRandomAccess, m_logonChannelIndex, m_logonEnabled, ns3::SatFrameConf::SatFrameConfParams_t::m_parent, and m_raChannels.

Referenced by Configure().

Here is the caller graph for this function:

◆ Configure()

void ns3::SatSuperframeConf::Configure	(	double	allocatedBandwidthHz,
		Time	targetDuration,
		Ptr< SatWaveformConf >	waveformConf )

Configures super frame configuration according to set attributes.

Parameters

allocatedBandwidthHz	Allocated bandwidth for super frame.
targetDuration	Target duration for super frame sequence
waveformConf	Wave Form Configuration

Note, that the superframe duration may be a bit longer than the frame durations, since the frame duration is counted based on the time slot duration.

Definition at line 897 of file satellite-frame-conf.cc.

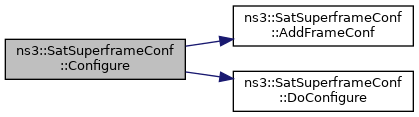

Here is the call graph for this function:

◆ CreateSuperframeConf()

Ptr< SatSuperframeConf > ns3::SatSuperframeConf::CreateSuperframeConf ( SuperFrameConfiguration_t conf )

static

Create pre-configured super frame configuration-.

Parameters

conf	Pre-configured super frame configuration to create

Returns: Pointer to created super frame configuration

Definition at line 413 of file satellite-frame-conf.cc.

References SUPER_FRAME_CONFIG_0, SUPER_FRAME_CONFIG_1, SUPER_FRAME_CONFIG_2, SUPER_FRAME_CONFIG_3, and SUPER_FRAME_CONFIG_4.

Referenced by ns3::SatConf::Configure().

Here is the caller graph for this function:

◆ DoConfigure()

virtual void ns3::SatSuperframeConf::DoConfigure ( )

pure virtual

Do frame specific configuration as needed.

Implemented in ns3::SatSuperframeConf0, ns3::SatSuperframeConf1, ns3::SatSuperframeConf2, ns3::SatSuperframeConf3, and ns3::SatSuperframeConf4.

Referenced by Configure().

Here is the caller graph for this function:

◆ FRAME_ATTRIBUTE_ACCESSOR_DEFINE() [1/10]

ns3::SatSuperframeConf::FRAME_ATTRIBUTE_ACCESSOR_DEFINE ( 0 )

◆ FRAME_ATTRIBUTE_ACCESSOR_DEFINE() [2/10]

ns3::SatSuperframeConf::FRAME_ATTRIBUTE_ACCESSOR_DEFINE ( 1 )

◆ FRAME_ATTRIBUTE_ACCESSOR_DEFINE() [3/10]

ns3::SatSuperframeConf::FRAME_ATTRIBUTE_ACCESSOR_DEFINE ( 2 )

◆ FRAME_ATTRIBUTE_ACCESSOR_DEFINE() [4/10]

ns3::SatSuperframeConf::FRAME_ATTRIBUTE_ACCESSOR_DEFINE ( 3 )

◆ FRAME_ATTRIBUTE_ACCESSOR_DEFINE() [5/10]

ns3::SatSuperframeConf::FRAME_ATTRIBUTE_ACCESSOR_DEFINE ( 4 )

◆ FRAME_ATTRIBUTE_ACCESSOR_DEFINE() [6/10]

ns3::SatSuperframeConf::FRAME_ATTRIBUTE_ACCESSOR_DEFINE ( 5 )

◆ FRAME_ATTRIBUTE_ACCESSOR_DEFINE() [7/10]

ns3::SatSuperframeConf::FRAME_ATTRIBUTE_ACCESSOR_DEFINE ( 6 )

◆ FRAME_ATTRIBUTE_ACCESSOR_DEFINE() [8/10]

ns3::SatSuperframeConf::FRAME_ATTRIBUTE_ACCESSOR_DEFINE ( 7 )

◆ FRAME_ATTRIBUTE_ACCESSOR_DEFINE() [9/10]

ns3::SatSuperframeConf::FRAME_ATTRIBUTE_ACCESSOR_DEFINE ( 8 )

◆ FRAME_ATTRIBUTE_ACCESSOR_DEFINE() [10/10]

ns3::SatSuperframeConf::FRAME_ATTRIBUTE_ACCESSOR_DEFINE ( 9 )

◆ GetBandwidthHz()

double ns3::SatSuperframeConf::GetBandwidthHz ( ) const

inline

Get bandwidth of the super frame.

Returns: The bandwidth of super frame in hertz.

Definition at line 604 of file satellite-frame-conf.h.

References m_usedBandwidthHz.

◆ GetCarrierBandwidthHz()

double ns3::SatSuperframeConf::GetCarrierBandwidthHz	(	uint32_t	carrierId,
		SatEnums::CarrierBandwidthType_t	bandwidthType ) const

Get the bandwidth of the requested carrier.

Parameters

carrierId	Id of the carrier inside super frame which bandwidth is requested.
bandwidthType	Type of bandwidth requested.

Returns: The bandwidth of the requested carrier.

Definition at line 616 of file satellite-frame-conf.cc.

References GetCarrierFrame(), and m_frames.

Here is the call graph for this function:

◆ GetCarrierCount()

uint32_t ns3::SatSuperframeConf::GetCarrierCount ( ) const

Get carrier count in the super frame.

Returns: The super frame carrier count.

Definition at line 567 of file satellite-frame-conf.cc.

References m_carrierCount.

◆ GetCarrierFrame()

uint8_t ns3::SatSuperframeConf::GetCarrierFrame ( uint32_t carrierId ) const

private

Get frame id where given global carrier ID belongs to.

Parameters

carrierId Carried ID which frame ID is requested.

Returns: frame id where given global carrier ID belongs to.

Definition at line 1240 of file satellite-frame-conf.cc.

References m_frames.

Referenced by GetCarrierBandwidthHz(), GetCarrierFrameConf(), GetCarrierFrequencyHz(), GetRaChannel(), and IsRandomAccessCarrier().

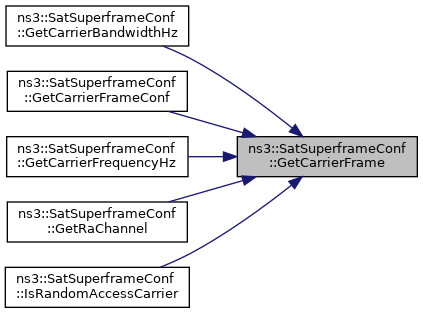

Here is the caller graph for this function:

◆ GetCarrierFrameConf()

Ptr< SatFrameConf > ns3::SatSuperframeConf::GetCarrierFrameConf ( uint32_t carrierId ) const

Get the frame configuration of the requested carrier.

Parameters

carrierId Id of the carrier inside super frame which frame configuration is requested.

Returns: The SatFrameConf of the requested carrier.

Definition at line 627 of file satellite-frame-conf.cc.

References GetCarrierFrame(), and m_frames.

Here is the call graph for this function:

◆ GetCarrierFrequencyHz()

double ns3::SatSuperframeConf::GetCarrierFrequencyHz ( uint32_t carrierId ) const

Get the center frequency of the requested carrier.

Parameters

carrierId Id of the carrier inside super frame which center frequency is requested.

Returns: The center frequency of the requested carrier.

Definition at line 595 of file satellite-frame-conf.cc.

References GetCarrierFrame(), and m_frames.

Here is the call graph for this function:

◆ GetCarrierId()

uint32_t ns3::SatSuperframeConf::GetCarrierId	(	uint8_t	frameId,
		uint16_t	frameCarrierId ) const

Get carrier id of the super frame.

Converts frame specific id to super frame specific id.

Parameters

frameId	Id of the frame requested.
frameCarrierId	Id of the carrier inside frame requested.

Returns: The requested carrier id of the super frame.

Definition at line 575 of file satellite-frame-conf.cc.

References m_frames.

◆ GetConfigType()

SatSuperframeConf::ConfigType_t ns3::SatSuperframeConf::GetConfigType ( ) const

inline

Get frame configuration type to be used in super frame.

Returns: the frame configuration type

Definition at line 788 of file satellite-frame-conf.h.

References m_configType.

◆ GetDuration()

Time ns3::SatSuperframeConf::GetDuration ( ) const

inline

Get duration of super frame.

Returns: The duration of super frame in seconds.

Definition at line 614 of file satellite-frame-conf.h.

References m_duration.

◆ GetFrameAllocatedBandwidthHz()

double ns3::SatSuperframeConf::GetFrameAllocatedBandwidthHz ( uint8_t frameIndex ) const

Definition at line 764 of file satellite-frame-conf.cc.

References m_frameAllocatedBandwidth, and m_maxFrameCount.

◆ GetFrameAllocationChannelId()

uint8_t ns3::SatSuperframeConf::GetFrameAllocationChannelId ( uint8_t frameIndex ) const

Definition at line 855 of file satellite-frame-conf.cc.

References m_frameAllocationChannel, and m_maxFrameCount.

◆ GetFrameCarrierAllocatedBandwidthHz()

double ns3::SatSuperframeConf::GetFrameCarrierAllocatedBandwidthHz ( uint8_t frameIndex ) const

Definition at line 777 of file satellite-frame-conf.cc.

References m_frameCarrierAllocatedBandwidth, and m_maxFrameCount.

◆ GetFrameCarrierRollOff()

double ns3::SatSuperframeConf::GetFrameCarrierRollOff ( uint8_t frameIndex ) const

Definition at line 803 of file satellite-frame-conf.cc.

References m_frameCarrierRollOff, and m_maxFrameCount.

◆ GetFrameCarrierSpacing()

double ns3::SatSuperframeConf::GetFrameCarrierSpacing ( uint8_t frameIndex ) const

Definition at line 790 of file satellite-frame-conf.cc.

References m_frameCarrierSpacing, and m_maxFrameCount.

◆ GetFrameCarrierSpreadingFactor()

uint32_t ns3::SatSuperframeConf::GetFrameCarrierSpreadingFactor ( uint8_t frameIndex ) const

Definition at line 816 of file satellite-frame-conf.cc.

References m_frameCarrierSpreadingFactor, and m_maxFrameCount.

◆ GetFrameConf()

Ptr< SatFrameConf > ns3::SatSuperframeConf::GetFrameConf ( uint8_t id ) const

Get frame conf of the super frame.

Parameters

id	Id of the frame requested.

Returns: The requested frame conf of the super frame.

Definition at line 559 of file satellite-frame-conf.cc.

References m_frames.

◆ GetFrameCount()

uint8_t ns3::SatSuperframeConf::GetFrameCount ( ) const

inline

Get number of frames to be used in super frame.

Returns: Number of the frames in use

Definition at line 769 of file satellite-frame-conf.h.

References m_frameCount.

◆ GetFrameGuardTimeSymbols()

uint8_t ns3::SatSuperframeConf::GetFrameGuardTimeSymbols ( uint8_t frameIndex ) const

Definition at line 868 of file satellite-frame-conf.cc.

References m_frameGuardTimeSymbols, and m_maxFrameCount.

◆ GetIndexAsFrameName()

std::string ns3::SatSuperframeConf::GetIndexAsFrameName ( uint32_t index )

static

Method to convert frame index to frame name.

Parameters

index index to convert as frame name

Returns: frame name

Definition at line 1114 of file satellite-frame-conf.cc.

References GetNumberAsString().

Here is the call graph for this function:

◆ GetLogonChannelIndex()

uint32_t ns3::SatSuperframeConf::GetLogonChannelIndex ( ) const

Definition at line 889 of file satellite-frame-conf.cc.

References m_logonChannelIndex.

◆ GetMaxSubdivision()

uint8_t ns3::SatSuperframeConf::GetMaxSubdivision ( ) const

inline

Definition at line 798 of file satellite-frame-conf.h.

References m_maxCarrierSubdivision.

◆ GetNumberAsString()

template<class T>

std::string ns3::SatSuperframeConf::GetNumberAsString ( T number )

inlinestatic

Template method to convert number to string.

Parameters

number number to convert as string

Returns: number as string

Definition at line 567 of file satellite-frame-conf.h.

Referenced by GetIndexAsFrameName().

Here is the caller graph for this function:

◆ GetRaChannel()

uint8_t ns3::SatSuperframeConf::GetRaChannel ( uint32_t carrierId ) const

Get the RA channel id (index) corresponding to given (global) carrier id.

Note! In case that carrier id requested does not belong to RA frame, is O eturned.

Parameters

carrierId

Returns: RA channel id

Definition at line 1257 of file satellite-frame-conf.cc.

References GetCarrierFrame(), and m_frames.

Here is the call graph for this function:

◆ GetRaChannelAllocationChannelId()

uint8_t ns3::SatSuperframeConf::GetRaChannelAllocationChannelId ( uint8_t raChannel ) const

Get RA channel allocation channel ID.

Parameters

raChannel RA channel, which allocation channel ID is requested

Returns: allocation channel ID

Definition at line 1071 of file satellite-frame-conf.cc.

References m_raChannels.

◆ GetRaChannelCount()

uint8_t ns3::SatSuperframeConf::GetRaChannelCount ( ) const

Get the number of the RA channels in super frame configuration.

Returns: Number of the RA channels

Definition at line 1045 of file satellite-frame-conf.cc.

References m_raChannels.

◆ GetRaChannelFrameId()

uint8_t ns3::SatSuperframeConf::GetRaChannelFrameId ( uint8_t raChannel ) const

Get RA channel frame ID.

Parameters

raChannel RA channel, which frame ID is requested

Returns: RA channel frame ID

Definition at line 1052 of file satellite-frame-conf.cc.

References m_raChannels.

◆ GetRaChannelTimeSlotPayloadInBytes()

uint32_t ns3::SatSuperframeConf::GetRaChannelTimeSlotPayloadInBytes ( uint8_t raChannel ) const

Get the payload of the RA channel time slot in bytes.

Returns: Payload of the RA channel time slot [bytes]

Definition at line 1090 of file satellite-frame-conf.cc.

References m_frames, and m_raChannels.

◆ GetRaSlotCount()

uint16_t ns3::SatSuperframeConf::GetRaSlotCount ( uint8_t raChannel )

Get RA channel time slot count.

Parameters

raChannel RA channel, which slot count is requested

Returns: RA channel time slot count

Definition at line 1022 of file satellite-frame-conf.cc.

References m_frames, and m_raChannels.

◆ GetRaSlots()

SatFrameConf::SatTimeSlotConfContainer_t ns3::SatSuperframeConf::GetRaSlots ( uint8_t raChannel )

Get RA channel time slots.

Parameters

raChannel RA channel, which slot are requested

Returns: RA channel time slots

Definition at line 999 of file satellite-frame-conf.cc.

References m_frames, and m_raChannels.

◆ GetTypeId()

TypeId ns3::SatSuperframeConf::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 467 of file satellite-frame-conf.cc.

◆ IsFrameLogon()

bool ns3::SatSuperframeConf::IsFrameLogon ( uint8_t frameIndex ) const

Definition at line 842 of file satellite-frame-conf.cc.

References m_frames.

◆ IsFrameRandomAccess()

bool ns3::SatSuperframeConf::IsFrameRandomAccess ( uint8_t frameIndex ) const

Definition at line 829 of file satellite-frame-conf.cc.

References m_frames.

◆ IsLogonEnabled()

bool ns3::SatSuperframeConf::IsLogonEnabled ( ) const

Definition at line 881 of file satellite-frame-conf.cc.

References m_logonEnabled.

◆ IsRandomAccessCarrier()

bool ns3::SatSuperframeConf::IsRandomAccessCarrier ( uint32_t carrierId ) const

Check if given carrier is random access carrier.

Parameters

carrierId Id of the carrier inside super frame which is requested.

Returns: true if carrier is random access, false otherwise

Definition at line 637 of file satellite-frame-conf.cc.

References GetCarrierFrame(), and m_frames.

Here is the call graph for this function:

◆ SetConfigType()

void ns3::SatSuperframeConf::SetConfigType ( SatSuperframeConf::ConfigType_t type )

inline

Set frame configuration type to be used in super frame.

Parameters

type	Index of the frame configuration type

Definition at line 779 of file satellite-frame-conf.h.

References m_configType.

◆ SetFrameAllocatedBandwidthHz()

void ns3::SatSuperframeConf::SetFrameAllocatedBandwidthHz	(	uint8_t	frameIndex,
		double	bandwidthHz )

Definition at line 647 of file satellite-frame-conf.cc.

References m_frameAllocatedBandwidth, and m_maxFrameCount.

◆ SetFrameAllocationChannelId()

void ns3::SatSuperframeConf::SetFrameAllocationChannelId	(	uint8_t	frameIndex,
		uint8_t	allocationChannel )

Definition at line 738 of file satellite-frame-conf.cc.

References m_frameAllocationChannel, and m_maxFrameCount.

◆ SetFrameCarrierAllocatedBandwidthHz()

void ns3::SatSuperframeConf::SetFrameCarrierAllocatedBandwidthHz	(	uint8_t	frameIndex,
		double	bandwidthHz )

Definition at line 660 of file satellite-frame-conf.cc.

References m_frameCarrierAllocatedBandwidth, and m_maxFrameCount.

◆ SetFrameCarrierRollOff()

void ns3::SatSuperframeConf::SetFrameCarrierRollOff	(	uint8_t	frameIndex,
		double	rollOff )

Definition at line 686 of file satellite-frame-conf.cc.

References m_frameCarrierRollOff, and m_maxFrameCount.

◆ SetFrameCarrierSpacing()

void ns3::SatSuperframeConf::SetFrameCarrierSpacing	(	uint8_t	frameIndex,
		double	spacing )

Definition at line 673 of file satellite-frame-conf.cc.

References m_frameCarrierSpacing, and m_maxFrameCount.

◆ SetFrameCarrierSpreadingFactor()

void ns3::SatSuperframeConf::SetFrameCarrierSpreadingFactor	(	uint8_t	frameIndex,
		uint32_t	spreadingFactor )

Definition at line 699 of file satellite-frame-conf.cc.

References m_frameCarrierSpreadingFactor, and m_maxFrameCount.

◆ SetFrameCount()

void ns3::SatSuperframeConf::SetFrameCount ( uint8_t frameCount )

inline

Set number of frames to be used in super frame.

Parameters

frameCount Number of the frames in use

Definition at line 759 of file satellite-frame-conf.h.

References m_frameCount.

◆ SetFrameGuardTimeSymbols()

void ns3::SatSuperframeConf::SetFrameGuardTimeSymbols	(	uint8_t	frameIndex,
		uint8_t	guardTimeSymbols )

Definition at line 751 of file satellite-frame-conf.cc.

References m_frameGuardTimeSymbols, and m_maxFrameCount.

◆ SetFrameLogon()

void ns3::SatSuperframeConf::SetFrameLogon	(	uint8_t	frameIndex,
		bool	logon )

Definition at line 725 of file satellite-frame-conf.cc.

References m_frameIsLogon, and m_maxFrameCount.

◆ SetFrameRandomAccess()

void ns3::SatSuperframeConf::SetFrameRandomAccess	(	uint8_t	frameIndex,
		bool	randomAccess )

Definition at line 712 of file satellite-frame-conf.cc.

References m_frameIsRandomAccess, and m_maxFrameCount.

◆ SetMaxSubdivision()

void ns3::SatSuperframeConf::SetMaxSubdivision ( uint8_t maximumCarrierSubdivision )

inline

Definition at line 793 of file satellite-frame-conf.h.

References m_maxCarrierSubdivision.

Member Data Documentation

◆ m_carrierCount

uint32_t ns3::SatSuperframeConf::m_carrierCount

private

Definition at line 850 of file satellite-frame-conf.h.

Referenced by SatSuperframeConf(), AddFrameConf(), Configure(), and GetCarrierCount().

◆ m_configType

ConfigType_t ns3::SatSuperframeConf::m_configType

private

Definition at line 835 of file satellite-frame-conf.h.

Referenced by SatSuperframeConf(), Configure(), GetConfigType(), and SetConfigType().

◆ m_duration

Time ns3::SatSuperframeConf::m_duration

private

Definition at line 832 of file satellite-frame-conf.h.

Referenced by SatSuperframeConf(), Configure(), and GetDuration().

◆ m_frameAllocatedBandwidth

double ns3::SatSuperframeConf::m_frameAllocatedBandwidth[m_maxFrameCount]

private

Definition at line 838 of file satellite-frame-conf.h.

Referenced by Configure(), GetFrameAllocatedBandwidthHz(), and SetFrameAllocatedBandwidthHz().

◆ m_frameAllocationChannel

uint8_t ns3::SatSuperframeConf::m_frameAllocationChannel[m_maxFrameCount]

private

Definition at line 845 of file satellite-frame-conf.h.

Referenced by Configure(), GetFrameAllocationChannelId(), and SetFrameAllocationChannelId().

◆ m_frameCarrierAllocatedBandwidth

double ns3::SatSuperframeConf::m_frameCarrierAllocatedBandwidth[m_maxFrameCount]

private

Definition at line 839 of file satellite-frame-conf.h.

Referenced by Configure(), GetFrameCarrierAllocatedBandwidthHz(), and SetFrameCarrierAllocatedBandwidthHz().

◆ m_frameCarrierRollOff

double ns3::SatSuperframeConf::m_frameCarrierRollOff[m_maxFrameCount]

private

Definition at line 841 of file satellite-frame-conf.h.

Referenced by Configure(), GetFrameCarrierRollOff(), and SetFrameCarrierRollOff().

◆ m_frameCarrierSpacing

double ns3::SatSuperframeConf::m_frameCarrierSpacing[m_maxFrameCount]

private

Definition at line 840 of file satellite-frame-conf.h.

Referenced by Configure(), GetFrameCarrierSpacing(), and SetFrameCarrierSpacing().

◆ m_frameCarrierSpreadingFactor

uint32_t ns3::SatSuperframeConf::m_frameCarrierSpreadingFactor[m_maxFrameCount]

private

Definition at line 842 of file satellite-frame-conf.h.

Referenced by Configure(), GetFrameCarrierSpreadingFactor(), and SetFrameCarrierSpreadingFactor().

◆ m_frameCount

uint8_t ns3::SatSuperframeConf::m_frameCount

private

Definition at line 834 of file satellite-frame-conf.h.

Referenced by SatSuperframeConf(), Configure(), GetFrameCount(), and SetFrameCount().

◆ m_frameGuardTimeSymbols

uint8_t ns3::SatSuperframeConf::m_frameGuardTimeSymbols[m_maxFrameCount]

private

Definition at line 846 of file satellite-frame-conf.h.

Referenced by Configure(), GetFrameGuardTimeSymbols(), and SetFrameGuardTimeSymbols().

◆ m_frameIsLogon

bool ns3::SatSuperframeConf::m_frameIsLogon[m_maxFrameCount]

private

Definition at line 844 of file satellite-frame-conf.h.

Referenced by Configure(), and SetFrameLogon().

◆ m_frameIsRandomAccess

bool ns3::SatSuperframeConf::m_frameIsRandomAccess[m_maxFrameCount]

private

Definition at line 843 of file satellite-frame-conf.h.

Referenced by Configure(), and SetFrameRandomAccess().

◆ m_frames

SatFrameConfList_t ns3::SatSuperframeConf::m_frames

private

Definition at line 848 of file satellite-frame-conf.h.

Referenced by AddFrameConf(), Configure(), GetCarrierBandwidthHz(), GetCarrierFrame(), GetCarrierFrameConf(), GetCarrierFrequencyHz(), GetCarrierId(), GetFrameConf(), GetRaChannel(), GetRaChannelTimeSlotPayloadInBytes(), GetRaSlotCount(), GetRaSlots(), IsFrameLogon(), IsFrameRandomAccess(), and IsRandomAccessCarrier().

◆ m_logonChannelIndex

uint32_t ns3::SatSuperframeConf::m_logonChannelIndex

private

Definition at line 852 of file satellite-frame-conf.h.

Referenced by SatSuperframeConf(), AddFrameConf(), and GetLogonChannelIndex().

◆ m_logonEnabled

bool ns3::SatSuperframeConf::m_logonEnabled

private

Definition at line 851 of file satellite-frame-conf.h.

Referenced by SatSuperframeConf(), AddFrameConf(), and IsLogonEnabled().

◆ m_maxCarrierSubdivision

uint8_t ns3::SatSuperframeConf::m_maxCarrierSubdivision

private

Definition at line 836 of file satellite-frame-conf.h.

Referenced by Configure(), GetMaxSubdivision(), and SetMaxSubdivision().

◆ m_maxFrameCount

const uint8_t ns3::SatSuperframeConf::m_maxFrameCount = 10

static

Definition at line 551 of file satellite-frame-conf.h.

Referenced by GetFrameAllocatedBandwidthHz(), GetFrameAllocationChannelId(), GetFrameCarrierAllocatedBandwidthHz(), GetFrameCarrierRollOff(), GetFrameCarrierSpacing(), GetFrameCarrierSpreadingFactor(), GetFrameGuardTimeSymbols(), SetFrameAllocatedBandwidthHz(), SetFrameAllocationChannelId(), SetFrameCarrierAllocatedBandwidthHz(), SetFrameCarrierRollOff(), SetFrameCarrierSpacing(), SetFrameCarrierSpreadingFactor(), SetFrameGuardTimeSymbols(), SetFrameLogon(), and SetFrameRandomAccess().

◆ m_raChannels

std::vector<RaChannelInfo_t> ns3::SatSuperframeConf::m_raChannels

private

Definition at line 849 of file satellite-frame-conf.h.

Referenced by AddFrameConf(), Configure(), GetRaChannelAllocationChannelId(), GetRaChannelCount(), GetRaChannelFrameId(), GetRaChannelTimeSlotPayloadInBytes(), GetRaSlotCount(), and GetRaSlots().

◆ m_usedBandwidthHz

double ns3::SatSuperframeConf::m_usedBandwidthHz

private

Definition at line 831 of file satellite-frame-conf.h.

Referenced by SatSuperframeConf(), Configure(), and GetBandwidthHz().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-frame-conf.h
/builds/sns3/satellite/satellite/model/satellite-frame-conf.cc

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ RaChannelInfo_t

◆ SatFrameConfList_t

Member Enumeration Documentation

◆ ConfigType_t

◆ SuperFrameConfiguration_t

Constructor & Destructor Documentation

◆ SatSuperframeConf()

◆ ~SatSuperframeConf()

Member Function Documentation

◆ AddFrameConf()

◆ Configure()

◆ CreateSuperframeConf()

◆ DoConfigure()

◆ FRAME_ATTRIBUTE_ACCESSOR_DEFINE() [1/10]

◆ FRAME_ATTRIBUTE_ACCESSOR_DEFINE() [2/10]

◆ FRAME_ATTRIBUTE_ACCESSOR_DEFINE() [3/10]

◆ FRAME_ATTRIBUTE_ACCESSOR_DEFINE() [4/10]

◆ FRAME_ATTRIBUTE_ACCESSOR_DEFINE() [5/10]

◆ FRAME_ATTRIBUTE_ACCESSOR_DEFINE() [6/10]

◆ FRAME_ATTRIBUTE_ACCESSOR_DEFINE() [7/10]

◆ FRAME_ATTRIBUTE_ACCESSOR_DEFINE() [8/10]

◆ FRAME_ATTRIBUTE_ACCESSOR_DEFINE() [9/10]

◆ FRAME_ATTRIBUTE_ACCESSOR_DEFINE() [10/10]

◆ GetBandwidthHz()

◆ GetCarrierBandwidthHz()

◆ GetCarrierCount()

◆ GetCarrierFrame()

◆ GetCarrierFrameConf()

◆ GetCarrierFrequencyHz()

◆ GetCarrierId()

◆ GetConfigType()

◆ GetDuration()

◆ GetFrameAllocatedBandwidthHz()

◆ GetFrameAllocationChannelId()

◆ GetFrameCarrierAllocatedBandwidthHz()

◆ GetFrameCarrierRollOff()

◆ GetFrameCarrierSpacing()

◆ GetFrameCarrierSpreadingFactor()

◆ GetFrameConf()

◆ GetFrameCount()

◆ GetFrameGuardTimeSymbols()

◆ GetIndexAsFrameName()

◆ GetLogonChannelIndex()

◆ GetMaxSubdivision()

◆ GetNumberAsString()

◆ GetRaChannel()

◆ GetRaChannelAllocationChannelId()

◆ GetRaChannelCount()

◆ GetRaChannelFrameId()

◆ GetRaChannelTimeSlotPayloadInBytes()

◆ GetRaSlotCount()

◆ GetRaSlots()

◆ GetTypeId()

◆ IsFrameLogon()

◆ IsFrameRandomAccess()

◆ IsLogonEnabled()

◆ IsRandomAccessCarrier()

◆ SetConfigType()

◆ SetFrameAllocatedBandwidthHz()

◆ SetFrameAllocationChannelId()

◆ SetFrameCarrierAllocatedBandwidthHz()

◆ SetFrameCarrierRollOff()

◆ SetFrameCarrierSpacing()

◆ SetFrameCarrierSpreadingFactor()

◆ SetFrameCount()

◆ SetFrameGuardTimeSymbols()

◆ SetFrameLogon()

◆ SetFrameRandomAccess()

◆ SetMaxSubdivision()

Member Data Documentation

◆ m_carrierCount
