Tag to store uplink phy info that need to be forwarded to the downlink. More...

#include "satellite-uplink-info-tag.h"

Inheritance diagram for ns3::SatUplinkInfoTag:

Collaboration diagram for ns3::SatUplinkInfoTag:

Public Member Functions
	SatUplinkInfoTag ()
	Default constructor. More...

	SatUplinkInfoTag (Time satelliteReceptionTime, double sinr, double additionalInterference, uint32_t satId, uint32_t beamId, bool isControl)
	Constructor with initialization parameters. More...

virtual void	Deserialize (TagBuffer i)
	Deserializes information from buffer to this instance of SatUplinkInfoTag. More...

double	GetAdditionalInterference (void) const
	Get additional interference to add to compute final SINR. More...

uint32_t	GetBeamId (void) const
	Get the UT beam ID. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the type ID of instance. More...

Time	GetSatelliteReceptionTime (void) const
	Get satellite reception time of packet. More...

uint32_t	GetSatId (void) const
	Get the UT sat ID. More...

virtual uint32_t	GetSerializedSize () const
	Get serialized size of SatUplinkInfoTag. More...

double	GetSinr (void) const
	Get uplink SINR. More...

bool	IsControl (void) const
	Get if packet is a control packet. More...

bool	IsSinrComputed (void) const
	Tell if SINR already computed. More...

virtual void	Print (std::ostream &os) const
	Print time stamp of this instance of SatUplinkInfoTag. More...

virtual void	Serialize (TagBuffer i) const
	Serializes information to buffer from this instance of SatUplinkInfoTag. More...

void	SetBeamId (uint32_t beamId)
	Set the UT beam ID. More...

void	SetIsControl (bool isControl)
	Set if packet is a control packet. More...

void	SetSatelliteReceptionTime (Time satelliteReceptionTime)
	Set satellite reception time of packet. More...

void	SetSatId (uint32_t satId)
	Set the UT sat ID. More...

void	SetSinr (double sinr, double additionalInterference)
	Set uplink SINR. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
double	m_additionalInterference

uint32_t	m_beamId

bool	m_isControl

Time	m_satelliteReceptionTime

uint32_t	m_satId

double	m_sinr

bool	m_sinrComputed

Detailed Description

Tag to store uplink phy info that need to be forwarded to the downlink.

Definition at line 37 of file satellite-uplink-info-tag.h.

Constructor & Destructor Documentation

◆ SatUplinkInfoTag() [1/2]

ns3::SatUplinkInfoTag::SatUplinkInfoTag ( )

Default constructor.

Definition at line 30 of file satellite-uplink-info-tag.cc.

◆ SatUplinkInfoTag() [2/2]

ns3::SatUplinkInfoTag::SatUplinkInfoTag	(	Time	satelliteReceptionTime,
		double	sinr,
		double	additionalInterference,
		uint32_t	satId,
		uint32_t	beamId,
		bool	isControl
	)

Constructor with initialization parameters.

Parameters

satelliteReceptionTime
sinr
additionalInterference	additional interference to add to compute final SINR
satId	Satellite ID of the UT
beamId	Beam ID of the UT
isControl	This is a control packet

Definition at line 42 of file satellite-uplink-info-tag.cc.

Member Function Documentation

◆ Deserialize()

void ns3::SatUplinkInfoTag::Deserialize ( TagBuffer i )

virtual

Deserializes information from buffer to this instance of SatUplinkInfoTag.

Parameters

i	Buffer from which the information is deserialized

Definition at line 94 of file satellite-uplink-info-tag.cc.

References m_additionalInterference, m_beamId, m_isControl, m_satelliteReceptionTime, m_satId, m_sinr, and m_sinrComputed.

◆ GetAdditionalInterference()

double ns3::SatUplinkInfoTag::GetAdditionalInterference ( void ) const

Get additional interference to add to compute final SINR.

Returns: The interference to add

Definition at line 141 of file satellite-uplink-info-tag.cc.

References m_additionalInterference.

◆ GetBeamId()

uint32_t ns3::SatUplinkInfoTag::GetBeamId ( void ) const

Get the UT beam ID.

Returns: Beam ID

Definition at line 165 of file satellite-uplink-info-tag.cc.

References m_beamId.

Referenced by ns3::SatGwMac::Receive(), ns3::SatOrbiterNetDeviceDvb::ReceiveFromIsl(), ns3::SatOrbiterNetDeviceLora::ReceiveFromIsl(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketFeeder(), ns3::SatOrbiterNetDeviceLora::ReceivePacketFeeder(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketUser(), ns3::SatOrbiterNetDeviceLora::ReceivePacketUser(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

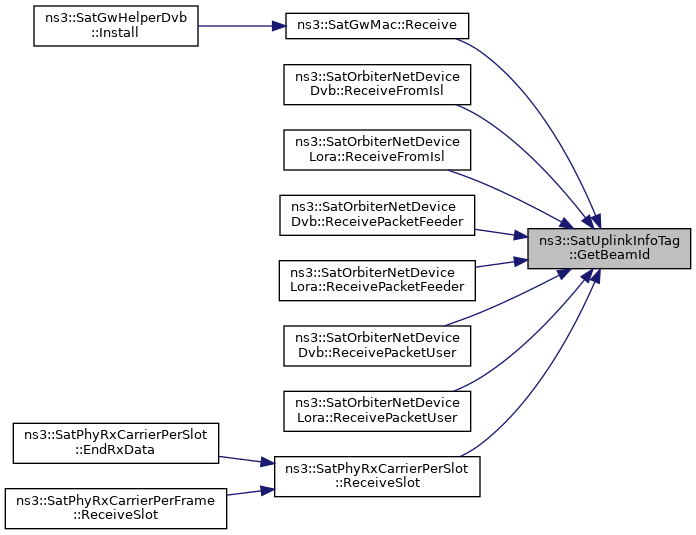

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SatUplinkInfoTag::GetInstanceTypeId ( void ) const

virtual

Get the type ID of instance.

Returns: the object TypeId

Definition at line 68 of file satellite-uplink-info-tag.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetSatelliteReceptionTime()

Time ns3::SatUplinkInfoTag::GetSatelliteReceptionTime ( void ) const

Get satellite reception time of packet.

Returns: Satellite reception time

Definition at line 116 of file satellite-uplink-info-tag.cc.

References m_satelliteReceptionTime.

Referenced by ns3::SatGwMac::Receive().

Here is the caller graph for this function:

◆ GetSatId()

uint32_t ns3::SatUplinkInfoTag::GetSatId ( void ) const

Get the UT sat ID.

Returns: Sat ID

Definition at line 153 of file satellite-uplink-info-tag.cc.

References m_satId.

Referenced by ns3::SatGwMac::Receive(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

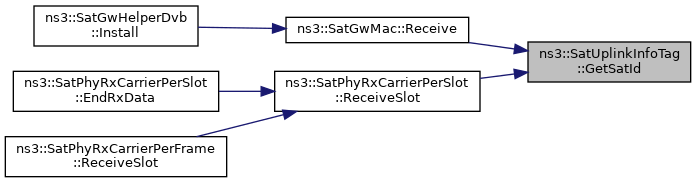

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::SatUplinkInfoTag::GetSerializedSize ( void ) const

virtual

Get serialized size of SatUplinkInfoTag.

Returns: Serialized size in bytes

Definition at line 74 of file satellite-uplink-info-tag.cc.

◆ GetSinr()

double ns3::SatUplinkInfoTag::GetSinr ( void ) const

Get uplink SINR.

Returns: Uplink SINR

Definition at line 128 of file satellite-uplink-info-tag.cc.

References m_sinr.

Referenced by ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

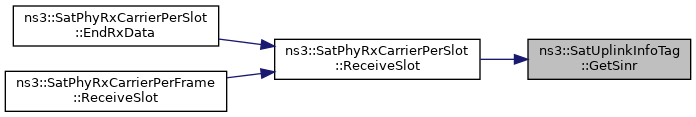

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatUplinkInfoTag::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 60 of file satellite-uplink-info-tag.cc.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

◆ IsControl()

bool ns3::SatUplinkInfoTag::IsControl ( void ) const

Get if packet is a control packet.

Returns: True if this is a control packet

Definition at line 177 of file satellite-uplink-info-tag.cc.

References m_isControl.

Referenced by ns3::SatGwMac::Receive().

Here is the caller graph for this function:

◆ IsSinrComputed()

bool ns3::SatUplinkInfoTag::IsSinrComputed ( void ) const

Tell if SINR already computed.

Returns: true if already computed

Definition at line 147 of file satellite-uplink-info-tag.cc.

References m_sinrComputed.

◆ Print()

void ns3::SatUplinkInfoTag::Print ( std::ostream & os ) const

virtual

Print time stamp of this instance of SatUplinkInfoTag.

Parameters

&os	Output stream to which tag timestamp is printed.

Definition at line 109 of file satellite-uplink-info-tag.cc.

References m_beamId, m_isControl, m_satelliteReceptionTime, m_satId, and m_sinr.

◆ Serialize()

void ns3::SatUplinkInfoTag::Serialize ( TagBuffer i ) const

virtual

Serializes information to buffer from this instance of SatUplinkInfoTag.

Parameters

i	Buffer in which the information is serialized

Definition at line 80 of file satellite-uplink-info-tag.cc.

References m_additionalInterference, m_beamId, m_isControl, m_satelliteReceptionTime, m_satId, m_sinr, and m_sinrComputed.

◆ SetBeamId()

void ns3::SatUplinkInfoTag::SetBeamId ( uint32_t beamId )

Set the UT beam ID.

Parameters

beamId Beam ID

Definition at line 171 of file satellite-uplink-info-tag.cc.

References m_beamId.

Referenced by ns3::SatOrbiterFeederPhy::Receive(), ns3::SatOrbiterUserPhy::Receive(), and ns3::SatOrbiterNetDeviceDvb::SendControlMsgToFeeder().

Here is the caller graph for this function:

◆ SetIsControl()

void ns3::SatUplinkInfoTag::SetIsControl ( bool isControl )

Set if packet is a control packet.

Parameters

isControl True if this is a control packet

Definition at line 183 of file satellite-uplink-info-tag.cc.

References m_isControl.

Referenced by ns3::SatOrbiterUserPhy::Receive().

Here is the caller graph for this function:

◆ SetSatelliteReceptionTime()

void ns3::SatUplinkInfoTag::SetSatelliteReceptionTime ( Time satelliteReceptionTime )

Set satellite reception time of packet.

Parameters

satelliteReceptionTime Satellite reception time

Definition at line 122 of file satellite-uplink-info-tag.cc.

References m_satelliteReceptionTime.

Referenced by ns3::SatOrbiterUserPhy::Receive().

Here is the caller graph for this function:

◆ SetSatId()

void ns3::SatUplinkInfoTag::SetSatId ( uint32_t satId )

Set the UT sat ID.

Parameters

satId Sat ID

Definition at line 159 of file satellite-uplink-info-tag.cc.

References m_satId.

Referenced by ns3::SatOrbiterFeederPhy::Receive(), ns3::SatOrbiterUserPhy::Receive(), and ns3::SatOrbiterNetDeviceDvb::SendControlMsgToFeeder().

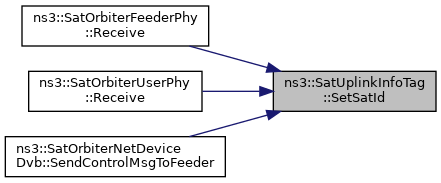

Here is the caller graph for this function:

◆ SetSinr()

void ns3::SatUplinkInfoTag::SetSinr	(	double	sinr,
		double	additionalInterference
	)

Set uplink SINR.

Parameters

sinr	Uplink SINR
additionalInterference	additional interference to add to compute final SINR

Definition at line 134 of file satellite-uplink-info-tag.cc.

References m_additionalInterference, and m_sinr.

Referenced by ns3::SatPhyRxCarrierPerWindow::CalculatePacketInterferenceVectors(), ns3::SatPhyRxCarrierMarsala::PerformMarsala(), ns3::SatPhyRxCarrierPerFrame::ProcessReceivedCrdsaPacket(), ns3::SatPhyRxCarrierPerSlot::ReceiveSlot(), and ns3::SatOrbiterNetDeviceDvb::SendControlMsgToFeeder().

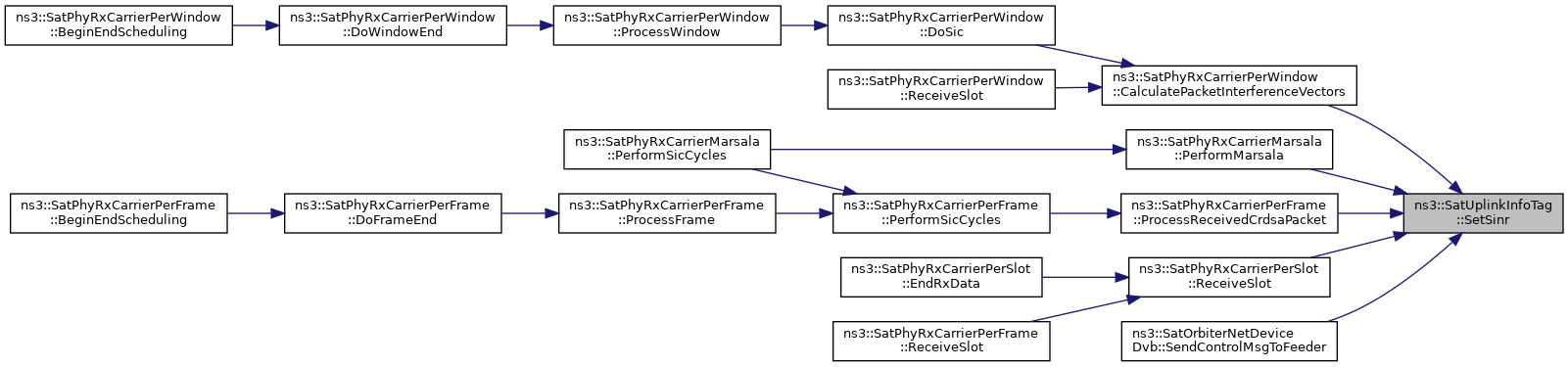

Here is the caller graph for this function:

Member Data Documentation

◆ m_additionalInterference

double ns3::SatUplinkInfoTag::m_additionalInterference

private

Definition at line 173 of file satellite-uplink-info-tag.h.

Referenced by Deserialize(), GetAdditionalInterference(), Serialize(), and SetSinr().

◆ m_beamId

uint32_t ns3::SatUplinkInfoTag::m_beamId

private

Definition at line 176 of file satellite-uplink-info-tag.h.

Referenced by Deserialize(), GetBeamId(), Print(), Serialize(), and SetBeamId().

◆ m_isControl

bool ns3::SatUplinkInfoTag::m_isControl

private

Definition at line 177 of file satellite-uplink-info-tag.h.

Referenced by Deserialize(), IsControl(), Print(), Serialize(), and SetIsControl().

◆ m_satelliteReceptionTime

Time ns3::SatUplinkInfoTag::m_satelliteReceptionTime

private

Definition at line 171 of file satellite-uplink-info-tag.h.

Referenced by Deserialize(), GetSatelliteReceptionTime(), Print(), Serialize(), and SetSatelliteReceptionTime().

◆ m_satId

uint32_t ns3::SatUplinkInfoTag::m_satId

private

Definition at line 175 of file satellite-uplink-info-tag.h.

Referenced by Deserialize(), GetSatId(), Print(), Serialize(), and SetSatId().

◆ m_sinr

double ns3::SatUplinkInfoTag::m_sinr

private

Definition at line 172 of file satellite-uplink-info-tag.h.

Referenced by Deserialize(), GetSinr(), Print(), Serialize(), and SetSinr().

◆ m_sinrComputed

bool ns3::SatUplinkInfoTag::m_sinrComputed

private

Definition at line 174 of file satellite-uplink-info-tag.h.

Referenced by Deserialize(), IsSinrComputed(), and Serialize().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-uplink-info-tag.h
/builds/sns3/satellite/satellite/model/satellite-uplink-info-tag.cc
