A helper to make it easier to create example simulation cases. More...

#include "simulation-helper.h"

Inheritance diagram for ns3::SimulationHelper:

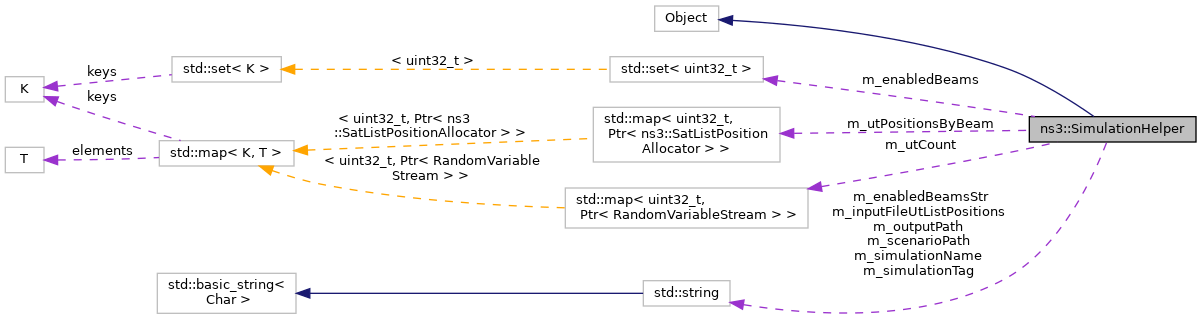

Collaboration diagram for ns3::SimulationHelper:

Public Types
enum	CrTxConf_t { CR_NOT_CONFIGURED , CR_PERIODIC_CONTROL , CR_SLOTTED_ALOHA , CR_CRDSA_LOOSE_RC_0 }

Public Member Functions
	SimulationHelper ()
	Default constructor, which is not used.
	SimulationHelper (std::string simulationName)
	Contructor for simulation helper.
virtual	~SimulationHelper ()
	Destructor.
void	AddDefaultUiArguments (CommandLine &cmd)
	Add default command line arguments for the simulation.
void	AddDefaultUiArguments (CommandLine &cmd, std::string &xmlInputFile)
	Add default command line arguments for the simulation.
void	ConfigureAttributesFromFile (std::string filePath, bool overrideManualConfiguration=true)
	Configure this instance after reading input attributes from XML file.
void	ConfigureFrame (uint32_t superFrameId, double bw, double carrierBw, double rollOff, double carrierSpacing, bool isRandomAccess=false)
	Configure a frame for a certain superframe id.
void	ConfigureFrequencyBands ()
	Configure the default setting for the forward and return link frequencies.
void	ConfigureFwdLinkBeamHopping ()
	Configure the beam hopping functionality for the FWD link.
void	ConfigureLinkBudget ()
	Configure all link budget related attributes.
void	CreateDefaultFwdLinkStats ()
	Create stats collectors if needed and set default statistics settings for both FWD link.
void	CreateDefaultRtnLinkStats ()
	Create stats collectors if needed and set default statistics settings for both RTN link.
void	CreateDefaultStats ()
	Create stats collectors and set default statistics settings for both FWD and RTN links.
Ptr< SatHelper >	CreateSatScenario (SatHelper::PreDefinedScenario_t scenario=SatHelper::NONE, const std::string &mobileUtsFolder="")
	Create the satellite scenario.
void	DisableAcm (SatEnums::SatLinkDir_t dir)
	Disable ACM for a simulation direction.
void	DisableAllCapacityAssignmentCategories ()
	Disable all capacity allocation categories: CRA/VBDC/RBDC.
void	DisableFca ()
	Disable free capacity allocation.
void	DisableProgressLogs ()
	Disables simulation progress logs.
void	DisableRandomAccess ()
	Disable random access.
void	DoDispose (void)
	Disposing.
void	EnableAcm (SatEnums::SatLinkDir_t dir)
	Enable ACM for a simulation direction.
void	EnableArq (SatEnums::SatLinkDir_t dir)
	Enable ARQ.
void	EnableCrdsa ()
	Enable CRDSA random access.
void	EnableExternalFadingInputTrace ()
	Enable external fading input.
void	EnableFca ()
	Enable free capacity allocation.
void	EnableOnlyConstantRate (uint32_t rcIndex, double rateKbps)
	Enable only CRA for a given RC index.
void	EnableOnlyRbdc (uint32_t rcIndex)
	Enable only RBDC for a given RC index.
void	EnableOnlyVbdc (uint32_t rcIndex)
	Enable only VBDC for a given RC index.
void	EnableOutputTraces ()
	Enable all output traces.
void	EnablePeriodicalControlSlots (Time periodicity)
	Enable periodical control slots.
void	EnableProgressLogs ()
	Enables simulation progress logging.
void	EnableSlottedAloha ()
	Enable slotted ALOHA random access.
void	EnableUtListPositionsFromInputFile (std::string inputFile, bool checkBeams=true)
	Enable reading UT list positions from input file.
const std::set< uint32_t > &	GetBeams ()
	Get enabled beams in integer format.
std::set< uint32_t >	GetBeamSet (void) const
Ptr< SatCnoHelper >	GetCnoHelper ()
	Get the C/N0 helper to customize C/N0 on some nodes.
Ptr< SatGroupHelper >	GetGroupHelper ()
	Get the group helper.
Ptr< SatHelper >	GetSatelliteHelper ()
	If lower layer API access is required, use this to access SatHelper.
Time &	GetSimTime ()
	Get simulation time.
Ptr< SatStatsHelperContainer >	GetStatisticsContainer ()
	Get the statistics container of this helper.
Ptr< SatTrafficHelper >	GetTrafficHelper ()
	Get the traffic helper to create more complex traffics.
void	LoadScenario (std::string name)
	Load a scenario from data submodule.
void	ParseScenarioFolder ()
	parse scenario folder to load all variables that can be
void	ReadInputAttributesFromFile (std::string filePath)
	Read input attributes from XML file.
void	RunSimulation ()
	Run the simulation.
void	SetBeams (const std::string &beamList)
void	SetBeamSet (std::set< uint32_t > beamSet)
void	SetCommonUtPositionAllocator (Ptr< SatListPositionAllocator > posAllocator)
	Set common UT position allocator for all beams.
void	SetCrTxConf (CrTxConf_t crTxConf)
void	SetDefaultValues ()
	Set default values shared by all examples using SimulationHelper.
void	SetErrorModel (SatPhyRxCarrierConf::ErrorModel em, double errorRate=0.0)
	Set simulation error model.
void	SetGwUserCount (uint32_t gwUserCount)
	Set the number of GW users in the scenario.
void	SetIdealPhyParameterization ()
	Set ideal channel/physical layer parameterization.
void	SetInterferenceModel (SatPhyRxCarrierConf::InterferenceModel ifModel, double constantIf=0.0)
	Set simulation interference model.
void	SetOutputPath (std::string path)
	Force a output file path to this simulation instead of default satellite/data/sims/.
void	SetOutputTag (std::string tag)
	Set simulation output tag, which is the basename of the directory where output files are stored.
void	SetSimulationTime (double seconds)
	Set simulation time in seconds.
void	SetSimulationTime (Time time)
	Set simulation time.
void	SetUserCountPerMobileUt (Ptr< RandomVariableStream > rs)
	Set mobile UT count per beam to be taken from a random variable stream.
void	SetUserCountPerMobileUt (uint32_t count)
	Set user count per mobile UT.
void	SetUserCountPerUt (Ptr< RandomVariableStream > rs)
	Set UT count per beam to be taken from a random variable stream.
void	SetUserCountPerUt (uint32_t count)
	Set user count per UT.
void	SetUtCountPerBeam (Ptr< RandomVariableStream > rs)
	Set UT count per beam to be taken from a random variable stream.
void	SetUtCountPerBeam (uint32_t beamId, Ptr< RandomVariableStream > rs)
	Set UT count per beam to be taken from a random variable stream.
void	SetUtCountPerBeam (uint32_t beamId, uint32_t count)
	Set UT count per beam.
void	SetUtCountPerBeam (uint32_t count)
	Set UT count per beam.
void	SetUtPositionAllocatorForBeam (uint32_t beamId, Ptr< SatListPositionAllocator > posAllocator)
	Set a list position allocator for UTs of a specific beam.
std::string	StoreAttributesToFile (std::string fileName, bool outputAttributes=false)
	Store all used attributes.

Static Public Member Functions
static TypeId	GetTypeId (void)
	Derived from Object.

Protected Member Functions
void	EnableRandomAccess ()
	Enable random access.
uint32_t	GetNextUtCount (uint32_t beamId=0) const
	Get next UT count from internal random variable stream.
uint32_t	GetNextUtUserCount () const
	Get next UT user count from internal random variable stream.
bool	HasSinkInstalled (Ptr< Node > node, uint16_t port)
	Check if node has a PacketSink installed at certain port.
bool	IsBeamEnabled (uint32_t beamId) const
	Check if a beam is enabled.
void	ProgressCb ()
	Callback that prints simulation progress to stdout.
void	SetupOutputPath ()
	Check if output path has been set.

Private Attributes
Ptr< SatCnoHelper >	m_cnoHelper
Ptr< SatListPositionAllocator >	m_commonUtPositions
std::set< uint32_t >	m_enabledBeams
std::string	m_enabledBeamsStr
Ptr< SatGroupHelper >	m_groupHelper
std::string	m_inputFileUtListPositions
bool	m_inputFileUtPositionsCheckBeams
uint32_t	m_numberOfConfiguredFrames
std::string	m_outputPath
bool	m_progressLoggingEnabled
EventId	m_progressReportEvent
Time	m_progressUpdateInterval
bool	m_randomAccessConfigured
Ptr< SatHelper >	m_satHelper
std::string	m_scenarioPath
Time	m_simTime
std::string	m_simulationName
std::string	m_simulationTag
Ptr< SatStatsHelperContainer >	m_statContainer
Ptr< SatTrafficHelper >	m_trafficHelper
std::map< uint32_t, Ptr< RandomVariableStream > >	m_utCount
Ptr< RandomVariableStream >	m_utMobileUserCount
std::map< uint32_t, Ptr< SatListPositionAllocator > >	m_utPositionsByBeam
Ptr< RandomVariableStream >	m_utUserCount

Detailed Description

A helper to make it easier to create example simulation cases.

Example usage:

Ptr<SimulationHelper> simulationHelper = CreateObject<SimulationHelper> ("My satellite simulation");

simulationHelper->SetDefaultValues ();

simulationHelper->SetBeams ("28 46 48 50 59"); simulationHelper->SetUtCountPerBeam (20); simulationHelper->SetUserCountPerUt (1); simulationHelper->SetSimulationTime (300);

You may also customize the attribute settings with variety of different public methods grouping several attributes under specific features.

Definition at line 64 of file simulation-helper.h.

Member Enumeration Documentation

◆ CrTxConf_t

enum ns3::SimulationHelper::CrTxConf_t

Enumerator
CR_NOT_CONFIGURED
CR_PERIODIC_CONTROL
CR_SLOTTED_ALOHA
CR_CRDSA_LOOSE_RC_0

Definition at line 512 of file simulation-helper.h.

Constructor & Destructor Documentation

◆ SimulationHelper() [1/2]

ns3::SimulationHelper::SimulationHelper ( )

Default constructor, which is not used.

Definition at line 141 of file simulation-helper.cc.

References m_commonUtPositions, m_enabledBeams, m_enabledBeamsStr, m_inputFileUtListPositions, m_inputFileUtPositionsCheckBeams, m_numberOfConfiguredFrames, m_outputPath, m_progressLoggingEnabled, m_progressUpdateInterval, m_randomAccessConfigured, m_satHelper, m_scenarioPath, m_simTime, m_simulationName, m_statContainer, m_utCount, m_utMobileUserCount, m_utPositionsByBeam, and m_utUserCount.

◆ SimulationHelper() [2/2]

ns3::SimulationHelper::SimulationHelper ( std::string simulationName )

Contructor for simulation helper.

Parameters

simulationName Name of the simulation.

Definition at line 166 of file simulation-helper.cc.

References m_commonUtPositions, m_enabledBeams, m_enabledBeamsStr, m_inputFileUtListPositions, m_inputFileUtPositionsCheckBeams, m_numberOfConfiguredFrames, m_outputPath, m_progressLoggingEnabled, m_progressUpdateInterval, m_randomAccessConfigured, m_satHelper, m_simTime, m_simulationName, m_statContainer, m_utCount, m_utMobileUserCount, m_utPositionsByBeam, and m_utUserCount.

◆ ~SimulationHelper()

ns3::SimulationHelper::~SimulationHelper ( )

virtual

Destructor.

Definition at line 207 of file simulation-helper.cc.

Member Function Documentation

◆ AddDefaultUiArguments() [1/2]

void ns3::SimulationHelper::AddDefaultUiArguments ( CommandLine & cmd )

Add default command line arguments for the simulation.

This method must be called between creation of the CommandLine helper and CommandLine::Parse () call.

Parameters

cmd	Reference to CommandLine helper instance

Definition at line 337 of file simulation-helper.cc.

References m_outputPath.

Referenced by AddDefaultUiArguments().

Here is the caller graph for this function:

◆ AddDefaultUiArguments() [2/2]

void ns3::SimulationHelper::AddDefaultUiArguments	(	CommandLine &	cmd,
		std::string &	xmlInputFile )

Add default command line arguments for the simulation.

This method must be called between creation of the CommandLine helper and CommandLine::Parse () call.

Parameters

cmd	Reference to CommandLine helper instance
xmlInputFile	Reference to string containing XML input file name

Definition at line 328 of file simulation-helper.cc.

References AddDefaultUiArguments().

Here is the call graph for this function:

◆ ConfigureAttributesFromFile()

void ns3::SimulationHelper::ConfigureAttributesFromFile	(	std::string	filePath,
		bool	overrideManualConfiguration = true )

Configure this instance after reading input attributes from XML file.

Parameters

filePath	full path to an Input XML file
overrideManualConfiguration	whether or not to read some configuration (beams, UT count per beam, user count per UT, simulation time) from XML file

Definition at line 1640 of file simulation-helper.cc.

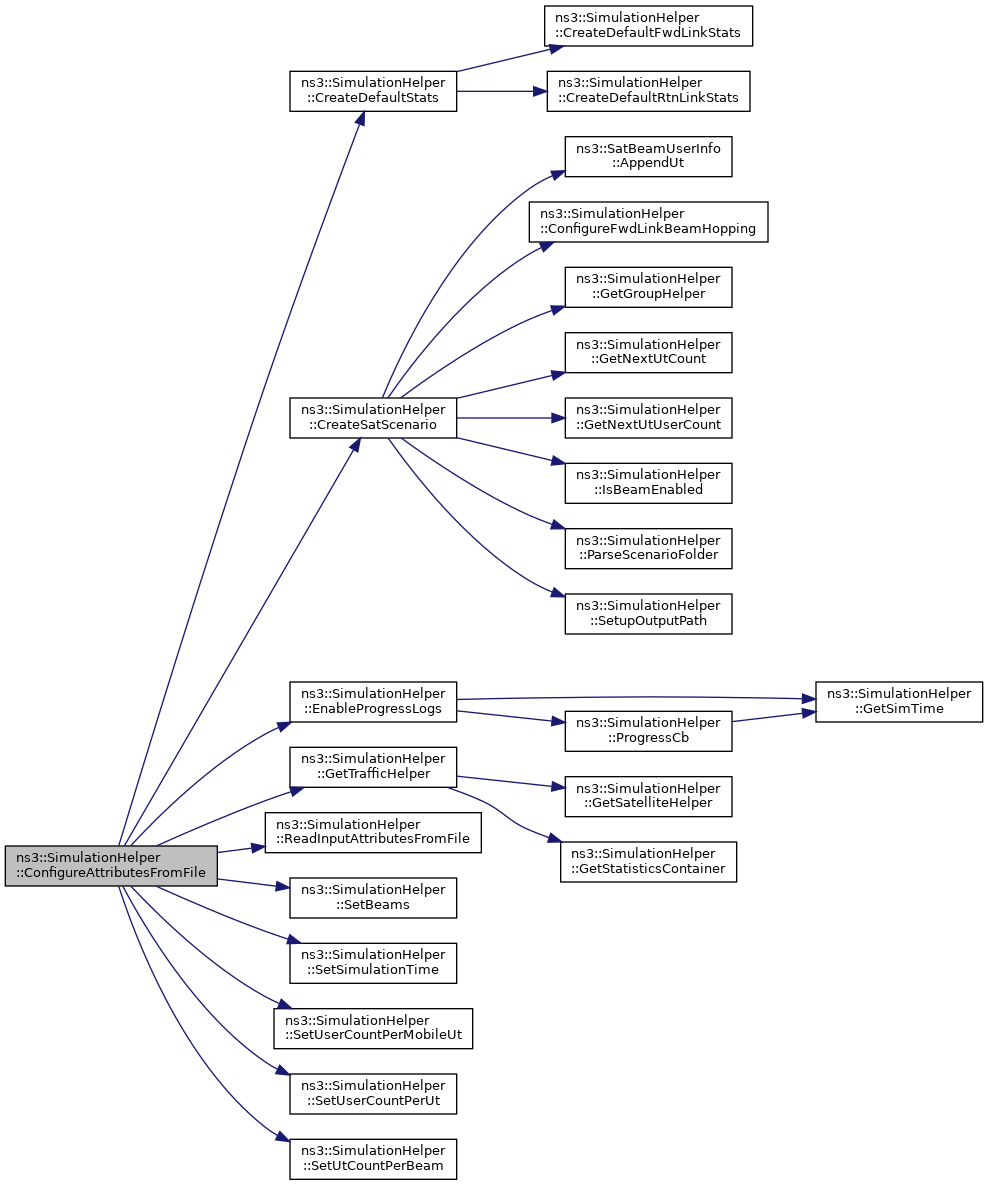

References CreateDefaultStats(), CreateSatScenario(), EnableProgressLogs(), GetTrafficHelper(), m_simTime, ns3::SatHelper::NONE, ReadInputAttributesFromFile(), SetBeams(), SetSimulationTime(), SetUserCountPerMobileUt(), SetUserCountPerUt(), and SetUtCountPerBeam().

Here is the call graph for this function:

◆ ConfigureFrame()

void ns3::SimulationHelper::ConfigureFrame	(	uint32_t	superFrameId,
		double	bw,
		double	carrierBw,
		double	rollOff,
		double	carrierSpacing,
		bool	isRandomAccess = false )

Configure a frame for a certain superframe id.

Parameters

superFrameId	Superframe id (currently always 0)
bw	Frame bandwidth
carrierBw	Bandwidth of the carriers within frame
rollOff	Roll-off
carrierSpacing	Carrier spacing between frames
isRandomAccess	Is this a RA or DA frame

Definition at line 919 of file simulation-helper.cc.

References m_numberOfConfiguredFrames.

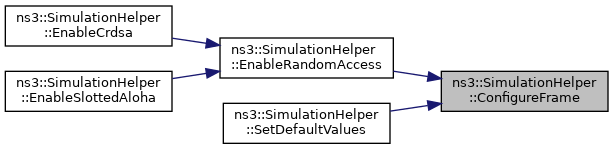

Referenced by EnableRandomAccess(), and SetDefaultValues().

Here is the caller graph for this function:

◆ ConfigureFrequencyBands()

void ns3::SimulationHelper::ConfigureFrequencyBands ( )

Configure the default setting for the forward and return link frequencies.

Definition at line 946 of file simulation-helper.cc.

Referenced by SetDefaultValues().

Here is the caller graph for this function:

◆ ConfigureFwdLinkBeamHopping()

void ns3::SimulationHelper::ConfigureFwdLinkBeamHopping ( )

Configure the beam hopping functionality for the FWD link.

This includes also setup of the proper frequency configuration related to reuse one in FWD link beam hopping.

Definition at line 971 of file simulation-helper.cc.

References ns3::SatBstpController::BH_STATIC, and m_scenarioPath.

Referenced by CreateSatScenario().

Here is the caller graph for this function:

◆ ConfigureLinkBudget()

void ns3::SimulationHelper::ConfigureLinkBudget ( )

Configure all link budget related attributes.

Definition at line 1010 of file simulation-helper.cc.

◆ CreateDefaultFwdLinkStats()

void ns3::SimulationHelper::CreateDefaultFwdLinkStats ( )

Create stats collectors if needed and set default statistics settings for both FWD link.

Adjust this method to your needs.

Definition at line 726 of file simulation-helper.cc.

References m_satHelper, m_statContainer, ns3::SatStatsHelper::OUTPUT_CDF_FILE, ns3::SatStatsHelper::OUTPUT_SCALAR_FILE, and ns3::SatStatsHelper::OUTPUT_SCATTER_FILE.

Referenced by CreateDefaultStats().

Here is the caller graph for this function:

◆ CreateDefaultRtnLinkStats()

void ns3::SimulationHelper::CreateDefaultRtnLinkStats ( )

Create stats collectors if needed and set default statistics settings for both RTN link.

Adjust this method to your needs.

Definition at line 798 of file simulation-helper.cc.

References m_satHelper, m_statContainer, ns3::SatStatsHelper::OUTPUT_CDF_FILE, ns3::SatStatsHelper::OUTPUT_CDF_PLOT, ns3::SatStatsHelper::OUTPUT_SCALAR_FILE, and ns3::SatStatsHelper::OUTPUT_SCATTER_FILE.

Referenced by CreateDefaultStats().

Here is the caller graph for this function:

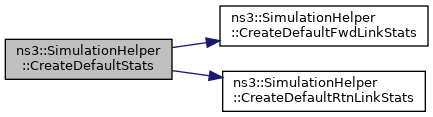

◆ CreateDefaultStats()

void ns3::SimulationHelper::CreateDefaultStats ( )

Create stats collectors and set default statistics settings for both FWD and RTN links.

Definition at line 710 of file simulation-helper.cc.

References CreateDefaultFwdLinkStats(), CreateDefaultRtnLinkStats(), m_satHelper, and m_statContainer.

Referenced by ConfigureAttributesFromFile().

Here is the call graph for this function:

Here is the caller graph for this function:

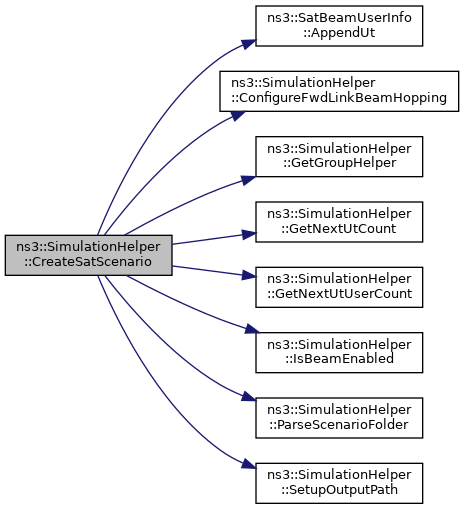

◆ CreateSatScenario()

Ptr< SatHelper > ns3::SimulationHelper::CreateSatScenario	(	SatHelper::PreDefinedScenario_t	scenario = SatHelper::NONE,
		const std::string &	mobileUtsFolder = "" )

Create the satellite scenario.

Parameters

scenario	Kind of scenario to create, if any
mobileUtsFolder	Folder from which to load mobile UT traces, if any

Returns: satHelper Satellite helper, which provides e.g. nodes for application installation.

Definition at line 1198 of file simulation-helper.cc.

References ns3::SatBeamUserInfo::AppendUt(), ConfigureFwdLinkBeamHopping(), ns3::SatHelper::FULL, GetGroupHelper(), ns3::SatEnvVariables::GetInstance(), GetNextUtCount(), GetNextUtUserCount(), IsBeamEnabled(), ns3::SatHelper::LARGER, m_commonUtPositions, m_groupHelper, m_inputFileUtListPositions, m_inputFileUtPositionsCheckBeams, m_satHelper, m_scenarioPath, m_utCount, m_utMobileUserCount, m_utPositionsByBeam, ns3::SatHelper::NONE, ParseScenarioFolder(), SetupOutputPath(), and ns3::SatHelper::SIMPLE.

Referenced by ConfigureAttributesFromFile().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DisableAcm()

void ns3::SimulationHelper::DisableAcm ( SatEnums::SatLinkDir_t dir )

Disable ACM for a simulation direction.

Parameters

dir Direction

Definition at line 677 of file simulation-helper.cc.

References ns3::SatEnums::LD_FORWARD, and ns3::SatEnums::LD_RETURN.

◆ DisableAllCapacityAssignmentCategories()

void ns3::SimulationHelper::DisableAllCapacityAssignmentCategories ( )

Disable all capacity allocation categories: CRA/VBDC/RBDC.

Definition at line 386 of file simulation-helper.cc.

Referenced by SetDefaultValues().

Here is the caller graph for this function:

◆ DisableFca()

void ns3::SimulationHelper::DisableFca ( )

Disable free capacity allocation.

Definition at line 473 of file simulation-helper.cc.

◆ DisableProgressLogs()

void ns3::SimulationHelper::DisableProgressLogs ( )

Disables simulation progress logs.

Definition at line 1610 of file simulation-helper.cc.

References m_progressLoggingEnabled, and m_progressReportEvent.

◆ DisableRandomAccess()

void ns3::SimulationHelper::DisableRandomAccess ( )

Disable random access.

Definition at line 533 of file simulation-helper.cc.

References ns3::SatPhyRxCarrierConf::IF_CONSTANT, ns3::SatPhyRxCarrierConf::RA_COLLISION_NOT_DEFINED, ns3::SatEnums::RA_MODEL_OFF, and ns3::SatPhyRxCarrierConf::SIC_PERFECT.

Referenced by SetDefaultValues().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::SimulationHelper::DoDispose ( void )

Disposing.

Definition at line 213 of file simulation-helper.cc.

References m_commonUtPositions, and m_utPositionsByBeam.

◆ EnableAcm()

void ns3::SimulationHelper::EnableAcm ( SatEnums::SatLinkDir_t dir )

Enable ACM for a simulation direction.

Parameters

dir Direction

Definition at line 647 of file simulation-helper.cc.

References ns3::SatEnums::LD_FORWARD, and ns3::SatEnums::LD_RETURN.

Referenced by SetDefaultValues().

Here is the caller graph for this function:

◆ EnableArq()

void ns3::SimulationHelper::EnableArq ( SatEnums::SatLinkDir_t dir )

Enable ARQ.

Definition at line 491 of file simulation-helper.cc.

References ns3::SatEnums::LD_FORWARD, and ns3::SatEnums::LD_RETURN.

◆ EnableCrdsa()

void ns3::SimulationHelper::EnableCrdsa ( )

Enable CRDSA random access.

Definition at line 562 of file simulation-helper.cc.

References EnableRandomAccess(), and m_randomAccessConfigured.

Here is the call graph for this function:

◆ EnableExternalFadingInputTrace()

void ns3::SimulationHelper::EnableExternalFadingInputTrace ( )

Enable external fading input.

Definition at line 1065 of file simulation-helper.cc.

References ns3::SatEnums::FADING_OFF.

◆ EnableFca()

void ns3::SimulationHelper::EnableFca ( )

Enable free capacity allocation.

Definition at line 465 of file simulation-helper.cc.

◆ EnableOnlyConstantRate()

void ns3::SimulationHelper::EnableOnlyConstantRate	(	uint32_t	rcIndex,
		double	rateKbps )

Enable only CRA for a given RC index.

Parameters

rcIndex	Request class index
rateKbps	CRA rate in kbps

Definition at line 418 of file simulation-helper.cc.

◆ EnableOnlyRbdc()

void ns3::SimulationHelper::EnableOnlyRbdc ( uint32_t rcIndex )

Enable only RBDC for a given RC index.

Parameters

rcIndex Request class index

Definition at line 432 of file simulation-helper.cc.

◆ EnableOnlyVbdc()

void ns3::SimulationHelper::EnableOnlyVbdc ( uint32_t rcIndex )

Enable only VBDC for a given RC index.

Parameters

rcIndex Request class index

Definition at line 448 of file simulation-helper.cc.

Referenced by SetDefaultValues().

Here is the caller graph for this function:

◆ EnableOutputTraces()

void ns3::SimulationHelper::EnableOutputTraces ( )

Enable all output traces.

Definition at line 999 of file simulation-helper.cc.

◆ EnablePeriodicalControlSlots()

void ns3::SimulationHelper::EnablePeriodicalControlSlots ( Time periodicity )

Enable periodical control slots.

Definition at line 481 of file simulation-helper.cc.

Referenced by SetDefaultValues().

Here is the caller graph for this function:

◆ EnableProgressLogs()

void ns3::SimulationHelper::EnableProgressLogs ( )

Enables simulation progress logging.

Progress is logged to stdout in form of 'Progress: (current simulation time)/(simulation length)'.

Definition at line 1589 of file simulation-helper.cc.

References GetSimTime(), m_progressLoggingEnabled, m_progressReportEvent, m_progressUpdateInterval, and ProgressCb().

Referenced by ConfigureAttributesFromFile().

Here is the call graph for this function:

Here is the caller graph for this function:

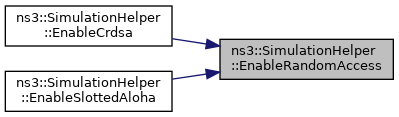

◆ EnableRandomAccess()

void ns3::SimulationHelper::EnableRandomAccess ( )

protected

Enable random access.

Definition at line 578 of file simulation-helper.cc.

References ConfigureFrame(), ns3::SatPhyRxCarrierConf::IF_PER_PACKET, m_randomAccessConfigured, ns3::SatPhyRxCarrierConf::RA_COLLISION_CHECK_AGAINST_SINR, ns3::SatEnums::RA_MODEL_RCS2_SPECIFICATION, and ns3::SatPhyRxCarrierConf::SIC_RESIDUAL.

Referenced by EnableCrdsa(), and EnableSlottedAloha().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EnableSlottedAloha()

void ns3::SimulationHelper::EnableSlottedAloha ( )

Enable slotted ALOHA random access.

Definition at line 547 of file simulation-helper.cc.

References EnableRandomAccess(), and m_randomAccessConfigured.

Here is the call graph for this function:

◆ EnableUtListPositionsFromInputFile()

void ns3::SimulationHelper::EnableUtListPositionsFromInputFile	(	std::string	inputFile,
		bool	checkBeams = true )

Enable reading UT list positions from input file.

Parameters

inputFile	List postion file path (starting from data/)
checkBeam

Definition at line 1105 of file simulation-helper.cc.

References m_inputFileUtListPositions, and m_inputFileUtPositionsCheckBeams.

◆ GetBeams()

const std::set< uint32_t > & ns3::SimulationHelper::GetBeams ( )

Get enabled beams in integer format.

Returns: const set of integers representing beam ids

Definition at line 1535 of file simulation-helper.cc.

References m_enabledBeams.

◆ GetBeamSet()

std::set< uint32_t > ns3::SimulationHelper::GetBeamSet ( void ) const

inline

Definition at line 115 of file simulation-helper.h.

References m_enabledBeams.

◆ GetCnoHelper()

Ptr< SatCnoHelper > ns3::SimulationHelper::GetCnoHelper ( )

Get the C/N0 helper to customize C/N0 on some nodes.

If does not exist, one is created.

Returns: C/N0 Helper

Definition at line 1156 of file simulation-helper.cc.

References m_cnoHelper, and m_satHelper.

◆ GetGroupHelper()

Ptr< SatGroupHelper > ns3::SimulationHelper::GetGroupHelper ( )

Get the group helper.

If does not exist, one is created.

Returns: Group Helper

Definition at line 1143 of file simulation-helper.cc.

References m_groupHelper.

Referenced by CreateSatScenario().

Here is the caller graph for this function:

◆ GetNextUtCount()

uint32_t ns3::SimulationHelper::GetNextUtCount ( uint32_t beamId = 0 ) const

protected

Get next UT count from internal random variable stream.

Definition at line 1558 of file simulation-helper.cc.

References m_utCount.

Referenced by CreateSatScenario().

Here is the caller graph for this function:

◆ GetNextUtUserCount()

uint32_t ns3::SimulationHelper::GetNextUtUserCount ( ) const

inlineprotected

Get next UT user count from internal random variable stream.

Definition at line 546 of file simulation-helper.h.

References m_utUserCount.

Referenced by CreateSatScenario().

Here is the caller graph for this function:

◆ GetSatelliteHelper()

Ptr< SatHelper > ns3::SimulationHelper::GetSatelliteHelper ( )

inline

If lower layer API access is required, use this to access SatHelper.

You MUST have called CreateSatScenario before calling this method.

Definition at line 481 of file simulation-helper.h.

References m_satHelper.

Referenced by GetTrafficHelper().

Here is the caller graph for this function:

◆ GetSimTime()

Time & ns3::SimulationHelper::GetSimTime ( )

inline

Get simulation time.

Returns: errorRate Simulation time

Definition at line 447 of file simulation-helper.h.

References m_simTime.

Referenced by EnableProgressLogs(), and ProgressCb().

Here is the caller graph for this function:

◆ GetStatisticsContainer()

Ptr< SatStatsHelperContainer > ns3::SimulationHelper::GetStatisticsContainer ( )

Get the statistics container of this helper.

If does not exist, one is created.

Returns: Statistics helper container

Definition at line 1114 of file simulation-helper.cc.

References m_satHelper, and m_statContainer.

Referenced by GetTrafficHelper().

Here is the caller graph for this function:

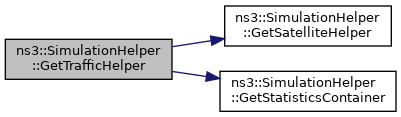

◆ GetTrafficHelper()

Ptr< SatTrafficHelper > ns3::SimulationHelper::GetTrafficHelper ( )

Get the traffic helper to create more complex traffics.

If does not exist, one is created.

Returns: Traffic Helper

Definition at line 1129 of file simulation-helper.cc.

References GetSatelliteHelper(), GetStatisticsContainer(), and m_trafficHelper.

Referenced by ConfigureAttributesFromFile().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SimulationHelper::GetTypeId ( void )

static

Derived from Object.

Definition at line 134 of file simulation-helper.cc.

◆ HasSinkInstalled()

bool ns3::SimulationHelper::HasSinkInstalled	(	Ptr< Node >	node,
		uint16_t	port )

protected

Check if node has a PacketSink installed at certain port.

Definition at line 1443 of file simulation-helper.cc.

◆ IsBeamEnabled()

bool ns3::SimulationHelper::IsBeamEnabled ( uint32_t beamId ) const

protected

Check if a beam is enabled.

Definition at line 1543 of file simulation-helper.cc.

References m_enabledBeams.

Referenced by CreateSatScenario().

Here is the caller graph for this function:

◆ LoadScenario()

void ns3::SimulationHelper::LoadScenario ( std::string name )

Load a scenario from data submodule.

Parameters

name	The scenario name. Must be a folder located in data/scenarios

Definition at line 1619 of file simulation-helper.cc.

References ns3::SatEnvVariables::GetInstance(), and m_scenarioPath.

Here is the call graph for this function:

◆ ParseScenarioFolder()

void ns3::SimulationHelper::ParseScenarioFolder ( )

parse scenario folder to load all variables that can be

Definition at line 1634 of file simulation-helper.cc.

Referenced by CreateSatScenario().

Here is the caller graph for this function:

◆ ProgressCb()

void ns3::SimulationHelper::ProgressCb ( )

protected

Callback that prints simulation progress to stdout.

Definition at line 701 of file simulation-helper.cc.

References GetSimTime(), m_progressReportEvent, m_progressUpdateInterval, and ProgressCb().

Referenced by EnableProgressLogs(), and ProgressCb().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadInputAttributesFromFile()

void ns3::SimulationHelper::ReadInputAttributesFromFile ( std::string filePath )

Read input attributes from XML file.

Parameters

filePath full path to an Input XML file

Definition at line 1672 of file simulation-helper.cc.

Referenced by ConfigureAttributesFromFile().

Here is the caller graph for this function:

◆ RunSimulation()

void ns3::SimulationHelper::RunSimulation ( )

Run the simulation.

Definition at line 1572 of file simulation-helper.cc.

References m_enabledBeamsStr, m_simTime, and m_simulationName.

◆ SetBeams()

void ns3::SimulationHelper::SetBeams ( const std::string & beamList )

Definition at line 1495 of file simulation-helper.cc.

References m_enabledBeams, and m_enabledBeamsStr.

Referenced by ConfigureAttributesFromFile().

Here is the caller graph for this function:

◆ SetBeamSet()

void ns3::SimulationHelper::SetBeamSet ( std::set< uint32_t > beamSet )

Definition at line 1521 of file simulation-helper.cc.

References m_enabledBeams, and m_enabledBeamsStr.

◆ SetCommonUtPositionAllocator()

void ns3::SimulationHelper::SetCommonUtPositionAllocator ( Ptr< SatListPositionAllocator > posAllocator )

Set common UT position allocator for all beams.

The position allocator is used to draw UT position geocoordinates in order of the beam IDs and number of UTs configured. No validation is done.

Parameters

posAllocator

Definition at line 1090 of file simulation-helper.cc.

References m_commonUtPositions.

◆ SetCrTxConf()

void ns3::SimulationHelper::SetCrTxConf ( CrTxConf_t crTxConf )

Definition at line 1464 of file simulation-helper.cc.

References CR_CRDSA_LOOSE_RC_0, CR_PERIODIC_CONTROL, CR_SLOTTED_ALOHA, ns3::SatEnums::RA_MODEL_CRDSA, ns3::SatEnums::RA_MODEL_OFF, and ns3::SatEnums::RA_MODEL_SLOTTED_ALOHA.

◆ SetDefaultValues()

void ns3::SimulationHelper::SetDefaultValues ( )

Set default values shared by all examples using SimulationHelper.

Adjust to your needs.

Definition at line 346 of file simulation-helper.cc.

References ConfigureFrame(), ConfigureFrequencyBands(), DisableAllCapacityAssignmentCategories(), DisableRandomAccess(), ns3::SatPhyRxCarrierConf::EM_AVI, EnableAcm(), EnableOnlyVbdc(), EnablePeriodicalControlSlots(), ns3::SatEnums::FADING_OFF, ns3::SatPhyRxCarrierConf::IF_PER_PACKET, ns3::SatEnums::LD_FORWARD, ns3::SatEnums::LD_RETURN, SetErrorModel(), and SetInterferenceModel().

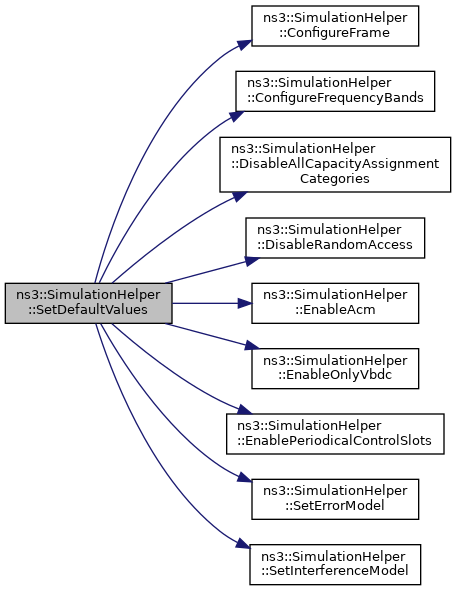

Here is the call graph for this function:

◆ SetErrorModel()

void ns3::SimulationHelper::SetErrorModel	(	SatPhyRxCarrierConf::ErrorModel	em,
		double	errorRate = 0.0 )

Set simulation error model.

Parameters

em	Error model.
errorRate	Static error rate if constant error model used

Definition at line 888 of file simulation-helper.cc.

References ns3::SatPhyRxCarrierConf::EM_CONSTANT.

Referenced by SetDefaultValues(), and SetIdealPhyParameterization().

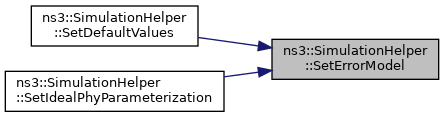

Here is the caller graph for this function:

◆ SetGwUserCount()

void ns3::SimulationHelper::SetGwUserCount ( uint32_t gwUserCount )

Set the number of GW users in the scenario.

Must be called before creation of satellite scenario.

Parameters

gwUserCount

Definition at line 294 of file simulation-helper.cc.

◆ SetIdealPhyParameterization()

void ns3::SimulationHelper::SetIdealPhyParameterization ( )

Set ideal channel/physical layer parameterization.

Definition at line 625 of file simulation-helper.cc.

References ns3::SatPhyRxCarrierConf::EM_NONE, ns3::SatPhyRxCarrierConf::IF_CONSTANT, SetErrorModel(), and SetInterferenceModel().

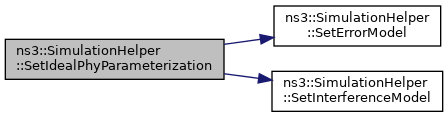

Here is the call graph for this function:

◆ SetInterferenceModel()

void ns3::SimulationHelper::SetInterferenceModel	(	SatPhyRxCarrierConf::InterferenceModel	ifModel,
		double	constantIf = 0.0 )

Set simulation interference model.

Parameters

ifModel	Interference model.
ifEliminationModel	Interference elimination model.
constantIf	Static interference if constant interference model used
residualSamplingError	Sampling error if residual interference elimination model used

Definition at line 903 of file simulation-helper.cc.

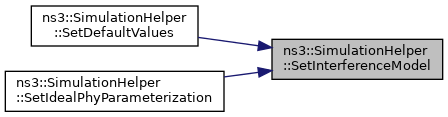

References ns3::SatPhyRxCarrierConf::IF_CONSTANT.

Referenced by SetDefaultValues(), and SetIdealPhyParameterization().

Here is the caller graph for this function:

◆ SetOutputPath()

void ns3::SimulationHelper::SetOutputPath ( std::string path )

Force a output file path to this simulation instead of default satellite/data/sims/.

Parameters

path	Output file path.

Definition at line 319 of file simulation-helper.cc.

References m_outputPath.

◆ SetOutputTag()

void ns3::SimulationHelper::SetOutputTag ( std::string tag )

Set simulation output tag, which is the basename of the directory where output files are stored.

Parameters

tag	Simulation tag.

Definition at line 310 of file simulation-helper.cc.

References m_simulationTag.

◆ SetSimulationTime() [1/2]

void ns3::SimulationHelper::SetSimulationTime ( double seconds )

Set simulation time in seconds.

Parameters

seconds

Definition at line 302 of file simulation-helper.cc.

References m_simTime.

Referenced by ConfigureAttributesFromFile().

Here is the caller graph for this function:

◆ SetSimulationTime() [2/2]

void ns3::SimulationHelper::SetSimulationTime ( Time time )

inline

Set simulation time.

Parameters

time

Definition at line 191 of file simulation-helper.h.

References m_simTime.

◆ SetupOutputPath()

void ns3::SimulationHelper::SetupOutputPath ( )

protected

Check if output path has been set.

If not, then create a default output directory inside satellite/data/sims/campaign-name/tag-name.

Definition at line 1169 of file simulation-helper.cc.

References ns3::SatEnvVariables::GetInstance(), m_outputPath, m_simulationName, and m_simulationTag.

Referenced by CreateSatScenario().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetUserCountPerMobileUt() [1/2]

void ns3::SimulationHelper::SetUserCountPerMobileUt ( Ptr< RandomVariableStream > rs )

Set mobile UT count per beam to be taken from a random variable stream.

Parameters

rs	RandomVariableStream to be used, must implement GetInteger.

Definition at line 286 of file simulation-helper.cc.

References m_utMobileUserCount.

◆ SetUserCountPerMobileUt() [2/2]

void ns3::SimulationHelper::SetUserCountPerMobileUt ( uint32_t count )

Set user count per mobile UT.

Parameters

count Number of users per mobile UT.

Definition at line 277 of file simulation-helper.cc.

References m_utMobileUserCount.

Referenced by ConfigureAttributesFromFile().

Here is the caller graph for this function:

◆ SetUserCountPerUt() [1/2]

void ns3::SimulationHelper::SetUserCountPerUt ( Ptr< RandomVariableStream > rs )

Set UT count per beam to be taken from a random variable stream.

Parameters

rs	RandomVariableStream to be used, must implement GetInteger.

Definition at line 269 of file simulation-helper.cc.

References m_utUserCount.

◆ SetUserCountPerUt() [2/2]

void ns3::SimulationHelper::SetUserCountPerUt ( uint32_t count )

Set user count per UT.

Parameters

count Number of users per UT.

Definition at line 260 of file simulation-helper.cc.

References m_utUserCount.

Referenced by ConfigureAttributesFromFile().

Here is the caller graph for this function:

◆ SetUtCountPerBeam() [1/4]

void ns3::SimulationHelper::SetUtCountPerBeam ( Ptr< RandomVariableStream > rs )

Set UT count per beam to be taken from a random variable stream.

Parameters

rs	RandomVariableStream to be used, must implement GetInteger.

Definition at line 233 of file simulation-helper.cc.

References m_utCount.

◆ SetUtCountPerBeam() [2/4]

void ns3::SimulationHelper::SetUtCountPerBeam	(	uint32_t	beamId,
		Ptr< RandomVariableStream >	rs )

Set UT count per beam to be taken from a random variable stream.

Parameters

rs	RandomVariableStream to be used, must implement GetInteger.

Definition at line 252 of file simulation-helper.cc.

References m_utCount.

◆ SetUtCountPerBeam() [3/4]

void ns3::SimulationHelper::SetUtCountPerBeam	(	uint32_t	beamId,
		uint32_t	count )

Set UT count per beam.

Parameters

count Number of UTs per beam.

Definition at line 241 of file simulation-helper.cc.

References m_utCount.

◆ SetUtCountPerBeam() [4/4]

void ns3::SimulationHelper::SetUtCountPerBeam ( uint32_t count )

Set UT count per beam.

Parameters

count Number of UTs per beam.

Definition at line 222 of file simulation-helper.cc.

References m_utCount.

Referenced by ConfigureAttributesFromFile().

Here is the caller graph for this function:

◆ SetUtPositionAllocatorForBeam()

void ns3::SimulationHelper::SetUtPositionAllocatorForBeam	(	uint32_t	beamId,
		Ptr< SatListPositionAllocator >	posAllocator )

Set a list position allocator for UTs of a specific beam.

The position allocator is used to draw UT position geocoordinates when UTs are created for that specific beam-

Parameters

beamId	Beam ID
posAllocator	List of UT positions, must match the number of UTs configured

Definition at line 1097 of file simulation-helper.cc.

References m_utPositionsByBeam.

◆ StoreAttributesToFile()

std::string ns3::SimulationHelper::StoreAttributesToFile	(	std::string	fileName,
		bool	outputAttributes = false )

Store all used attributes.

Parameters

fileName	Output filename
outputAttributes	Whether or not to store individual objects attributes to file

Returns: string Output path

Definition at line 1685 of file simulation-helper.cc.

References ns3::SatEnvVariables::GetInstance().

Here is the call graph for this function:

Member Data Documentation

◆ m_cnoHelper

Ptr<SatCnoHelper> ns3::SimulationHelper::m_cnoHelper

private

Definition at line 568 of file simulation-helper.h.

Referenced by GetCnoHelper().

◆ m_commonUtPositions

Ptr<SatListPositionAllocator> ns3::SimulationHelper::m_commonUtPositions

private

Definition at line 569 of file simulation-helper.h.

Referenced by SimulationHelper(), SimulationHelper(), CreateSatScenario(), DoDispose(), and SetCommonUtPositionAllocator().

◆ m_enabledBeams

std::set<uint32_t> ns3::SimulationHelper::m_enabledBeams

private

Definition at line 576 of file simulation-helper.h.

Referenced by SimulationHelper(), SimulationHelper(), GetBeams(), GetBeamSet(), IsBeamEnabled(), SetBeams(), and SetBeamSet().

◆ m_enabledBeamsStr

std::string ns3::SimulationHelper::m_enabledBeamsStr

private

Definition at line 575 of file simulation-helper.h.

Referenced by SimulationHelper(), SimulationHelper(), RunSimulation(), SetBeams(), and SetBeamSet().

◆ m_groupHelper

Ptr<SatGroupHelper> ns3::SimulationHelper::m_groupHelper

private

Definition at line 567 of file simulation-helper.h.

Referenced by CreateSatScenario(), and GetGroupHelper().

◆ m_inputFileUtListPositions

std::string ns3::SimulationHelper::m_inputFileUtListPositions

private

Definition at line 586 of file simulation-helper.h.

Referenced by SimulationHelper(), SimulationHelper(), CreateSatScenario(), and EnableUtListPositionsFromInputFile().

◆ m_inputFileUtPositionsCheckBeams

bool ns3::SimulationHelper::m_inputFileUtPositionsCheckBeams

private

Definition at line 587 of file simulation-helper.h.

Referenced by SimulationHelper(), SimulationHelper(), CreateSatScenario(), and EnableUtListPositionsFromInputFile().

◆ m_numberOfConfiguredFrames

uint32_t ns3::SimulationHelper::m_numberOfConfiguredFrames

private

Definition at line 584 of file simulation-helper.h.

Referenced by SimulationHelper(), SimulationHelper(), and ConfigureFrame().

◆ m_outputPath

std::string ns3::SimulationHelper::m_outputPath

private

Definition at line 577 of file simulation-helper.h.

Referenced by SimulationHelper(), SimulationHelper(), AddDefaultUiArguments(), SetOutputPath(), and SetupOutputPath().

◆ m_progressLoggingEnabled

bool ns3::SimulationHelper::m_progressLoggingEnabled

private

Definition at line 589 of file simulation-helper.h.

Referenced by SimulationHelper(), SimulationHelper(), DisableProgressLogs(), and EnableProgressLogs().

◆ m_progressReportEvent

EventId ns3::SimulationHelper::m_progressReportEvent

private

Definition at line 591 of file simulation-helper.h.

Referenced by DisableProgressLogs(), EnableProgressLogs(), and ProgressCb().

◆ m_progressUpdateInterval

Time ns3::SimulationHelper::m_progressUpdateInterval

private

Definition at line 590 of file simulation-helper.h.

Referenced by SimulationHelper(), SimulationHelper(), EnableProgressLogs(), and ProgressCb().

◆ m_randomAccessConfigured

bool ns3::SimulationHelper::m_randomAccessConfigured

private

Definition at line 585 of file simulation-helper.h.

Referenced by SimulationHelper(), SimulationHelper(), EnableCrdsa(), EnableRandomAccess(), and EnableSlottedAloha().

◆ m_satHelper

Ptr<SatHelper> ns3::SimulationHelper::m_satHelper

private

Definition at line 564 of file simulation-helper.h.

Referenced by SimulationHelper(), SimulationHelper(), CreateDefaultFwdLinkStats(), CreateDefaultRtnLinkStats(), CreateDefaultStats(), CreateSatScenario(), GetCnoHelper(), GetSatelliteHelper(), and GetStatisticsContainer().

◆ m_scenarioPath

std::string ns3::SimulationHelper::m_scenarioPath

private

Definition at line 572 of file simulation-helper.h.

Referenced by SimulationHelper(), ConfigureFwdLinkBeamHopping(), CreateSatScenario(), and LoadScenario().

◆ m_simTime

Time ns3::SimulationHelper::m_simTime

private

Definition at line 583 of file simulation-helper.h.

Referenced by SimulationHelper(), SimulationHelper(), ConfigureAttributesFromFile(), GetSimTime(), RunSimulation(), SetSimulationTime(), and SetSimulationTime().

◆ m_simulationName

std::string ns3::SimulationHelper::m_simulationName

private

Definition at line 573 of file simulation-helper.h.

Referenced by SimulationHelper(), SimulationHelper(), RunSimulation(), and SetupOutputPath().

◆ m_simulationTag

std::string ns3::SimulationHelper::m_simulationTag

private

Definition at line 574 of file simulation-helper.h.

Referenced by SetOutputTag(), and SetupOutputPath().

◆ m_statContainer

Ptr<SatStatsHelperContainer> ns3::SimulationHelper::m_statContainer

private

Definition at line 565 of file simulation-helper.h.

Referenced by SimulationHelper(), SimulationHelper(), CreateDefaultFwdLinkStats(), CreateDefaultRtnLinkStats(), CreateDefaultStats(), and GetStatisticsContainer().

◆ m_trafficHelper

Ptr<SatTrafficHelper> ns3::SimulationHelper::m_trafficHelper

private

Definition at line 566 of file simulation-helper.h.

Referenced by GetTrafficHelper().

◆ m_utCount

std::map<uint32_t, Ptr<RandomVariableStream> > ns3::SimulationHelper::m_utCount

private

Definition at line 579 of file simulation-helper.h.

Referenced by SimulationHelper(), SimulationHelper(), CreateSatScenario(), GetNextUtCount(), SetUtCountPerBeam(), SetUtCountPerBeam(), SetUtCountPerBeam(), and SetUtCountPerBeam().

◆ m_utMobileUserCount

Ptr<RandomVariableStream> ns3::SimulationHelper::m_utMobileUserCount

private

Definition at line 582 of file simulation-helper.h.

Referenced by SimulationHelper(), SimulationHelper(), CreateSatScenario(), SetUserCountPerMobileUt(), and SetUserCountPerMobileUt().

◆ m_utPositionsByBeam

std::map<uint32_t, Ptr<SatListPositionAllocator> > ns3::SimulationHelper::m_utPositionsByBeam

private

Definition at line 570 of file simulation-helper.h.

Referenced by SimulationHelper(), SimulationHelper(), CreateSatScenario(), DoDispose(), and SetUtPositionAllocatorForBeam().

◆ m_utUserCount

Ptr<RandomVariableStream> ns3::SimulationHelper::m_utUserCount

private

Definition at line 581 of file simulation-helper.h.

Referenced by SimulationHelper(), SimulationHelper(), GetNextUtUserCount(), SetUserCountPerUt(), and SetUserCountPerUt().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/helper/simulation-helper.h
/builds/sns3/satellite/satellite/helper/simulation-helper.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ CrTxConf_t

Constructor & Destructor Documentation

◆ SimulationHelper() [1/2]

◆ SimulationHelper() [2/2]

◆ ~SimulationHelper()

Member Function Documentation

◆ AddDefaultUiArguments() [1/2]

◆ AddDefaultUiArguments() [2/2]

◆ ConfigureAttributesFromFile()

◆ ConfigureFrame()

◆ ConfigureFrequencyBands()

◆ ConfigureFwdLinkBeamHopping()

◆ ConfigureLinkBudget()

◆ CreateDefaultFwdLinkStats()

◆ CreateDefaultRtnLinkStats()

◆ CreateDefaultStats()

◆ CreateSatScenario()

◆ DisableAcm()

◆ DisableAllCapacityAssignmentCategories()

◆ DisableFca()

◆ DisableProgressLogs()

◆ DisableRandomAccess()

◆ DoDispose()

◆ EnableAcm()

◆ EnableArq()

◆ EnableCrdsa()

◆ EnableExternalFadingInputTrace()

◆ EnableFca()

◆ EnableOnlyConstantRate()

◆ EnableOnlyRbdc()

◆ EnableOnlyVbdc()

◆ EnableOutputTraces()

◆ EnablePeriodicalControlSlots()

◆ EnableProgressLogs()

◆ EnableRandomAccess()

◆ EnableSlottedAloha()

◆ EnableUtListPositionsFromInputFile()

◆ GetBeams()

◆ GetBeamSet()

◆ GetCnoHelper()

◆ GetGroupHelper()

◆ GetNextUtCount()

◆ GetNextUtUserCount()

◆ GetSatelliteHelper()

◆ GetSimTime()

◆ GetStatisticsContainer()

◆ GetTrafficHelper()

◆ GetTypeId()

◆ HasSinkInstalled()

◆ IsBeamEnabled()

◆ LoadScenario()

◆ ParseScenarioFolder()

◆ ProgressCb()

◆ ReadInputAttributesFromFile()

◆ RunSimulation()

◆ SetBeams()

◆ SetBeamSet()

◆ SetCommonUtPositionAllocator()

◆ SetCrTxConf()

◆ SetDefaultValues()

◆ SetErrorModel()

◆ SetGwUserCount()

◆ SetIdealPhyParameterization()

◆ SetInterferenceModel()

◆ SetOutputPath()

◆ SetOutputTag()

◆ SetSimulationTime() [1/2]

◆ SetSimulationTime() [2/2]

◆ SetupOutputPath()

◆ SetUserCountPerMobileUt() [1/2]

◆ SetUserCountPerMobileUt() [2/2]

◆ SetUserCountPerUt() [1/2]

◆ SetUserCountPerUt() [2/2]
