Test case to unit test Satellite Frame Allocator. More...

Inheritance diagram for SatFrameAllocatorTestCase:

Collaboration diagram for SatFrameAllocatorTestCase:

Public Member Functions
	SatFrameAllocatorTestCase ()
virtual	~SatFrameAllocatorTestCase ()

Private Types
typedef std::map< Address, std::pair< SatFrameAllocator::SatFrameAllocReq, uint32_t > >	ReqInfo_t

Private Member Functions
void	CheckMultiUtTestResults (SatFrameAllocator::UtAllocInfoContainer_t &utAllocContainer, ReqInfo_t &reqInfo)
void	CheckSingleUtTestResults (uint32_t bytesReq, SatFrameAllocator::SatFrameAllocReq req, bool allocated, SatSuperframeConf::ConfigType_t configType, SatFrameAllocator::TbtpMsgContainer_t &tbtpContainer, SatFrameAllocator::UtAllocInfoContainer_t &utAllocContainer, bool rcBasedAllocation, bool fcaEnabled, bool acmEnabled)
SatFrameAllocator::SatFrameAllocReq	ContructRequestForUt (uint32_t &totalBytes, uint32_t craBytes, uint32_t minRbdcBytes, uint32_t rbdcBytes, uint32_t vbdcBytes, uint32_t rcCount, bool controlSlot)

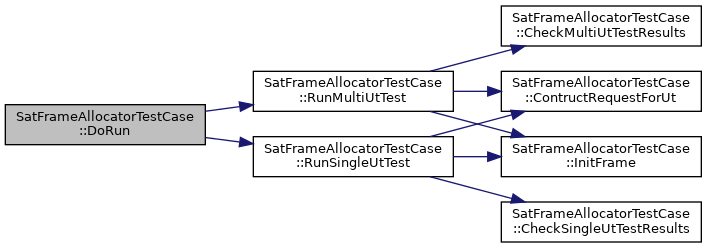

virtual void	DoRun (void)

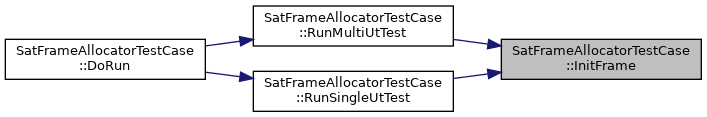

void	InitFrame (SatSuperframeConf::ConfigType_t configType)

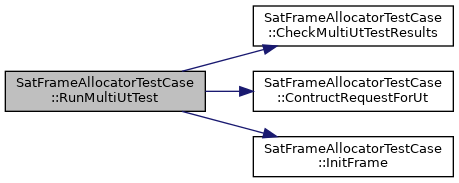

void	RunMultiUtTest ()

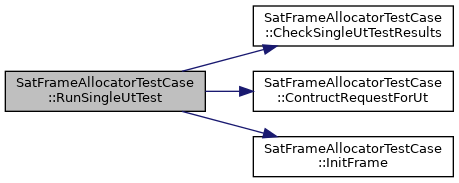

void	RunSingleUtTest (SatSuperframeConf::ConfigType_t configType, bool acmEnabled, bool fcaEnabled)

Private Attributes
SatFrameAllocator::CcLevel_t	m_ccLevels [m_ccLevelCount]
uint32_t	m_cnoIndex
double	m_cnoValues [m_cnoValueCount]
Ptr< SatFrameAllocator >	m_frameAllocator
Ptr< SatFrameConf >	m_frameConf
Ptr< SatWaveformConf >	m_waveFormConf

Static Private Attributes
static const uint32_t	m_ccLevelCount = 4
static const uint32_t	m_cnoValueCount = 10

Detailed Description

Test case to unit test Satellite Frame Allocator.

This case tests that SatFrameAllocator object allocates symbols (time slots) for UT/RCs correctly with different configurations.

Create frame configuration and frame allocator.
Reset allocator (method Reset)
Allocate UT(s) with RCs to Allocator (method Allocate)
When desired UTs allocated, pre-allocate symbols for the UT/RC(s). (method PreAllocateSymbols)
Finally generate time slots for UTs (method GenerateTimeSlots) by enabling/disabling RC based allocation.
Repeat steps 2 - 5 with different combination of UT/RCs.

Expected result: Time slots for UT/RC should be generated according to allocation requests and limits in frames.

NOTE: Control slot generation should be also enabled for some allocation requests. Test should executed with ACM enabled and disabled, FCA enabled and disabled.

Definition at line 70 of file satellite-frame-allocator-test.cc.

Member Typedef Documentation

◆ ReqInfo_t

typedef std::map<Address, std::pair<SatFrameAllocator::SatFrameAllocReq, uint32_t> > SatFrameAllocatorTestCase::ReqInfo_t

private

Definition at line 77 of file satellite-frame-allocator-test.cc.

Constructor & Destructor Documentation

◆ SatFrameAllocatorTestCase()

SatFrameAllocatorTestCase::SatFrameAllocatorTestCase ( )

Definition at line 119 of file satellite-frame-allocator-test.cc.

References ns3::SatFrameAllocator::CC_LEVEL_CRA, ns3::SatFrameAllocator::CC_LEVEL_CRA_MIN_RBDC, ns3::SatFrameAllocator::CC_LEVEL_CRA_RBDC, ns3::SatFrameAllocator::CC_LEVEL_CRA_RBDC_VBDC, ns3::SatUtils::DbToLinear(), ns3::SatEnvVariables::GetInstance(), m_ccLevels, m_cnoIndex, m_cnoValues, and m_waveFormConf.

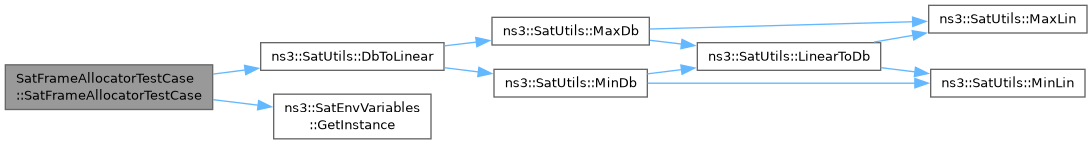

Here is the call graph for this function:

◆ ~SatFrameAllocatorTestCase()

SatFrameAllocatorTestCase::~SatFrameAllocatorTestCase ( )

virtual

Definition at line 145 of file satellite-frame-allocator-test.cc.

Member Function Documentation

◆ CheckMultiUtTestResults()

void SatFrameAllocatorTestCase::CheckMultiUtTestResults	(	SatFrameAllocator::UtAllocInfoContainer_t &	utAllocContainer,
		ReqInfo_t &	reqInfo )

private

Definition at line 633 of file satellite-frame-allocator-test.cc.

References m_frameConf.

Referenced by RunMultiUtTest().

Here is the caller graph for this function:

◆ CheckSingleUtTestResults()

void SatFrameAllocatorTestCase::CheckSingleUtTestResults	(	uint32_t	bytesReq,
		SatFrameAllocator::SatFrameAllocReq	req,
		bool	allocated,
		SatSuperframeConf::ConfigType_t	configType,
		SatFrameAllocator::TbtpMsgContainer_t &	tbtpContainer,
		SatFrameAllocator::UtAllocInfoContainer_t &	utAllocContainer,
		bool	rcBasedAllocation,
		bool	fcaEnabled,
		bool	acmEnabled )

private

Definition at line 366 of file satellite-frame-allocator-test.cc.

References ns3::SatSuperframeConf::CONFIG_TYPE_0, ns3::SatFrameAllocator::SatFrameAllocReq::m_address, m_frameConf, ns3::SatFrameAllocator::SatFrameAllocReq::m_generateCtrlSlot, and ns3::SatFrameAllocator::SatFrameAllocReq::m_reqPerRc.

Referenced by RunSingleUtTest().

Here is the caller graph for this function:

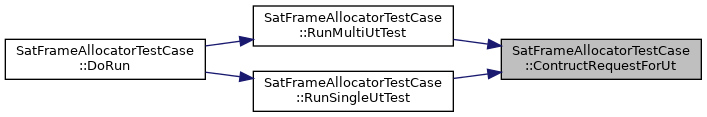

◆ ContructRequestForUt()

SatFrameAllocator::SatFrameAllocReq SatFrameAllocatorTestCase::ContructRequestForUt	(	uint32_t &	totalBytes,
		uint32_t	craBytes,
		uint32_t	minRbdcBytes,
		uint32_t	rbdcBytes,
		uint32_t	vbdcBytes,
		uint32_t	rcCount,
		bool	controlSlot )
