ns3::SatAntennaGainPatternContainer Class Reference

Antenna gain pattern container holds all antenna patterns related to a satellite system. More...

#include "satellite-antenna-gain-pattern-container.h"

Inheritance diagram for ns3::SatAntennaGainPatternContainer:

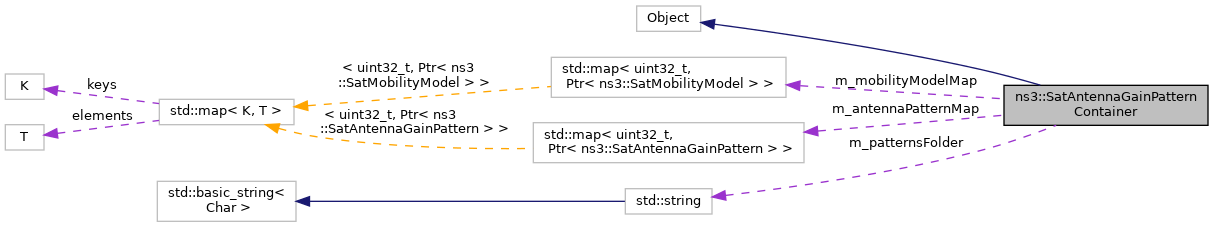

Collaboration diagram for ns3::SatAntennaGainPatternContainer:

Public Types
typedef std::map< std::pair< uint32_t, uint32_t >, SatBeamUserInfo >	BeamUserInfoMap_t
	definition for beam map key is pair sat ID / beam ID and value is UT/user info. More...

Public Member Functions
	SatAntennaGainPatternContainer ()
	Default constructor. More...
	SatAntennaGainPatternContainer (uint32_t nbSats, std::string patternsFolder)
	SatAntennaGainPatternContainer constructor. More...
	~SatAntennaGainPatternContainer ()
void	ConfigureBeamsMobility (uint32_t satelliteId, Ptr< SatMobilityModel > mobility)
Ptr< SatAntennaGainPattern >	GetAntennaGainPattern (uint32_t beamId) const
	Get the antenna pattern of a specified beam id. More...
Ptr< SatMobilityModel >	GetAntennaMobility (uint32_t satelliteId) const
	Get the mobility model of a specified satellite id. More...
double	GetBeamGain (uint32_t satelliteId, uint32_t beamId, GeoCoordinate coord)
	Get beam gain for given coordinates. More...
uint32_t	GetBestBeamId (uint32_t satelliteId, GeoCoordinate coord, bool ignoreNan)
	Get the best beam id based on the antenna patterns in a specified geo coordinate. More...
GeoCoordinate	GetDefaultGeoPosition ()
	Load the default satellite position associated to these traces. More...
TypeId	GetInstanceTypeId () const
uint32_t	GetNAntennaGainPatterns () const
	Get the number of stored antenna pattern. More...
void	SetEnabledBeams (BeamUserInfoMap_t &info)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
std::map< uint32_t, Ptr< SatAntennaGainPattern > >	m_antennaPatternMap
	Container of antenna patterns. More...
std::map< uint32_t, Ptr< SatMobilityModel > >	m_mobilityModelMap
	Container of mobility models. More...
std::string	m_patternsFolder

Detailed Description

Antenna gain pattern container holds all antenna patterns related to a satellite system.

Current reference system consists of 72 spot-beams. It is assumed that all links use the same set of antenna patterns (forward feeder and user, return feeder and user). Each antenna gain pattern is stored in a separate class SatAntennaGainPattern. The best beam may be chosen based on the antenna patterns by using GetBestBeamId for a given position.

Definition at line 50 of file satellite-antenna-gain-pattern-container.h.

Member Typedef Documentation

BeamUserInfoMap_t

typedef std::map<std::pair<uint32_t, uint32_t>, SatBeamUserInfo> ns3::SatAntennaGainPatternContainer::BeamUserInfoMap_t

definition for beam map key is pair sat ID / beam ID and value is UT/user info.

Definition at line 76 of file satellite-antenna-gain-pattern-container.h.

Constructor & Destructor Documentation

SatAntennaGainPatternContainer() [1/2]

ns3::SatAntennaGainPatternContainer::SatAntennaGainPatternContainer

(

)

Default constructor.

Not used.

Definition at line 67 of file satellite-antenna-gain-pattern-container.cc.

SatAntennaGainPatternContainer() [2/2]

ns3::SatAntennaGainPatternContainer::SatAntennaGainPatternContainer	(	uint32_t	nbSats,
		std::string	patternsFolder
	)

SatAntennaGainPatternContainer constructor.

Parameters

nbSats	Number of satellites to consider
patternsFolder	Path to folder containing the gains definition for each beam

Definition at line 74 of file satellite-antenna-gain-pattern-container.cc.

References GetDefaultGeoPosition(), m_antennaPatternMap, m_patternsFolder, and numbers.

Here is the call graph for this function:

~SatAntennaGainPatternContainer()

ns3::SatAntennaGainPatternContainer::~SatAntennaGainPatternContainer

(

)

Definition at line 170 of file satellite-antenna-gain-pattern-container.cc.

Member Function Documentation

ConfigureBeamsMobility()

void ns3::SatAntennaGainPatternContainer::ConfigureBeamsMobility	(	uint32_t	satelliteId,
		Ptr< SatMobilityModel >	mobility
	)

Definition at line 314 of file satellite-antenna-gain-pattern-container.cc.

References m_mobilityModelMap.

Referenced by SatAntennaPatternTestCase::DoRun().

Here is the caller graph for this function:

GetAntennaGainPattern()

Ptr< SatAntennaGainPattern > ns3::SatAntennaGainPatternContainer::GetAntennaGainPattern

(

uint32_t

beamId

)

const

Get the antenna pattern of a specified beam id.

Parameters

beamId

Beam identifier

Returns

The antenna gain pattern instance of the specified beam id

Definition at line 203 of file satellite-antenna-gain-pattern-container.cc.

References m_antennaPatternMap.

Referenced by SatAntennaPatternTestCase::DoRun().

Here is the caller graph for this function:

GetAntennaMobility()

Ptr< SatMobilityModel > ns3::SatAntennaGainPatternContainer::GetAntennaMobility

(

uint32_t

satelliteId

)

const

Get the mobility model of a specified satellite id.

Parameters

satelliteId

Satellite identifier

Returns

The mobility model

Definition at line 219 of file satellite-antenna-gain-pattern-container.cc.

References m_mobilityModelMap.

GetBeamGain()

double ns3::SatAntennaGainPatternContainer::GetBeamGain	(	uint32_t	satelliteId,
		uint32_t	beamId,
		GeoCoordinate	coord
	)

Get beam gain for given coordinates.

Parameters

satelliteId	ID of satellite
beamId	ID of beam
coord	Geo coordinate

Returns

gain of this beam

Definition at line 286 of file satellite-antenna-gain-pattern-container.cc.

References ns3::GeoCoordinate::GetLatitude(), ns3::GeoCoordinate::GetLongitude(), m_antennaPatternMap, and m_mobilityModelMap.

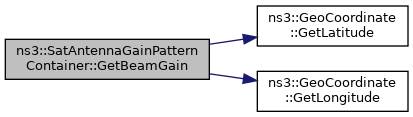

Here is the call graph for this function:

GetBestBeamId()

uint32_t ns3::SatAntennaGainPatternContainer::GetBestBeamId	(	uint32_t	satelliteId,
		GeoCoordinate	coord,
		bool	ignoreNan
	)

Get the best beam id based on the antenna patterns in a specified geo coordinate.

Parameters

satelliteId	ID of satellite to search
coord	Geo coordinate
ignoreNan	Do not crash if a NaN value is returned

Returns

best beam id in the specified geo coordinate

Definition at line 236 of file satellite-antenna-gain-pattern-container.cc.

References ns3::GeoCoordinate::GetLatitude(), ns3::GeoCoordinate::GetLongitude(), m_antennaPatternMap, and m_mobilityModelMap.

Referenced by SatAntennaPatternTestCase::DoRun().

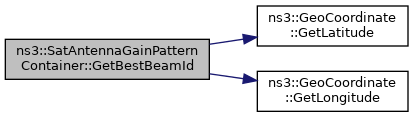

Here is the call graph for this function:

Here is the caller graph for this function:

GetDefaultGeoPosition()

GeoCoordinate ns3::SatAntennaGainPatternContainer::GetDefaultGeoPosition

(

)

Load the default satellite position associated to these traces.

Must be in GeoPos.in

Returns

The satellite position

Definition at line 176 of file satellite-antenna-gain-pattern-container.cc.

References m_patternsFolder.

Referenced by SatAntennaGainPatternContainer().

Here is the caller graph for this function:

GetInstanceTypeId()

TypeId ns3::SatAntennaGainPatternContainer::GetInstanceTypeId

(

void

)

const

Definition at line 61 of file satellite-antenna-gain-pattern-container.cc.

References GetTypeId().

Here is the call graph for this function:

GetNAntennaGainPatterns()

uint32_t ns3::SatAntennaGainPatternContainer::GetNAntennaGainPatterns

(

)

const

Get the number of stored antenna pattern.

Returns

The total number of antenna gain pattern instance

Definition at line 304 of file satellite-antenna-gain-pattern-container.cc.

References m_antennaPatternMap.

GetTypeId()

TypeId ns3::SatAntennaGainPatternContainer::GetTypeId ( void  )

static

Get the type ID.

Returns

the object TypeId

Definition at line 52 of file satellite-antenna-gain-pattern-container.cc.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

SetEnabledBeams()

void ns3::SatAntennaGainPatternContainer::SetEnabledBeams

(

BeamUserInfoMap_t &

info

)

Definition at line 323 of file satellite-antenna-gain-pattern-container.cc.

References m_antennaPatternMap.

Member Data Documentation

m_antennaPatternMap

std::map<uint32_t, Ptr<SatAntennaGainPattern> > ns3::SatAntennaGainPatternContainer::m_antennaPatternMap

private

Container of antenna patterns.

Definition at line 133 of file satellite-antenna-gain-pattern-container.h.

Referenced by SatAntennaGainPatternContainer(), GetAntennaGainPattern(), GetBeamGain(), GetBestBeamId(), GetNAntennaGainPatterns(), and SetEnabledBeams().

m_mobilityModelMap

std::map<uint32_t, Ptr<SatMobilityModel> > ns3::SatAntennaGainPatternContainer::m_mobilityModelMap

private

Container of mobility models.

Definition at line 138 of file satellite-antenna-gain-pattern-container.h.

Referenced by ConfigureBeamsMobility(), GetAntennaMobility(), GetBeamGain(), and GetBestBeamId().

m_patternsFolder

std::string ns3::SatAntennaGainPatternContainer::m_patternsFolder

private

Definition at line 128 of file satellite-antenna-gain-pattern-container.h.

Referenced by SatAntennaGainPatternContainer(), and GetDefaultGeoPosition().

---

The documentation for this class was generated from the following files:

• /builds/sns3/satellite/satellite/model/satellite-antenna-gain-pattern-container.h
• /builds/sns3/satellite/satellite/model/satellite-antenna-gain-pattern-container.cc
