ns3::SatControlMessage Class Referenceabstract

Abstract satellite control message class. More...

#include "satellite-control-message.h"

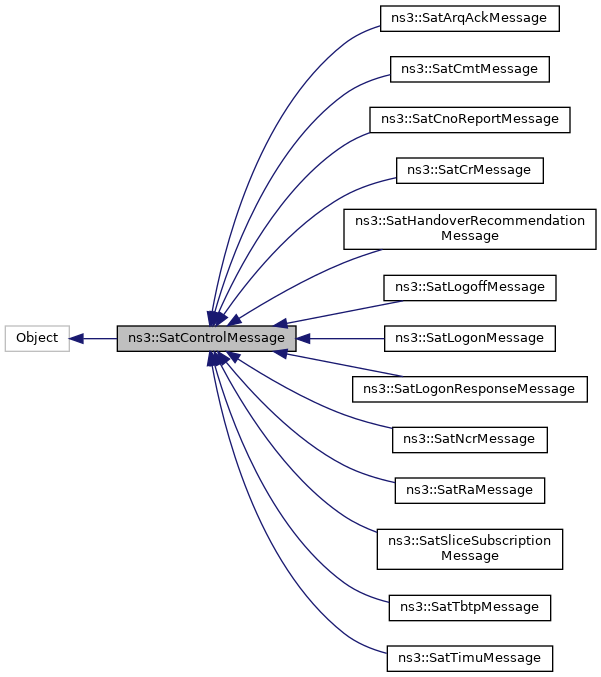

Inheritance diagram for ns3::SatControlMessage:
Collaboration diagram for ns3::SatControlMessage:

Public Member Functions

 SatControlMessage ()
 Default constructor for SatControlMessage.
 ~SatControlMessage ()
 Destructor.
virtual SatControlMsgTag::SatControlMsgType_t GetMsgType () const =0
 Get message specific type.
virtual uint32_t GetSizeInBytes () const =0
 Get real size of the control message.

Static Public Member Functions

static TypeId GetTypeId (void)
 methods derived from base classes

Detailed Description

Abstract satellite control message class.

The real control messages are inherited from it.

Definition at line 156 of file satellite-control-message.h.

Constructor & Destructor Documentation

◆ SatControlMessage()

ns3::SatControlMessage::SatControlMessage ( )
inline

Default constructor for SatControlMessage.

Definition at line 167 of file satellite-control-message.h.

Referenced by ns3::SatArqAckMessage::GetTypeId(), ns3::SatCmtMessage::GetTypeId(), ns3::SatCnoReportMessage::GetTypeId(), ns3::SatCrMessage::GetTypeId(), ns3::SatHandoverRecommendationMessage::GetTypeId(), ns3::SatLogoffMessage::GetTypeId(), ns3::SatLogonMessage::GetTypeId(), ns3::SatLogonResponseMessage::GetTypeId(), ns3::SatNcrMessage::GetTypeId(), ns3::SatRaMessage::GetTypeId(), ns3::SatSliceSubscriptionMessage::GetTypeId(), ns3::SatTbtpMessage::GetTypeId(), and ns3::SatTimuMessage::GetTypeId().

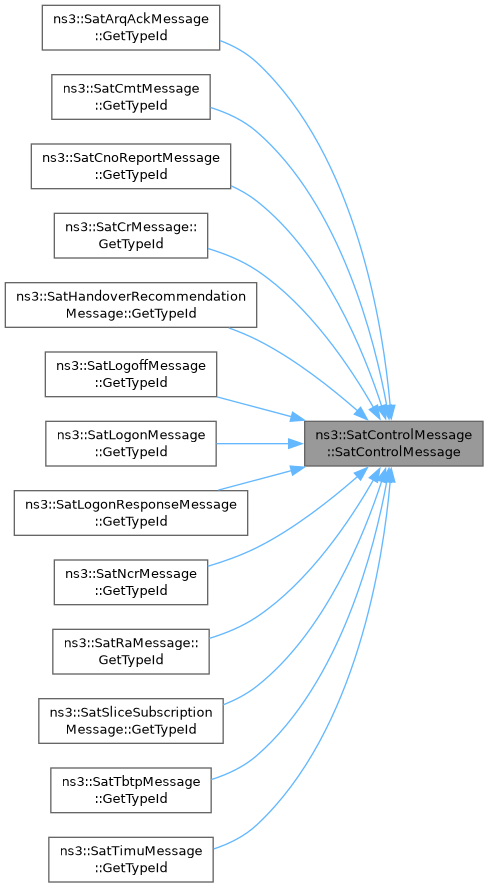

Here is the caller graph for this function:

◆ ~SatControlMessage()

ns3::SatControlMessage::~SatControlMessage ( )
inline

Destructor.

Definition at line 174 of file satellite-control-message.h.

Member Function Documentation

◆ GetMsgType()

virtual SatControlMsgTag::SatControlMsgType_t ns3::SatControlMessage::GetMsgType ( ) const
pure virtual

Get message specific type.

Returns
Message specific type

Implemented in ns3::SatArqAckMessage, ns3::SatCmtMessage, ns3::SatCnoReportMessage, ns3::SatCrMessage, ns3::SatHandoverRecommendationMessage, ns3::SatLogoffMessage, ns3::SatLogonMessage, ns3::SatLogonResponseMessage, ns3::SatNcrMessage, ns3::SatRaMessage, ns3::SatSliceSubscriptionMessage, ns3::SatTbtpMessage, and ns3::SatTimuMessage.

◆ GetSizeInBytes()

virtual uint32_t ns3::SatControlMessage::GetSizeInBytes ( ) const
pure virtual

Get real size of the control message.

This can be used to simulate real packet size.

Returns
Real size of the control message.

Implemented in ns3::SatArqAckMessage, ns3::SatCmtMessage, ns3::SatCnoReportMessage, ns3::SatCrMessage, ns3::SatHandoverRecommendationMessage, ns3::SatLogoffMessage, ns3::SatLogonMessage, ns3::SatLogonResponseMessage, ns3::SatNcrMessage, ns3::SatRaMessage, ns3::SatSliceSubscriptionMessage, ns3::SatTbtpMessage, and ns3::SatTimuMessage.

◆ GetTypeId()

TypeId ns3::SatControlMessage::GetTypeId ( void )
static

methods derived from base classes

Definition at line 137 of file satellite-control-message.cc.

The documentation for this class was generated from the following files:
