SatFwdLinkSchedulerDefault schedules BB frames for forward link. More...

#include "satellite-fwd-link-scheduler-default.h"

Inheritance diagram for ns3::SatFwdLinkSchedulerDefault:

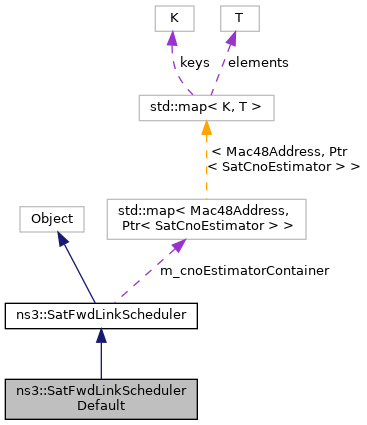

Collaboration diagram for ns3::SatFwdLinkSchedulerDefault:

Public Member Functions
	SatFwdLinkSchedulerDefault ()
	Construct a SatFwdLinkScheduler.
	SatFwdLinkSchedulerDefault (Ptr< SatBbFrameConf > conf, Mac48Address address, double carrierBandwidthInHz)
	Actual constructor of a SatFwdLinkScheduler.
	~SatFwdLinkSchedulerDefault ()
	Destroy a SatFwdLinkScheduler.
virtual void	ClearAllPackets ()
	Remove all packets being treated.
virtual std::pair< Ptr< SatBbFrame >, const Time >	GetNextFrame ()
	Get next frame to be transmitted.
virtual void	NotifyConstructionCompleted () override
	Notifier called once the ObjectBase is fully constructed.
Public Member Functions inherited from ns3::SatFwdLinkScheduler
	SatFwdLinkScheduler ()
	Construct a SatFwdLinkScheduler.
	SatFwdLinkScheduler (Ptr< SatBbFrameConf > conf, Mac48Address address, double carrierBandwidthInHz)
	Actual constructor of a SatFwdLinkScheduler.
	~SatFwdLinkScheduler ()
	Destroy a SatFwdLinkScheduler.
void	CnoInfoUpdated (Mac48Address utAddress, double cnoEstimate)
	Called when UT's C/N0 estimation is updated.
Time	GetDefaultFrameDuration () const
	Return the BB frame duration of the default frame format, i.e.
bool	SendControlMsg (Ptr< SatControlMessage > message, const Address &dest) const
	Method te send a control message to a destination.
void	SetDummyFrameSendingEnabled (bool dummyFrameSendingEnabled)
	Set the value of m_dummyFrameSendingEnabled.
void	SetSchedContextCallback (SatFwdLinkScheduler::SchedContextCallback cb)
	Method to set Tx opportunity callback.
void	SetSendControlMsgCallback (SatFwdLinkScheduler::SendControlMsgCallback cb)
	Method to set the control message sender callback.
void	SetTxOpportunityCallback (SatFwdLinkScheduler::TxOpportunityCallback cb)
	Method to set Tx opportunity callback.

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID.
Static Public Member Functions inherited from ns3::SatFwdLinkScheduler
static bool	CompareSoFlowId (Ptr< SatSchedulingObject > obj1, Ptr< SatSchedulingObject > obj2)
	Compares to scheduling objects priorities.
static bool	CompareSoPriorityHol (Ptr< SatSchedulingObject > obj1, Ptr< SatSchedulingObject > obj2)
	Compares to scheduling objects priorities and HOL.
static bool	CompareSoPriorityLoad (Ptr< SatSchedulingObject > obj1, Ptr< SatSchedulingObject > obj2)
	Compares to scheduling objects priorities and load.
static TypeId	GetTypeId (void)
	Get the type ID.

Private Member Functions
void	DoDispose (void)
	Do dispose actions.
void	GetSchedulingObjects (std::vector< Ptr< SatSchedulingObject > > &output)
	Gets scheduling object in sorted order according to configured sorting criteria.

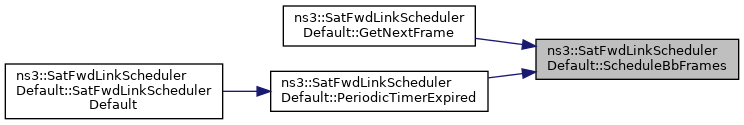

void	ScheduleBbFrames ()
	Schedule BB Frames.
void	SendAndClearSymbolsSentStat ()
	Send stats and reset all the symbols sent count for each slice to zero.

Private Attributes
Ptr< SatBbFrameContainer >	m_bbFrameContainer
	The container for BB Frames.
Time	m_schedulingStartThresholdTime
	Threshold time of total transmissions in BB Frame container to trigger a scheduling round.
Time	m_schedulingStopThresholdTime
	Threshold time of total transmissions in BB Frame container to stop a scheduling round.
uint32_t	m_symbolsSent
	The number of symbols sent for each slice during an allocation cycle.

Additional Inherited Members
Public Types inherited from ns3::SatFwdLinkScheduler
typedef Callback< void, std::vector< Ptr< SatSchedulingObject > > & >	SchedContextCallback
	Callback to get scheduling contexts from upper layer.
enum	ScheduleSortingCriteria_t { NO_SORT , BUFFERING_DELAY_SORT , BUFFERING_LOAD_SORT , RANDOM_SORT , PRIORITY_SORT }
	Types for sorting algorithm used by forward link scheduler. More...
typedef Callback< bool, Ptr< SatControlMessage >, const Address & >	SendControlMsgCallback
	Callback to notify upper layer about Tx opportunity.
typedef Callback< Ptr< Packet >, uint32_t, Mac48Address, uint8_t, uint32_t &, uint32_t & >	TxOpportunityCallback
	Callback to notify upper layer about Tx opportunity.
Protected Types inherited from ns3::SatFwdLinkScheduler
typedef std::map< Mac48Address, Ptr< SatCnoEstimator > >	CnoEstimatorMap_t
Protected Member Functions inherited from ns3::SatFwdLinkScheduler
	SatFwdLinkScheduler (const SatFwdLinkScheduler &)
bool	CnoMatchWithFrame (double cno, Ptr< SatBbFrame > frame) const
	Check if given estimated C/N0 match with given frame.
Ptr< SatCnoEstimator >	CreateCnoEstimator ()
	Create estimator for the UT according to set attributes.
void	DoDispose (void)
	Do dispose actions.
double	GetSchedulingObjectCno (Ptr< SatSchedulingObject > ob)
void	GetSchedulingObjects (std::vector< Ptr< SatSchedulingObject > > &output)
	Gets scheduling object in sorted order according to configured sorting criteria.
SatFwdLinkScheduler &	operator= (const SatFwdLinkScheduler &)

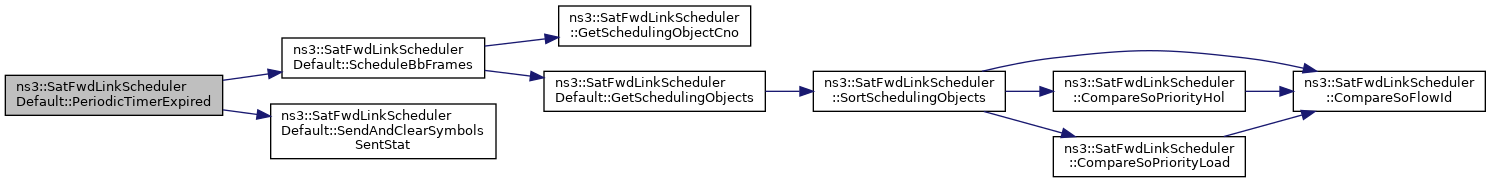

void	PeriodicTimerExpired ()
	Handles periodic timer timeouts.
void	SortSchedulingObjects (std::vector< Ptr< SatSchedulingObject > > &so)
	Sorts given scheduling objects according to configured sorting criteria.
Protected Attributes inherited from ns3::SatFwdLinkScheduler
ScheduleSortingCriteria_t	m_additionalSortCriteria
	Additional sorting criteria for scheduling objects received from LLC.
Ptr< SatBbFrameConf >	m_bbFrameConf
	Configured BB Frame conf.
double	m_carrierBandwidthInHz
	Carrier bandwidth in hertz where scheduler is associated to.
Time	m_cnoEstimationWindow
	Time window for C/N0 estimation.
CnoEstimatorMap_t	m_cnoEstimatorContainer
	C/N0 estimator per UT.
SatCnoEstimator::EstimationMode_t	m_cnoEstimatorMode
	Mode used for C/N0 estimator.
bool	m_dummyFrameSendingEnabled
	Flag indicating if Dummy Frames are sent or not.
Mac48Address	m_macAddress
	MAC address of the this instance (node).
Time	m_periodicInterval
	The interval for periodic scheduling timer.
Ptr< UniformRandomVariable >	m_random
	Random variable used in FWD link scheduling.
SatFwdLinkScheduler::SchedContextCallback	m_schedContextCallback
	The scheduling context getter callback.
TracedCallback< uint8_t, double >	m_schedulingSymbolRateTrace
	Traced callback for symbol rate, with flowId, requested Modcod info.
SatFwdLinkScheduler::SendControlMsgCallback	m_sendControlMsgCallback
	The control message sender callback.
SatFwdLinkScheduler::TxOpportunityCallback	m_txOpportunityCallback
	Callback to notify the txOpportunity to upper layer Returns a packet Attributes: payload in bytes.

Detailed Description

SatFwdLinkSchedulerDefault schedules BB frames for forward link.

This is the reference case of the scheduler, without separation between slices. It uses only one instance of BbFrameContainer.

   SatFwdLinkSchedulerDefault communicated through callback functions to request scheduling

objects and notifying TX opportunities.

   GW MAC requests frames from scheduler through method GetNextFrame.

Definition at line 48 of file satellite-fwd-link-scheduler-default.h.

Constructor & Destructor Documentation

◆ SatFwdLinkSchedulerDefault() [1/2]

ns3::SatFwdLinkSchedulerDefault::SatFwdLinkSchedulerDefault ( )

Construct a SatFwdLinkScheduler.

This the default constructor for the SatFwdLinkScheduler is not supported.

Definition at line 64 of file satellite-fwd-link-scheduler-default.cc.

References ns3::SatFwdLinkScheduler::SatFwdLinkScheduler().

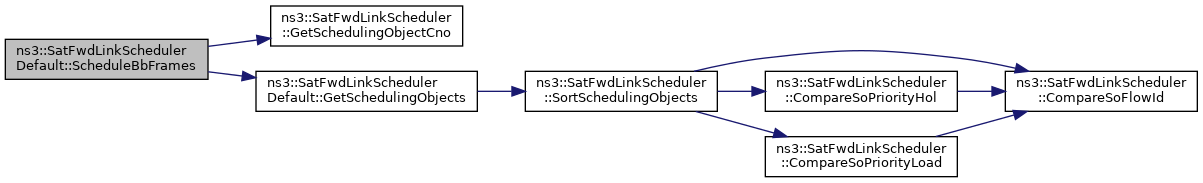

Here is the call graph for this function:

◆ SatFwdLinkSchedulerDefault() [2/2]

ns3::SatFwdLinkSchedulerDefault::SatFwdLinkSchedulerDefault	(	Ptr< SatBbFrameConf >	conf,
		Mac48Address	address,
		double	carrierBandwidthInHz )

Actual constructor of a SatFwdLinkScheduler.

Parameters

conf	BB Frame configuration
address	MAC address
carrierBandwidthInHz	Carrier bandwidth where scheduler is associated to [Hz].

Definition at line 71 of file satellite-fwd-link-scheduler-default.cc.

References ns3::SatFwdLinkScheduler::SatFwdLinkScheduler(), and m_symbolsSent.

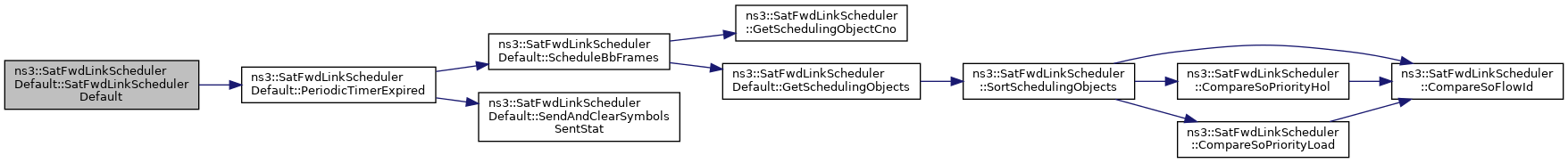

Here is the call graph for this function:

◆ ~SatFwdLinkSchedulerDefault()

ns3::SatFwdLinkSchedulerDefault::~SatFwdLinkSchedulerDefault ( )

Destroy a SatFwdLinkScheduler.

This is the destructor for the SatFwdLinkScheduler.

Definition at line 92 of file satellite-fwd-link-scheduler-default.cc.

Member Function Documentation

◆ ClearAllPackets()

void ns3::SatFwdLinkSchedulerDefault::ClearAllPackets ( )

virtual

Remove all packets being treated.

Reimplemented from ns3::SatFwdLinkScheduler.

Definition at line 166 of file satellite-fwd-link-scheduler-default.cc.

References m_bbFrameContainer.

◆ DoDispose()

void ns3::SatFwdLinkSchedulerDefault::DoDispose ( void )

private

Do dispose actions.

Definition at line 98 of file satellite-fwd-link-scheduler-default.cc.

References ns3::SatFwdLinkScheduler::DoDispose(), and m_bbFrameContainer.

Here is the call graph for this function:

◆ GetNextFrame()

std::pair< Ptr< SatBbFrame >, const Time > ns3::SatFwdLinkSchedulerDefault::GetNextFrame ( )

virtual

Get next frame to be transmitted.

Returns: Pointer to frame

Reimplemented from ns3::SatFwdLinkScheduler.

Definition at line 106 of file satellite-fwd-link-scheduler-default.cc.

References ns3::SatEnums::DUMMY_FRAME, ns3::SatFwdLinkScheduler::m_bbFrameConf, m_bbFrameContainer, ns3::SatFwdLinkScheduler::m_carrierBandwidthInHz, ns3::SatFwdLinkScheduler::m_dummyFrameSendingEnabled, ns3::SatFwdLinkScheduler::m_macAddress, m_schedulingStartThresholdTime, m_symbolsSent, ScheduleBbFrames(), ns3::SatMacTag::SetDestAddress(), ns3::SatAddressE2ETag::SetE2EDestAddress(), ns3::SatAddressE2ETag::SetE2ESourceAddress(), and ns3::SatMacTag::SetSourceAddress().

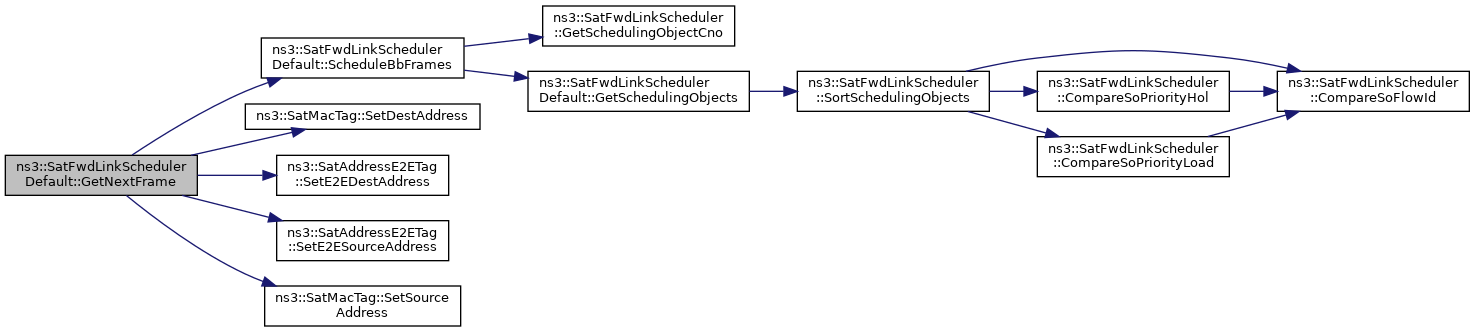

Here is the call graph for this function:

◆ GetSchedulingObjects()

void ns3::SatFwdLinkSchedulerDefault::GetSchedulingObjects ( std::vector< Ptr< SatSchedulingObject > > & output )

private

Gets scheduling object in sorted order according to configured sorting criteria.

Parameters

output reference to a vector which will be filled with pointers to the scheduling objects available for scheduling.

Definition at line 249 of file satellite-fwd-link-scheduler-default.cc.

References m_bbFrameContainer, ns3::SatFwdLinkScheduler::m_schedContextCallback, m_schedulingStopThresholdTime, and ns3::SatFwdLinkScheduler::SortSchedulingObjects().

Referenced by ScheduleBbFrames().

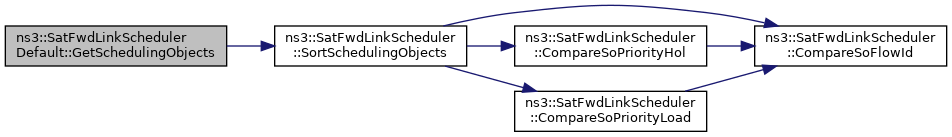

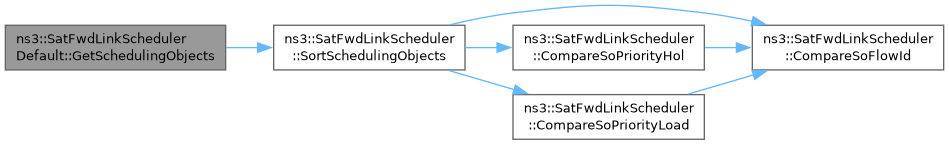

Here is the call graph for this function:

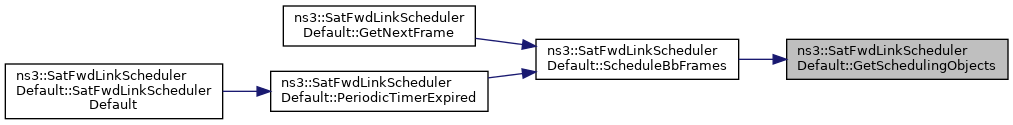

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatFwdLinkSchedulerDefault::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 36 of file satellite-fwd-link-scheduler-default.cc.

References ns3::SatFwdLinkScheduler::SatFwdLinkScheduler(), m_bbFrameContainer, m_schedulingStartThresholdTime, and m_schedulingStopThresholdTime.

Here is the call graph for this function:

◆ NotifyConstructionCompleted()

void ns3::SatFwdLinkSchedulerDefault::NotifyConstructionCompleted ( )

overridevirtual

Notifier called once the ObjectBase is fully constructed.

This method is invoked once all member attributes have been initialized. Subclasses can override this method to be notified of this event but if they do this, they must chain up to their parent's NotifyConstructionCompleted method.

Reimplemented from ns3::SatFwdLinkScheduler.

Definition at line 81 of file satellite-fwd-link-scheduler-default.cc.

References ns3::SatFwdLinkScheduler::m_bbFrameConf, m_bbFrameContainer, and ns3::SatFwdLinkScheduler::NotifyConstructionCompleted().

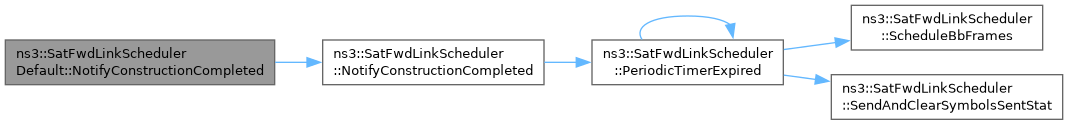

Here is the call graph for this function:
