SatGenericStreamEncapsulatorArq class is inherited from the SatGenericStreamEncapsulator class, which is used in FWD link for encapsulation and fragmentation of higher layer packets. More...

#include "satellite-generic-stream-encapsulator-arq.h"

Inheritance diagram for ns3::SatGenericStreamEncapsulatorArq:

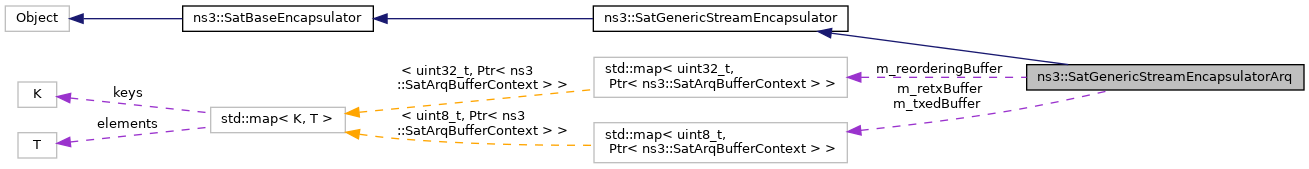

Collaboration diagram for ns3::SatGenericStreamEncapsulatorArq:

Public Member Functions
	SatGenericStreamEncapsulatorArq ()
	Default constructor, not used.
	SatGenericStreamEncapsulatorArq (Mac48Address encapAddress, Mac48Address decapAddress, Mac48Address sourceE2EAddress, Mac48Address destE2EAddress, uint8_t flowId, uint32_t additionalHeaderSize=0)
	Constructor.
virtual	~SatGenericStreamEncapsulatorArq ()
	Destructor for SatGenericStreamEncapsulatorArq.
virtual void	DoDispose ()
	Dispose of this class instance.
virtual uint32_t	GetTxBufferSizeInBytes () const
	Get the buffered packets for this encapsulator.
virtual void	NotifyConstructionCompleted () override
	Notifier called once the ObjectBase is fully constructed.
virtual Ptr< Packet >	NotifyTxOpportunity (uint32_t bytes, uint32_t &bytesLeft, uint32_t &nextMinTxO)
	Notify a Tx opportunity to this encapsulator.
virtual void	ReceiveAck (Ptr< SatArqAckMessage > ack)
	Receive a control message (ARQ ACK).
virtual void	ReceivePdu (Ptr< Packet > p)
	Receive a packet, thus decapsulate and defragment/deconcatenate if needed.
Public Member Functions inherited from ns3::SatGenericStreamEncapsulator
	SatGenericStreamEncapsulator ()
	Default constructor, not used.
	SatGenericStreamEncapsulator (Mac48Address encapAddress, Mac48Address decapAddress, Mac48Address sourceE2EAddress, Mac48Address destE2EAddress, uint8_t flowId, uint32_t additionalHeaderSize=0)
	Constructor.
virtual	~SatGenericStreamEncapsulator ()
	Destructor for SatGenericStreamEncapsulator.
virtual void	EnquePdu (Ptr< Packet > p, Mac48Address dest)
	Enqueue a Higher Layer packet to txBuffer.
virtual uint32_t	GetMinTxOpportunityInBytes () const
	Get minimum Tx opportunity in bytes, which takes the assumed header sizes into account.
Public Member Functions inherited from ns3::SatBaseEncapsulator
	SatBaseEncapsulator ()
	Default constructor not used.
	SatBaseEncapsulator (Mac48Address encapAddress, Mac48Address decapAddress, Mac48Address sourceE2EAddress, Mac48Address destE2EAddress, uint8_t flowId, uint32_t additionalHeaderSize=0)
	Constructor.
virtual	~SatBaseEncapsulator ()
	Destructor for SatBaseEncapsulator.
virtual Time	GetHolDelay () const
	Get Head-of-Line packet buffering delay.
Ptr< SatQueue >	GetQueue ()
	Get the queue instance.
void	SetCtrlMsgCallback (SatBaseEncapsulator::SendCtrlCallback cb)
void	SetQueue (Ptr< SatQueue > queue)
	Set the used queue from outside.
void	SetReceiveCallback (ReceiveCallback cb)
	Method to set receive callback.

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID.
Static Public Member Functions inherited from ns3::SatGenericStreamEncapsulator
static TypeId	GetTypeId (void)
	Get the type ID.
Static Public Member Functions inherited from ns3::SatBaseEncapsulator
static TypeId	GetTypeId (void)
	Get the type ID.

Private Member Functions
void	ArqReTxTimerExpired (uint8_t seqNo)
	ARQ Tx timer has expired.
void	CleanUp (uint8_t sequenceNumber)
	Clean-up a certain sequence number.
uint32_t	ConvertSeqNo (uint8_t seqNo) const
	Convert the 8-bit sequence number value from ARQ header into 32-bit continuous sequence number stream at the receiver.
void	ReassembleAndReceive ()
	Reassemble and receive the received PDUs if possible.
void	RxWaitingTimerExpired (uint32_t sn)
	Rx waiting timer for a PDU has expired.
void	SendAck (uint8_t seqNo) const
	Send ACK for a given sequence number.

Private Attributes
uint32_t	m_arqHeaderSize
	ARQ header size in Bytes.
uint32_t	m_arqWindowSize
	ARQ window size, i.e.
uint32_t	m_maxNoOfRetransmissions
	Maximum number of retransmissions.
uint32_t	m_nextExpectedSeqNo
	Next expected sequence number at the packet reception.
std::map< uint32_t, Ptr< SatArqBufferContext > >	m_reorderingBuffer
	key = sequence number value = GSE packet
Time	m_retransmissionTimer
	Retransmission timer, i.e.
std::map< uint8_t, Ptr< SatArqBufferContext > >	m_retxBuffer
uint32_t	m_retxBufferSize
Time	m_rxWaitingTimer
	Waiting time for waiting a certain SN to be received.
Ptr< SatArqSequenceNumber >	m_seqNo
	Sequence number handler.
std::map< uint8_t, Ptr< SatArqBufferContext > >	m_txedBuffer
	Transmitted and retransmission context buffer.
uint32_t	m_txedBufferSize

Additional Inherited Members
Public Types inherited from ns3::SatBaseEncapsulator
typedef Callback< void, Ptr< Packet >, Mac48Address, Mac48Address >	ReceiveCallback
	Callback to send packet to lower layer.
typedef Callback< bool, Ptr< SatControlMessage >, const Address & >	SendCtrlCallback
	Control msg sending callback.
Protected Member Functions inherited from ns3::SatGenericStreamEncapsulator
Ptr< Packet >	GetNewGsePdu (uint32_t txOpportunityBytes, uint32_t maxGsePduSize, uint32_t additionalHeaderSize=0)
	Get new packet performs the GSE fragmentation and encapsulation for a one single packet.
void	IncreaseFragmentId ()
	Method increases the fragment id by one.
virtual void	ProcessPdu (Ptr< Packet > p)
	Process the reception of individual GSE PDUs.
void	Reset ()
	Reset defragmentation variables.
Protected Attributes inherited from ns3::SatGenericStreamEncapsulator
uint32_t	m_currRxFragmentId
	Current fragment id in the reassembly process.
Ptr< Packet >	m_currRxPacketFragment
	Current packet in the reassembly process.
uint32_t	m_currRxPacketFragmentBytes
	Currently received bytes of the fragmented packet.
uint32_t	m_currRxPacketSize
	The total size of the ALPDU size reassembly process.
uint32_t	m_maxGsePduSize
	Maximum GSE PDU size.
uint32_t	m_minGseTxOpportunity
	If the GSE opportunity is smaller than this, a NULL packet is returned.
uint32_t	m_txFragmentId
	Fragment id used in the packet transmissions.
Protected Attributes inherited from ns3::SatBaseEncapsulator
uint32_t	m_additionalHeaderSize
	Additional value in to take into account when pulling packets to represent E2E tags.
SendCtrlCallback	m_ctrlCallback
	Callback to send control messages.
Mac48Address	m_decapAddress
Mac48Address	m_destE2EAddress
Mac48Address	m_encapAddress
	Source and destination mac addresses.
uint8_t	m_flowId
	Flow identifier.
ReceiveCallback	m_rxCallback
	Receive callback.
Mac48Address	m_sourceE2EAddress
Ptr< SatQueue >	m_txQueue
	Used queue in satellite encapsulator.
Static Protected Attributes inherited from ns3::SatGenericStreamEncapsulator
static const uint32_t	MAX_FRAGMENT_ID = 256
	The fragment is described with 8 bits, thus the maximum fragment id is 256.
static const uint32_t	MAX_HL_PACKET_SIZE = 65536
	The maximum packet size is described with 16 bits, thus, the maximum HL packet size is 65536 bytes.

Detailed Description

SatGenericStreamEncapsulatorArq class is inherited from the SatGenericStreamEncapsulator class, which is used in FWD link for encapsulation and fragmentation of higher layer packets.

This class implements the ARQ retransmission logic in both transmission and reception side for GSE.

Implemented algorithm is based on Selective Repeat ARQ. Retransmission logic is based on a set of timers and added increasing sequence numbers for each sent packet. When a packet is received, and ACK is sent to the receiver with a proper sequence number.

Definition at line 52 of file satellite-generic-stream-encapsulator-arq.h.

Constructor & Destructor Documentation

◆ SatGenericStreamEncapsulatorArq() [1/2]

ns3::SatGenericStreamEncapsulatorArq::SatGenericStreamEncapsulatorArq ( )

Default constructor, not used.

Default constructor is not meant to be used!

Definition at line 46 of file satellite-generic-stream-encapsulator-arq.cc.

References m_arqHeaderSize, m_arqWindowSize, m_maxNoOfRetransmissions, m_nextExpectedSeqNo, m_retransmissionTimer, m_retxBuffer, m_retxBufferSize, m_seqNo, m_txedBuffer, and m_txedBufferSize.

◆ SatGenericStreamEncapsulatorArq() [2/2]

ns3::SatGenericStreamEncapsulatorArq::SatGenericStreamEncapsulatorArq	(	Mac48Address	encapAddress,
		Mac48Address	decapAddress,
		Mac48Address	sourceE2EAddress,
		Mac48Address	destE2EAddress,
		uint8_t	flowId,
		uint32_t	additionalHeaderSize = 0 )

Constructor.

Parameters

encapAddress	MAC addressd of encapsulator
decapAddress	MAC addressd of decapsulator
sourceE2EAddress	E2E source MAC addressd of packets (used to set SatAddressE2ETag)
destE2EAddress	E2E destination MAC addressd of packets (used to set SatAddressE2ETag)
flowId	Flow identifier
additionalHeaderSize	Additional value in to take into account when pulling packets to represent E2E tags

Definition at line 66 of file satellite-generic-stream-encapsulator-arq.cc.

References ns3::SatGenericStreamEncapsulator::SatGenericStreamEncapsulator(), m_arqHeaderSize, m_arqWindowSize, m_maxNoOfRetransmissions, m_nextExpectedSeqNo, m_retransmissionTimer, m_retxBuffer, m_retxBufferSize, m_seqNo, m_txedBuffer, and m_txedBufferSize.

Here is the call graph for this function:

◆ ~SatGenericStreamEncapsulatorArq()

ns3::SatGenericStreamEncapsulatorArq::~SatGenericStreamEncapsulatorArq ( )

virtual

Destructor for SatGenericStreamEncapsulatorArq.

Definition at line 104 of file satellite-generic-stream-encapsulator-arq.cc.

References m_seqNo.

Member Function Documentation

◆ ArqReTxTimerExpired()

void ns3::SatGenericStreamEncapsulatorArq::ArqReTxTimerExpired ( uint8_t seqNo )

private

ARQ Tx timer has expired.

The PDU will be flushed, if the maximum retransmissions has been reached. Otherwise the packet will be resent.

Parameters

seqNo Sequence number

Definition at line 344 of file satellite-generic-stream-encapsulator-arq.cc.

References CleanUp(), ns3::SatBaseEncapsulator::m_encapAddress, m_maxNoOfRetransmissions, m_retxBuffer, m_retxBufferSize, and m_txedBuffer.

Referenced by NotifyTxOpportunity().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CleanUp()

void ns3::SatGenericStreamEncapsulatorArq::CleanUp ( uint8_t sequenceNumber )

private

Clean-up a certain sequence number.

Parameters

sequenceNumber Sequence number

Definition at line 389 of file satellite-generic-stream-encapsulator-arq.cc.

References m_retxBuffer, m_retxBufferSize, m_seqNo, m_txedBuffer, and m_txedBufferSize.

Referenced by ArqReTxTimerExpired(), and ReceiveAck().

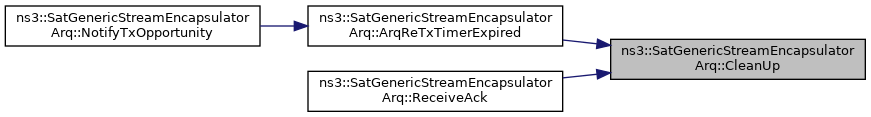

Here is the caller graph for this function:

◆ ConvertSeqNo()

uint32_t ns3::SatGenericStreamEncapsulatorArq::ConvertSeqNo ( uint8_t seqNo ) const

private

Convert the 8-bit sequence number value from ARQ header into 32-bit continuous sequence number stream at the receiver.

Parameters

seqNo 8-bit sequence number

Returns: uint32_t 32-bit sequence number

Definition at line 551 of file satellite-generic-stream-encapsulator-arq.cc.

References m_arqWindowSize, and m_nextExpectedSeqNo.

Referenced by ReceivePdu().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::SatGenericStreamEncapsulatorArq::DoDispose ( )

virtual

Dispose of this class instance.

Reimplemented from ns3::SatGenericStreamEncapsulator.

Definition at line 150 of file satellite-generic-stream-encapsulator-arq.cc.

References ns3::SatGenericStreamEncapsulator::DoDispose(), m_reorderingBuffer, m_retxBuffer, m_seqNo, and m_txedBuffer.

Here is the call graph for this function:

◆ GetTxBufferSizeInBytes()

uint32_t ns3::SatGenericStreamEncapsulatorArq::GetTxBufferSizeInBytes ( ) const

virtual

Get the buffered packets for this encapsulator.

Returns: uint32_t buffered bytes

Reimplemented from ns3::SatBaseEncapsulator.

Definition at line 653 of file satellite-generic-stream-encapsulator-arq.cc.

References m_retxBufferSize, and ns3::SatBaseEncapsulator::m_txQueue.

Referenced by NotifyTxOpportunity().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatGenericStreamEncapsulatorArq::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 111 of file satellite-generic-stream-encapsulator-arq.cc.

References ns3::SatGenericStreamEncapsulator::SatGenericStreamEncapsulator(), m_arqHeaderSize, m_arqWindowSize, m_maxNoOfRetransmissions, m_retransmissionTimer, and m_rxWaitingTimer.

Here is the call graph for this function:

◆ NotifyConstructionCompleted()

void ns3::SatGenericStreamEncapsulatorArq::NotifyConstructionCompleted ( )

overridevirtual

Notifier called once the ObjectBase is fully constructed.

This method is invoked once all member attributes have been initialized. Subclasses can override this method to be notified of this event but if they do this, they must chain up to their parent's NotifyConstructionCompleted method.

Definition at line 94 of file satellite-generic-stream-encapsulator-arq.cc.

References m_arqWindowSize, and m_seqNo.

◆ NotifyTxOpportunity()

Ptr< Packet > ns3::SatGenericStreamEncapsulatorArq::NotifyTxOpportunity	(	uint32_t	bytes,
		uint32_t &	bytesLeft,
		uint32_t &	nextMinTxO )

virtual

Notify a Tx opportunity to this encapsulator.

Parameters

bytes	Notified tx opportunity bytes from lower layer
&bytesLeft	Bytes left after this TxOpportunity in SatQueue
&nextMinTxO	Minimum TxO after this TxO

Returns: A GSE PDU

Give priority to the retransmissions. Whenever, the retransmission timer is expired, packet is moved to the retransmission buffer from the transmitted buffer.

Reimplemented from ns3::SatGenericStreamEncapsulator.

Definition at line 189 of file satellite-generic-stream-encapsulator-arq.cc.

References ArqReTxTimerExpired(), ns3::SatGenericStreamEncapsulator::GetMinTxOpportunityInBytes(), ns3::SatGenericStreamEncapsulator::GetNewGsePdu(), GetTxBufferSizeInBytes(), m_arqHeaderSize, ns3::SatBaseEncapsulator::m_decapAddress, ns3::SatBaseEncapsulator::m_destE2EAddress, ns3::SatBaseEncapsulator::m_encapAddress, ns3::SatBaseEncapsulator::m_flowId, m_retransmissionTimer, m_retxBuffer, m_retxBufferSize, m_seqNo, ns3::SatBaseEncapsulator::m_sourceE2EAddress, m_txedBuffer, m_txedBufferSize, ns3::SatBaseEncapsulator::m_txQueue, ns3::SatMacTag::SetDestAddress(), ns3::SatAddressE2ETag::SetE2EDestAddress(), ns3::SatAddressE2ETag::SetE2ESourceAddress(), ns3::SatFlowIdTag::SetFlowId(), ns3::SatArqHeader::SetSeqNo(), and ns3::SatMacTag::SetSourceAddress().

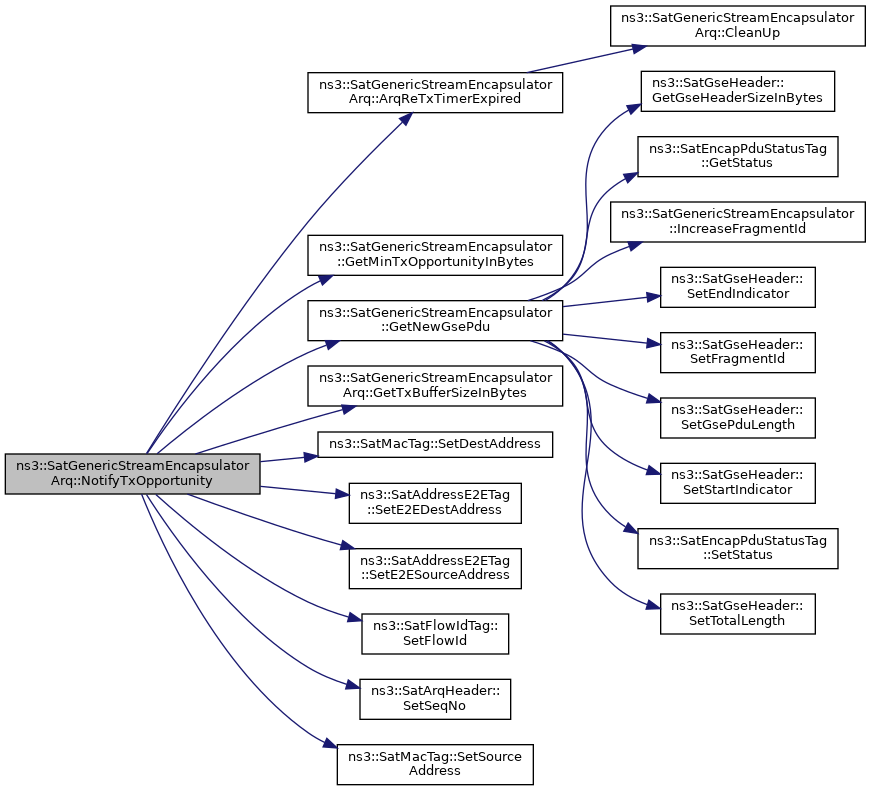

Here is the call graph for this function:

◆ ReassembleAndReceive()

void ns3::SatGenericStreamEncapsulatorArq::ReassembleAndReceive ( )

private

Reassemble and receive the received PDUs if possible.

As long as the PDU is the next expected one, process the PDU and erase it.

Definition at line 589 of file satellite-generic-stream-encapsulator-arq.cc.

References m_nextExpectedSeqNo, m_reorderingBuffer, and ns3::SatGenericStreamEncapsulator::ProcessPdu().

Referenced by ReceivePdu(), and RxWaitingTimerExpired().

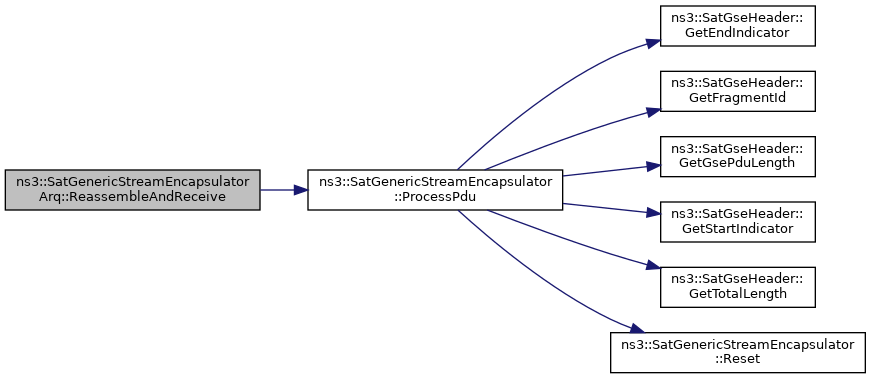

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReceiveAck()

void ns3::SatGenericStreamEncapsulatorArq::ReceiveAck ( Ptr< SatArqAckMessage > ack )

virtual

Receive a control message (ARQ ACK).

Parameters

ack	Control message pointer received from lower layer

Take the packet away from the transmitted or retransmission buffer and release the sequence number for further use.

Reimplemented from ns3::SatBaseEncapsulator.

Definition at line 420 of file satellite-generic-stream-encapsulator-arq.cc.

References CleanUp(), and ns3::SatBaseEncapsulator::m_encapAddress.

Here is the call graph for this function:

◆ ReceivePdu()

void ns3::SatGenericStreamEncapsulatorArq::ReceivePdu ( Ptr< Packet > p )

virtual

Receive a packet, thus decapsulate and defragment/deconcatenate if needed.

The decapsuled/defragmented HL PDU is forwarded back to LLC and to upper layer.

Parameters

p	A packet pointer received from lower layer

Reimplemented from ns3::SatGenericStreamEncapsulator.

Definition at line 437 of file satellite-generic-stream-encapsulator-arq.cc.

References ConvertSeqNo(), ns3::SatMacTag::GetDestAddress(), ns3::SatArqHeader::GetSeqNo(), ns3::SatBaseEncapsulator::m_decapAddress, ns3::SatBaseEncapsulator::m_encapAddress, m_nextExpectedSeqNo, m_reorderingBuffer, m_rxWaitingTimer, ReassembleAndReceive(), RxWaitingTimerExpired(), and SendAck().

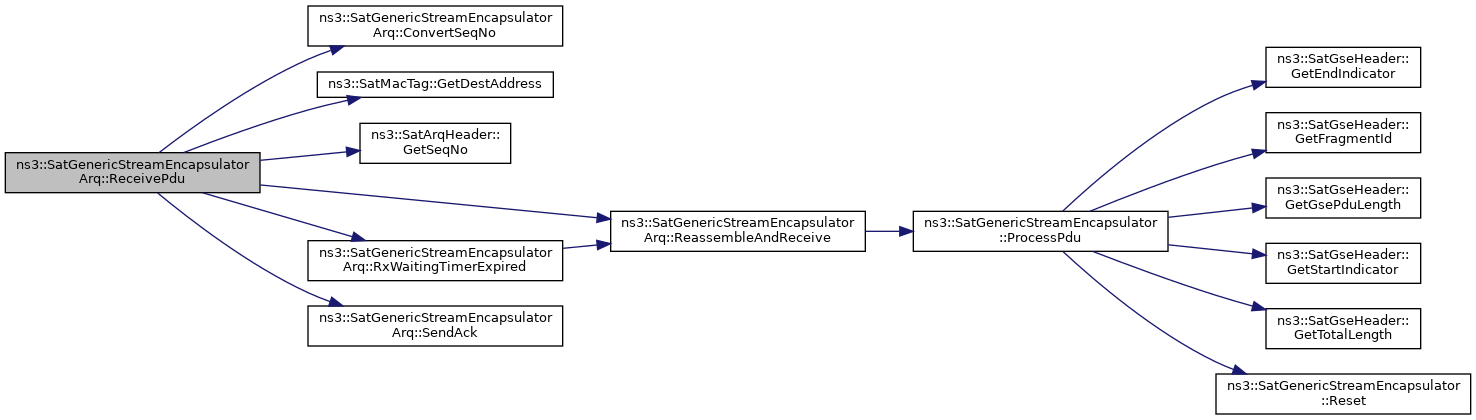

Here is the call graph for this function:

◆ RxWaitingTimerExpired()

void ns3::SatGenericStreamEncapsulatorArq::RxWaitingTimerExpired ( uint32_t sn )

private

Rx waiting timer for a PDU has expired.

Parameters

sn	Sequence number

Definition at line 630 of file satellite-generic-stream-encapsulator-arq.cc.

References ns3::SatBaseEncapsulator::m_encapAddress, m_reorderingBuffer, and ReassembleAndReceive().

Referenced by ReceivePdu().

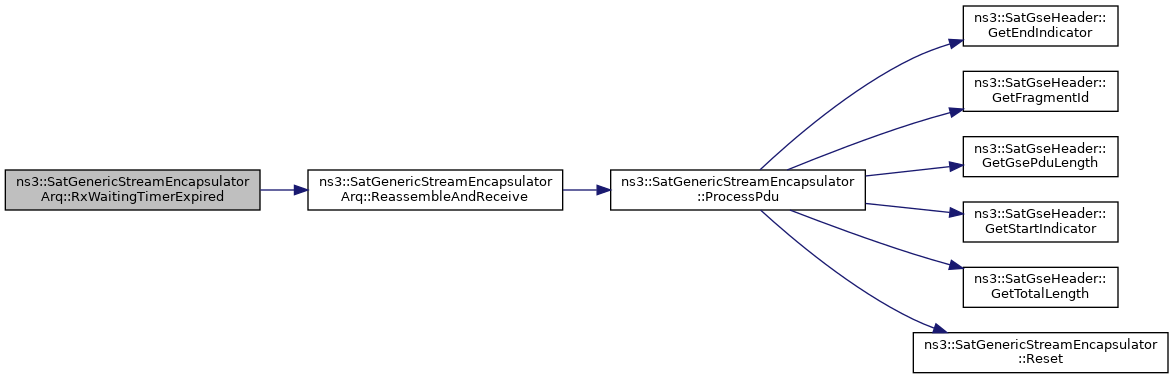

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendAck()

void ns3::SatGenericStreamEncapsulatorArq::SendAck ( uint8_t seqNo ) const

private

Send ACK for a given sequence number.

Parameters

seqNo Sequence number

GSE sends the ACK control message via a callback to SatNetDevice of the GW to the RLE control buffer. The transmission assumptions for the control messages are currently
