ns3::SatLinkResultsDvbRcs2 Class Reference

Link results for DVB-RCS2. More...

#include "satellite-link-results.h"

Inheritance diagram for ns3::SatLinkResultsDvbRcs2:

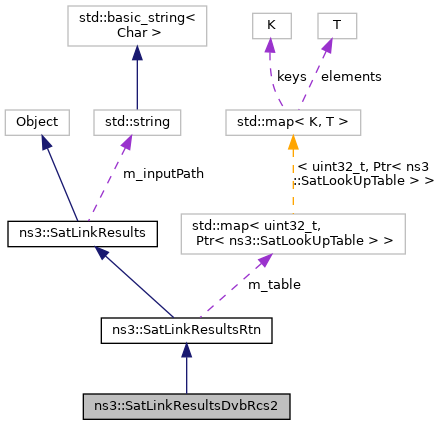

Collaboration diagram for ns3::SatLinkResultsDvbRcs2:

Public Member Functions
	SatLinkResultsDvbRcs2 ()
	Default constructor.
	~SatLinkResultsDvbRcs2 ()
Public Member Functions inherited from ns3::SatLinkResultsRtn
	SatLinkResultsRtn ()
	Default constructor.
	~SatLinkResultsRtn ()
double	GetBler (uint32_t waveformId, double ebNoDb) const
	Get a BLER value from link results.
double	GetEbNoDb (uint32_t waveformId, double blerTarget) const
	Get a Eb/No requirement for a given BLER target from link results.
Public Member Functions inherited from ns3::SatLinkResults
	SatLinkResults ()
	Default constructor.
void	Initialize ()
	Initialize look up tables.

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.
Static Public Member Functions inherited from ns3::SatLinkResultsRtn
static TypeId	GetTypeId ()
	Get the type ID.
Static Public Member Functions inherited from ns3::SatLinkResults
static TypeId	GetTypeId ()
	Get the type ID.

Protected Member Functions
virtual void	DoInitialize ()
	Initialize by loading DVB-RCS2 look up tables.

Additional Inherited Members
Protected Attributes inherited from ns3::SatLinkResultsRtn
std::map< uint32_t, Ptr< SatLookUpTable > >	m_table
	Map of satellite link result look up tables.
Protected Attributes inherited from ns3::SatLinkResults
std::string	m_inputPath
	The base path where the text files containing link results data can be found.
bool	m_isInitialized
	Indicates if SatLinkResults::Initialize has been called.

Detailed Description

Link results for DVB-RCS2.

Loads and maintains multiple SatLookUpTable. Provides query service based on waveform id.

See usage examples in the parent class documentation (SatLinkResults).

Definition at line 179 of file satellite-link-results.h.

Constructor & Destructor Documentation

SatLinkResultsDvbRcs2()

ns3::SatLinkResultsDvbRcs2::SatLinkResultsDvbRcs2

(

)

Default constructor.

Definition at line 120 of file satellite-link-results.cc.

References ns3::SatLinkResultsRtn::SatLinkResultsRtn().

Here is the call graph for this function:

~SatLinkResultsDvbRcs2()

ns3::SatLinkResultsDvbRcs2::~SatLinkResultsDvbRcs2 ( )

inline

Definition at line 187 of file satellite-link-results.h.

Member Function Documentation

DoInitialize()

void ns3::SatLinkResultsDvbRcs2::DoInitialize ( )

protectedvirtual

Initialize by loading DVB-RCS2 look up tables.

Implements ns3::SatLinkResultsRtn.

Definition at line 133 of file satellite-link-results.cc.

References ns3::SatLinkResults::m_inputPath, and ns3::SatLinkResultsRtn::m_table.

GetTypeId()

TypeId ns3::SatLinkResultsDvbRcs2::GetTypeId ( )

static

Get the type ID.

Returns

the object TypeId

Definition at line 126 of file satellite-link-results.cc.

References ns3::SatLinkResultsRtn::SatLinkResultsRtn().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• /builds/sns3/satellite/satellite/model/satellite-link-results.h
• /builds/sns3/satellite/satellite/model/satellite-link-results.cc
