Link results for DVB-RCS2. More...

#include "satellite-link-results.h"

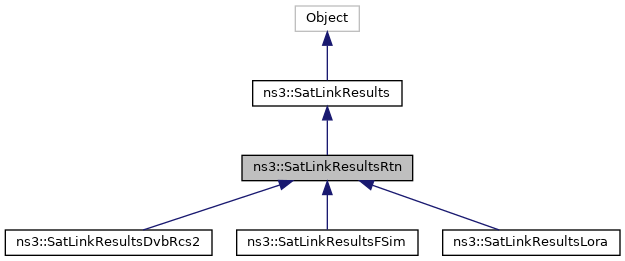

Inheritance diagram for ns3::SatLinkResultsRtn:

Collaboration diagram for ns3::SatLinkResultsRtn:

Public Member Functions
	SatLinkResultsRtn ()
	Default constructor.
	~SatLinkResultsRtn ()
double	GetBler (uint32_t waveformId, double ebNoDb) const
	Get a BLER value from link results.
double	GetEbNoDb (uint32_t waveformId, double blerTarget) const
	Get a Eb/No requirement for a given BLER target from link results.
Public Member Functions inherited from ns3::SatLinkResults
	SatLinkResults ()
	Default constructor.
void	Initialize ()
	Initialize look up tables.

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.
Static Public Member Functions inherited from ns3::SatLinkResults
static TypeId	GetTypeId ()
	Get the type ID.

Protected Member Functions
virtual void	DoInitialize ()=0
	Initialize by loading DVB-RCS2 look up tables.

Protected Attributes
std::map< uint32_t, Ptr< SatLookUpTable > >	m_table
	Map of satellite link result look up tables.
Protected Attributes inherited from ns3::SatLinkResults
std::string	m_inputPath
	The base path where the text files containing link results data can be found.
bool	m_isInitialized
	Indicates if SatLinkResults::Initialize has been called.

Detailed Description

Link results for DVB-RCS2.

Loads and maintains multiple SatLookUpTable. Provides query service based on waveform id.

See usage examples in the parent class documentation (SatLinkResults).

Definition at line 113 of file satellite-link-results.h.

Constructor & Destructor Documentation

◆ SatLinkResultsRtn()

ns3::SatLinkResultsRtn::SatLinkResultsRtn ( )

Default constructor.

Definition at line 76 of file satellite-link-results.cc.

References ns3::SatLinkResults::SatLinkResults(), and m_table.

Referenced by ns3::SatLinkResultsDvbRcs2::SatLinkResultsDvbRcs2(), ns3::SatLinkResultsFSim::SatLinkResultsFSim(), ns3::SatLinkResultsLora::SatLinkResultsLora(), ns3::SatLinkResultsDvbRcs2::GetTypeId(), ns3::SatLinkResultsFSim::GetTypeId(), and ns3::SatLinkResultsLora::GetTypeId().

Here is the call graph for this function:

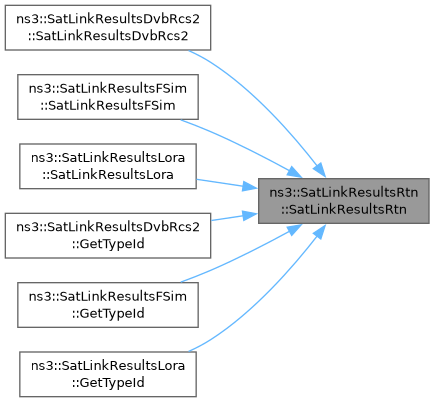

Here is the caller graph for this function:

◆ ~SatLinkResultsRtn()

ns3::SatLinkResultsRtn::~SatLinkResultsRtn ( )

inline

Definition at line 121 of file satellite-link-results.h.

Member Function Documentation

◆ DoInitialize()

virtual void ns3::SatLinkResultsRtn::DoInitialize ( )

protectedpure virtual

Initialize by loading DVB-RCS2 look up tables.

Implements ns3::SatLinkResults.

Implemented in ns3::SatLinkResultsDvbRcs2, ns3::SatLinkResultsFSim, and ns3::SatLinkResultsLora.

◆ GetBler()

double ns3::SatLinkResultsRtn::GetBler	(	uint32_t	waveformId,
		double	ebNoDb ) const

Get a BLER value from link results.

Parameters

waveformId	(which determines burst length and MODCOD)
ebNoDb	the received Eb/No in dB

Returns: BLER value, which is a double ranging between [0..1]

Must be run after SatLinkResults::Initialize is called.

Definition at line 90 of file satellite-link-results.cc.

References ns3::SatLinkResults::m_isInitialized, and m_table.

◆ GetEbNoDb()

double ns3::SatLinkResultsRtn::GetEbNoDb	(	uint32_t	waveformId,
		double	blerTarget ) const

Get a Eb/No requirement for a given BLER target from link results.

Parameters

waveformId	(which determines burst length and MODCOD)
blerTarget	Target BLER for the system

Returns: Eb/No value

Must be run after SatLinkResults::Initialize is called.

Definition at line 103 of file satellite-link-results.cc.

References ns3::SatLinkResults::m_isInitialized, and m_table.

◆ GetTypeId()

TypeId ns3::SatLinkResultsRtn::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 83 of file satellite-link-results.cc.

References ns3::SatLinkResults::SatLinkResults().

Here is the call graph for this function:

Member Data Documentation

◆ m_table

std::map<uint32_t, Ptr<SatLookUpTable> > ns3::SatLinkResultsRtn::m_table

protected

Map of satellite link result look up tables.

key = uint32_t, i.e. waveform id
value = Ptr<SatLookUpTable>, i.e. look-up table containing the link results

Definition at line 166 of file satellite-link-results.h.

Referenced by SatLinkResultsRtn(), ns3::SatLinkResultsDvbRcs2::DoInitialize(), ns3::SatLinkResultsFSim::DoInitialize(), ns3::SatLinkResultsLora::DoInitialize(), GetBler(), and GetEbNoDb().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-link-results.h
/builds/sns3/satellite/satellite/model/satellite-link-results.cc
