ns3::SatSuperframeAllocator Class Reference

helper class for Satellite Beam Scheduler. More...

#include "satellite-superframe-allocator.h"

Inheritance diagram for ns3::SatSuperframeAllocator:

Collaboration diagram for ns3::SatSuperframeAllocator:

Public Member Functions
	SatSuperframeAllocator (Ptr< SatSuperframeConf > superFrameConf)
	Construct SatSuperframeAllocator.
virtual	~SatSuperframeAllocator ()
	Destruct SatSuperframeAllocator.
virtual void	GenerateTimeSlots (SatFrameAllocator::TbtpMsgContainer_t &tbtpContainer, uint32_t maxSizeInBytes, SatFrameAllocator::UtAllocInfoContainer_t &utAllocContainer, TracedCallback< uint32_t > waveformTrace, TracedCallback< uint32_t, uint32_t > utLoadTrace, TracedCallback< uint32_t, double > loadTrace)=0
	Generate time slots in TBTP(s) for the UT/RC.
Time	GetSuperframeDuration () const
	Get super frame duration.
virtual void	PreAllocateSymbols (SatFrameAllocator::SatFrameAllocContainer_t &allocReqs)=0
	Preallocate symbols for given to UTs in superframe.
virtual void	ReleaseMinimumRate (uint32_t minimumRateBytes, bool controlSlotsEnabled)=0
	Release minimum rate from the allocator.
virtual void	ReserveMinimumRate (uint32_t minimumRateBytes, bool controlSlotsEnabled)=0
	Reserve minimum rate from the allocator.

Static Public Member Functions
static TypeId	GetTypeId (void)
	derived from object

Protected Attributes
Ptr< SatSuperframeConf >	m_superframeConf

Detailed Description

helper class for Satellite Beam Scheduler.

SatSuperframeAllocator class is used by SatBeamScheduler to maintain information of the pre-allocated symbols per Capacity Category (CC) in frame. It also knows physical constrains of the frames.

SatSuperframeAllocator is created and used by SatBeamScheduler.

Definition at line 48 of file satellite-superframe-allocator.h.

Constructor & Destructor Documentation

SatSuperframeAllocator()

ns3::SatSuperframeAllocator::SatSuperframeAllocator

(

Ptr< SatSuperframeConf >

superFrameConf

)

Construct SatSuperframeAllocator.

Parameters

superFrameConf

Super frame configuration

Definition at line 42 of file satellite-superframe-allocator.cc.

References m_superframeConf.

Referenced by ns3::SatDefaultSuperframeAllocator::SatDefaultSuperframeAllocator(), and ns3::SatDefaultSuperframeAllocator::GetTypeId().

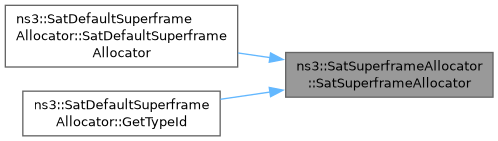

Here is the caller graph for this function:

~SatSuperframeAllocator()

ns3::SatSuperframeAllocator::~SatSuperframeAllocator ( )

virtual

Destruct SatSuperframeAllocator.

Definition at line 48 of file satellite-superframe-allocator.cc.

Member Function Documentation

GenerateTimeSlots()

virtual void ns3::SatSuperframeAllocator::GenerateTimeSlots ( SatFrameAllocator::TbtpMsgContainer_t & tbtpContainer, uint32_t maxSizeInBytes, SatFrameAllocator::UtAllocInfoContainer_t & utAllocContainer, TracedCallback< uint32_t > waveformTrace, TracedCallback< uint32_t, uint32_t > utLoadTrace, TracedCallback< uint32_t, double > loadTrace )

pure virtual

Generate time slots in TBTP(s) for the UT/RC.

Parameters

tbtpContainer	TBTP message container to add/fill TBTPs.
maxSizeInBytes	Maximum size for a TBTP message.
utAllocContainer	Reference to UT allocation container to fill in info of the allocation
waveformTrace	Wave form trace callback
utLoadTrace	UT load per the frame trace callback
loadTrace	Load per the frame trace callback

Implemented in ns3::SatDefaultSuperframeAllocator.

GetSuperframeDuration()

Time ns3::SatSuperframeAllocator::GetSuperframeDuration ( ) const

inline

Get super frame duration.

Returns

Super frame duration.

Definition at line 72 of file satellite-superframe-allocator.h.

References m_superframeConf.

GetTypeId()

TypeId ns3::SatSuperframeAllocator::GetTypeId ( void )

static

derived from object

Definition at line 36 of file satellite-superframe-allocator.cc.

PreAllocateSymbols()

virtual void ns3::SatSuperframeAllocator::PreAllocateSymbols ( SatFrameAllocator::SatFrameAllocContainer_t & allocReqs )

pure virtual

Preallocate symbols for given to UTs in superframe.

Pre-allocation is done in fairly manner between UTs and RCs.

Implemented in ns3::SatDefaultSuperframeAllocator.

ReleaseMinimumRate()

virtual void ns3::SatSuperframeAllocator::ReleaseMinimumRate ( uint32_t minimumRateBytes, bool controlSlotsEnabled )

pure virtual

Release minimum rate from the allocator.

This method is called when a UT leaves the beam using this allocator.

Parameters

minimumRateBytes	Minimum rate based bytes needed to reserve
controlSlotsEnabled	Flag indicating if control slot generation is enabled

Implemented in ns3::SatDefaultSuperframeAllocator.

ReserveMinimumRate()

virtual void ns3::SatSuperframeAllocator::ReserveMinimumRate ( uint32_t minimumRateBytes, bool controlSlotsEnabled )

pure virtual

Reserve minimum rate from the allocator.

This method is called to perform CAC functionality.

Parameters

minimumRateBytes	Minimum rate based bytes needed to reserve
controlSlotsEnabled	Flag indicating if control slot generation is enabled

Implemented in ns3::SatDefaultSuperframeAllocator.

Member Data Documentation

m_superframeConf

Ptr<SatSuperframeConf> ns3::SatSuperframeAllocator::m_superframeConf

protected

Definition at line 119 of file satellite-superframe-allocator.h.

Referenced by SatSuperframeAllocator(), GetSuperframeDuration(), and ns3::SatDefaultSuperframeAllocator::PreAllocateSymbols().

---
