Creates needed objects for LORA UT nodes like SatOrbiterNetDevice objects. More...

#include "satellite-ut-helper-lora.h"

Inheritance diagram for ns3::SatUtHelperLora:

Collaboration diagram for ns3::SatUtHelperLora:

Public Member Functions
	SatUtHelperLora ()
	Default constructor. More...

	SatUtHelperLora (SatTypedefs::CarrierBandwidthConverter_t carrierBandwidthConverter, uint32_t rtnLinkCarrierCount, Ptr< SatSuperframeSeq > seq, SatMac::ReadCtrlMsgCallback readCb, SatMac::ReserveCtrlMsgCallback reserveCb, SatMac::SendCtrlMsgCallback sendCb, RandomAccessSettings_s randomAccessSettings)
	Create a SatUtHelperLora to make life easier when creating Satellite point to point network connections. More...

virtual	~SatUtHelperLora ()
	Destructor. More...

TypeId	GetInstanceTypeId (void) const
	Derived from Object. More...

virtual Ptr< NetDevice >	Install (Ptr< Node > n, uint32_t satId, uint32_t beamId, Ptr< SatChannel > fCh, Ptr< SatChannel > rCh, Ptr< SatNetDevice > gwNd, Ptr< SatNcc > ncc, Address satUserAddress, SatPhy::ChannelPairGetterCallback cbChannel, SatMac::RoutingUpdateCallback cbRouting)

Public Member Functions inherited from ns3::SatUtHelper
	SatUtHelper ()
	Default constructor. More...

	SatUtHelper (SatTypedefs::CarrierBandwidthConverter_t carrierBandwidthConverter, uint32_t rtnLinkCarrierCount, Ptr< SatSuperframeSeq > seq, SatMac::ReadCtrlMsgCallback readCb, SatMac::ReserveCtrlMsgCallback reserveCb, SatMac::SendCtrlMsgCallback sendCb, RandomAccessSettings_s randomAccessSettings)
	Create a SatUtHelper to make life easier when creating Satellite point to point network connections. More...

virtual	~SatUtHelper ()
	Destructor. More...

void	EnableCreationTraces (Ptr< OutputStreamWrapper > stream, CallbackBase &cb)
	Enables creation traces to be written in given file. More...

TypeId	GetInstanceTypeId (void) const
	Derived from Object. More...

void	Initialize (Ptr< SatLinkResultsFwd > lrFwd)

NetDeviceContainer	Install (NodeContainer c, uint32_t satId, uint32_t beamId, Ptr< SatChannel > fCh, Ptr< SatChannel > rCh, Ptr< SatNetDevice > gwNd, Ptr< SatNcc > ncc, Address satUserAddress, SatPhy::ChannelPairGetterCallback cbChannel, SatMac::RoutingUpdateCallback cbRouting)

void	SetChannelAttribute (std::string name, const AttributeValue &value)
	Set an attribute value to be propagated to each Channel created by the helper. More...

void	SetDeviceAttribute (std::string name, const AttributeValue &value)
	Set an attribute value to be propagated to each NetDevice created by the helper. More...

void	SetPhyAttribute (std::string name, const AttributeValue &value)
	Set an attribute value to be propagated to each Phy created by the helper. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Derived from Object. More...

Static Public Member Functions inherited from ns3::SatUtHelper
static TypeId	GetTypeId (void)
	Derived from Object. More...

Additional Inherited Members
Protected Attributes inherited from ns3::SatUtHelper
bool	m_asyncAccess

SatTypedefs::CarrierBandwidthConverter_t	m_carrierBandwidthConverter

ObjectFactory	m_channelFactory

bool	m_crdsaOnlyForControl
	Planned CRDSA usage: More...

TracedCallback< std::string >	m_creationTrace
	Trace callback for creation traces. More...

double	m_daConstantErrorRate

SatPhy::InterferenceModel	m_daInterferenceModel

ObjectFactory	m_deviceFactory

bool	m_enableChannelEstimationError
	Enable channel estimation error modeling at forward link receiver (= UT). More...

SatPhy::ErrorModel	m_errorModel

uint32_t	m_fwdLinkCarrierCount

Ptr< SatLinkResults >	m_linkResults

Ptr< SatLowerLayerServiceConf >	m_llsConf
	Configured lower layer service configuration. More...

RandomAccessSettings_s	m_raSettings
	The used random access model settings. More...

SatMac::ReadCtrlMsgCallback	m_readCtrlCb

SatMac::ReserveCtrlMsgCallback	m_reserveCtrlCb

SatMac::SendCtrlMsgCallback	m_sendCtrlCb

Ptr< SatSuperframeSeq >	m_superframeSeq

Detailed Description

Creates needed objects for LORA UT nodes like SatOrbiterNetDevice objects.

Handles needed configuration for the UT nodes.

Definition at line 43 of file satellite-ut-helper-lora.h.

Constructor & Destructor Documentation

◆ SatUtHelperLora() [1/2]

ns3::SatUtHelperLora::SatUtHelperLora ( )

Default constructor.

Definition at line 72 of file satellite-ut-helper-lora.cc.

◆ SatUtHelperLora() [2/2]

ns3::SatUtHelperLora::SatUtHelperLora	(	SatTypedefs::CarrierBandwidthConverter_t	carrierBandwidthConverter,
		uint32_t	rtnLinkCarrierCount,
		Ptr< SatSuperframeSeq >	seq,
		SatMac::ReadCtrlMsgCallback	readCb,
		SatMac::ReserveCtrlMsgCallback	reserveCb,
		SatMac::SendCtrlMsgCallback	sendCb,
		RandomAccessSettings_s	randomAccessSettings
	)

Create a SatUtHelperLora to make life easier when creating Satellite point to point network connections.

Definition at line 80 of file satellite-ut-helper-lora.cc.

◆ ~SatUtHelperLora()

virtual ns3::SatUtHelperLora::~SatUtHelperLora ( )

inlinevirtual

Destructor.

Definition at line 76 of file satellite-ut-helper-lora.h.

Member Function Documentation

◆ GetInstanceTypeId()

TypeId ns3::SatUtHelperLora::GetInstanceTypeId ( void ) const

Derived from Object.

Definition at line 65 of file satellite-ut-helper-lora.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::SatUtHelperLora::GetTypeId ( void )

static

Derived from Object.

Definition at line 57 of file satellite-ut-helper-lora.cc.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

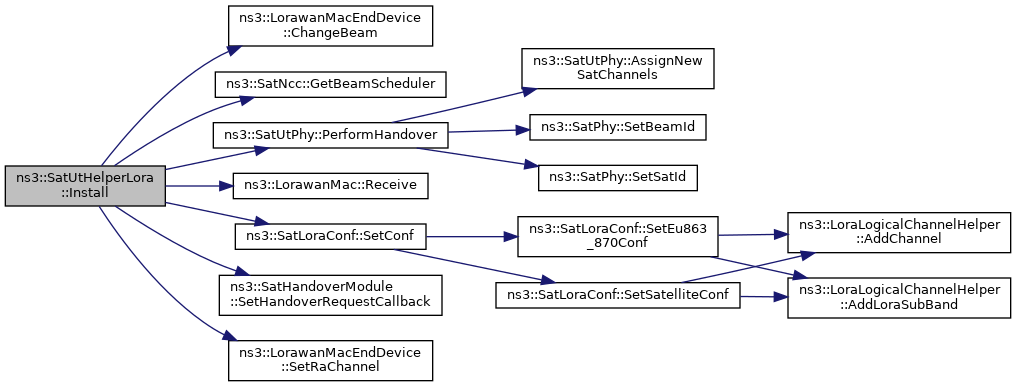

◆ Install()

Ptr< NetDevice > ns3::SatUtHelperLora::Install	(	Ptr< Node >	n,
		uint32_t	satId,
		uint32_t	beamId,
		Ptr< SatChannel >	fCh,
		Ptr< SatChannel >	rCh,
		Ptr< SatNetDevice >	gwNd,
		Ptr< SatNcc >	ncc,
		Address	satUserAddress,
		SatPhy::ChannelPairGetterCallback	cbChannel,
		SatMac::RoutingUpdateCallback	cbRouting
	)

virtual

Parameters

n	node
satId	id of the satellite
beamId	id of the beam
fCh	forward channel
rCh	return channel
gwNd	satellite netdevice of the GW
ncc	NCC (Network Control Center)
satUserAddress	MAC address of satellite user link

Returns: Net device installed to node

This method creates a ns3::SatChannel with the attributes configured by SatUtHelperLora::SetChannelAttribute, then, for each node in the input container, we create a ns3::SatNetDevice with the requested attributes, a queue for this ns3::SatNetLorawanDevice, and associate the resulting ns3::SatNetLorawanDevice with the ns3::Node and ns3::SatChannel.

Channel estimation errors

Implements ns3::SatUtHelper.

Definition at line 99 of file satellite-ut-helper-lora.cc.

References ns3::LorawanMacEndDevice::ChangeBeam(), ns3::SatNcc::GetBeamScheduler(), ns3::SatEnums::LORA_UT, ns3::SatPhy::CreateParam_t::m_beamId, ns3::SatUtHelper::m_carrierBandwidthConverter, ns3::SatUtHelper::m_daConstantErrorRate, ns3::SatUtHelper::m_daInterferenceModel, ns3::SatPhy::CreateParam_t::m_device, ns3::SatUtHelper::m_deviceFactory, ns3::SatUtHelper::m_enableChannelEstimationError, ns3::SatUtHelper::m_errorModel, ns3::SatUtHelper::m_fwdLinkCarrierCount, ns3::SatUtHelper::m_linkResults, ns3::SatUtHelper::m_llsConf, ns3::SatUtHelper::RandomAccessSettings_s::m_raCollisionModel, ns3::SatUtHelper::RandomAccessSettings_s::m_raInterferenceEliminationModel, ns3::SatUtHelper::RandomAccessSettings_s::m_raInterferenceModel, ns3::SatUtHelper::RandomAccessSettings_s::m_randomAccessModel, ns3::SatUtHelper::m_raSettings, ns3::SatPhy::CreateParam_t::m_rxCh, ns3::SatPhy::CreateParam_t::m_satId, ns3::SatPhy::CreateParam_t::m_standard, ns3::SatUtHelper::m_superframeSeq, ns3::SatPhy::CreateParam_t::m_txCh, ns3::SatEnums::NT_UT, ns3::SatUtPhy::PerformHandover(), ns3::LorawanMac::Receive(), ns3::SatEnums::REGENERATION_NETWORK, ns3::SatLoraConf::SetConf(), ns3::SatHandoverModule::SetHandoverRequestCallback(), ns3::LorawanMacEndDevice::SetRaChannel(), and ns3::SatConstVariables::SUPERFRAME_SEQUENCE.
