The SatPhy models the basic physical layer of the satellite system. More...

#include "satellite-phy.h"

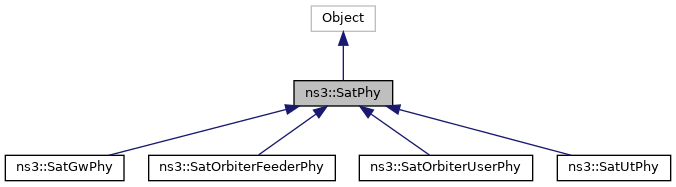

Inheritance diagram for ns3::SatPhy:

Collaboration diagram for ns3::SatPhy:

Classes
struct	CreateParam_t
	Creation parameters for base PHY object. More...

Public Types
typedef Callback< void, uint32_t, uint32_t, uint32_t, uint8_t, double >	AverageNormalizedOfferedLoadCallback
typedef Callback< SatChannelPair::ChannelPair_t, uint32_t, uint32_t >	ChannelPairGetterCallback
	Callback for retrieving a pair of SatChannel associated to a beam.
typedef Callback< void, uint32_t, uint32_t, Address, Address, double, bool >	CnoCallback
typedef SatPhyRxCarrierConf::ErrorModel	ErrorModel
	Define ErrorModel in SatPhy.
typedef SatPhyRxCarrierConf::InterferenceEliminationModel	InterferenceEliminationModel
	Define InterferenceEliminationModel in SatPhy.
typedef SatPhyRxCarrierConf::InterferenceModel	InterferenceModel
	Define InterferenceModel in SatPhy.
typedef SatSignalParameters::PacketsInBurst_t	PacketContainer_t
	Define PacketContainer in SatPhy.
typedef Callback< void, PacketContainer_t, Ptr< SatSignalParameters > >	ReceiveCallback

Public Member Functions
	SatPhy (CreateParam_t params)
	Constructor to create PHY objects with parameters.
	SatPhy (void)
	Default constructor.
virtual	~SatPhy ()
	Destructor.
void	AverageNormalizedOfferedRandomAccessLoadInfo (uint32_t satId, uint32_t beamId, uint32_t carrierId, uint8_t allocationChannelId, double averageNormalizedOfferedLoad)
	Function for getting the normalized offered load of the specific random access allocation channel.
void	BeginEndScheduling ()
	Begin frame/window end scheduling for processes utilizing frame length as interval.
double	CalculateSinr (double sinr, double otherInterference)
	Calculate final SINR with PHY specific parameters and given calculated SINR.
void	CnoInfo (uint32_t satId, uint32_t beamId, Address source, Address destination, double cno, bool isSatelliteMac)
	Function for getting the C/NO information.

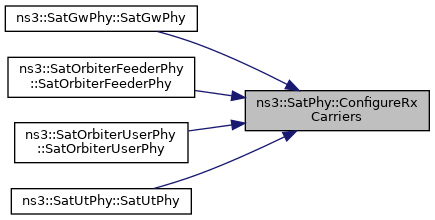

void	ConfigureRxCarriers (Ptr< SatPhyRxCarrierConf > carrierConf, Ptr< SatSuperframeConf > superFrameConf)
	Configure Rx carriers.
virtual void	DoDispose (void)
	Dispose of SatPhy.
virtual void	DoInitialize (void)
	Initialization of SatPhy.
virtual double	GetAdditionalInterference ()=0
	Get additional interference, used to compute final SINR at RX.
double	GetDefaultFading () const
	Get the default fading of the PHY.

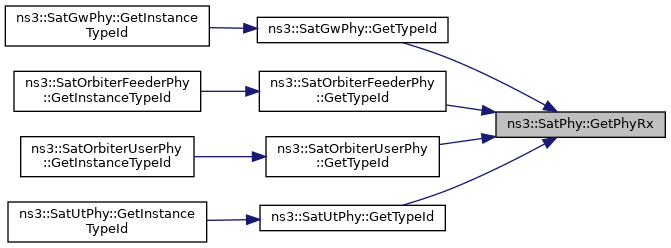

virtual Ptr< SatPhyRx >	GetPhyRx () const
	Get the SatPhyRx pointer.

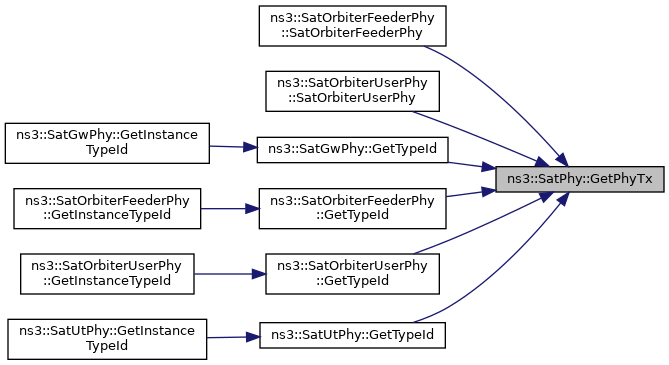

virtual Ptr< SatPhyTx >	GetPhyTx () const
	Get the SatPhyTx pointer.
double	GetRxAntennaGainDb () const
	Get the maximum antenna gain of the receiver in dB.
double	GetRxAntennaLossDb () const
	Get the antenna loss of the receiver in dB.
double	GetRxNoiseTemperatureDbk () const
	Get the noise temperature of the receiver in dbK.
double	GetTxAntennaGainDb () const
	Get the maximum antenna gain of the transmitter in dB.
double	GetTxAntennaLossDb () const
	Get the antenna loss of the transmitter in dB.
Ptr< SatChannel >	GetTxChannel ()
	Get the Tx satellite channel.
double	GetTxMaxPowerDbw () const
	Get the maximum transmit power of the transmitter in dB.
double	GetTxOboLossDb () const
	Get the OBO loss of the transmitter in dB.
double	GetTxOutputLossDb () const
	Get the output loss of the transmitter in dB.

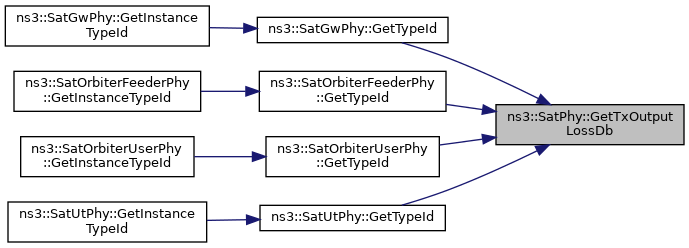

double	GetTxPointingLossDb () const
	Get the pointing loss of the transmitter in dB.
void	Initialize ()
	Initialize phy.
virtual void	NotifyConstructionCompleted () override
	Notifier called once the ObjectBase is fully constructed.
virtual void	Receive (Ptr< SatSignalParameters > rxParams, bool phyError)
	Receives packets from lower layer.
virtual void	SendPdu (PacketContainer_t, uint32_t carrierId, Time duration, SatSignalParameters::txInfo_s txInfo)
	Send Pdu to the PHY tx module (for initial transmissions from either UT or GW).
virtual void	SendPduWithParams (Ptr< SatSignalParameters > rxParams)
	Send Pdu to the PHY tx module (for satellite switch packet forwarding).
bool	SetBeamId (uint32_t beamId)
	Set the beamId this PHY is connected with.
void	SetChannelPairGetterCallback (SatPhy::ChannelPairGetterCallback cb)
	Set the channel pair getter callback.
void	SetDefaultFading (double fading)
	Set the default fading of the PHY.
void	SetNodeInfo (const Ptr< SatNodeInfo > nodeInfo)
	Set the node info class.
virtual void	SetPhyRx (Ptr< SatPhyRx > phyRx)
	Set the SatPhyRx module.
virtual void	SetPhyTx (Ptr< SatPhyTx > phyTx)
	Set the SatPhyTx module.
void	SetRxAntennaGainDb (double gainDb)
	Set the maximum antenna gain of the receiver in dB.
virtual void	SetRxAntennaGainPattern (Ptr< SatAntennaGainPattern > agp, Ptr< SatMobilityModel > satelliteMobility)
	Set the receive antenna gain pattern.
void	SetRxAntennaLossDb (double lossDb)
	Set the antenna loss of the receiver in dB.
void	SetRxFadingContainer (Ptr< SatBaseFading > fadingContainer)
	Set fading container.
void	SetRxNoiseTemperatureDbk (double temperatureDbk)
	Set the noise temperature of the receiver in dbK.
void	SetSatId (uint32_t satId)
	Set the satId this PHY is connected with.
void	SetTxAntennaGainDb (double gainDb)
	Set the maximum antenna gain of the transmitter in dB.
virtual void	SetTxAntennaGainPattern (Ptr< SatAntennaGainPattern > agp, Ptr< SatMobilityModel > satelliteMobility)
	Set the transmit antenna gain pattern.
void	SetTxAntennaLossDb (double lossDb)
	Set the antenna loss of the transmitter in dB.
void	SetTxFadingContainer (Ptr< SatBaseFading > fadingContainer)
	Set fading container.
void	SetTxMaxPowerDbw (double powerDb)
	Set the maximum transmit power of the transmitter in dB.
void	SetTxOboLossDb (double lossDb)
	Set the OBO loss of the transmitter in dB.

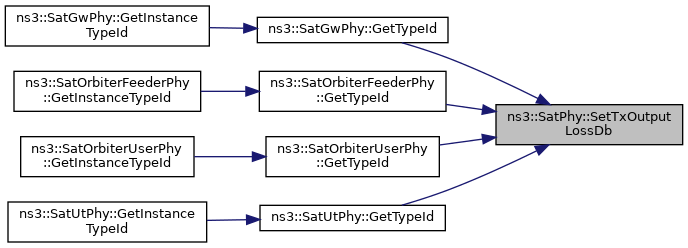

void	SetTxOutputLossDb (double lossDb)
	Set the output loss of the transmitter in dB.
void	SetTxPointingLossDb (double lossDb)
	Set the pointing loss of the transmitter in dB.

Static Public Member Functions
static TypeId	GetTypeId (void)
	Derived from Object.

Protected Member Functions
virtual SatEnums::SatLinkDir_t	GetSatLinkRxDir ()
	Get the link RX direction.
virtual SatEnums::SatLinkDir_t	GetSatLinkTxDir ()
	Get the link TX direction.

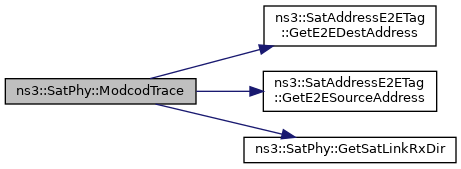

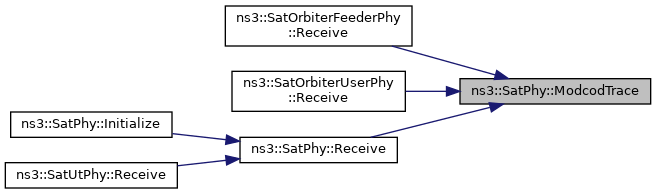

void	ModcodTrace (Ptr< SatSignalParameters > rxParams)
	Invoke the RxLinkModcod trace source for each received packet.

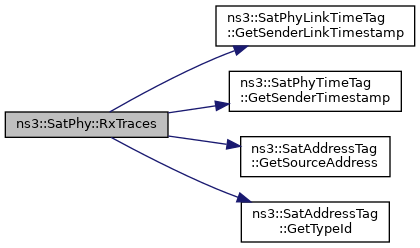

virtual void	RxTraces (SatPhy::PacketContainer_t packets)
	Invoke the Rx trace source for each received packet.
void	SetTimeTag (SatPhy::PacketContainer_t packets)
	Set SatPhyTimeTag of packets.

Protected Attributes
uint32_t	m_beamId
	Beam ID.
double	m_eirpWoGainW
	Calculated EIRP without gain in W.
bool	m_isStatisticsTagsEnabled
	EnableStatisticsTags attribute.
Time	m_lastDelay
	Last delay measurement.
Time	m_lastLinkDelay
	Last delay measurement for link.
Ptr< SatNodeInfo >	m_nodeInfo
	Node info containing node related information, such as node type, node id and MAC address (of the SatNetDevice).
TracedCallback< Time, SatEnums::SatPacketEvent_t, SatEnums::SatNodeType_t, uint32_t, Mac48Address, SatEnums::SatLogLevel_t, SatEnums::SatLinkDir_t, std::string >	m_packetTrace
	Trace callback used for packet tracing:
CreateParam_t	m_params
	Satellite physical layer construction parameters.
Ptr< SatPhyRx >	m_phyRx
	Pointer to internal SatPhyRx instance.
Ptr< SatPhyTx >	m_phyTx
	Pointer to internal SatPhyTx instance.
SatPhy::ChannelPairGetterCallback	m_retrieveChannelPair
	Callback for retrieving SatChannel pairs by beam.
SatPhy::ReceiveCallback	m_rxCallback
	The upper layer package receive callback.
TracedCallback< const Time &, const Address & >	m_rxDelayTrace
	Traced callback for all received packets, including delay information and the address of the senders.
TracedCallback< const Time &, const Address & >	m_rxJitterTrace
	Traced callback for all received packets, including jitter information and the address of the senders.
TracedCallback< const Time &, const Address & >	m_rxLinkDelayTrace
	Traced callback for all received packets, including link delay information and the address of the senders.
TracedCallback< const Time &, const Address & >	m_rxLinkJitterTrace
	Traced callback for all received packets, including link jitter information and the address of the senders.
TracedCallback< uint32_t, const Address & >	m_rxLinkModcodTrace
	Traced callback for all received packets, including link MODCOD information and the address of the senders.
TracedCallback< Ptr< const Packet >, const Address & >	m_rxTrace
	Traced callback for all received packets, including the address of the senders.
uint32_t	m_satId
	Satellite ID.

Private Attributes
SatPhy::AverageNormalizedOfferedLoadCallback	m_avgNormalizedOfferedLoadCallback
	Average normalized offered load callback.
SatPhy::CnoCallback	m_cnoCallback
	The C/N0 info callback.
double	m_defaultFadingValue
	Default fading value.
double	m_rxAntennaLossDb
	Configured receiver antenna loss in Dbs.
double	m_rxMaxAntennaGainDb
	Configured maximum receiver antenna gain in dBi.
double	m_rxNoiseTemperatureDbk
	Configured receiver noise temperature in dBK.
double	m_txAntennaLossDb
	Configured transmitter antenna loss in Dbs.
double	m_txMaxAntennaGainDb
	Configured maximum transmitter antenna gain in dBi.
double	m_txMaxPowerDbw
	Configured maximum transmitter power in DbWs.
double	m_txOboLossDb
	Configured transmitter OBO loss in Dbs.
double	m_txOutputLossDb
	Configured transmitter output loss in Dbs.
double	m_txPointingLossDb
	Configured transmitter pointing loss in Dbs.

Detailed Description

The SatPhy models the basic physical layer of the satellite system.

SatPhy is the base class implementing the commonalities between different satellite nodes. This is a pure virtual class and actual implementations are located in:

Definition at line 61 of file satellite-phy.h.

Member Typedef Documentation

◆ AverageNormalizedOfferedLoadCallback

typedef Callback<void, uint32_t, uint32_t, uint32_t, uint8_t, double> ns3::SatPhy::AverageNormalizedOfferedLoadCallback

Parameters

satellite	Id
beam	Id
carrier	Id
allocation	channel Id
average	normalized offered load

Definition at line 104 of file satellite-phy.h.

◆ ChannelPairGetterCallback

typedef Callback<SatChannelPair::ChannelPair_t, uint32_t, uint32_t> ns3::SatPhy::ChannelPairGetterCallback

Callback for retrieving a pair of SatChannel associated to a beam.

Parameters

uint32_t beam ID

Returns: A pair of SatChannel to use as communication channel in this beam

Definition at line 510 of file satellite-phy.h.

◆ CnoCallback

typedef Callback<void, uint32_t, uint32_t, Address, Address, double, bool> ns3::SatPhy::CnoCallback

Parameters

The	id of the satellite.
The	id of the beam.
The	id (address) of the source or sender
The	id (address) of the destination or receiver
C/N0	value

Definition at line 94 of file satellite-phy.h.

◆ ErrorModel

typedef SatPhyRxCarrierConf::ErrorModel ns3::SatPhy::ErrorModel

Define ErrorModel in SatPhy.

Definition at line 75 of file satellite-phy.h.

◆ InterferenceEliminationModel

typedef SatPhyRxCarrierConf::InterferenceEliminationModel ns3::SatPhy::InterferenceEliminationModel

Define InterferenceEliminationModel in SatPhy.

Definition at line 71 of file satellite-phy.h.

◆ InterferenceModel

typedef SatPhyRxCarrierConf::InterferenceModel ns3::SatPhy::InterferenceModel

Define InterferenceModel in SatPhy.

Definition at line 67 of file satellite-phy.h.

◆ PacketContainer_t

typedef SatSignalParameters::PacketsInBurst_t ns3::SatPhy::PacketContainer_t

Define PacketContainer in SatPhy.

Definition at line 79 of file satellite-phy.h.

◆ ReceiveCallback

typedef Callback<void, PacketContainer_t, Ptr<SatSignalParameters> > ns3::SatPhy::ReceiveCallback

Parameters

the	container of pointers to packets received
the	id of the beam where packet is from

Definition at line 85 of file satellite-phy.h.

Constructor & Destructor Documentation

◆ SatPhy() [1/2]

ns3::SatPhy::SatPhy ( void )

Default constructor.

Definition at line 52 of file satellite-phy.cc.

References m_beamId, m_defaultFadingValue, m_eirpWoGainW, m_isStatisticsTagsEnabled, m_lastDelay, m_lastLinkDelay, m_rxAntennaLossDb, m_rxMaxAntennaGainDb, m_rxNoiseTemperatureDbk, m_satId, m_txAntennaLossDb, m_txMaxAntennaGainDb, m_txMaxPowerDbw, m_txOboLossDb, m_txOutputLossDb, and m_txPointingLossDb.

Referenced by ns3::SatGwPhy::SatGwPhy(), ns3::SatOrbiterFeederPhy::SatOrbiterFeederPhy(), ns3::SatOrbiterUserPhy::SatOrbiterUserPhy(), ns3::SatUtPhy::SatUtPhy(), ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

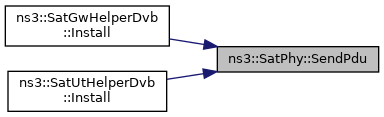

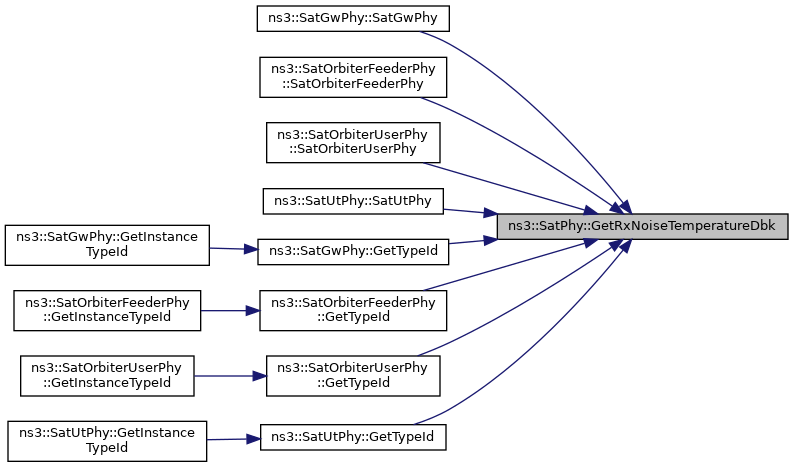

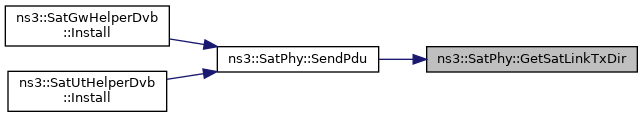

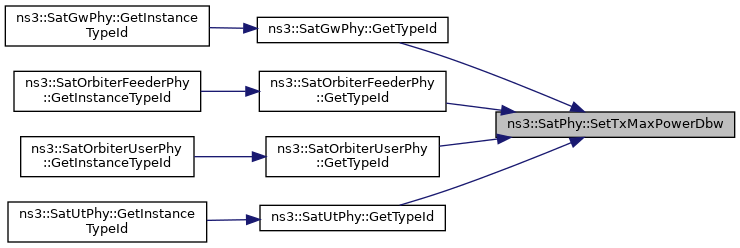

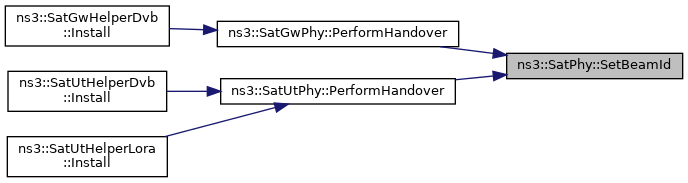

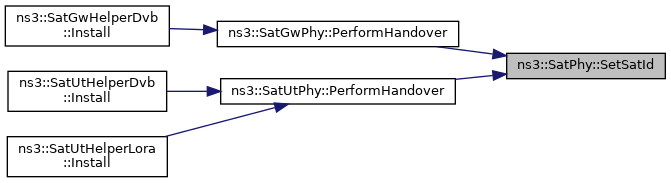

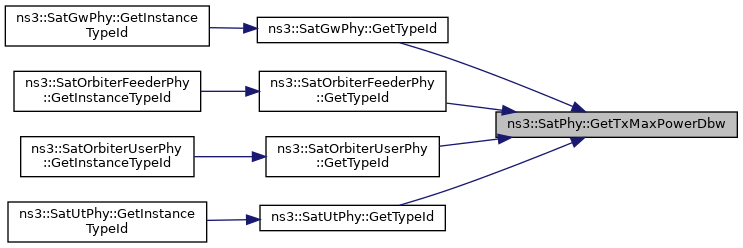

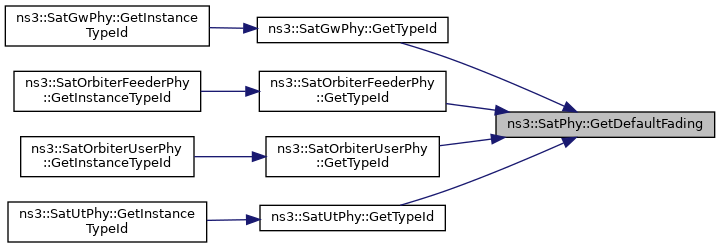

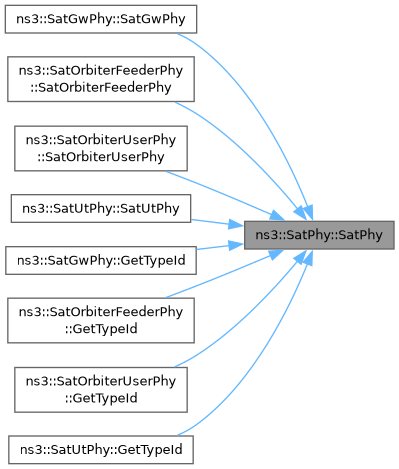

Here is the caller graph for this function:

◆ SatPhy() [2/2]

ns3::SatPhy::SatPhy ( CreateParam_t params )

Constructor to create PHY objects with parameters.

Definition at line 74 of file satellite-phy.cc.

References ns3::SatEnums::DVB_GW, ns3::SatEnums::DVB_ORBITER, ns3::SatEnums::DVB_UT, ns3::SatEnums::LORA_GW, ns3::SatEnums::LORA_ORBITER, ns3::SatEnums::LORA_UT, m_beamId, m_defaultFadingValue, m_eirpWoGainW, m_isStatisticsTagsEnabled, m_lastDelay, m_lastLinkDelay, m_params, m_phyRx, m_phyTx, m_rxAntennaLossDb, m_rxMaxAntennaGainDb, m_rxNoiseTemperatureDbk, m_satId, m_txAntennaLossDb, m_txMaxAntennaGainDb, m_txMaxPowerDbw, m_txOboLossDb, m_txOutputLossDb, and m_txPointingLossDb.

◆ ~SatPhy()

ns3::SatPhy::~SatPhy ( )

virtual

Destructor.

Definition at line 247 of file satellite-phy.cc.

Member Function Documentation

◆ AverageNormalizedOfferedRandomAccessLoadInfo()

void ns3::SatPhy::AverageNormalizedOfferedRandomAccessLoadInfo	(	uint32_t	satId,
		uint32_t	beamId,
		uint32_t	carrierId,
		uint8_t	allocationChannelId,
		double	averageNormalizedOfferedLoad )

Function for getting the normalized offered load of the specific random access allocation channel.

Parameters

satId	Satellite id of average normalized load is received
beamId	Beam id of average normalized load is received
carrierId	Carrier id of average normalized load is received
allocationChannelId	allocation channel ID
averageNormalizedOfferedLoad	Value of average normalized offered load

Definition at line 646 of file satellite-phy.cc.

References m_avgNormalizedOfferedLoadCallback.

Referenced by Initialize().

Here is the caller graph for this function:

◆ BeginEndScheduling()

void ns3::SatPhy::BeginEndScheduling ( )

Begin frame/window end scheduling for processes utilizing frame length as interval.

Definition at line 333 of file satellite-phy.cc.

References m_phyRx.

◆ CalculateSinr()

double ns3::SatPhy::CalculateSinr	(	double	sinr,
		double	otherInterference )

Calculate final SINR with PHY specific parameters and given calculated SINR.

Additional interference value is added.

Parameters

sinr	Calculated SINR
otherInterference	Interference to add to the sinr

Returns: Final SINR

Definition at line 265 of file satellite-phy.cc.

◆ CnoInfo()

void ns3::SatPhy::CnoInfo	(	uint32_t	satId,
		uint32_t	beamId,
		Address	source,
		Address	destination,
		double	cno,
		bool	isSatelliteMac )

Function for getting the C/NO information.

Parameters

beamId	Beam id of C/N0 is received
source	Id (address) of the source (sender)
destination	Id (address) of the destination
cno	Value of the C/N0
isSatelliteMac	If true, cno corresponds to link SAT to GW; if false, cno corresponds to link UT to GW

Definition at line 634 of file satellite-phy.cc.

References m_cnoCallback.

Referenced by Initialize().

Here is the caller graph for this function:

◆ ConfigureRxCarriers()

void ns3::SatPhy::ConfigureRxCarriers	(	Ptr< SatPhyRxCarrierConf >	carrierConf,
		Ptr< SatSuperframeConf >	superFrameConf )

Configure Rx carriers.

Parameters

carrierConf	Carrier configuration class
superFrameConf	Superframe configuration

Definition at line 301 of file satellite-phy.cc.

References m_phyRx.

Referenced by ns3::SatGwPhy::NotifyConstructionCompleted(), ns3::SatOrbiterFeederPhy::NotifyConstructionCompleted(), ns3::SatOrbiterUserPhy::NotifyConstructionCompleted(), and ns3::SatUtPhy::NotifyConstructionCompleted().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::SatPhy::DoDispose ( void )

virtual

Dispose of SatPhy.

Reimplemented in ns3::SatGwPhy, ns3::SatOrbiterFeederPhy, ns3::SatOrbiterUserPhy, and ns3::SatUtPhy.

Definition at line 253 of file satellite-phy.cc.

References m_phyRx, and m_phyTx.

Referenced by ns3::SatGwPhy::DoDispose().

Here is the caller graph for this function:

◆ DoInitialize()

void ns3::SatPhy::DoInitialize ( void )

virtual

Initialization of SatPhy.

Reimplemented in ns3::SatGwPhy, ns3::SatOrbiterFeederPhy, ns3::SatOrbiterUserPhy, and ns3::SatUtPhy.

Definition at line 202 of file satellite-phy.cc.

Referenced by ns3::SatGwPhy::DoInitialize().

Here is the caller graph for this function:

◆ GetAdditionalInterference()

virtual double ns3::SatPhy::GetAdditionalInterference ( )

pure virtual

Get additional interference, used to compute final SINR at RX.

Returns: Additional interference

Implemented in ns3::SatGwPhy, ns3::SatOrbiterFeederPhy, ns3::SatOrbiterUserPhy, and ns3::SatUtPhy.

◆ GetDefaultFading()

double ns3::SatPhy::GetDefaultFading ( ) const

inline

Get the default fading of the PHY.

Returns: the default fading of the PHY.

Definition at line 347 of file satellite-phy.h.

References m_defaultFadingValue.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

◆ GetPhyRx()

Ptr< SatPhyRx > ns3::SatPhy::GetPhyRx ( ) const

virtual

Get the SatPhyRx pointer.

Returns: a pointer to the SatPhyRx instance

Definition at line 347 of file satellite-phy.cc.

References m_phyRx.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

◆ GetPhyTx()

Ptr< SatPhyTx > ns3::SatPhy::GetPhyTx ( ) const

virtual

Get the SatPhyTx pointer.

Returns: a pointer to the SatPhyTx instance

Definition at line 340 of file satellite-phy.cc.

References m_phyTx.

Referenced by ns3::SatOrbiterFeederPhy::SatOrbiterFeederPhy(), ns3::SatOrbiterUserPhy::SatOrbiterUserPhy(), ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

◆ GetRxAntennaGainDb()

double ns3::SatPhy::GetRxAntennaGainDb ( ) const

inline

Get the maximum antenna gain of the receiver in dB.

Returns: the receiver noise temperature in dB.

Definition at line 203 of file satellite-phy.h.

References m_rxMaxAntennaGainDb.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

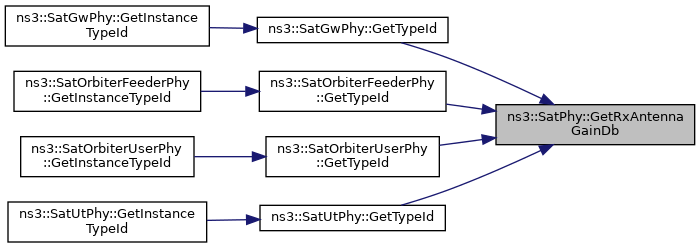

Here is the caller graph for this function:

◆ GetRxAntennaLossDb()

double ns3::SatPhy::GetRxAntennaLossDb ( ) const

inline

Get the antenna loss of the receiver in dB.

Returns: the receiver antenna loss in dB.

Definition at line 221 of file satellite-phy.h.

References m_rxAntennaLossDb.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

◆ GetRxNoiseTemperatureDbk()

double ns3::SatPhy::GetRxNoiseTemperatureDbk ( ) const

inline

Get the noise temperature of the receiver in dbK.

Returns: the receiver noise temperature in dbK.

Definition at line 185 of file satellite-phy.h.

References m_rxNoiseTemperatureDbk.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), ns3::SatUtPhy::GetTypeId(), ns3::SatGwPhy::NotifyConstructionCompleted(), ns3::SatOrbiterFeederPhy::NotifyConstructionCompleted(), ns3::SatOrbiterUserPhy::NotifyConstructionCompleted(), and ns3::SatUtPhy::NotifyConstructionCompleted().

Here is the caller graph for this function:

◆ GetSatLinkRxDir()

SatEnums::SatLinkDir_t ns3::SatPhy::GetSatLinkRxDir ( )

protectedvirtual

Get the link RX direction.

Must be implemented by child clases.

Returns: The link RX direction

Reimplemented in ns3::SatGwPhy, ns3::SatOrbiterFeederPhy, ns3::SatOrbiterUserPhy, and ns3::SatUtPhy.

Definition at line 481 of file satellite-phy.cc.

References ns3::SatEnums::LD_UNDEFINED.

Referenced by ModcodTrace(), and Receive().

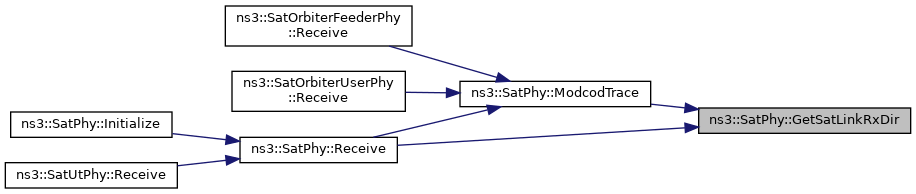

Here is the caller graph for this function:

◆ GetSatLinkTxDir()

SatEnums::SatLinkDir_t ns3::SatPhy::GetSatLinkTxDir ( )

protectedvirtual

Get the link TX direction.

Must be implemented by child clases.

Returns: The link TX direction

Reimplemented in ns3::SatGwPhy, ns3::SatOrbiterFeederPhy, ns3::SatOrbiterUserPhy, and ns3::SatUtPhy.

Definition at line 475 of file satellite-phy.cc.

References ns3::SatEnums::LD_UNDEFINED.

Referenced by SendPdu().

Here is the caller graph for this function:

◆ GetTxAntennaGainDb()

double ns3::SatPhy::GetTxAntennaGainDb ( ) const

inline

Get the maximum antenna gain of the transmitter in dB.

Returns: the transmitter noise temperature in dB.

Definition at line 239 of file satellite-phy.h.

References m_txMaxAntennaGainDb.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

◆ GetTxAntennaLossDb()

double ns3::SatPhy::GetTxAntennaLossDb ( ) const

inline

Get the antenna loss of the transmitter in dB.

Returns: the transmitter antenna loss in dB.

Definition at line 329 of file satellite-phy.h.

References m_txAntennaLossDb.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

◆ GetTxChannel()

Ptr< SatChannel > ns3::SatPhy::GetTxChannel ( )

Get the Tx satellite channel.

Returns: the Tx channel

Definition at line 368 of file satellite-phy.cc.

References m_phyTx.

◆ GetTxMaxPowerDbw()

double ns3::SatPhy::GetTxMaxPowerDbw ( ) const

inline

Get the maximum transmit power of the transmitter in dB.

Returns: the transmitter transmit power in dB.

Definition at line 257 of file satellite-phy.h.

References m_txMaxPowerDbw.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

◆ GetTxOboLossDb()

double ns3::SatPhy::GetTxOboLossDb ( ) const

inline

Get the OBO loss of the transmitter in dB.

Returns: the transmitter OBO loss in dB.

Definition at line 311 of file satellite-phy.h.

References m_txOboLossDb.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

◆ GetTxOutputLossDb()

double ns3::SatPhy::GetTxOutputLossDb ( ) const

inline

Get the output loss of the transmitter in dB.

Returns: the transmitter output loss in dB.

Definition at line 275 of file satellite-phy.h.

References m_txOutputLossDb.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

◆ GetTxPointingLossDb()

double ns3::SatPhy::GetTxPointingLossDb ( ) const

inline

Get the pointing loss of the transmitter in dB.

Returns: the transmitter pointing loss in dB.

Definition at line 293 of file satellite-phy.h.

References m_txPointingLossDb.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatPhy::GetTypeId ( void )

static

Derived from Object.

Definition at line 144 of file satellite-phy.cc.

References m_avgNormalizedOfferedLoadCallback, m_cnoCallback, m_isStatisticsTagsEnabled, m_packetTrace, m_rxCallback, m_rxDelayTrace, m_rxJitterTrace, m_rxLinkDelayTrace, m_rxLinkJitterTrace, m_rxLinkModcodTrace, and m_rxTrace.

◆ Initialize()

void ns3::SatPhy::Initialize ( )

Initialize phy.

Definition at line 209 of file satellite-phy.cc.

References AverageNormalizedOfferedRandomAccessLoadInfo(), CnoInfo(), ns3::SatUtils::DbWToW(), m_avgNormalizedOfferedLoadCallback, m_beamId, m_cnoCallback, m_defaultFadingValue, m_eirpWoGainW, m_phyRx, m_phyTx, m_rxAntennaLossDb, m_rxMaxAntennaGainDb, m_satId, m_txAntennaLossDb, m_txMaxAntennaGainDb, m_txMaxPowerDbw, m_txOboLossDb, m_txOutputLossDb, m_txPointingLossDb, and Receive().

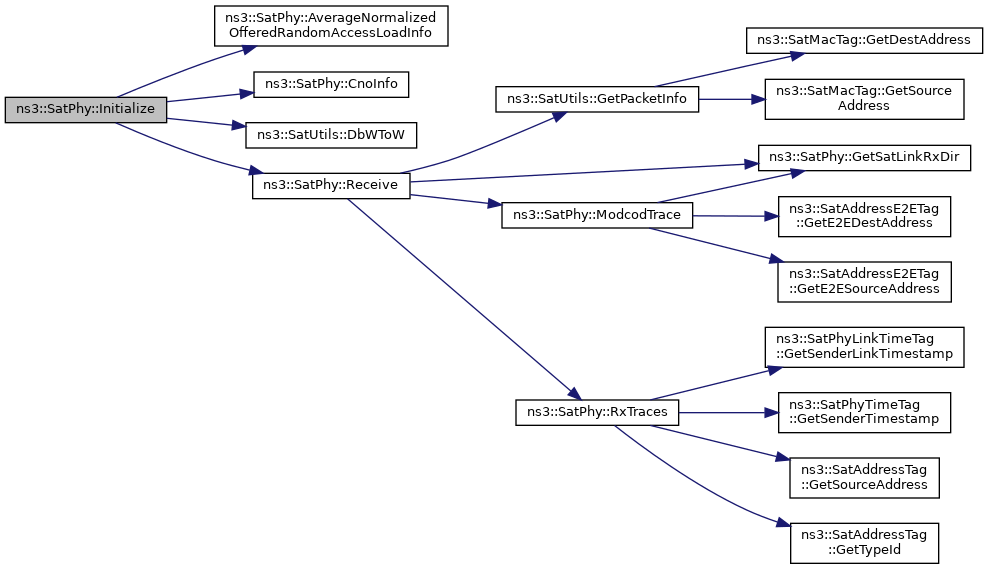

Here is the call graph for this function:

◆ ModcodTrace()

void ns3::SatPhy::ModcodTrace ( Ptr< SatSignalParameters > rxParams )

protected

Invoke the RxLinkModcod trace source for each received packet.

Parameters

rxParams Pointer to SatSignalParameters of packets received.

Definition at line 551 of file satellite-phy.cc.

References ns3::SatAddressE2ETag::GetE2EDestAddress(), ns3::SatAddressE2ETag::GetE2ESourceAddress(), GetSatLinkRxDir(), ns3::SatEnums::LD_FORWARD, ns3::SatEnums::LD_RETURN, m_isStatisticsTagsEnabled, and m_rxLinkModcodTrace.

Referenced by ns3::SatOrbiterFeederPhy::Receive(), ns3::SatOrbiterUserPhy::Receive(), and Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyConstructionCompleted()

void ns3::SatPhy::NotifyConstructionCompleted ( )

overridevirtual

Notifier called once the ObjectBase is fully constructed.

This method is invoked once all member attributes have been initialized. Subclasses can override this method to be notified of this event but if they do this, they must chain up to their parent's NotifyConstructionCompleted method.

Reimplemented in ns3::SatGwPhy, ns3::SatOrbiterFeederPhy, ns3::SatOrbiterUserPhy, and ns3::SatUtPhy.

Definition at line 125 of file satellite-phy.cc.

References m_beamId, m_params, m_phyRx, m_phyTx, and m_satId.

Referenced by ns3::SatGwPhy::NotifyConstructionCompleted(), ns3::SatOrbiterFeederPhy::NotifyConstructionCompleted(), ns3::SatOrbiterUserPhy::NotifyConstructionCompleted(), and ns3::SatUtPhy::NotifyConstructionCompleted().

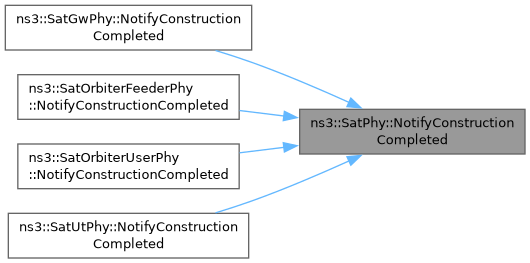

Here is the caller graph for this function:

◆ Receive()

void ns3::SatPhy::Receive	(	Ptr< SatSignalParameters >	rxParams,
		bool	phyError )

virtual

Receives packets from lower layer.

Parameters

rxParams	Packet reception parameters
phyError	Boolean indicating whether the packet successfully received or not?

Reimplemented in ns3::SatOrbiterFeederPhy, ns3::SatOrbiterUserPhy, and ns3::SatUtPhy.

Definition at line 596 of file satellite-phy.cc.

References ns3::SatUtils::GetPacketInfo(), GetSatLinkRxDir(), ns3::SatEnums::LL_PHY, m_nodeInfo, m_packetTrace, m_rxCallback, ModcodTrace(), ns3::SatEnums::PACKET_DROP, ns3::SatEnums::PACKET_RECV, and RxTraces().

Referenced by Initialize(), and ns3::SatUtPhy::Receive().

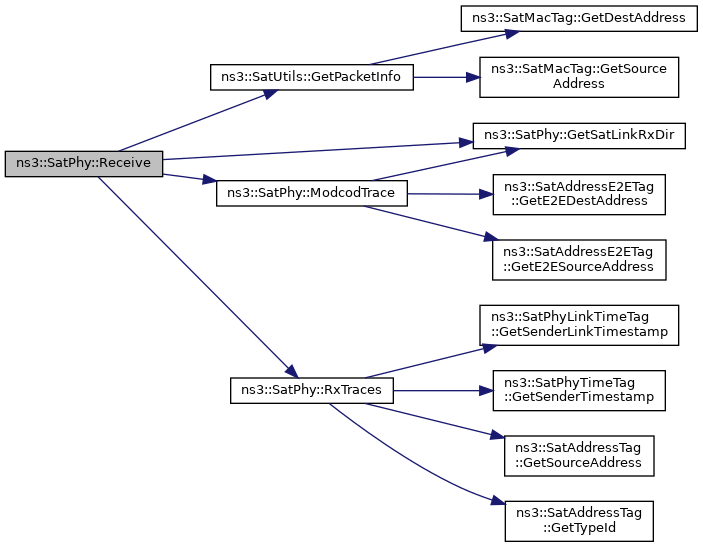

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RxTraces()

void ns3::SatPhy::RxTraces ( SatPhy::PacketContainer_t packets )

protectedvirtual

Invoke the Rx trace source for each received packet.

Parameters

packets Container of the pointers to the packets received.

Reimplemented in ns3::SatOrbiterFeederPhy, and ns3::SatOrbiterUserPhy.

Definition at line 487 of file satellite-phy.cc.

References ns3::SatPhyLinkTimeTag::GetSenderLinkTimestamp(), ns3::SatPhyTimeTag::GetSenderTimestamp(), ns3::SatAddressTag::GetSourceAddress(), ns3::SatAddressTag::GetTypeId(), m_isStatisticsTagsEnabled, m_lastDelay, m_lastLinkDelay, m_rxDelayTrace, m_rxJitterTrace, m_rxLinkDelayTrace, m_rxLinkJitterTrace, and m_rxTrace.

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendPdu()

void ns3::SatPhy::SendPdu	(	PacketContainer_t	p,
		uint32_t	carrierId,
		Time	duration,
		SatSignalParameters::txInfo_s	txInfo )

virtual

Send Pdu to the PHY tx module (for initial transmissions from either UT or GW).

Parameters

p	packet to be sent
carrierId	Carrier id for the packet transmission
duration	the packet transmission duration (from MAC layer)
txInfo	Tx information (e.g. packet type, modcod, waveform ID)

Definition at line 377 of file satellite-phy.cc.

References ns3::SatSignalParameters::txInfo_s::crdsaUniquePacketId, ns3::SatSignalParameters::txInfo_s::fecBlockSizeInBytes, ns3::SatSignalParameters::txInfo_s::frameType, ns3::SatUtils::GetPacketInfo(), GetSatLinkTxDir(), ns3::SatEnums::LL_PHY, m_beamId, m_eirpWoGainW, m_nodeInfo, m_packetTrace, m_phyTx, m_satId, ns3::SatSignalParameters::txInfo_s::modCod, ns3::SatEnums::PACKET_SENT, ns3::SatSignalParameters::txInfo_s::packetType, SetTimeTag(), ns3::SatSignalParameters::txInfo_s::sliceId, and ns3::SatSignalParameters::txInfo_s::waveformId.

Referenced by ns3::SatGwHelperDvb::Install(), and ns3::SatUtHelperDvb::Install().

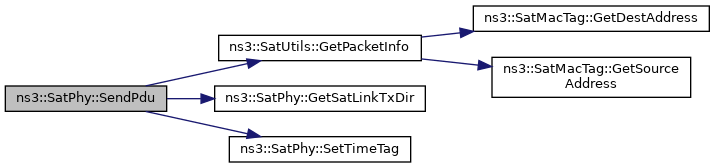

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendPduWithParams()

void ns3::SatPhy::SendPduWithParams ( Ptr< SatSignalParameters > rxParams )

virtual

Send Pdu to the PHY tx module (for satellite switch packet forwarding).

Parameters

rxParams Transmission parameters

This method is not meant to be used in this class. It is overriden in the inherited classes.

Reimplemented in ns3::SatOrbiterFeederPhy, and ns3::SatOrbiterUserPhy.

Definition at line 421 of file satellite-phy.cc.

◆ SetBeamId()

bool ns3::SatPhy::SetBeamId ( uint32_t beamId )

Set the beamId this PHY is connected with.

Parameters

beamId Satellite beam id

Definition at line 442 of file satellite-phy.cc.

References m_beamId, m_phyRx, and m_phyTx.

Referenced by ns3::SatGwPhy::PerformHandover(), and ns3::SatUtPhy::PerformHandover().

Here is the caller graph for this function:

◆ SetChannelPairGetterCallback()

void ns3::SatPhy::SetChannelPairGetterCallback ( SatPhy::ChannelPairGetterCallback cb )

Set the channel pair getter callback.

Parameters

cb	callback to invoke whenever a SatChannel pair for a beam is required.

Definition at line 662 of file satellite-phy.cc.

References m_retrieveChannelPair.

◆ SetDefaultFading()

void ns3::SatPhy::SetDefaultFading ( double fading )

inline

Set the default fading of the PHY.

Parameters

fading the default fading of the PHY.

Definition at line 356 of file satellite-phy.h.

References m_defaultFadingValue.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

◆ SetNodeInfo()

void ns3::SatPhy::SetNodeInfo ( const Ptr< SatNodeInfo > nodeInfo )

Set the node info class.

Parameters

nodeInfo Node information related to this SatPhy

Definition at line 325 of file satellite-phy.cc.

References m_nodeInfo, and m_phyRx.

◆ SetPhyRx()

void ns3::SatPhy::SetPhyRx ( Ptr< SatPhyRx > phyRx )

virtual

Set the SatPhyRx module.

Parameters

phyRx Receiver PHY module

Definition at line 361 of file satellite-phy.cc.

References m_phyRx.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

◆ SetPhyTx()

void ns3::SatPhy::SetPhyTx ( Ptr< SatPhyTx > phyTx )

virtual

Set the SatPhyTx module.

Parameters

phyTx Transmitter PHY module

Definition at line 354 of file satellite-phy.cc.

References m_phyTx.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

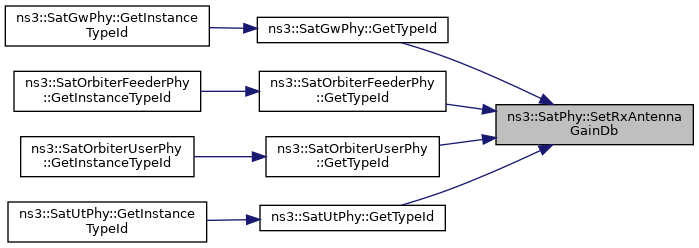

◆ SetRxAntennaGainDb()

void ns3::SatPhy::SetRxAntennaGainDb ( double gainDb )

inline

Set the maximum antenna gain of the receiver in dB.

Parameters

gainDb the receiver antenna gain in dB.

Definition at line 212 of file satellite-phy.h.

References m_rxMaxAntennaGainDb.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

◆ SetRxAntennaGainPattern()

void ns3::SatPhy::SetRxAntennaGainPattern	(	Ptr< SatAntennaGainPattern >	agp,
		Ptr< SatMobilityModel >	satelliteMobility )

virtual

Set the receive antenna gain pattern.

Parameters

agp	antenna gain pattern
mobility	mobility model of satellite

Definition at line 293 of file satellite-phy.cc.

References m_phyRx.

◆ SetRxAntennaLossDb()

void ns3::SatPhy::SetRxAntennaLossDb ( double lossDb )

inline

Set the antenna loss of the receiver in dB.

Parameters

lossDb the receiver antenna loss in dB.

Definition at line 230 of file satellite-phy.h.

References m_rxAntennaLossDb.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

◆ SetRxFadingContainer()

void ns3::SatPhy::SetRxFadingContainer ( Ptr< SatBaseFading > fadingContainer )

Set fading container.

Parameters

fadingContainer fading container

Definition at line 309 of file satellite-phy.cc.

References m_phyRx.

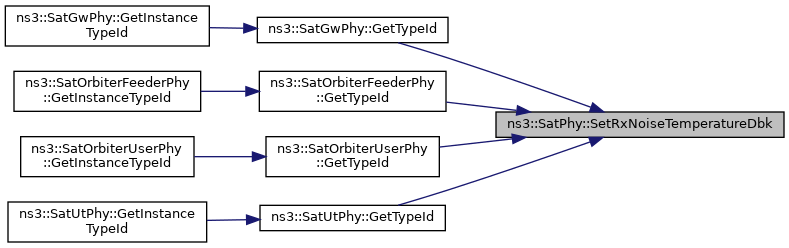

◆ SetRxNoiseTemperatureDbk()

void ns3::SatPhy::SetRxNoiseTemperatureDbk ( double temperatureDbk )

inline

Set the noise temperature of the receiver in dbK.

Parameters

temperatureDbk the receiver noise temperature in dbK.

Definition at line 194 of file satellite-phy.h.

References m_rxNoiseTemperatureDbk.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

◆ SetSatId()

void ns3::SatPhy::SetSatId ( uint32_t satId )

Set the satId this PHY is connected with.

Parameters

satId Satellite ID

Definition at line 433 of file satellite-phy.cc.

References m_phyRx, m_phyTx, and m_satId.

Referenced by ns3::SatGwPhy::PerformHandover(), and ns3::SatUtPhy::PerformHandover().

Here is the caller graph for this function:

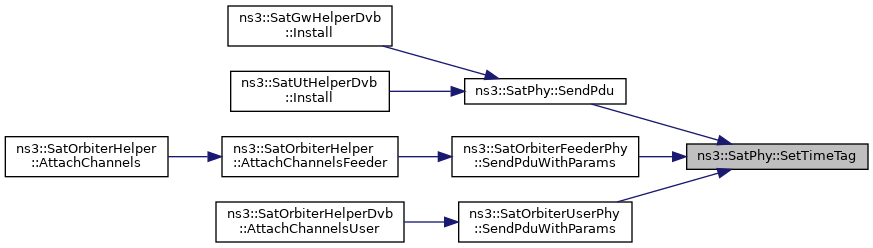

◆ SetTimeTag()

void ns3::SatPhy::SetTimeTag ( SatPhy::PacketContainer_t packets )

protected

Set SatPhyTimeTag of packets.

Parameters

packets Container of the pointers to the packets to tag.

Definition at line 457 of file satellite-phy.cc.

References m_isStatisticsTagsEnabled.

Referenced by SendPdu(), ns3::SatOrbiterFeederPhy::SendPduWithParams(), and ns3::SatOrbiterUserPhy::SendPduWithParams().

Here is the caller graph for this function:

◆ SetTxAntennaGainDb()

void ns3::SatPhy::SetTxAntennaGainDb ( double gainDb )

inline

Set the maximum antenna gain of the transmitter in dB.

Parameters

gainDb the transmitter antenna gain in dB.

Definition at line 248 of file satellite-phy.h.

References m_txMaxAntennaGainDb.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

◆ SetTxAntennaGainPattern()

void ns3::SatPhy::SetTxAntennaGainPattern	(	Ptr< SatAntennaGainPattern >	agp,
		Ptr< SatMobilityModel >	satelliteMobility )

virtual

Set the transmit antenna gain pattern.

Parameters

agp	antenna gain pattern
mobility	mobility model of satellite

Definition at line 285 of file satellite-phy.cc.

References m_phyTx.

◆ SetTxAntennaLossDb()

void ns3::SatPhy::SetTxAntennaLossDb ( double lossDb )

inline

Set the antenna loss of the transmitter in dB.

Parameters

lossDb the transmitter antenna loss in dB.

Definition at line 338 of file satellite-phy.h.

References m_txAntennaLossDb.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

◆ SetTxFadingContainer()

void ns3::SatPhy::SetTxFadingContainer ( Ptr< SatBaseFading > fadingContainer )

Set fading container.

Parameters

fadingContainer fading container

Definition at line 317 of file satellite-phy.cc.

References m_phyTx.

◆ SetTxMaxPowerDbw()

void ns3::SatPhy::SetTxMaxPowerDbw ( double powerDb )

inline

Set the maximum transmit power of the transmitter in dB.

Parameters

powerDb the transmitter transmit power in dB.

Definition at line 266 of file satellite-phy.h.

References m_txMaxPowerDbw.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

◆ SetTxOboLossDb()

void ns3::SatPhy::SetTxOboLossDb ( double lossDb )

inline

Set the OBO loss of the transmitter in dB.

Parameters

lossDb the transmitter OBO loss in dB.

Definition at line 320 of file satellite-phy.h.

References m_txOboLossDb.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

◆ SetTxOutputLossDb()

void ns3::SatPhy::SetTxOutputLossDb ( double lossDb )

inline

Set the output loss of the transmitter in dB.

Parameters

lossDb the transmitter output loss in dB.

Definition at line 284 of file satellite-phy.h.

References m_txOutputLossDb.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

◆ SetTxPointingLossDb()

void ns3::SatPhy::SetTxPointingLossDb ( double lossDb )

inline

Set the pointing loss of the transmitter in dB.

Parameters

lossDb the transmitter pointing loss in dB.

Definition at line 302 of file satellite-phy.h.

References m_txPointingLossDb.

Referenced by ns3::SatGwPhy::GetTypeId(), ns3::SatOrbiterFeederPhy::GetTypeId(), ns3::SatOrbiterUserPhy::GetTypeId(), and ns3::SatUtPhy::GetTypeId().

Here is the caller graph for this function:

Member Data Documentation

◆ m_avgNormalizedOfferedLoadCallback

SatPhy::AverageNormalizedOfferedLoadCallback ns3::SatPhy::m_avgNormalizedOfferedLoadCallback

private

Average normalized offered load callback.

Definition at line 668 of file satellite-phy.h.

Referenced by AverageNormalizedOfferedRandomAccessLoadInfo(), GetTypeId(), and Initialize().

◆ m_beamId

uint32_t ns3::SatPhy::m_beamId

protected

Beam ID.

Definition at line 637 of file satellite-phy.h.

Referenced by SatPhy(), SatPhy(), ns3::SatGwPhy::AssignNewSatChannels(), ns3::SatUtPhy::AssignNewSatChannels(), Initialize(), NotifyConstructionCompleted(), ns3::SatGwPhy::PerformHandover(), ns3::SatUtPhy::PerformHandover(), SendPdu(), and SetBeamId().

◆ m_cnoCallback

SatPhy::CnoCallback ns3::SatPhy::m_cnoCallback

private

The C/N0 info callback.

Definition at line 663 of file satellite-phy.h.

Referenced by CnoInfo(), GetTypeId(), and Initialize().

◆ m_defaultFadingValue

double ns3::SatPhy::m_defaultFadingValue

private

Default fading value.

Definition at line 718 of file satellite-phy.h.

Referenced by SatPhy(), SatPhy(), GetDefaultFading(), Initialize(), and SetDefaultFading().

◆ m_eirpWoGainW

double ns3::SatPhy::m_eirpWoGainW

protected

Calculated EIRP without gain in W.

Definition at line 642 of file satellite-phy.h.

Referenced by SatPhy(), SatPhy(), Initialize(), SendPdu(), ns3::SatOrbiterFeederPhy::SendPduWithParams(), and ns3::SatOrbiterUserPhy::SendPduWithParams().

◆ m_isStatisticsTagsEnabled

bool ns3::SatPhy::m_isStatisticsTagsEnabled

protected

EnableStatisticsTags attribute.

Definition at line 647 of file satellite-phy.h.

Referenced by SatPhy(), SatPhy(), GetTypeId(), ModcodTrace(), ns3::SatOrbiterFeederPhy::RxTraces(), ns3::SatOrbiterUserPhy::RxTraces(), RxTraces(), and SetTimeTag().

◆ m_lastDelay

Time ns3::SatPhy::m_lastDelay

protected

Last delay measurement.

Used to compute jitter.

Definition at line 652 of file satellite-phy.h.

Referenced by SatPhy(), SatPhy(), and RxTraces().

◆ m_lastLinkDelay

Time ns3::SatPhy::m_lastLinkDelay

protected

Last delay measurement for link.

Used to compute link jitter.

Definition at line 657 of file satellite-phy.h.

Referenced by SatPhy(), SatPhy(), ns3::SatOrbiterFeederPhy::RxTraces(), ns3::SatOrbiterUserPhy::RxTraces(), and RxTraces().

◆ m_nodeInfo

Ptr<SatNodeInfo> ns3::SatPhy::m_nodeInfo

protected

Node info containing node related information, such as node type, node id and MAC address (of the SatNetDevice).

Definition at line 612 of file satellite-phy.h.

Referenced by ns3::SatOrbiterFeederPhy::Receive(), ns3::SatOrbiterUserPhy::Receive(), Receive(), ns3::SatOrbiterFeederPhy::SendFromQueue(), ns3::SatOrbiterUserPhy::SendFromQueue(), SendPdu(), ns3::SatOrbiterFeederPhy::SendPduWithParams(), ns3::SatOrbiterUserPhy::SendPduWithParams(), and SetNodeInfo().

◆ m_packetTrace

TracedCallback<Time, SatEnums::SatPacketEvent_t, SatEnums::SatNodeType_t, uint32_t, Mac48Address, SatEnums::SatLogLevel_t, SatEnums::SatLinkDir_t, std::string> ns3::SatPhy::m_packetTrace

protected

Trace callback used for packet tracing:

Definition at line 570 of file satellite-phy.h.

Referenced by GetTypeId(), ns3::SatOrbiterFeederPhy::Receive(), ns3::SatOrbiterUserPhy::Receive(), Receive(), ns3::SatOrbiterFeederPhy::SendFromQueue(), ns3::SatOrbiterUserPhy::SendFromQueue(), SendPdu(), ns3::SatOrbiterFeederPhy::SendPduWithParams(), and ns3::SatOrbiterUserPhy::SendPduWithParams().

◆ m_params

CreateParam_t ns3::SatPhy::m_params

protected

Satellite physical layer construction parameters.

Definition at line 627 of file satellite-phy.h.

Referenced by SatPhy(), and NotifyConstructionCompleted().

◆ m_phyRx

Ptr<SatPhyRx> ns3::SatPhy::m_phyRx

protected

Pointer to internal SatPhyRx instance.

Definition at line 622 of file satellite-phy.h.

Referenced by SatPhy(), ns3::SatGwPhy::AssignNewSatChannels(), ns3::SatUtPhy::AssignNewSatChannels(), BeginEndScheduling(), ConfigureRxCarriers(), DoDispose(), GetPhyRx(), Initialize(), NotifyConstructionCompleted(), ns3::SatGwPhy::PerformHandover(), ns3::SatUtPhy::PerformHandover(), SetBeamId(), SetNodeInfo(), SetPhyRx(), SetRxAntennaGainPattern(), SetRxFadingContainer(), and SetSatId().

◆ m_phyTx

Ptr<SatPhyTx> ns3::SatPhy::m_phyTx

protected

◆ m_retrieveChannelPair

SatPhy::ChannelPairGetterCallback ns3::SatPhy::m_retrieveChannelPair

protected

Callback for retrieving SatChannel pairs by beam.

Definition at line 557 of file satellite-phy.h.

Referenced by ns3::SatGwPhy::AssignNewSatChannels(), ns3::SatUtPhy::AssignNewSatChannels(), ns3::SatGwPhy::PerformHandover(), ns3::SatUtPhy::PerformHandover(), and SetChannelPairGetterCallback().

◆ m_rxAntennaLossDb

double ns3::SatPhy::m_rxAntennaLossDb

private

Configured receiver antenna loss in Dbs.

Definition at line 683 of file satellite-phy.h.

Referenced by SatPhy(), SatPhy(), GetRxAntennaLossDb(), Initialize(), and SetRxAntennaLossDb().

◆ m_rxCallback

SatPhy::ReceiveCallback ns3::SatPhy::m_rxCallback

protected

The upper layer package receive callback.

Definition at line 552 of file satellite-phy.h.

Referenced by GetTypeId(), ns3::SatOrbiterFeederPhy::Receive(), ns3::SatOrbiterUserPhy::Receive(), and Receive().

◆ m_rxDelayTrace

TracedCallback<const Time&, const Address&> ns3::SatPhy::m_rxDelayTrace

protected

Traced callback for all received packets, including delay information and the address of the senders.

Definition at line 582 of file satellite-phy.h.

Referenced by GetTypeId(), and RxTraces().

◆ m_rxJitterTrace

TracedCallback<const Time&, const Address&> ns3::SatPhy::m_rxJitterTrace

protected

Traced callback for all received packets, including jitter information and the address of the senders.

Definition at line 594 of file satellite-phy.h.

Referenced by GetTypeId(), and RxTraces().

◆ m_rxLinkDelayTrace

TracedCallback<const Time&, const Address&> ns3::SatPhy::m_rxLinkDelayTrace

protected

Traced callback for all received packets, including link delay information and the address of the senders.

Definition at line 588 of file satellite-phy.h.

Referenced by GetTypeId(), ns3::SatOrbiterFeederPhy::RxTraces(), ns3::SatOrbiterUserPhy::RxTraces(), and RxTraces().

◆ m_rxLinkJitterTrace

TracedCallback<const Time&, const Address&> ns3::SatPhy::m_rxLinkJitterTrace

protected

Traced callback for all received packets, including link jitter information and the address of the senders.

Definition at line 600 of file satellite-phy.h.

Referenced by GetTypeId(), ns3::SatOrbiterFeederPhy::RxTraces(), ns3::SatOrbiterUserPhy::RxTraces(), and RxTraces().

◆ m_rxLinkModcodTrace

TracedCallback<uint32_t, const Address&> ns3::SatPhy::m_rxLinkModcodTrace

protected

Traced callback for all received packets, including link MODCOD information and the address of the senders.

Definition at line 606 of file satellite-phy.h.

Referenced by GetTypeId(), and ModcodTrace().

◆ m_rxMaxAntennaGainDb

double ns3::SatPhy::m_rxMaxAntennaGainDb

private

Configured maximum receiver antenna gain in dBi.

Definition at line 678 of file satellite-phy.h.

Referenced by SatPhy(), SatPhy(), GetRxAntennaGainDb(), Initialize(), and SetRxAntennaGainDb().

◆ m_rxNoiseTemperatureDbk

double ns3::SatPhy::m_rxNoiseTemperatureDbk

private

Configured receiver noise temperature in dBK.

Definition at line 673 of file satellite-phy.h.

Referenced by SatPhy(), SatPhy(), GetRxNoiseTemperatureDbk(), and SetRxNoiseTemperatureDbk().

◆ m_rxTrace

TracedCallback<Ptr<const Packet>, const Address&> ns3::SatPhy::m_rxTrace

protected

Traced callback for all received packets, including the address of the senders.

Definition at line 576 of file satellite-phy.h.

Referenced by GetTypeId(), ns3::SatOrbiterFeederPhy::RxTraces(), ns3::SatOrbiterUserPhy::RxTraces(), and RxTraces().

◆ m_satId

uint32_t ns3::SatPhy::m_satId

protected

Satellite ID.

Definition at line 632 of file satellite-phy.h.

Referenced by SatPhy(), SatPhy(), ns3::SatGwPhy::AssignNewSatChannels(), ns3::SatUtPhy::AssignNewSatChannels(), Initialize(), NotifyConstructionCompleted(), ns3::SatGwPhy::PerformHandover(), ns3::SatUtPhy::PerformHandover(), SendPdu(), and SetSatId().

◆ m_txAntennaLossDb

double ns3::SatPhy::m_txAntennaLossDb

private

Configured transmitter antenna loss in Dbs.

Definition at line 713 of file satellite-phy.h.

Referenced by SatPhy(), SatPhy(), GetTxAntennaLossDb(), Initialize(), and SetTxAntennaLossDb().

◆ m_txMaxAntennaGainDb

double ns3::SatPhy::m_txMaxAntennaGainDb

private

Configured maximum transmitter antenna gain in dBi.

Definition at line 688 of file satellite-phy.h.

Referenced by SatPhy(), SatPhy(), GetTxAntennaGainDb(), Initialize(), and SetTxAntennaGainDb().

◆ m_txMaxPowerDbw

double ns3::SatPhy::m_txMaxPowerDbw

private

Configured maximum transmitter power in DbWs.

Definition at line 693 of file satellite-phy.h.

Referenced by SatPhy(), SatPhy(), GetTxMaxPowerDbw(), Initialize(), and SetTxMaxPowerDbw().

◆ m_txOboLossDb

double ns3::SatPhy::m_txOboLossDb

private

Configured transmitter OBO loss in Dbs.

Definition at line 708 of file satellite-phy.h.

Referenced by SatPhy(), SatPhy(), GetTxOboLossDb(), Initialize(), and SetTxOboLossDb().

◆ m_txOutputLossDb

double ns3::SatPhy::m_txOutputLossDb

private

Configured transmitter output loss in Dbs.

Definition at line 698 of file satellite-phy.h.

Referenced by SatPhy(), SatPhy(), GetTxOutputLossDb(), Initialize(), and SetTxOutputLossDb().

◆ m_txPointingLossDb

double ns3::SatPhy::m_txPointingLossDb

private

Configured transmitter pointing loss in Dbs.

Definition at line 703 of file satellite-phy.h.

Referenced by SatPhy(), SatPhy(), GetTxPointingLossDb(), Initialize(), and SetTxPointingLossDb().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-phy.h
/builds/sns3/satellite/satellite/model/satellite-phy.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Attributes

Detailed Description

Member Typedef Documentation

◆ AverageNormalizedOfferedLoadCallback

◆ ChannelPairGetterCallback

◆ CnoCallback

◆ ErrorModel

◆ InterferenceEliminationModel

◆ InterferenceModel

◆ PacketContainer_t

◆ ReceiveCallback

Constructor & Destructor Documentation

◆ SatPhy() [1/2]

◆ SatPhy() [2/2]

◆ ~SatPhy()

Member Function Documentation

◆ AverageNormalizedOfferedRandomAccessLoadInfo()

◆ BeginEndScheduling()

◆ CalculateSinr()

◆ CnoInfo()

◆ ConfigureRxCarriers()

◆ DoDispose()

◆ DoInitialize()

◆ GetAdditionalInterference()

◆ GetDefaultFading()

◆ GetPhyRx()

◆ GetPhyTx()

◆ GetRxAntennaGainDb()

◆ GetRxAntennaLossDb()

◆ GetRxNoiseTemperatureDbk()

◆ GetSatLinkRxDir()

◆ GetSatLinkTxDir()

◆ GetTxAntennaGainDb()

◆ GetTxAntennaLossDb()

◆ GetTxChannel()

◆ GetTxMaxPowerDbw()

◆ GetTxOboLossDb()

◆ GetTxOutputLossDb()

◆ GetTxPointingLossDb()

◆ GetTypeId()

◆ Initialize()

◆ ModcodTrace()

◆ NotifyConstructionCompleted()

◆ Receive()

◆ RxTraces()

◆ SendPdu()

◆ SendPduWithParams()

◆ SetBeamId()

◆ SetChannelPairGetterCallback()

◆ SetDefaultFading()

◆ SetNodeInfo()

◆ SetPhyRx()

◆ SetPhyTx()

◆ SetRxAntennaGainDb()

◆ SetRxAntennaGainPattern()

◆ SetRxAntennaLossDb()

◆ SetRxFadingContainer()

◆ SetRxNoiseTemperatureDbk()

◆ SetSatId()

◆ SetTimeTag()

◆ SetTxAntennaGainDb()

◆ SetTxAntennaGainPattern()

◆ SetTxAntennaLossDb()

◆ SetTxFadingContainer()

◆ SetTxMaxPowerDbw()

◆ SetTxOboLossDb()

◆ SetTxOutputLossDb()

◆ SetTxPointingLossDb()

Member Data Documentation

◆ m_avgNormalizedOfferedLoadCallback

◆ m_beamId

◆ m_cnoCallback

◆ m_defaultFadingValue

◆ m_eirpWoGainW
