The SatUtPhy models the physical layer of the User Terminal of the satellite system. More...

#include "satellite-ut-phy.h"

Inheritance diagram for ns3::SatUtPhy:

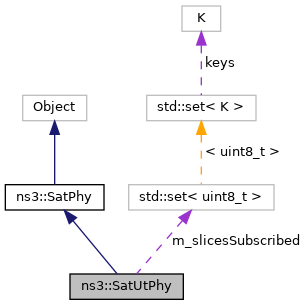

Collaboration diagram for ns3::SatUtPhy:

Public Member Functions
	SatUtPhy (SatPhy::CreateParam_t &params, Ptr< SatLinkResults > linkResults, SatPhyRxCarrierConf::RxCarrierCreateParams_s parameters, Ptr< SatSuperframeConf > superFrameConf)
	Constructor. More...

	SatUtPhy (void)
	Default constructor, which is not used. More...

virtual	~SatUtPhy ()
	Destructor. More...

virtual void	DoDispose (void)
	Dispose of SatUtPhy. More...

virtual void	DoInitialize (void)
	Initialization of SatUtPhy. More...

virtual double	GetAdditionalInterference ()
	Get additional interference, used to compute final SINR at RX. More...

TypeId	GetInstanceTypeId (void) const

bool	IsTxPossible (void) const
	Inform whether or not the underlying Tx channel is properly configured for transmission. More...

void	PerformHandover (uint32_t satId, uint32_t beamId)
	Change underlying SatChannel to send and receive data from a new satellite and beam. More...

void	Receive (Ptr< SatSignalParameters > rxParams, bool phyError)
	Receives packets from lower layer. More...

void	UpdateSliceSubscription (uint8_t slice)
	Updates the slices subscription list. More...

Public Member Functions inherited from ns3::SatPhy
	SatPhy (CreateParam_t &params)
	Constructor to create PHY objects with parameters. More...

	SatPhy (void)
	Default constructor. More...

virtual	~SatPhy ()
	Destructor. More...

void	AverageNormalizedOfferedRandomAccessLoadInfo (uint32_t satId, uint32_t beamId, uint32_t carrierId, uint8_t allocationChannelId, double averageNormalizedOfferedLoad)
	Function for getting the normalized offered load of the specific random access allocation channel. More...

void	BeginEndScheduling ()
	Begin frame/window end scheduling for processes utilizing frame length as interval. More...

double	CalculateSinr (double sinr, double otherInterference)
	Calculate final SINR with PHY specific parameters and given calculated SINR. More...

void	CnoInfo (uint32_t satId, uint32_t beamId, Address source, Address destination, double cno, bool isSatelliteMac)
	Function for getting the C/NO information. More...

void	ConfigureRxCarriers (Ptr< SatPhyRxCarrierConf > carrierConf, Ptr< SatSuperframeConf > superFrameConf)
	Configure Rx carriers. More...

double	GetDefaultFading () const
	Get the default fading of the PHY. More...

TypeId	GetInstanceTypeId (void) const
	Derived from Object. More...

virtual Ptr< SatPhyRx >	GetPhyRx () const
	Get the SatPhyRx pointer. More...

virtual Ptr< SatPhyTx >	GetPhyTx () const
	Get the SatPhyTx pointer. More...

double	GetRxAntennaGainDb () const
	Get the maximum antenna gain of the receiver in dB. More...

double	GetRxAntennaLossDb () const
	Get the antenna loss of the receiver in dB. More...

double	GetRxNoiseTemperatureDbk () const
	Get the noise temperature of the receiver in dbK. More...

double	GetTxAntennaGainDb () const
	Get the maximum antenna gain of the transmitter in dB. More...

double	GetTxAntennaLossDb () const
	Get the antenna loss of the transmitter in dB. More...

Ptr< SatChannel >	GetTxChannel ()
	Get the Tx satellite channel. More...

double	GetTxMaxPowerDbw () const
	Get the maximum transmit power of the transmitter in dB. More...

double	GetTxOboLossDb () const
	Get the OBO loss of the transmitter in dB. More...

double	GetTxOutputLossDb () const
	Get the output loss of the transmitter in dB. More...

double	GetTxPointingLossDb () const
	Get the pointing loss of the transmitter in dB. More...

void	Initialize ()
	Initialize phy. More...

virtual void	SendPdu (PacketContainer_t, uint32_t carrierId, Time duration, SatSignalParameters::txInfo_s txInfo)
	Send Pdu to the PHY tx module (for initial transmissions from either UT or GW) More...

virtual void	SendPduWithParams (Ptr< SatSignalParameters > rxParams)
	Send Pdu to the PHY tx module (for satellite switch packet forwarding) More...

bool	SetBeamId (uint32_t beamId)
	Set the beamId this PHY is connected with. More...

void	SetChannelPairGetterCallback (SatPhy::ChannelPairGetterCallback cb)
	Set the channel pair getter callback. More...

void	SetDefaultFading (double fading)
	Set the default fading of the PHY. More...

void	SetNodeInfo (const Ptr< SatNodeInfo > nodeInfo)
	Set the node info class. More...

virtual void	SetPhyRx (Ptr< SatPhyRx > phyRx)
	Set the SatPhyRx module. More...

virtual void	SetPhyTx (Ptr< SatPhyTx > phyTx)
	Set the SatPhyTx module. More...

void	SetRxAntennaGainDb (double gainDb)
	Set the maximum antenna gain of the receiver in dB. More...

virtual void	SetRxAntennaGainPattern (Ptr< SatAntennaGainPattern > agp, Ptr< SatMobilityModel > satelliteMobility)
	Set the receive antenna gain pattern. More...

void	SetRxAntennaLossDb (double lossDb)
	Set the antenna loss of the receiver in dB. More...

void	SetRxFadingContainer (Ptr< SatBaseFading > fadingContainer)
	Set fading container. More...

void	SetRxNoiseTemperatureDbk (double temperatureDbk)
	Set the noise temperature of the receiver in dbK. More...

void	SetSatId (uint32_t satId)
	Set the satId this PHY is connected with. More...

void	SetTxAntennaGainDb (double gainDb)
	Set the maximum antenna gain of the transmitter in dB. More...

virtual void	SetTxAntennaGainPattern (Ptr< SatAntennaGainPattern > agp, Ptr< SatMobilityModel > satelliteMobility)
	Set the transmit antenna gain pattern. More...

void	SetTxAntennaLossDb (double lossDb)
	Set the antenna loss of the transmitter in dB. More...

void	SetTxFadingContainer (Ptr< SatBaseFading > fadingContainer)
	Set fading container. More...

void	SetTxMaxPowerDbw (double powerDb)
	Set the maximum transmit power of the transmitter in dB. More...

void	SetTxOboLossDb (double lossDb)
	Set the OBO loss of the transmitter in dB. More...

void	SetTxOutputLossDb (double lossDb)
	Set the output loss of the transmitter in dB. More...

void	SetTxPointingLossDb (double lossDb)
	Set the pointing loss of the transmitter in dB. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	inherited from Object More...

Static Public Member Functions inherited from ns3::SatPhy
static TypeId	GetTypeId (void)
	Derived from Object. More...

Private Member Functions
void	AssignNewSatChannels ()
	Update the underlying SatChannel to send and receive data from the current beam (as described in the m_beamId attribute). More...

virtual SatEnums::SatLinkDir_t	GetSatLinkRxDir ()
	Get the link RX direction. More...

virtual SatEnums::SatLinkDir_t	GetSatLinkTxDir ()
	Get the link TX direction. More...

Private Attributes
Time	m_antennaReconfigurationDelay
	Delay of antenna reconfiguration when performing handover. More...

double	m_otherSysInterferenceCOverI
	Other system interference in linear. More...

double	m_otherSysInterferenceCOverIDb
	Configured other system interference in dB. More...

std::set< uint8_t >	m_slicesSubscribed
	The list of slices subscribed for this UT. More...

Additional Inherited Members
Public Types inherited from ns3::SatPhy
typedef Callback< void, uint32_t, uint32_t, uint32_t, uint8_t, double >	AverageNormalizedOfferedLoadCallback

typedef Callback< SatChannelPair::ChannelPair_t, uint32_t, uint32_t >	ChannelPairGetterCallback
	Callback for retrieving a pair of SatChannel associated to a beam. More...

typedef Callback< void, uint32_t, uint32_t, Address, Address, double, bool >	CnoCallback

typedef SatPhyRxCarrierConf::ErrorModel	ErrorModel
	Define ErrorModel in SatPhy. More...

typedef SatPhyRxCarrierConf::InterferenceEliminationModel	InterferenceEliminationModel
	Define InterferenceEliminationModel in SatPhy. More...

typedef SatPhyRxCarrierConf::InterferenceModel	InterferenceModel
	Define InterferenceModel in SatPhy. More...

typedef SatSignalParameters::PacketsInBurst_t	PacketContainer_t
	Define PacketContainer in SatPhy. More...

typedef Callback< void, PacketContainer_t, Ptr< SatSignalParameters > >	ReceiveCallback

Protected Member Functions inherited from ns3::SatPhy
void	ModcodTrace (Ptr< SatSignalParameters > rxParams)
	Invoke the `RxLinkModcod` trace source for each received packet. More...

virtual void	RxTraces (SatPhy::PacketContainer_t packets)
	Invoke the `Rx` trace source for each received packet. More...

void	SetTimeTag (SatPhy::PacketContainer_t packets)
	Set SatPhyTimeTag of packets. More...

Protected Attributes inherited from ns3::SatPhy
uint32_t	m_beamId
	Beam ID. More...

double	m_eirpWoGainW
	Calculated EIRP without gain in W. More...

bool	m_isStatisticsTagsEnabled
	`EnableStatisticsTags` attribute. More...

Time	m_lastDelay
	Last delay measurement. More...

Time	m_lastLinkDelay
	Last delay measurement for link. More...

Ptr< SatNodeInfo >	m_nodeInfo
	Node info containing node related information, such as node type, node id and MAC address (of the SatNetDevice) More...

TracedCallback< Time, SatEnums::SatPacketEvent_t, SatEnums::SatNodeType_t, uint32_t, Mac48Address, SatEnums::SatLogLevel_t, SatEnums::SatLinkDir_t, std::string >	m_packetTrace
	Trace callback used for packet tracing: More...

Ptr< SatPhyRx >	m_phyRx
	Pointer to internal SatPhyRx instance. More...

Ptr< SatPhyTx >	m_phyTx
	Pointer to internal SatPhyTx instance. More...

SatPhy::ChannelPairGetterCallback	m_retrieveChannelPair
	Callback for retrieving SatChannel pairs by beam. More...

SatPhy::ReceiveCallback	m_rxCallback
	The upper layer package receive callback. More...

TracedCallback< const Time &, const Address & >	m_rxDelayTrace
	Traced callback for all received packets, including delay information and the address of the senders. More...

TracedCallback< const Time &, const Address & >	m_rxJitterTrace
	Traced callback for all received packets, including jitter information and the address of the senders. More...

TracedCallback< const Time &, const Address & >	m_rxLinkDelayTrace
	Traced callback for all received packets, including link delay information and the address of the senders. More...

TracedCallback< const Time &, const Address & >	m_rxLinkJitterTrace
	Traced callback for all received packets, including link jitter information and the address of the senders. More...

TracedCallback< uint32_t, const Address & >	m_rxLinkModcodTrace
	Traced callback for all received packets, including link MODCOD information and the address of the senders. More...

TracedCallback< Ptr< const Packet >, const Address & >	m_rxTrace
	Traced callback for all received packets, including the address of the senders. More...

uint32_t	m_satId
	Satellite ID. More...

Detailed Description

The SatUtPhy models the physical layer of the User Terminal of the satellite system.

Definition at line 54 of file satellite-ut-phy.h.

Constructor & Destructor Documentation

◆ SatUtPhy() [1/2]

ns3::SatUtPhy::SatUtPhy ( void )

Default constructor, which is not used.

Definition at line 142 of file satellite-ut-phy.cc.

◆ SatUtPhy() [2/2]

ns3::SatUtPhy::SatUtPhy	(	SatPhy::CreateParam_t &	params,
		Ptr< SatLinkResults >	linkResults,
		SatPhyRxCarrierConf::RxCarrierCreateParams_s	parameters,
		Ptr< SatSuperframeConf >	superFrameConf
	)

Constructor.

Parameters

params	Creation parameters
linkResults	Link results
parameters	Rx carrier creation parameters
superFrameConf	Superframe configuration

Definition at line 151 of file satellite-ut-phy.cc.

References ns3::SatPhy::ConfigureRxCarriers(), ns3::SatUtils::DbToLinear(), ns3::SatEnums::FORWARD_USER_CH, GetAdditionalInterference(), ns3::SatPhy::GetRxNoiseTemperatureDbk(), m_otherSysInterferenceCOverI, m_otherSysInterferenceCOverIDb, and ns3::SatPhyRxCarrierConf::NORMAL.

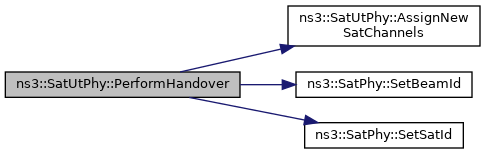

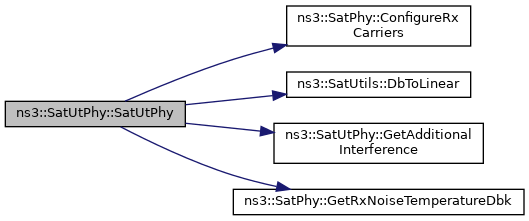

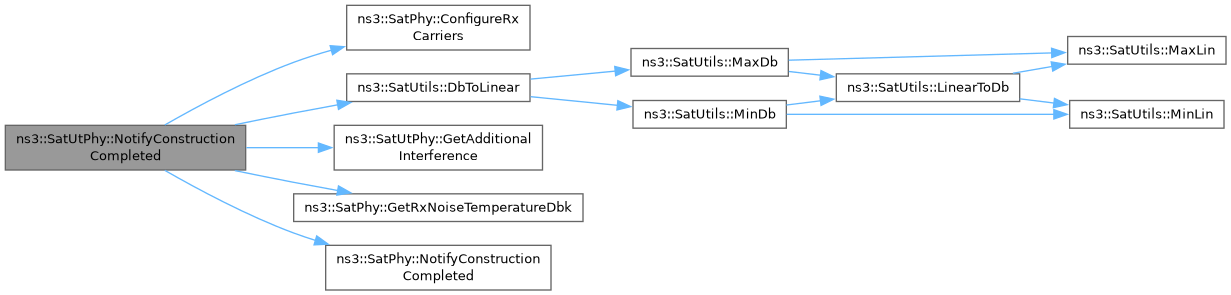

Here is the call graph for this function:

◆ ~SatUtPhy()

ns3::SatUtPhy::~SatUtPhy ( )

virtual

Destructor.

Definition at line 185 of file satellite-ut-phy.cc.

Member Function Documentation

◆ AssignNewSatChannels()

void ns3::SatUtPhy::AssignNewSatChannels ( )

private

Update the underlying SatChannel to send and receive data from the current beam (as described in the m_beamId attribute).

Definition at line 229 of file satellite-ut-phy.cc.

References ns3::SatPhy::m_beamId, ns3::SatPhy::m_phyRx, ns3::SatPhy::m_phyTx, ns3::SatPhy::m_retrieveChannelPair, and ns3::SatPhy::m_satId.

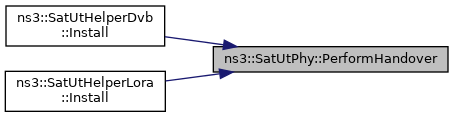

Referenced by PerformHandover().

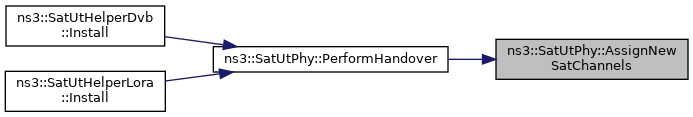

Here is the caller graph for this function:

◆ DoDispose()

void ns3::SatUtPhy::DoDispose ( void )

virtual

Dispose of SatUtPhy.

Reimplemented from ns3::SatPhy.

Definition at line 191 of file satellite-ut-phy.cc.

◆ DoInitialize()

void ns3::SatUtPhy::DoInitialize ( void )

virtual

Initialization of SatUtPhy.

Reimplemented from ns3::SatPhy.

Definition at line 198 of file satellite-ut-phy.cc.

◆ GetAdditionalInterference()

double ns3::SatUtPhy::GetAdditionalInterference ( void )

virtual

Get additional interference, used to compute final SINR at RX.

Returns: Additional interference

Implements ns3::SatPhy.

Definition at line 205 of file satellite-ut-phy.cc.

References m_otherSysInterferenceCOverI.

Referenced by SatUtPhy().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SatUtPhy::GetInstanceTypeId ( void ) const

Definition at line 136 of file satellite-ut-phy.cc.

References GetTypeId().

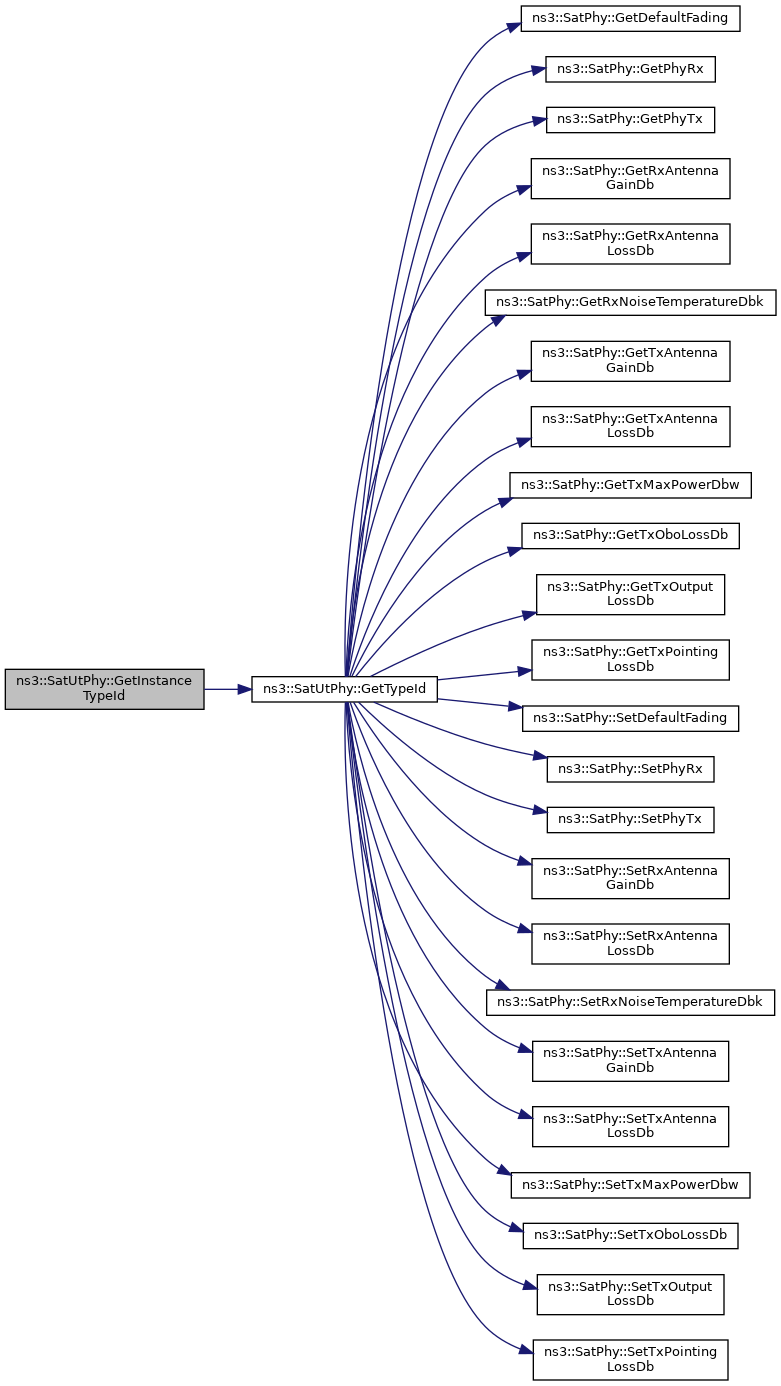

Here is the call graph for this function:

◆ GetSatLinkRxDir()

SatEnums::SatLinkDir_t ns3::SatUtPhy::GetSatLinkRxDir ( )

privatevirtual

Get the link RX direction.

Must be implemented by child clases.

Returns: The link RX direction

Reimplemented from ns3::SatPhy.

Definition at line 251 of file satellite-ut-phy.cc.

References ns3::SatEnums::LD_FORWARD.

◆ GetSatLinkTxDir()

SatEnums::SatLinkDir_t ns3::SatUtPhy::GetSatLinkTxDir ( )

privatevirtual

Get the link TX direction.

Must be implemented by child clases.

Returns: The link TX direction

Reimplemented from ns3::SatPhy.

Definition at line 245 of file satellite-ut-phy.cc.

References ns3::SatEnums::LD_RETURN.

◆ GetTypeId()

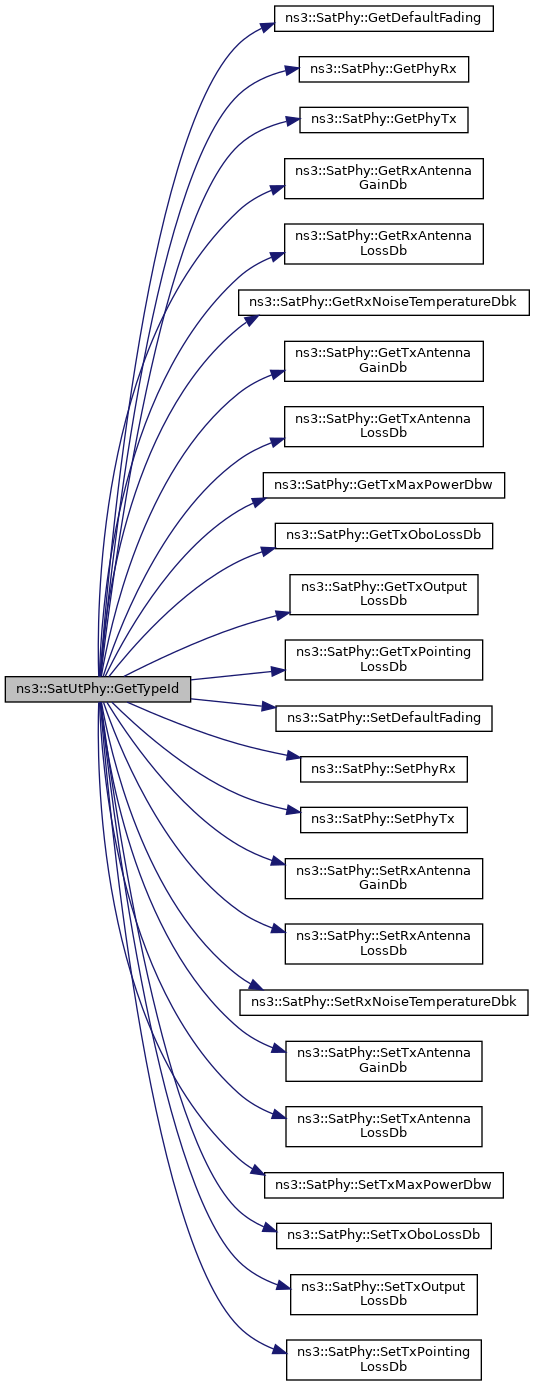

TypeId ns3::SatUtPhy::GetTypeId ( void )

static

inherited from Object

Definition at line 49 of file satellite-ut-phy.cc.

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsTxPossible()

bool ns3::SatUtPhy::IsTxPossible ( void ) const

Inform whether or not the underlying Tx channel is properly configured for transmission.

Definition at line 257 of file satellite-ut-phy.cc.

References ns3::SatPhy::m_phyTx.

Referenced by ns3::SatUtHelperDvb::Install().

Here is the caller graph for this function:

◆ PerformHandover()

void ns3::SatUtPhy::PerformHandover	(	uint32_t	satId,
		uint32_t	beamId
	)

Change underlying SatChannel to send and receive data from a new satellite and beam.

Parameters

satId	the new satellite to listen/send to
beamId	the new beam to listen/send to

Definition at line 213 of file satellite-ut-phy.cc.

References AssignNewSatChannels(), m_antennaReconfigurationDelay, ns3::SatPhy::m_beamId, ns3::SatPhy::m_phyRx, ns3::SatPhy::m_phyTx, ns3::SatPhy::m_retrieveChannelPair, ns3::SatPhy::m_satId, ns3::SatPhy::SetBeamId(), and ns3::SatPhy::SetSatId().

Referenced by ns3::SatUtHelperDvb::Install(), and ns3::SatUtHelperLora::Install().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Receive()

void ns3::SatUtPhy::Receive	(	Ptr< SatSignalParameters >	rxParams,
		bool	phyError
	)

virtual

Receives packets from lower layer.

Parameters

rxParams	Packet reception parameters
phyError	Boolean indicating whether the packet successfully received or not?

Reimplemented from ns3::SatPhy.

Definition at line 264 of file satellite-ut-phy.cc.

References ns3::SatEnums::DUMMY_FRAME, m_slicesSubscribed, and ns3::SatPhy::Receive().

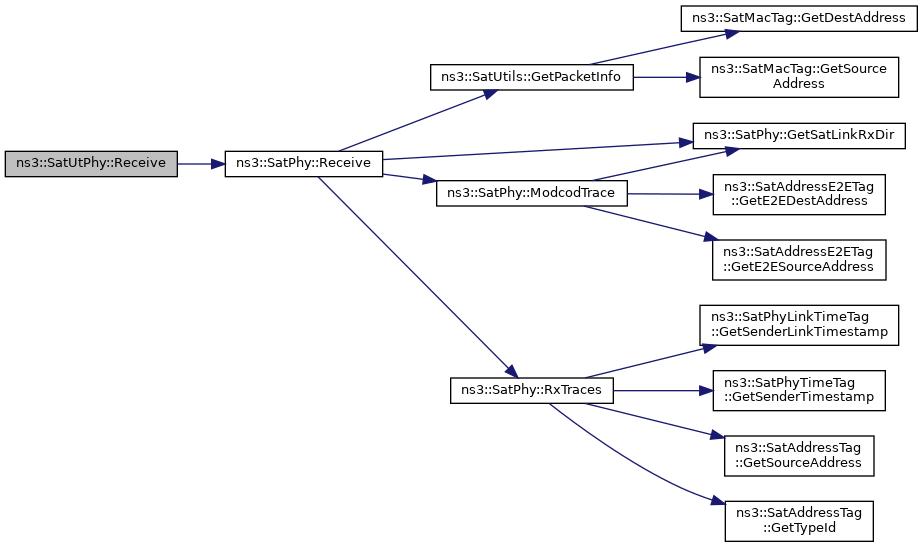

Here is the call graph for this function:

◆ UpdateSliceSubscription()

void ns3::SatUtPhy::UpdateSliceSubscription ( uint8_t slice )

Updates the slices subscription list.

Parameters

slice The new slice to subscribe. If zero, reset the subscription list (except slice zero used for control messages).

Definition at line 288 of file satellite-ut-phy.cc.

References m_slicesSubscribed.

Referenced by ns3::SatUtHelperDvb::Install().

Here is the caller graph for this function:

Member Data Documentation

◆ m_antennaReconfigurationDelay

Time ns3::SatUtPhy::m_antennaReconfigurationDelay

private

Delay of antenna reconfiguration when performing handover.

Definition at line 161 of file satellite-ut-phy.h.

Referenced by GetTypeId(), and PerformHandover().

◆ m_otherSysInterferenceCOverI

double ns3::SatUtPhy::m_otherSysInterferenceCOverI

private

Other system interference in linear.

Definition at line 156 of file satellite-ut-phy.h.

Referenced by SatUtPhy(), and GetAdditionalInterference().

◆ m_otherSysInterferenceCOverIDb

double ns3::SatUtPhy::m_otherSysInterferenceCOverIDb

private

Configured other system interference in dB.

Definition at line 151 of file satellite-ut-phy.h.

Referenced by SatUtPhy(), and GetTypeId().

◆ m_slicesSubscribed

std::set<uint8_t> ns3::SatUtPhy::m_slicesSubscribed

private

The list of slices subscribed for this UT.

Definition at line 166 of file satellite-ut-phy.h.

Referenced by Receive(), and UpdateSliceSubscription().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-ut-phy.h
/builds/sns3/satellite/satellite/model/satellite-ut-phy.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SatUtPhy() [1/2]

◆ SatUtPhy() [2/2]

◆ ~SatUtPhy()

Member Function Documentation

◆ AssignNewSatChannels()

◆ DoDispose()

◆ DoInitialize()

◆ GetAdditionalInterference()

◆ GetInstanceTypeId()

◆ GetSatLinkRxDir()

◆ GetSatLinkTxDir()

◆ GetTypeId()

◆ IsTxPossible()

◆ PerformHandover()

◆ Receive()

◆ UpdateSliceSubscription()

Member Data Documentation

◆ m_antennaReconfigurationDelay

◆ m_otherSysInterferenceCOverI

◆ m_otherSysInterferenceCOverIDb

◆ m_slicesSubscribed
