System test cases for Satellite Per-Packet Interference Model. More...

#include "ns3/applications-module.h"
#include "ns3/boolean.h"
#include "ns3/config.h"
#include "ns3/log.h"
#include "ns3/satellite-module.h"
#include "ns3/simulator.h"
#include "ns3/singleton.h"
#include "ns3/string.h"
#include "ns3/test.h"
#include "ns3/timer.h"
#include "ns3/traffic-module.h"
#include <iomanip>

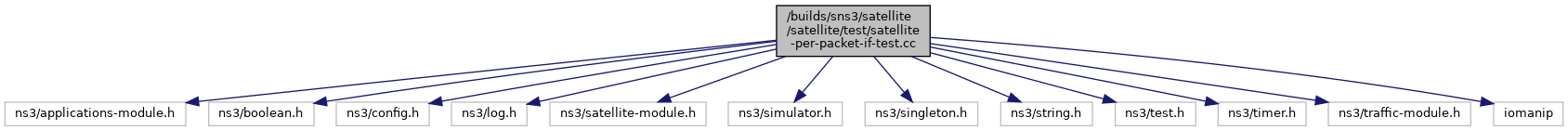

Include dependency graph for satellite-per-packet-if-test.cc:

Classes
class	SatPerPacketBaseTestCase
class	SatPerPacketFwdLinkFullTestCase
class	SatPerPacketFwdLinkUserTestCase
class	SatPerPacketIfTestSuite
	Test suite for Satellite interference unit test cases. More...
class	SatPerPacketRtnLinkFullTestCase
class	SatPerPacketRtnLinkUserTestCase

Functions
static void	LinkBudgetTraceCb (std::string context, Ptr< SatSignalParameters > params, Mac48Address ownAdd, Mac48Address destAdd, double ifPower, double cSinr)

Variables
static const char *	defFwdFullName
	Per-packet interference, Forward Link System test case.
static const char *	defFwdUserName
	Per-packet interference, Forward Link System test case.
static const char *	defRtnFullName
static const char *	defRtnUserName
	Per-packet interference, Return Link System test case.
static SatPerPacketIfTestSuite	satSatPerPacketIfTestSuite

Detailed Description

System test cases for Satellite Per-Packet Interference Model.

Definition in file satellite-per-packet-if-test.cc.

Function Documentation

◆ LinkBudgetTraceCb()

void LinkBudgetTraceCb	(	std::string	context,
		Ptr< SatSignalParameters >	params,
		Mac48Address	ownAdd,
		Mac48Address	destAdd,
		double	ifPower,
		double	cSinr )

static

Definition at line 45 of file satellite-per-packet-if-test.cc.

References ns3::SatEnums::GetChannelTypeName(), ns3::SatUtils::LinearToDb(), and ns3::SatUtils::WToDbW().

Referenced by SatPerPacketFwdLinkFullTestCase::DoRun(), SatPerPacketFwdLinkUserTestCase::DoRun(), SatPerPacketRtnLinkFullTestCase::DoRun(), and SatPerPacketRtnLinkUserTestCase::DoRun().

Here is the call graph for this function:

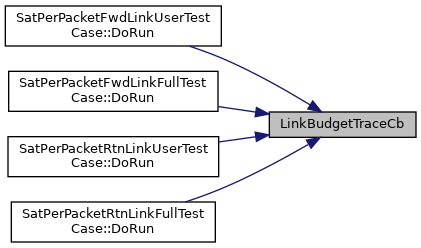

Here is the caller graph for this function:

Variable Documentation

◆ defFwdFullName

const char* defFwdFullName

static

Initial value:

=

"Test satellite per packet interference in Forward Link with fullscenario. "

Per-packet interference, Forward Link System test case.

Full scenario created without fading and dummy frame sending.

Pre-conditions: Network is configured to use only one carrier in forward link. Per-packet interference is configured on for forward link.

This case tests per-packet interference in forward link with full or user defined scenario.

Full test scenario set with helper.
User Node-1 sends packets continuously, transmitting constant bitrate (CBR) to user Node-3.
User Node-2 sends short packets with e.g. 100ms delay between packets to user Node-4.

Expected result: UT serving Node-3 should see interference only in some of the received packet (when Node-2 is sending). UT serving Node-4 should see inference in every packet it receives.

Notes: Node-1 and Node-2 are attached to different IP router (different GW nodes) and Node-3 and Node-4 are attached to different UT nodes. Node-1 and Node-2 must be selected from different beams, so that packet sending happens in same channel at least in feeder or user link.

Definition at line 407 of file satellite-per-packet-if-test.cc.

Referenced by SatPerPacketFwdLinkFullTestCase::SatPerPacketFwdLinkFullTestCase(), SatPerPacketFwdLinkFullTestCase::SatPerPacketFwdLinkFullTestCase(), and SatPerPacketFwdLinkFullTestCase::SatPerPacketFwdLinkFullTestCase().

◆ defFwdUserName

const char* defFwdUserName

static

Initial value:

=

"Test satellite per packet interference in Forward Link with user defined scenario. "

Per-packet interference, Forward Link System test case.

User defined scenario created without fading and dummy frame sending.

Pre-conditions: Network is configured to use only one carrier in forward link. Per-packet interference is configured on for forward link.

This case tests per-packet interference in forward link with full or user defined scenario.

User-defined test scenario set with helper.
User Node-1 sends packets continuously, transmitting constant bitrate (CBR) to user Node-3.
User Node-2 sends short packets with e.g. 100ms delay between packets to user Node-4.

Expected result: UT serving Node-3 should see interference only in some of the received packet (when Node-2 is sending). UT serving Node-4 should see inference in every packet it receives.

Notes: Node-1 and Node-2 are attached to different IP router (different GW nodes) and Node-3 and Node-4 are attached to different UT nodes. Node-1 and Node-2 must be selected from different beams, so that packet sending happens in same channel at least in feeder or user link.

Definition at line 208 of file satellite-per-packet-if-test.cc.

Referenced by SatPerPacketFwdLinkUserTestCase::SatPerPacketFwdLinkUserTestCase(), SatPerPacketFwdLinkUserTestCase::SatPerPacketFwdLinkUserTestCase(), and SatPerPacketFwdLinkUserTestCase::SatPerPacketFwdLinkUserTestCase().

◆ defRtnFullName

const char* defRtnFullName

static

Initial value:

=

"Test satellite per packet interference in Return Link with full defined scenario. "

Definition at line 758 of file satellite-per-packet-if-test.cc.

Referenced by SatPerPacketRtnLinkFullTestCase::SatPerPacketRtnLinkFullTestCase(), SatPerPacketRtnLinkFullTestCase::SatPerPacketRtnLinkFullTestCase(), and SatPerPacketRtnLinkFullTestCase::SatPerPacketRtnLinkFullTestCase().

◆ defRtnUserName

const char* defRtnUserName

static

Initial value:

=

"Test satellite per packet interference in Return Link with user defined scenario. "

Per-packet interference, Return Link System test case.

Pre-conditions: Network is configured to use only one carrier in return link. Per-packet interference is configured on for return link.

This case tests per-packet interference in return link with full or user defined scenario.

Full or user-defined test scenario set with helper.
User Node-3 sends packets continuously, transmitting constant bitrate (CBR) to user Node-1.
User Node-4 sends short packets with e.g. 100ms delay between packets to user Node-2.

Expected result: GW serving Node-1 should see interference only in some of the received packet (when Node-4 is sending). GW serving Node-2 should see inference in every packet it receives.

Notes: Node-1 and Node-2 are attached to IP router (different GW nodes) and Node-3 and Node-4 are attached to different UT nodes. Node-1 and Node-2 must be selected from different beams, so that packet sending happens in same channel at least in user or feeder link.

Definition at line 594 of file satellite-per-packet-if-test.cc.

Referenced by SatPerPacketRtnLinkUserTestCase::SatPerPacketRtnLinkUserTestCase(), SatPerPacketRtnLinkUserTestCase::SatPerPacketRtnLinkUserTestCase(), and SatPerPacketRtnLinkUserTestCase::SatPerPacketRtnLinkUserTestCase().

◆ satSatPerPacketIfTestSuite

SatPerPacketIfTestSuite satSatPerPacketIfTestSuite

static

Definition at line 951 of file satellite-per-packet-if-test.cc.
