ns3::SatGwHelperLora Class Reference

Creates needed objects for LORA GW nodes like SatorbiterNetDevice objects. More...

#include "satellite-gw-helper-lora.h"

Inheritance diagram for ns3::SatGwHelperLora:

Collaboration diagram for ns3::SatGwHelperLora:

Public Member Functions
	SatGwHelperLora ()
	Default constructor.
	SatGwHelperLora (SatTypedefs::CarrierBandwidthConverter_t carrierBandwidthConverter, uint32_t fwdLinkCarrierCount, Ptr< SatSuperframeSeq > seq, SatMac::ReadCtrlMsgCallback readCb, SatMac::ReserveCtrlMsgCallback reserveCb, SatMac::SendCtrlMsgCallback sendCb, RandomAccessSettings_s randomAccessSettings)
	Create a SatGwHelperLora to make life easier when creating Satellite point to point network connections.
virtual	~SatGwHelperLora ()
virtual Ptr< NetDevice >	Install (Ptr< Node > n, uint32_t gwId, uint32_t satId, uint32_t beamId, uint32_t feederSatId, uint32_t feederBeamId, Ptr< SatChannel > fCh, Ptr< SatChannel > rCh, SatPhy::ChannelPairGetterCallback cbChannel, Ptr< SatNcc > ncc, Ptr< SatLowerLayerServiceConf > llsConf)
Public Member Functions inherited from ns3::SatGwHelper
	SatGwHelper ()
	Default constructor.
	SatGwHelper (SatTypedefs::CarrierBandwidthConverter_t carrierBandwidthConverter, uint32_t fwdLinkCarrierCount, Ptr< SatSuperframeSeq > seq, SatMac::ReadCtrlMsgCallback readCb, SatMac::ReserveCtrlMsgCallback reserveCb, SatMac::SendCtrlMsgCallback sendCb, RandomAccessSettings_s randomAccessSettings)
	Create a SatGwHelper to make life easier when creating Satellite point to point network connections.
virtual	~SatGwHelper ()
void	EnableCreationTraces (Ptr< OutputStreamWrapper > stream, CallbackBase &cb)
	Enables creation traces to be written in given file.
Ptr< SatBbFrameConf >	GetBbFrameConf () const
	Get BB frame configuration.
void	Initialize (Ptr< SatLinkResultsRtn > lrRcs2, Ptr< SatLinkResultsFwd > lrFwd, SatEnums::DvbVersion_t dvbVersion, bool useScpc)
NetDeviceContainer	Install (NodeContainer c, uint32_t gwId, uint32_t satId, uint32_t beamId, uint32_t feederSatId, uint32_t feederBeamId, Ptr< SatChannel > fCh, Ptr< SatChannel > rCh, SatPhy::ChannelPairGetterCallback cbChannel, Ptr< SatNcc > ncc, Ptr< SatLowerLayerServiceConf > llsConf)
void	SetChannelAttribute (std::string name, const AttributeValue &value)
	Set an attribute value to be propagated to each Channel created by the helper.
void	SetDeviceAttribute (std::string name, const AttributeValue &value)
	Set an attribute value to be propagated to each NetDevice created by the helper.
void	SetPhyAttribute (std::string name, const AttributeValue &value)
	Set an attribute value to be propagated to each Phy created by the helper.

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID.
Static Public Member Functions inherited from ns3::SatGwHelper
static TypeId	GetTypeId (void)
	Get the type ID.

Additional Inherited Members
Protected Attributes inherited from ns3::SatGwHelper
Ptr< SatBbFrameConf >	m_bbFrameConf
SatTypedefs::CarrierBandwidthConverter_t	m_carrierBandwidthConverter
ObjectFactory	m_channelFactory
TracedCallback< std::string >	m_creationTrace
	Trace callback for creation traces.
double	m_daConstantErrorRate
SatPhy::InterferenceModel	m_daInterferenceModel
ObjectFactory	m_deviceFactory
bool	m_enableChannelEstimationError
	Enable channel estimation error modeling at forward link receiver (= UT).
SatPhy::ErrorModel	m_errorModel
SatEnums::FwdSchedulingAlgorithm_t	m_fwdSchedulingAlgorithm
	The forward link algorithm used.
Ptr< SatLinkResults >	m_linkResults
RandomAccessSettings_s	m_raSettings
	The used random access model settings.
SatMac::ReadCtrlMsgCallback	m_readCtrlCb
SatMac::ReserveCtrlMsgCallback	m_reserveCtrlCb
uint32_t	m_rtnLinkCarrierCount
SatMac::SendCtrlMsgCallback	m_sendCtrlCb
Ptr< SatSuperframeSeq >	m_superframeSeq
double	m_symbolRate

Detailed Description

Creates needed objects for LORA GW nodes like SatorbiterNetDevice objects.

Handles needed configuration for the GW nodes.

Definition at line 43 of file satellite-gw-helper-lora.h.

Constructor & Destructor Documentation

SatGwHelperLora() [1/2]

ns3::SatGwHelperLora::SatGwHelperLora

(

)

Default constructor.

Definition at line 62 of file satellite-gw-helper-lora.cc.

SatGwHelperLora() [2/2]

ns3::SatGwHelperLora::SatGwHelperLora	(	SatTypedefs::CarrierBandwidthConverter_t	carrierBandwidthConverter,
		uint32_t	fwdLinkCarrierCount,
		Ptr< SatSuperframeSeq >	seq,
		SatMac::ReadCtrlMsgCallback	readCb,
		SatMac::ReserveCtrlMsgCallback	reserveCb,
		SatMac::SendCtrlMsgCallback	sendCb,
		RandomAccessSettings_s	randomAccessSettings )

Create a SatGwHelperLora to make life easier when creating Satellite point to point network connections.

Definition at line 68 of file satellite-gw-helper-lora.cc.

References ns3::SatGwHelper::SatGwHelper().

Here is the call graph for this function:

~SatGwHelperLora()

virtual ns3::SatGwHelperLora::~SatGwHelperLora ( )

inlinevirtual

Definition at line 69 of file satellite-gw-helper-lora.h.

Member Function Documentation

GetTypeId()

TypeId ns3::SatGwHelperLora::GetTypeId ( void )

static

Get the type ID.

Returns

the object TypeId

Definition at line 55 of file satellite-gw-helper-lora.cc.

References ns3::SatGwHelper::SatGwHelper().

Here is the call graph for this function:

Install()

Ptr< NetDevice > ns3::SatGwHelperLora::Install ( Ptr< Node > n, uint32_t gwId, uint32_t satId, uint32_t beamId, uint32_t feederSatId, uint32_t feederBeamId, Ptr< SatChannel > fCh, Ptr< SatChannel > rCh, SatPhy::ChannelPairGetterCallback cbChannel, Ptr< SatNcc > ncc, Ptr< SatLowerLayerServiceConf > llsConf )

virtual

Parameters

n	node
gwId	id of the gw
satId	id of the satellite linked to the UT
beamId	id of the beam linked to the UT
feederSatId	id of the satellite linked to the GW
feederBeamId	id of the beam linked to the GW
fCh	forward channel
rCh	return channel
ncc	NCC (Network Control Center)

This method creates a ns3::SatChannel with the attributes configured by SatGwHelper::SetChannelAttribute, then, for each node in the input container, we create a ns3::SatLorawanNetDevice with the requested attributes, a queue for this ns3::SatLorawanNetDevice, and associate the resulting ns3::SatLorawanNetDevice with the ns3::Node and ns3::SatChannel.

Channel estimation errors

Implements ns3::SatGwHelper.

Definition at line 87 of file satellite-gw-helper-lora.cc.

References ns3::SatNcc::DoRandomAccessDynamicLoadControl(), ns3::SatEnums::LORA_GW, ns3::SatPhy::CreateParam_t::m_beamId, ns3::SatGwHelper::m_carrierBandwidthConverter, ns3::SatGwHelper::m_daConstantErrorRate, ns3::SatGwHelper::m_daInterferenceModel, ns3::SatPhy::CreateParam_t::m_device, ns3::SatGwHelper::m_deviceFactory, ns3::SatGwHelper::m_enableChannelEstimationError, ns3::SatGwHelper::m_errorModel, ns3::SatGwHelper::m_linkResults, ns3::SatGwHelper::m_raSettings, ns3::SatGwHelper::m_rtnLinkCarrierCount, ns3::SatPhy::CreateParam_t::m_rxCh, ns3::SatPhy::CreateParam_t::m_satId, ns3::SatPhy::CreateParam_t::m_standard, ns3::SatGwHelper::m_superframeSeq, ns3::SatPhy::CreateParam_t::m_txCh, ns3::SatEnums::NT_GW, ns3::LorawanMac::Receive(), ns3::SatEnums::REGENERATION_PHY, ns3::SatConstVariables::SUPERFRAME_SEQUENCE, ns3::SatEnums::TRANSPARENT, and ns3::SatNcc::UtCnoUpdated().

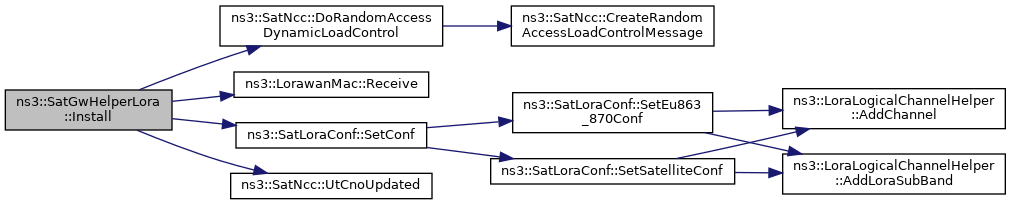

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• /builds/sns3/satellite/satellite/helper/satellite-gw-helper-lora.h
• /builds/sns3/satellite/satellite/helper/satellite-gw-helper-lora.cc
