UT handover module. More...

#include "satellite-handover-module.h"

Inheritance diagram for ns3::SatHandoverModule:

Collaboration diagram for ns3::SatHandoverModule:

Public Types
enum	HandoverDecisionAlgorithm_t { SAT_N_CLOSEST_SAT }

typedef Callback< void, uint32_t, uint32_t >	HandoverRequestCallback
	Handover recommendation message sending callback. More...

Public Member Functions
	SatHandoverModule ()
	Default constructor, which is not used. More...

	SatHandoverModule (Ptr< Node > utNode, NodeContainer satellites, Ptr< SatAntennaGainPatternContainer > agpContainer)
	Construct a SatHandoverModule. More...

	~SatHandoverModule ()
	Destroy a SatHandoverModule. More...

bool	CheckForHandoverRecommendation (uint32_t satId, uint32_t beamId)
	Inspect whether or not the given beam is still suitable for the underlying mobility model. More...

virtual void	DoDispose ()
	Dispose of this class instance. More...

uint32_t	GetAskedBeamId ()
	Get the best beam ID. More...

uint32_t	GetAskedSatId ()
	Get the best sat ID. More...

virtual TypeId	GetInstanceTypeId (void) const
	Derived from Object. More...

void	HandoverFinished ()
	Method to call when a handover has been performed. More...

void	SetHandoverRequestCallback (SatHandoverModule::HandoverRequestCallback cb)
	Set the handover recommendation message sending callback. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Derived from Object. More...

Private Member Functions
std::pair< uint32_t, uint32_t >	AlgorithmNClosest (GeoCoordinate coords)
	Handover algorithm choosing best beam between N closest satellites. More...

std::vector< uint32_t >	GetNClosestSats (uint32_t numberOfSats)
	Get the N closest satellites to the UT node. More...

Private Attributes
Ptr< SatAntennaGainPatternContainer >	m_antennaGainPatterns

TracedCallback< double >	m_antennaGainTrace

uint32_t	m_askedBeamId

uint32_t	m_askedSatId

HandoverRequestCallback	m_handoverCallback

HandoverDecisionAlgorithm_t	m_handoverDecisionAlgorithm
	Algorithm used to detect if handover is needed. More...

bool	m_hasPendingRequest

Time	m_lastMessageSentAt

uint32_t	m_numberClosestSats
	Number of satellites to consider when using algorithm SAT_N_CLOSEST_SAT. More...

Time	m_repeatRequestTimeout

NodeContainer	m_satellites

Ptr< Node >	m_utNode

Detailed Description

UT handover module.

Definition at line 44 of file satellite-handover-module.h.

Member Typedef Documentation

◆ HandoverRequestCallback

typedef Callback<void, uint32_t, uint32_t> ns3::SatHandoverModule::HandoverRequestCallback

Handover recommendation message sending callback.

Parameters

uint32_t	The satellite ID this UT want to change to
uint32_t	The beam ID this UT want to change to

Definition at line 57 of file satellite-handover-module.h.

Member Enumeration Documentation

◆ HandoverDecisionAlgorithm_t

enum ns3::SatHandoverModule::HandoverDecisionAlgorithm_t

Enumerator
SAT_N_CLOSEST_SAT

Definition at line 47 of file satellite-handover-module.h.

Constructor & Destructor Documentation

◆ SatHandoverModule() [1/2]

ns3::SatHandoverModule::SatHandoverModule ( )

Default constructor, which is not used.

Definition at line 92 of file satellite-handover-module.cc.

◆ SatHandoverModule() [2/2]

ns3::SatHandoverModule::SatHandoverModule	(	Ptr< Node >	utNode,
		NodeContainer	satellites,
		Ptr< SatAntennaGainPatternContainer >	agpContainer
	)

Construct a SatHandoverModule.

Parameters

node	The UT node linked to this module
satellites	The list of satellites used in the scenario
agpContainer	the antenna gain patterns of the simulation

Definition at line 105 of file satellite-handover-module.cc.

◆ ~SatHandoverModule()

ns3::SatHandoverModule::~SatHandoverModule ( )

Destroy a SatHandoverModule.

Definition at line 122 of file satellite-handover-module.cc.

Member Function Documentation

◆ AlgorithmNClosest()

std::pair< uint32_t, uint32_t > ns3::SatHandoverModule::AlgorithmNClosest ( GeoCoordinate coords )

private

Handover algorithm choosing best beam between N closest satellites.

Parameters

coords Coordiantes of UT

Returns: A pair containing satellite ID and beam ID

Definition at line 256 of file satellite-handover-module.cc.

References GetNClosestSats(), m_antennaGainPatterns, and m_numberClosestSats.

Referenced by CheckForHandoverRecommendation().

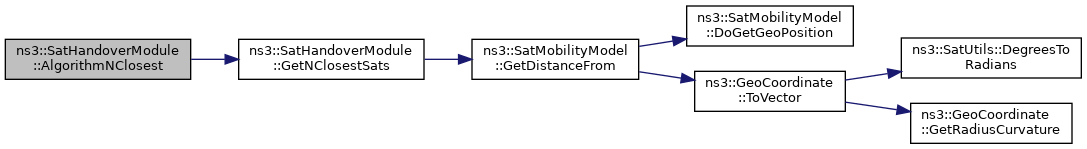

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckForHandoverRecommendation()

bool ns3::SatHandoverModule::CheckForHandoverRecommendation	(	uint32_t	satId,
		uint32_t	beamId
	)

Inspect whether or not the given beam is still suitable for the underlying mobility model.

Parameters

satId	The current satellite ID the underlying mobility model is emitting in
beamId	The current beam ID the underlying mobility model is emitting in

Returns: whether or not an handover recommendation has been sent

Definition at line 156 of file satellite-handover-module.cc.

References AlgorithmNClosest(), m_antennaGainPatterns, m_antennaGainTrace, m_askedBeamId, m_askedSatId, m_handoverCallback, m_handoverDecisionAlgorithm, m_hasPendingRequest, m_lastMessageSentAt, m_repeatRequestTimeout, and SAT_N_CLOSEST_SAT.

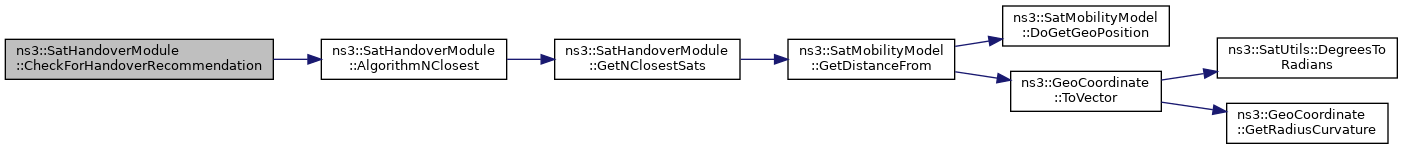

Here is the call graph for this function:

◆ DoDispose()

void ns3::SatHandoverModule::DoDispose ( void )

virtual

Dispose of this class instance.

Definition at line 82 of file satellite-handover-module.cc.

References m_antennaGainPatterns, and m_handoverCallback.

◆ GetAskedBeamId()

uint32_t ns3::SatHandoverModule::GetAskedBeamId ( )

Get the best beam ID.

Returns: The best beam ID

Definition at line 142 of file satellite-handover-module.cc.

References m_askedBeamId.

◆ GetAskedSatId()

uint32_t ns3::SatHandoverModule::GetAskedSatId ( )

Get the best sat ID.

Returns: The best sat ID

Definition at line 136 of file satellite-handover-module.cc.

References m_askedSatId.

◆ GetInstanceTypeId()

TypeId ns3::SatHandoverModule::GetInstanceTypeId ( void ) const

virtual

Derived from Object.

Definition at line 74 of file satellite-handover-module.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetNClosestSats()

std::vector< uint32_t > ns3::SatHandoverModule::GetNClosestSats ( uint32_t numberOfSats )

private

Get the N closest satellites to the UT node.

Parameters

numberOfSats Number of satellites to get

Returns: Closest satellites IDs

Definition at line 221 of file satellite-handover-module.cc.

References ns3::SatMobilityModel::GetDistanceFrom(), m_satellites, m_utNode, and satMobility.

Referenced by AlgorithmNClosest().

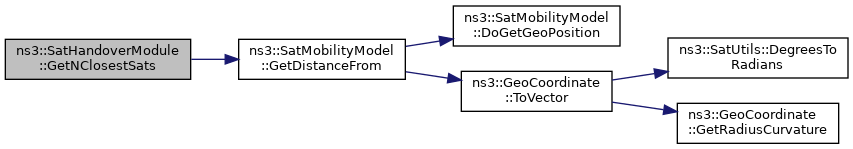

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatHandoverModule::GetTypeId ( void )

static

Derived from Object.

Definition at line 43 of file satellite-handover-module.cc.

References m_antennaGainTrace, m_handoverDecisionAlgorithm, m_numberClosestSats, m_repeatRequestTimeout, and SAT_N_CLOSEST_SAT.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

◆ HandoverFinished()

void ns3::SatHandoverModule::HandoverFinished ( )

Method to call when a handover has been performed.

Definition at line 148 of file satellite-handover-module.cc.

References m_hasPendingRequest.

◆ SetHandoverRequestCallback()

void ns3::SatHandoverModule::SetHandoverRequestCallback ( SatHandoverModule::HandoverRequestCallback cb )

Set the handover recommendation message sending callback.

Parameters

cb	callback to send handover recommendation messages

Definition at line 128 of file satellite-handover-module.cc.

References m_handoverCallback.

Referenced by ns3::SatGwHelperDvb::Install(), ns3::SatUtHelperDvb::Install(), and ns3::SatUtHelperLora::Install().

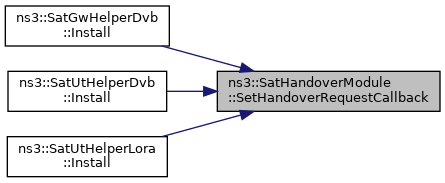

Here is the caller graph for this function:

Member Data Documentation

◆ m_antennaGainPatterns

Ptr<SatAntennaGainPatternContainer> ns3::SatHandoverModule::m_antennaGainPatterns

private

Definition at line 157 of file satellite-handover-module.h.

Referenced by AlgorithmNClosest(), CheckForHandoverRecommendation(), and DoDispose().

◆ m_antennaGainTrace

TracedCallback<double> ns3::SatHandoverModule::m_antennaGainTrace

private

Definition at line 165 of file satellite-handover-module.h.

Referenced by CheckForHandoverRecommendation(), and GetTypeId().

◆ m_askedBeamId

uint32_t ns3::SatHandoverModule::m_askedBeamId

private

Definition at line 163 of file satellite-handover-module.h.

Referenced by CheckForHandoverRecommendation(), and GetAskedBeamId().

◆ m_askedSatId

uint32_t ns3::SatHandoverModule::m_askedSatId

private

Definition at line 162 of file satellite-handover-module.h.

Referenced by CheckForHandoverRecommendation(), and GetAskedSatId().

◆ m_handoverCallback

HandoverRequestCallback ns3::SatHandoverModule::m_handoverCallback

private

Definition at line 153 of file satellite-handover-module.h.

Referenced by CheckForHandoverRecommendation(), DoDispose(), and SetHandoverRequestCallback().

◆ m_handoverDecisionAlgorithm

HandoverDecisionAlgorithm_t ns3::SatHandoverModule::m_handoverDecisionAlgorithm

private

Algorithm used to detect if handover is needed.

Definition at line 146 of file satellite-handover-module.h.

Referenced by CheckForHandoverRecommendation(), and GetTypeId().

◆ m_hasPendingRequest

bool ns3::SatHandoverModule::m_hasPendingRequest

private

Definition at line 161 of file satellite-handover-module.h.

Referenced by CheckForHandoverRecommendation(), and HandoverFinished().

◆ m_lastMessageSentAt

Time ns3::SatHandoverModule::m_lastMessageSentAt

private

Definition at line 159 of file satellite-handover-module.h.

Referenced by CheckForHandoverRecommendation().

◆ m_numberClosestSats

uint32_t ns3::SatHandoverModule::m_numberClosestSats

private

Number of satellites to consider when using algorithm SAT_N_CLOSEST_SAT.

Definition at line 151 of file satellite-handover-module.h.

Referenced by AlgorithmNClosest(), and GetTypeId().

◆ m_repeatRequestTimeout

Time ns3::SatHandoverModule::m_repeatRequestTimeout

private

Definition at line 160 of file satellite-handover-module.h.

Referenced by CheckForHandoverRecommendation(), and GetTypeId().

◆ m_satellites

NodeContainer ns3::SatHandoverModule::m_satellites

private

Definition at line 156 of file satellite-handover-module.h.

Referenced by GetNClosestSats().

◆ m_utNode

Ptr<Node> ns3::SatHandoverModule::m_utNode

private

Definition at line 155 of file satellite-handover-module.h.

Referenced by GetNClosestSats().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-handover-module.h
/builds/sns3/satellite/satellite/model/satellite-handover-module.cc
