Keep track of the current position and velocity of satellite using SGP4 model. More...

#include "satellite-sgp4-mobility-model.h"

Inheritance diagram for ns3::SatSGP4MobilityModel:

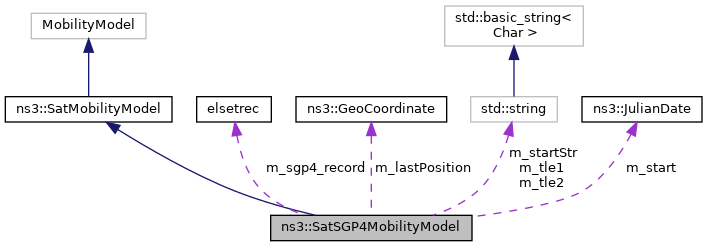

Collaboration diagram for ns3::SatSGP4MobilityModel:

Classes
struct	Matrix
	Matrix data structure to make coordinate conversion code clearer and less verbose. More...
struct	Row
	row of a Matrix More...

Public Member Functions
	SatSGP4MobilityModel ()
	Default constructor.
virtual	~SatSGP4MobilityModel ()
	Destructor.
Ptr< MobilityModel >	Copy () const override
	Copy function allows one to copy the underlying MobilityModel from a MobilityModel pointer, by calling each children Copy implementation.
JulianDate	GetStartTime () const
	Get the time instant considered as the simulation start.
virtual void	NotifyConstructionCompleted () override
	Notifier called once the ObjectBase is fully constructed.
void	SetStartDate (std::string startStr)
	Set the simulation absolute start time in string format.
void	SetStartTime (const JulianDate &t)
	Set the time instant considered as the simulation start.
void	SetTleInfo (const std::string &tle)
	Set satellite's TLE information required for its initialization.
Public Member Functions inherited from ns3::SatMobilityModel
	SatMobilityModel ()
	Default constructor.
virtual	~SatMobilityModel ()=0
	Destructor for SatMobilityModel.
double	GetDistanceFrom (Ptr< const SatMobilityModel > position) const
GeoCoordinate	GetGeoPosition (void) const
void	NotifyGeoCourseChange (void) const
void	SetGeoPosition (const GeoCoordinate &position)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID.
Static Public Member Functions inherited from ns3::SatMobilityModel
static TypeId	GetTypeId (void)
	Get the type ID.

Static Public Attributes
static const uint32_t	TleSatInfoWidth = 69
	Satellite's information line size defined by TLE data format.
static const gravconsttype	WGeoSys = wgs72
	World Geodetic System (WGS) constants to be used by SGP4/SDP4 models.

Private Member Functions
virtual GeoCoordinate	DoGetGeoPosition () const
virtual Vector	DoGetPosition () const
virtual Vector	DoGetVelocity () const
virtual void	DoSetGeoPosition (const GeoCoordinate &position)
virtual void	DoSetPosition (const Vector &position)
JulianDate	GetTleEpoch (void) const
	Retrieve the TLE epoch time.
bool	IsInitialized (void) const
	Check if the satellite has already been initialized.

Static Private Member Functions
static Matrix	PefToItrf (const JulianDate &t)
	Retrieve the matrix for converting from PEF to ITRF at a given time.
static Vector3D	rTemeTorItrf (const Vector3D &rteme, const JulianDate &t)
	Retrieve the satellite's position vector in ITRF coordinates.
static Vector3D	rvTemeTovItrf (const Vector3D &rteme, const Vector3D &vteme, const JulianDate &t)
	Retrieve the satellite's velocity vector in ITRF coordinates.
static Matrix	TemeToPef (const JulianDate &t)
	Retrieve the matrix for converting from TEME to PEF at a given time.

Private Attributes
GeoCoordinate	m_lastPosition
	Last saved satellite position.
elsetrec	m_sgp4_record
	SGP4/SDP4 record.
JulianDate	m_start
	Simulation absolute start time.
std::string	m_startStr
	Simulation absolute start time in string format.
Time	m_timeLastUpdate
	Last position update time.
std::string	m_tle1
std::string	m_tle2
	satellite's TLE data.
bool	m_updatePositionEachRequest
	Compute position each time a packet is transmitted.
Time	m_updatePositionPeriod
	Period of satellite position refresh, if UpdatePositionEachRequest is false.

Additional Inherited Members
Public Types inherited from ns3::SatMobilityModel
typedef void(*	CourseChangeCallback) (const Ptr< const SatMobilityModel > model)
	Callback signature for SatCourseChange trace source.

Detailed Description

Keep track of the current position and velocity of satellite using SGP4 model.

Definition at line 46 of file satellite-sgp4-mobility-model.h.

Constructor & Destructor Documentation

◆ SatSGP4MobilityModel()

ns3::SatSGP4MobilityModel::SatSGP4MobilityModel ( )

Default constructor.

Definition at line 68 of file satellite-sgp4-mobility-model.cc.

References m_startStr, and m_timeLastUpdate.

◆ ~SatSGP4MobilityModel()

ns3::SatSGP4MobilityModel::~SatSGP4MobilityModel ( )

virtual

Destructor.

Definition at line 85 of file satellite-sgp4-mobility-model.cc.

Member Function Documentation

◆ Copy()

Ptr< MobilityModel > ns3::SatSGP4MobilityModel::Copy ( ) const

inlineoverridevirtual

Copy function allows one to copy the underlying MobilityModel from a MobilityModel pointer, by calling each children Copy implementation.

This is primarily used by wraparound models for the spectrum channel.

Returns: a copy of the current mobility model

Implements ns3::SatMobilityModel.

Definition at line 81 of file satellite-sgp4-mobility-model.h.

◆ DoGetGeoPosition()

GeoCoordinate ns3::SatSGP4MobilityModel::DoGetGeoPosition ( ) const

privatevirtual

Returns: the current position.

Concrete subclasses of this base class must implement this method.

Implements ns3::SatMobilityModel.

Definition at line 157 of file satellite-sgp4-mobility-model.cc.

References GetTleEpoch(), IsInitialized(), m_lastPosition, m_sgp4_record, m_start, m_timeLastUpdate, m_updatePositionEachRequest, m_updatePositionPeriod, rTemeTorItrf(), sgp4(), and WGeoSys.

Referenced by DoGetPosition(), and SetTleInfo().

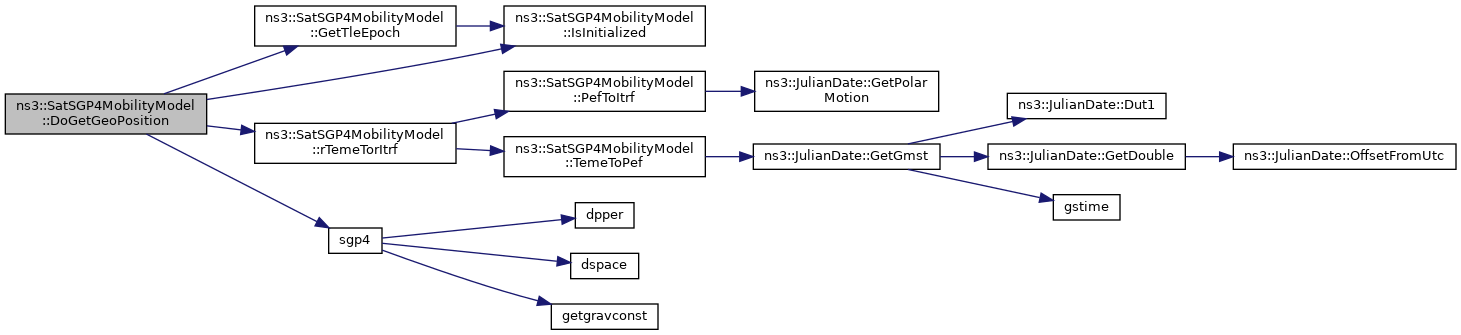

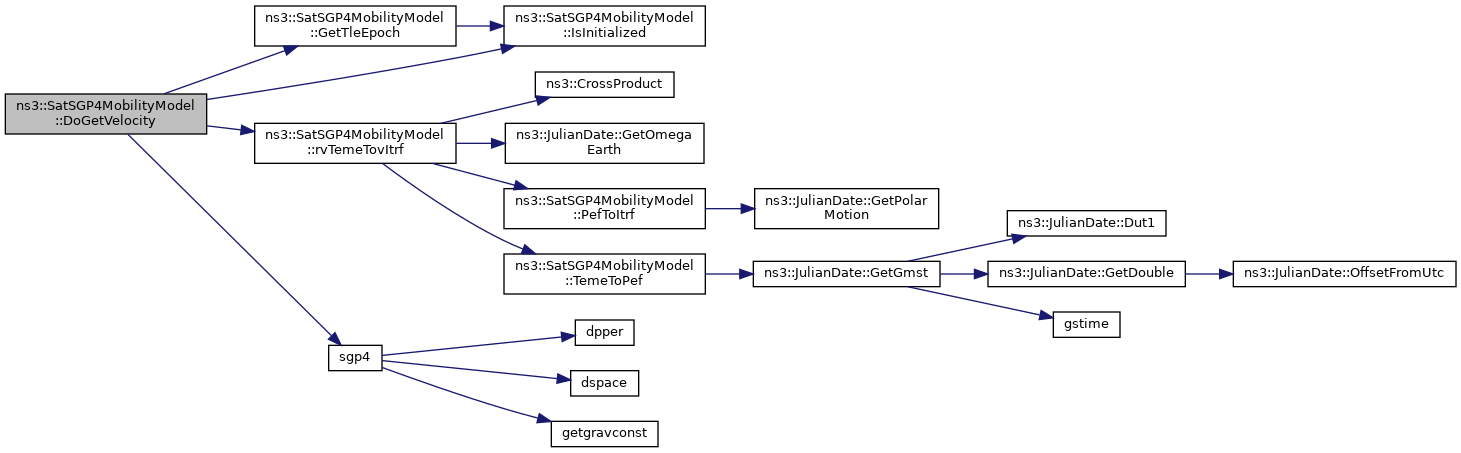

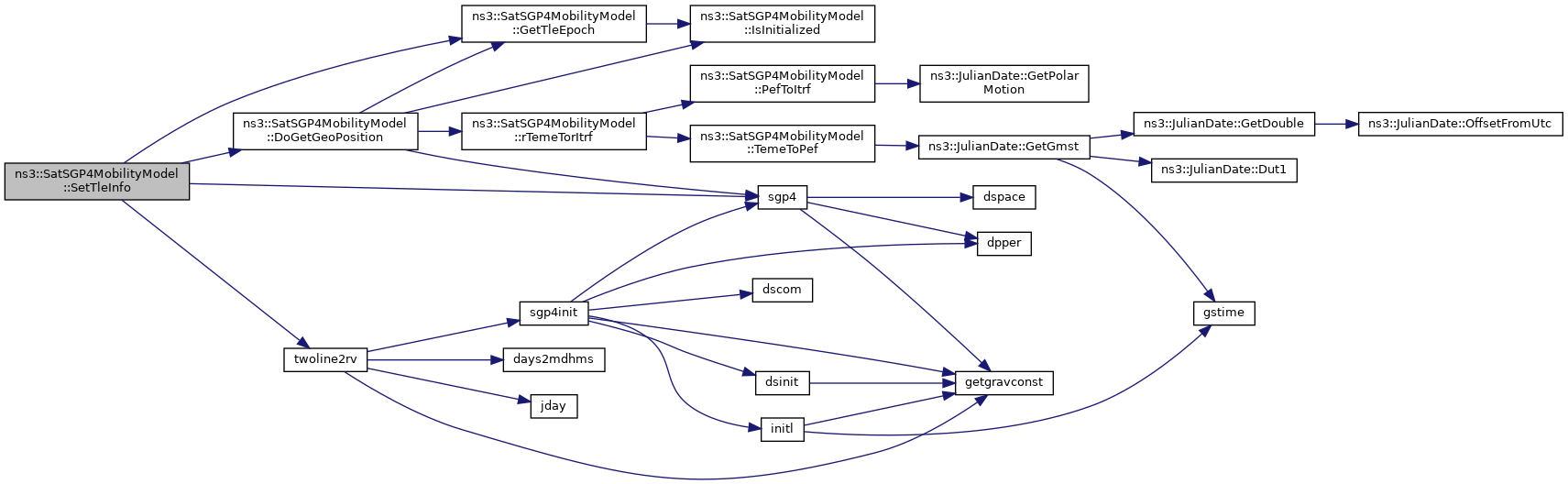

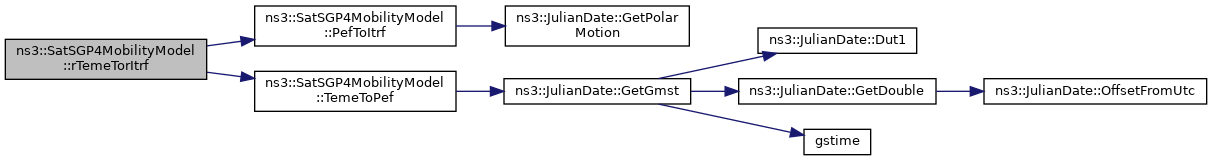

Here is the call graph for this function:

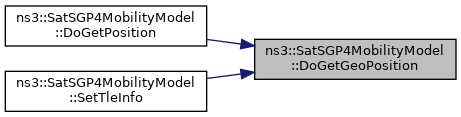

Here is the caller graph for this function:

◆ DoGetPosition()

Vector ns3::SatSGP4MobilityModel::DoGetPosition ( void ) const

privatevirtual

Returns: cartesian format position as vector

Implementation for method defined by MobilityModel

Reimplemented from ns3::SatMobilityModel.

Definition at line 141 of file satellite-sgp4-mobility-model.cc.

References DoGetGeoPosition(), and ns3::GeoCoordinate::ToVector().

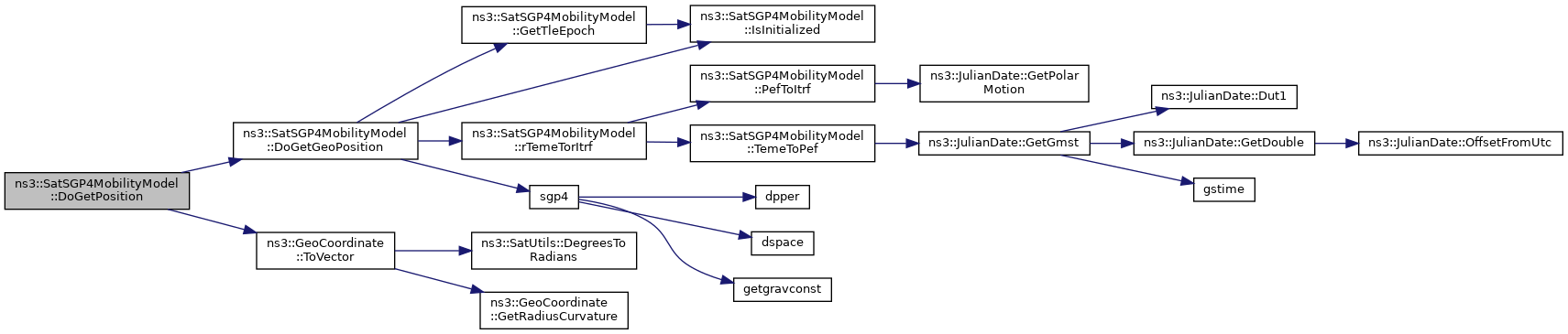

Here is the call graph for this function:

◆ DoGetVelocity()

Vector3D ns3::SatSGP4MobilityModel::DoGetVelocity ( ) const

privatevirtual

Definition at line 115 of file satellite-sgp4-mobility-model.cc.

References GetTleEpoch(), IsInitialized(), m_sgp4_record, m_start, rvTemeTovItrf(), sgp4(), and WGeoSys.

Here is the call graph for this function:

◆ DoSetGeoPosition()

void ns3::SatSGP4MobilityModel::DoSetGeoPosition ( const GeoCoordinate & position )

privatevirtual

Parameters

position the position to set.

Concrete subclasses of this base class must implement this method.

Implements ns3::SatMobilityModel.

Definition at line 192 of file satellite-sgp4-mobility-model.cc.

References m_lastPosition, and ns3::SatMobilityModel::NotifyGeoCourseChange().

Referenced by DoSetPosition().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoSetPosition()

void ns3::SatSGP4MobilityModel::DoSetPosition ( const Vector & position )

privatevirtual

Parameters

position position in Cartesian format to set

Implementation for method defined by MobilityModel

Reimplemented from ns3::SatMobilityModel.

Definition at line 149 of file satellite-sgp4-mobility-model.cc.

References DoSetGeoPosition().

Here is the call graph for this function:

◆ GetStartTime()

JulianDate ns3::SatSGP4MobilityModel::GetStartTime ( ) const

Get the time instant considered as the simulation start.

Returns: a JulianDate object with the time considered as simulation start.

Definition at line 99 of file satellite-sgp4-mobility-model.cc.

References m_start.

◆ GetTleEpoch()

JulianDate ns3::SatSGP4MobilityModel::GetTleEpoch ( void ) const

private

Retrieve the TLE epoch time.

Returns: the TLE epoch time or 0h, 1 January 1992 if the satellite has not yet been initialized.

Definition at line 209 of file satellite-sgp4-mobility-model.cc.

References IsInitialized(), and m_sgp4_record.

Referenced by DoGetGeoPosition(), DoGetVelocity(), and SetTleInfo().

Here is the call graph for this function:

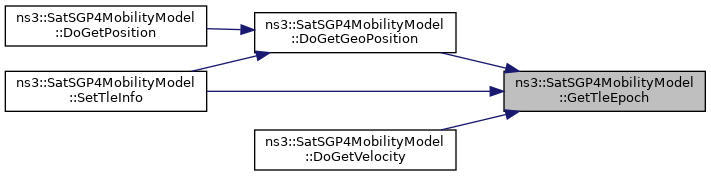

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatSGP4MobilityModel::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId.

Definition at line 48 of file satellite-sgp4-mobility-model.cc.

References ns3::SatMobilityModel::SatMobilityModel(), m_updatePositionEachRequest, and m_updatePositionPeriod.

Here is the call graph for this function:

◆ IsInitialized()

bool ns3::SatSGP4MobilityModel::IsInitialized ( void ) const

private

Check if the satellite has already been initialized.

Returns: a boolean indicating whether the satellite is initialized.

Definition at line 201 of file satellite-sgp4-mobility-model.cc.

References m_sgp4_record, m_tle1, and m_tle2.

Referenced by DoGetGeoPosition(), DoGetVelocity(), and GetTleEpoch().

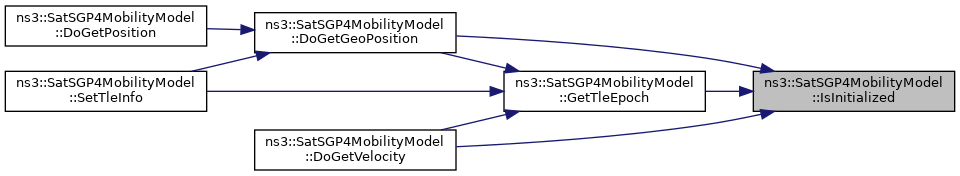

Here is the caller graph for this function:

◆ NotifyConstructionCompleted()

void ns3::SatSGP4MobilityModel::NotifyConstructionCompleted ( )

overridevirtual

Notifier called once the ObjectBase is fully constructed.

This method is invoked once all member attributes have been initialized. Subclasses can override this method to be notified of this event but if they do this, they must chain up to their parent's NotifyConstructionCompleted method.

Definition at line 76 of file satellite-sgp4-mobility-model.cc.

References m_startStr, and SetStartTime().

Here is the call graph for this function:

◆ PefToItrf()

SatSGP4MobilityModel::Matrix ns3::SatSGP4MobilityModel::PefToItrf ( const JulianDate & t )

staticprivate

Retrieve the matrix for converting from PEF to ITRF at a given time.

Parameters

t When.

Returns: the PEF-ITRF conversion matrix.

Definition at line 288 of file satellite-sgp4-mobility-model.cc.

References ns3::JulianDate::GetPolarMotion().

Referenced by rTemeTorItrf(), and rvTemeTovItrf().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rTemeTorItrf()

Vector3D ns3::SatSGP4MobilityModel::rTemeTorItrf	(	const Vector3D &	rteme,
		const JulianDate &	t )

staticprivate

Retrieve the satellite's position vector in ITRF coordinates.

Parameters

t When.

Returns: the satellite's position vector in ITRF coordinates (meters).

Definition at line 267 of file satellite-sgp4-mobility-model.cc.

References PefToItrf(), and TemeToPef().

Referenced by DoGetGeoPosition().

Here is the call graph for this function:

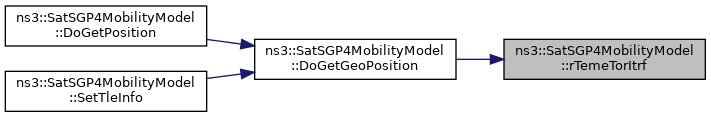

Here is the caller graph for this function:

◆ rvTemeTovItrf()

Vector3D ns3::SatSGP4MobilityModel::rvTemeTovItrf	(	const Vector3D &	rteme,
		const Vector3D &	vteme,
		const JulianDate &	t )

staticprivate

Retrieve the satellite's velocity vector in ITRF coordinates.

Parameters

t When.

Returns: the satellite's velocity vector in ITRF coordinates (m/s).

Definition at line 276 of file satellite-sgp4-mobility-model.cc.

References ns3::CrossProduct(), ns3::JulianDate::GetOmegaEarth(), PefToItrf(), and TemeToPef().

Referenced by DoGetVelocity().

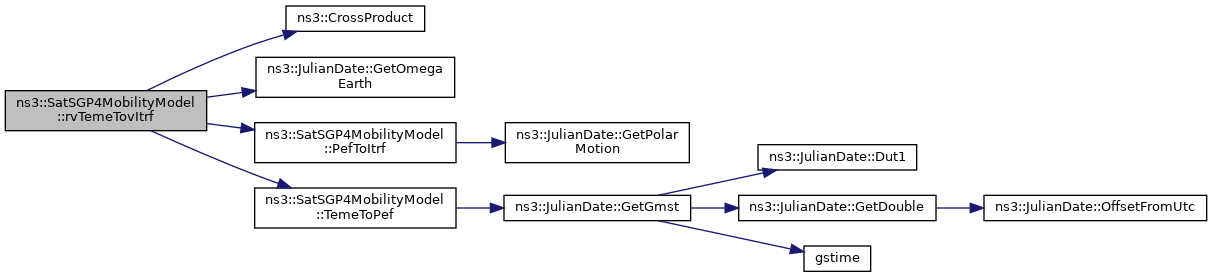

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetStartDate()

void ns3::SatSGP4MobilityModel::SetStartDate ( std::string startStr )

Set the simulation absolute start time in string format.

Parameters

startStr Start time of simulation, on format "YYYY-MM-DD hh:mm:ss"

Definition at line 90 of file satellite-sgp4-mobility-model.cc.

References m_startStr, and SetStartTime().

Referenced by ns3::SatHelper::SetSatMobility().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetStartTime()

void ns3::SatSGP4MobilityModel::SetStartTime ( const JulianDate & t )

Set the time instant considered as the simulation start.

Parameters

t	the time instant to be considered as simulation start.

Definition at line 107 of file satellite-sgp4-mobility-model.cc.

References m_start.

Referenced by NotifyConstructionCompleted(), and SetStartDate().

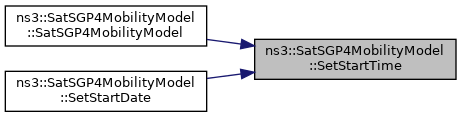

Here is the caller graph for this function:

◆ SetTleInfo()

void ns3::SatSGP4MobilityModel::SetTleInfo ( const std::string & tle )

Set satellite's TLE information required for its initialization.

Parameters

tle	The two lines of the TLE data format.

Definition at line 222 of file satellite-sgp4-mobility-model.cc.

References DoGetGeoPosition(), GetTleEpoch(), m_sgp4_record, m_start, m_tle1, m_tle2, sgp4(), TleSatInfoWidth, twoline2rv(), and WGeoSys.

Referenced by ns3::SatHelper::SetSatMobility().

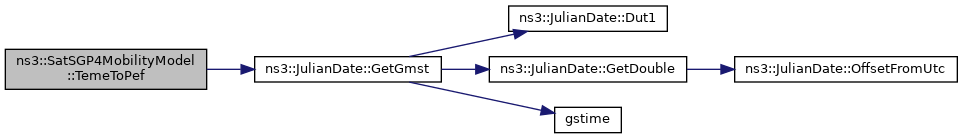

Here is the call graph for this function:

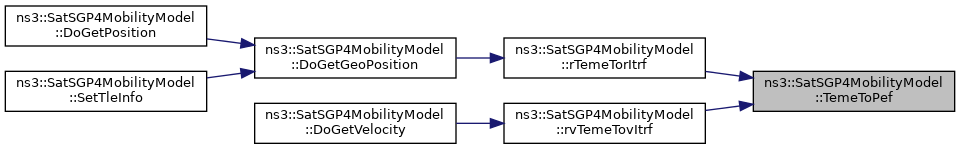

Here is the caller graph for this function:

◆ TemeToPef()

SatSGP4MobilityModel::Matrix ns3::SatSGP4MobilityModel::TemeToPef ( const JulianDate & t )

staticprivate

Retrieve the matrix for converting from TEME to PEF at a given time.

Parameters

t When.

Returns: the TEME-PEF conversion matrix.

Definition at line 318 of file satellite-sgp4-mobility-model.cc.

References ns3::JulianDate::GetGmst().

Referenced by rTemeTorItrf(), and rvTemeTovItrf().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_lastPosition

GeoCoordinate ns3::SatSGP4MobilityModel::m_lastPosition

mutableprivate

Last saved satellite position.

Definition at line 221 of file satellite-sgp4-mobility-model.h.

Referenced by DoGetGeoPosition(), and DoSetGeoPosition().

◆ m_sgp4_record

elsetrec ns3::SatSGP4MobilityModel::m_sgp4_record

mutableprivate

SGP4/SDP4 record.

Definition at line 166 of file satellite-sgp4-mobility-model.h.

Referenced by DoGetGeoPosition(), DoGetVelocity(), GetTleEpoch(), IsInitialized(), and SetTleInfo().

◆ m_start

JulianDate ns3::SatSGP4MobilityModel::m_start

private

Simulation absolute start time.

Definition at line 226 of file satellite-sgp4-mobility-model.h.

Referenced by DoGetGeoPosition(), DoGetVelocity(), GetStartTime(), SetStartTime(), and SetTleInfo().

◆ m_startStr

std::string ns3::SatSGP4MobilityModel::m_startStr

private

Simulation absolute start time in string format.

Definition at line 231 of file satellite-sgp4-mobility-model.h.

Referenced by SatSGP4MobilityModel(), NotifyConstructionCompleted(), and SetStartDate().

◆ m_timeLastUpdate

Time ns3::SatSGP4MobilityModel::m_timeLastUpdate

mutableprivate

Last position update time.

Definition at line 246 of file satellite-sgp4-mobility-model.h.

Referenced by SatSGP4MobilityModel(), and DoGetGeoPosition().

◆ m_tle1

std::string ns3::SatSGP4MobilityModel::m_tle1

private

Definition at line 165 of file satellite-sgp4-mobility-model.h.

Referenced by IsInitialized(), and SetTleInfo().

◆ m_tle2

std::string ns3::SatSGP4MobilityModel::m_tle2

private

satellite's TLE data.

Definition at line 165 of file satellite-sgp4-mobility-model.h.

Referenced by IsInitialized(), and SetTleInfo().

◆ m_updatePositionEachRequest

bool ns3::SatSGP4MobilityModel::m_updatePositionEachRequest

private

Compute position each time a packet is transmitted.

Definition at line 236 of file satellite-sgp4-mobility-model.h.

Referenced by DoGetGeoPosition(), and GetTypeId().

◆ m_updatePositionPeriod

Time ns3::SatSGP4MobilityModel::m_updatePositionPeriod

private

Period of satellite position refresh, if UpdatePositionEachRequest is false.

Definition at line 241 of file satellite-sgp4-mobility-model.h.

Referenced by DoGetGeoPosition(), and GetTypeId().

◆ TleSatInfoWidth

const uint32_t ns3::SatSGP4MobilityModel::TleSatInfoWidth = 69

static

Satellite's information line size defined by TLE data format.

Definition at line 52 of file satellite-sgp4-mobility-model.h.

Referenced by SetTleInfo().

◆ WGeoSys

const gravconsttype ns3::SatSGP4MobilityModel::WGeoSys = wgs72

static

World Geodetic System (WGS) constants to be used by SGP4/SDP4 models.

Definition at line 50 of file satellite-sgp4-mobility-model.h.

Referenced by DoGetGeoPosition(), DoGetVelocity(), and SetTleInfo().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-sgp4-mobility-model.h
/builds/sns3/satellite/satellite/model/satellite-sgp4-mobility-model.cc

Classes

Public Member Functions

Static Public Member Functions

Static Public Attributes

Private Member Functions

Static Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SatSGP4MobilityModel()

◆ ~SatSGP4MobilityModel()

Member Function Documentation

◆ Copy()

◆ DoGetGeoPosition()

◆ DoGetPosition()

◆ DoGetVelocity()

◆ DoSetGeoPosition()

◆ DoSetPosition()

◆ GetStartTime()

◆ GetTleEpoch()

◆ GetTypeId()

◆ IsInitialized()

◆ NotifyConstructionCompleted()

◆ PefToItrf()

◆ rTemeTorItrf()

◆ rvTemeTovItrf()

◆ SetStartDate()

◆ SetStartTime()

◆ SetTleInfo()

◆ TemeToPef()

Member Data Documentation

◆ m_lastPosition

◆ m_sgp4_record

◆ m_start

◆ m_startStr

◆ m_timeLastUpdate

◆ m_tle1

◆ m_tle2

◆ m_updatePositionEachRequest

◆ m_updatePositionPeriod

◆ TleSatInfoWidth

◆ WGeoSys
