Creates needed objects for Satellite node like SatorbiterNetDevice objects. More...

#include "satellite-orbiter-helper.h"

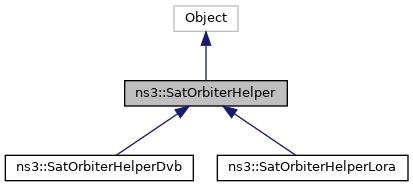

Inheritance diagram for ns3::SatOrbiterHelper:

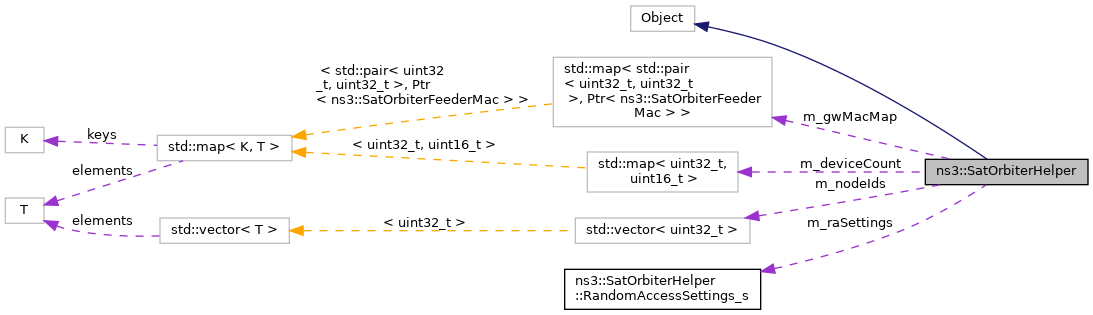

Collaboration diagram for ns3::SatOrbiterHelper:

Classes
struct	RandomAccessSettings_s
	Random access setting options. More...

Public Member Functions
	SatOrbiterHelper ()
	Default constructor.
	SatOrbiterHelper (SatTypedefs::CarrierBandwidthConverter_t bandwidthConverterCb, uint32_t rtnLinkCarrierCount, uint32_t fwdLinkCarrierCount, Ptr< SatSuperframeSeq > seq, SatMac::ReadCtrlMsgCallback fwdReadCb, SatMac::ReadCtrlMsgCallback rtnReadCb, RandomAccessSettings_s randomAccessSettings)
	Create a SatOrbiterHelper to make life easier when creating Satellite point to point network connections.
virtual	~SatOrbiterHelper ()
void	AttachChannels (Ptr< NetDevice > dev, Ptr< SatChannel > ff, Ptr< SatChannel > fr, Ptr< SatChannel > uf, Ptr< SatChannel > ur, Ptr< SatAntennaGainPattern > userAgp, Ptr< SatAntennaGainPattern > feederAgp, Ptr< SatNcc > ncc, uint32_t satId, uint32_t gwId, uint32_t userBeamId)
void	AttachChannelsFeeder (Ptr< SatOrbiterNetDevice > dev, Ptr< SatChannel > ff, Ptr< SatChannel > fr, Ptr< SatAntennaGainPattern > feederAgp, Ptr< SatNcc > ncc, uint32_t satId, uint32_t gwId, uint32_t userBeamId)
virtual void	AttachChannelsUser (Ptr< SatOrbiterNetDevice > dev, Ptr< SatChannel > uf, Ptr< SatChannel > ur, Ptr< SatAntennaGainPattern > userAgp, Ptr< SatNcc > ncc, uint32_t satId, uint32_t userBeamId)=0
virtual Ptr< SatOrbiterNetDevice >	CreateOrbiterNetDevice ()=0
	Create a SatOrbiterNetDevice instance, with correct type infered from child classes.
void	EnableCreationTraces (Ptr< OutputStreamWrapper > stream, CallbackBase &cb)
	Enables creation traces to be written in given file.
void	Initialize (Ptr< SatLinkResultsFwd > lrFwd, Ptr< SatLinkResultsRtn > lrRcs2)
Ptr< NetDevice >	Install (Ptr< Node > n)
Ptr< NetDevice >	Install (std::string aName)
NetDeviceContainer	InstallAllOrbiters ()
	This method creates a ns3::SatOrbiterNetDevices with the requested attributes and associate the resulting ns3::NetDevices with the ns3::Nodes corresponding to the orbiters.
void	SetDeviceAttribute (std::string name, const AttributeValue &value)
	Set an attribute value to be propagated to each NetDevice created by the helper.
void	SetFeederPhyAttribute (std::string name, const AttributeValue &value)
	Set an attribute value to be propagated to each Feeder Phy created by the helper.
void	SetIslRoutes (std::vector< std::pair< uint32_t, uint32_t > > isls)
	Set ISL routes.
void	SetUserPhyAttribute (std::string name, const AttributeValue &value)
	Set an attribute value to be propagated to each User Phy created by the helper.

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID.

Protected Attributes
Ptr< SatBbFrameConf >	m_bbFrameConfFwd
Ptr< SatBbFrameConf >	m_bbFrameConfRtn
SatTypedefs::CarrierBandwidthConverter_t	m_carrierBandwidthConverter
TracedCallback< std::string >	m_creationTrace
	Trace callback for creation traces.
SatPhy::InterferenceModel	m_daFwdLinkInterferenceModel
SatPhy::InterferenceModel	m_daRtnLinkInterferenceModel
std::map< uint32_t, uint16_t >	m_deviceCount
ObjectFactory	m_deviceFactory
double	m_fwdDaConstantErrorRate
SatPhy::ErrorModel	m_fwdErrorModel
uint32_t	m_fwdLinkCarrierCount
Ptr< SatLinkResults >	m_fwdLinkResults
	Forward channel link results (DVB-S2) are created if ErrorModel is configured to be AVI.
SatMac::ReadCtrlMsgCallback	m_fwdReadCtrlCb
	Control forward link messages callback.
std::map< std::pair< uint32_t, uint32_t >, Ptr< SatOrbiterFeederMac > >	m_gwMacMap
	Map used in regenerative mode to store if MAC already created for a given pair SAT ID / GW ID.
SatEnums::IslArbiterType_t	m_islArbiterType
	Arbiter in use to route packets on ISLs.
std::vector< uint32_t >	m_nodeIds
	Satellites node id.
RandomAccessSettings_s	m_raSettings
	The used random access model settings.
double	m_rtnDaConstantErrorRate
SatPhy::ErrorModel	m_rtnErrorModel
uint32_t	m_rtnLinkCarrierCount
Ptr< SatLinkResults >	m_rtnLinkResults
	Return channel link results (DVB-RCS2) are created if ErrorModel is configured to be AVI.
SatMac::ReadCtrlMsgCallback	m_rtnReadCtrlCb
	Control return link messages callback.
Ptr< SatSuperframeSeq >	m_superframeSeq
	Superframe sequence.
double	m_symbolRateFwd
double	m_symbolRateRtn

Detailed Description

Creates needed objects for Satellite node like SatorbiterNetDevice objects.

Handles needed configuration for the Satellite node.

Definition at line 57 of file satellite-orbiter-helper.h.

Constructor & Destructor Documentation

◆ SatOrbiterHelper() [1/2]

ns3::SatOrbiterHelper::SatOrbiterHelper ( )

Default constructor.

Definition at line 142 of file satellite-orbiter-helper.cc.

References m_carrierBandwidthConverter, m_daFwdLinkInterferenceModel, m_daRtnLinkInterferenceModel, m_deviceCount, m_deviceFactory, m_fwdLinkCarrierCount, m_fwdLinkResults, m_fwdReadCtrlCb, m_islArbiterType, m_raSettings, m_rtnLinkCarrierCount, m_rtnLinkResults, and m_rtnReadCtrlCb.

Referenced by ns3::SatOrbiterHelperDvb::SatOrbiterHelperDvb(), ns3::SatOrbiterHelperDvb::SatOrbiterHelperDvb(), ns3::SatOrbiterHelperLora::SatOrbiterHelperLora(), ns3::SatOrbiterHelperLora::SatOrbiterHelperLora(), ns3::SatOrbiterHelperDvb::GetTypeId(), and ns3::SatOrbiterHelperLora::GetTypeId().

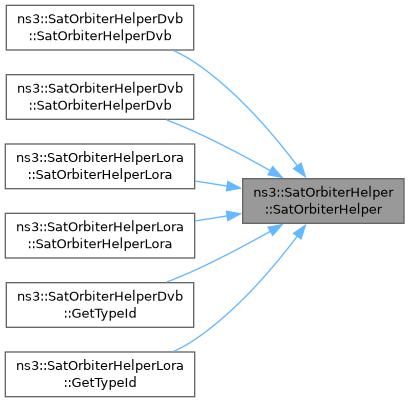

Here is the caller graph for this function:

◆ SatOrbiterHelper() [2/2]

ns3::SatOrbiterHelper::SatOrbiterHelper	(	SatTypedefs::CarrierBandwidthConverter_t	bandwidthConverterCb,
		uint32_t	rtnLinkCarrierCount,
		uint32_t	fwdLinkCarrierCount,
		Ptr< SatSuperframeSeq >	seq,
		SatMac::ReadCtrlMsgCallback	fwdReadCb,
		SatMac::ReadCtrlMsgCallback	rtnReadCb,
		RandomAccessSettings_s	randomAccessSettings )

Create a SatOrbiterHelper to make life easier when creating Satellite point to point network connections.

Definition at line 163 of file satellite-orbiter-helper.cc.

References m_carrierBandwidthConverter, m_daFwdLinkInterferenceModel, m_daRtnLinkInterferenceModel, m_deviceCount, m_deviceFactory, m_fwdLinkCarrierCount, m_fwdLinkResults, m_fwdReadCtrlCb, m_raSettings, m_rtnLinkCarrierCount, m_rtnLinkResults, m_rtnReadCtrlCb, and m_superframeSeq.

◆ ~SatOrbiterHelper()

virtual ns3::SatOrbiterHelper::~SatOrbiterHelper ( )

inlinevirtual

Definition at line 95 of file satellite-orbiter-helper.h.

Member Function Documentation

◆ AttachChannels()

void ns3::SatOrbiterHelper::AttachChannels	(	Ptr< NetDevice >	dev,
		Ptr< SatChannel >	ff,
		Ptr< SatChannel >	fr,
		Ptr< SatChannel >	uf,
		Ptr< SatChannel >	ur,
		Ptr< SatAntennaGainPattern >	userAgp,
		Ptr< SatAntennaGainPattern >	feederAgp,
		Ptr< SatNcc >	ncc,
		uint32_t	satId,
		uint32_t	gwId,
		uint32_t	userBeamId )

Definition at line 295 of file satellite-orbiter-helper.cc.

References AttachChannelsFeeder(), and AttachChannelsUser().

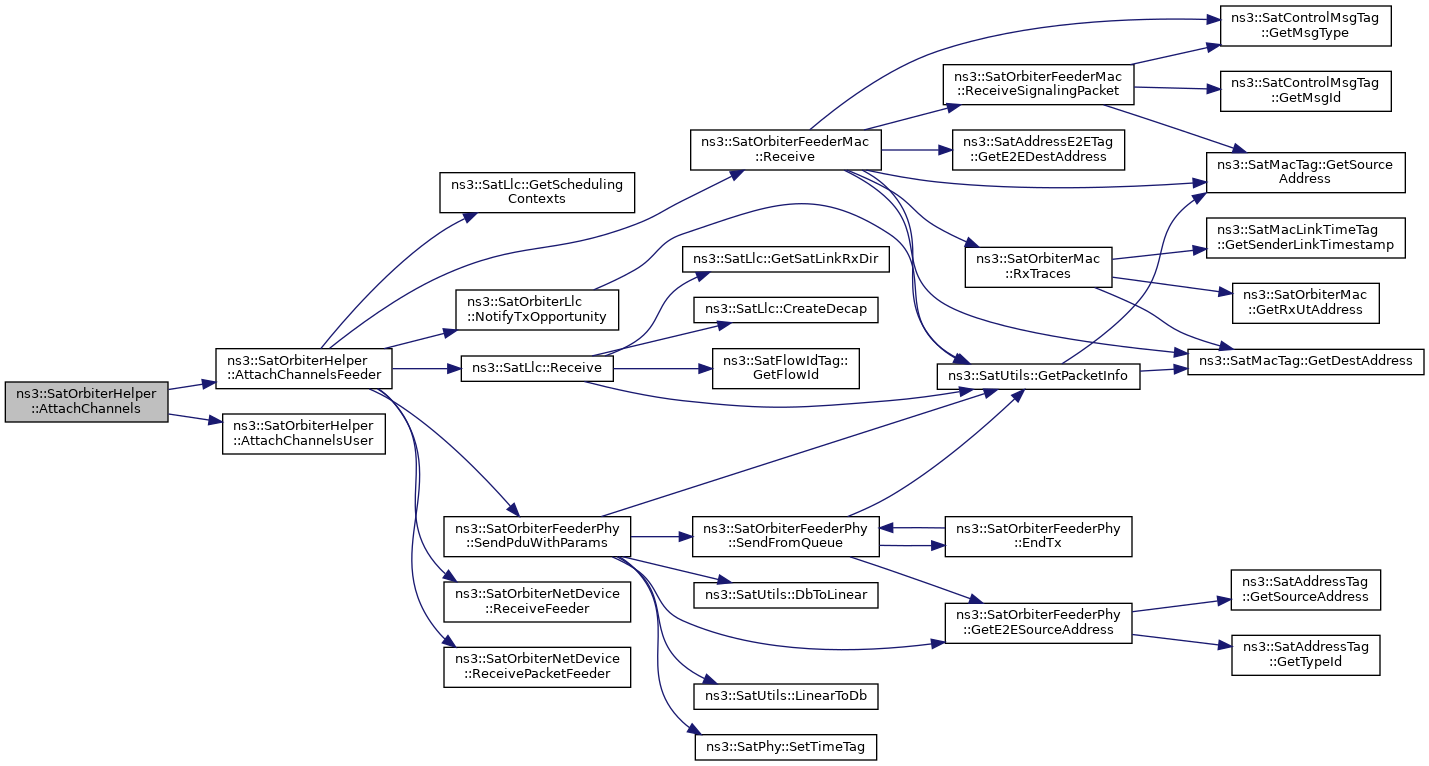

Here is the call graph for this function:

◆ AttachChannelsFeeder()

void ns3::SatOrbiterHelper::AttachChannelsFeeder	(	Ptr< SatOrbiterNetDevice >	dev,
		Ptr< SatChannel >	ff,
		Ptr< SatChannel >	fr,
		Ptr< SatAntennaGainPattern >	feederAgp,
		Ptr< SatNcc >	ncc,
		uint32_t	satId,
		uint32_t	gwId,
		uint32_t	userBeamId )

Simple channel estimation, which does not do actually anything

Definition at line 323 of file satellite-orbiter-helper.cc.

References ns3::SatEnums::DVB_ORBITER, ns3::SatEnums::EFFECTIVE_BANDWIDTH, ns3::SatLlc::GetSchedulingContexts(), m_bbFrameConfRtn, ns3::SatPhy::CreateParam_t::m_beamId, m_carrierBandwidthConverter, m_daFwdLinkInterferenceModel, ns3::SatPhy::CreateParam_t::m_device, m_fwdDaConstantErrorRate, m_fwdErrorModel, m_fwdLinkCarrierCount, m_fwdLinkResults, m_fwdReadCtrlCb, m_gwMacMap, m_nodeIds, m_raSettings, ns3::SatPhy::CreateParam_t::m_rxCh, ns3::SatPhy::CreateParam_t::m_satId, ns3::SatPhy::CreateParam_t::m_standard, m_superframeSeq, ns3::SatPhy::CreateParam_t::m_txCh, ns3::SatOrbiterLlc::NotifyTxOpportunity(), ns3::SatEnums::NT_SAT, ns3::SatLlc::Receive(), ns3::SatOrbiterFeederMac::Receive(), ns3::SatOrbiterNetDevice::ReceiveFeeder(), ns3::SatOrbiterNetDevice::ReceivePacketFeeder(), ns3::SatEnums::REGENERATION_LINK, ns3::SatEnums::REGENERATION_NETWORK, ns3::SatEnums::REGENERATION_PHY, ns3::SatEnums::RETURN_FEEDER_CH, ns3::SatOrbiterFeederPhy::SendPduWithParams(), ns3::SatConstVariables::SUPERFRAME_SEQUENCE, and ns3::SatEnums::TRANSPARENT.

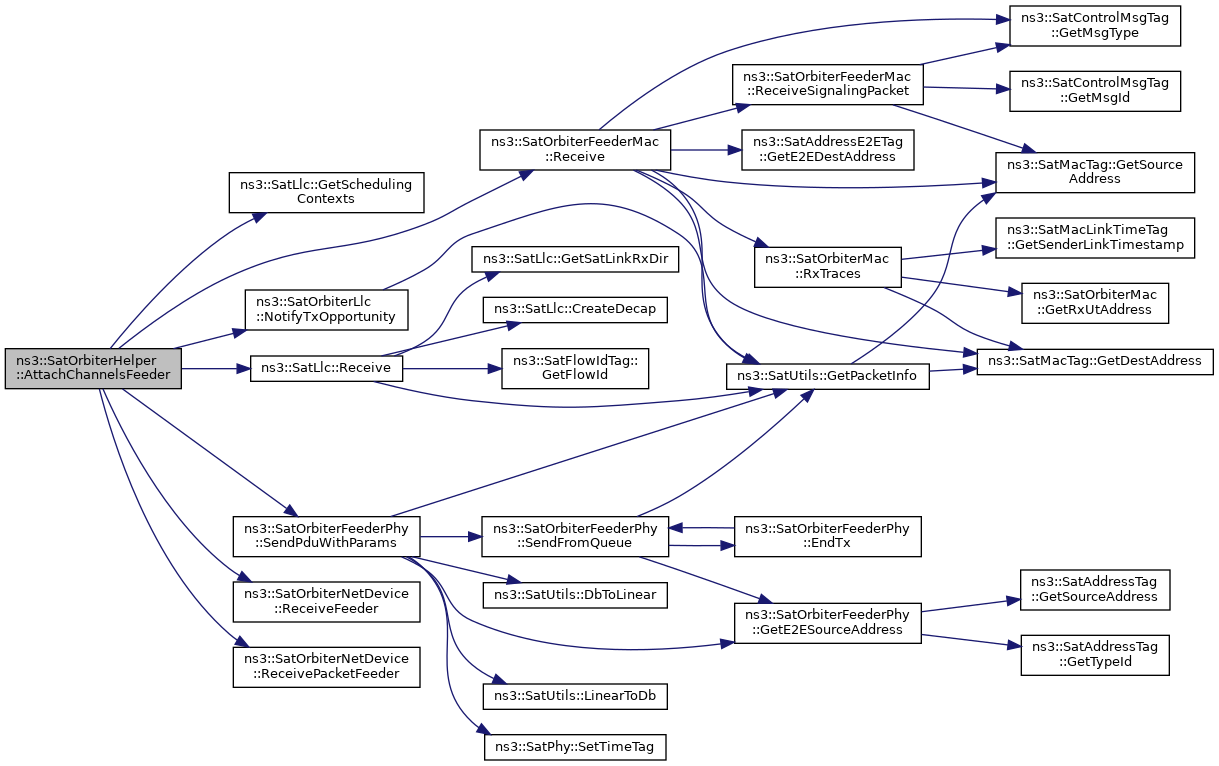

Referenced by AttachChannels().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AttachChannelsUser()

virtual void ns3::SatOrbiterHelper::AttachChannelsUser	(	Ptr< SatOrbiterNetDevice >	dev,
		Ptr< SatChannel >	uf,
		Ptr< SatChannel >	ur,
		Ptr< SatAntennaGainPattern >	userAgp,
		Ptr< SatNcc >	ncc,
		uint32_t	satId,
		uint32_t	userBeamId )

pure virtual

Implemented in ns3::SatOrbiterHelperDvb, and ns3::SatOrbiterHelperLora.

Referenced by AttachChannels().

Here is the caller graph for this function:

◆ CreateOrbiterNetDevice()

virtual Ptr< SatOrbiterNetDevice > ns3::SatOrbiterHelper::CreateOrbiterNetDevice ( )

pure virtual

Create a SatOrbiterNetDevice instance, with correct type infered from child classes.

Returns: SatOrbiterNetDevice instance

Implemented in ns3::SatOrbiterHelperDvb, and ns3::SatOrbiterHelperLora.

Referenced by Install().

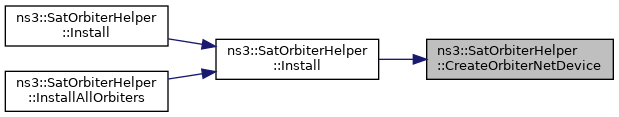

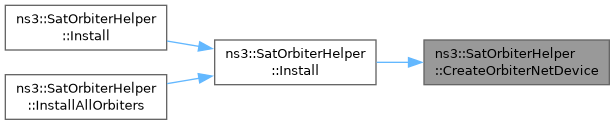

Here is the caller graph for this function:

◆ EnableCreationTraces()

void ns3::SatOrbiterHelper::EnableCreationTraces	(	Ptr< OutputStreamWrapper >	stream,
		CallbackBase &	cb )

Enables creation traces to be written in given file.

Parameters

stream	stream for creation trace outputs
cb	callback to connect traces

Definition at line 554 of file satellite-orbiter-helper.cc.

◆ GetTypeId()

TypeId ns3::SatOrbiterHelper::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 66 of file satellite-orbiter-helper.cc.

References ns3::SatEnums::ECMP, ns3::SatPhyRxCarrierConf::EM_AVI, ns3::SatPhyRxCarrierConf::EM_CONSTANT, ns3::SatPhyRxCarrierConf::EM_NONE, ns3::SatPhyRxCarrierConf::IF_CONSTANT, ns3::SatPhyRxCarrierConf::IF_PER_FRAGMENT, ns3::SatPhyRxCarrierConf::IF_PER_PACKET, ns3::SatPhyRxCarrierConf::IF_TRACE, m_creationTrace, m_daFwdLinkInterferenceModel, m_daRtnLinkInterferenceModel, m_fwdDaConstantErrorRate, m_fwdErrorModel, m_islArbiterType, m_rtnDaConstantErrorRate, m_rtnErrorModel, and ns3::SatEnums::UNICAST.

◆ Initialize()

void ns3::SatOrbiterHelper::Initialize	(	Ptr< SatLinkResultsFwd >	lrFwd,
		Ptr< SatLinkResultsRtn >	lrRcs2 )

Definition at line 188 of file satellite-orbiter-helper.cc.

References ns3::SatEnums::DVB_S2, ns3::SatEnums::EFFECTIVE_BANDWIDTH, ns3::SatPhyRxCarrierConf::EM_AVI, ns3::SatEnums::FORWARD_USER_CH, m_bbFrameConfFwd, m_bbFrameConfRtn, m_carrierBandwidthConverter, m_fwdErrorModel, m_fwdLinkResults, m_rtnErrorModel, m_rtnLinkResults, m_symbolRateFwd, m_symbolRateRtn, and ns3::SatEnums::RETURN_FEEDER_CH.

◆ Install() [1/2]

Ptr< NetDevice > ns3::SatOrbiterHelper::Install ( Ptr< Node > n )

Parameters

n a node

This method creates a ns3::SatOrbiterNetDevice with the requested attributes and associate the resulting ns3::NetDevice with the ns3::Node.

Returns: pointer to the created device

Definition at line 264 of file satellite-orbiter-helper.cc.

References CreateOrbiterNetDevice(), m_deviceCount, and m_nodeIds.

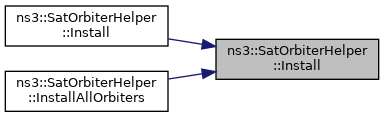

Referenced by Install(), and InstallAllOrbiters().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Install() [2/2]

Ptr< NetDevice > ns3::SatOrbiterHelper::Install ( std::string aName )

Parameters

aName name of a node

This method creates a ns3::SatOrbiterNetDevice with the requested attributes and associate the resulting ns3::NetDevice with the ns3::Node.

Returns: pointer to the created device

Definition at line 285 of file satellite-orbiter-helper.cc.

References Install().

Here is the call graph for this function:

◆ InstallAllOrbiters()

NetDeviceContainer ns3::SatOrbiterHelper::InstallAllOrbiters ( )

This method creates a ns3::SatOrbiterNetDevices with the requested attributes and associate the resulting ns3::NetDevices with the ns3::Nodes corresponding to the orbiters.
