SatOrbiterNetDeviceLora to be utilized in geostationary satellite. More...

#include "satellite-orbiter-net-device-lora.h"

Inheritance diagram for ns3::SatOrbiterNetDeviceLora:

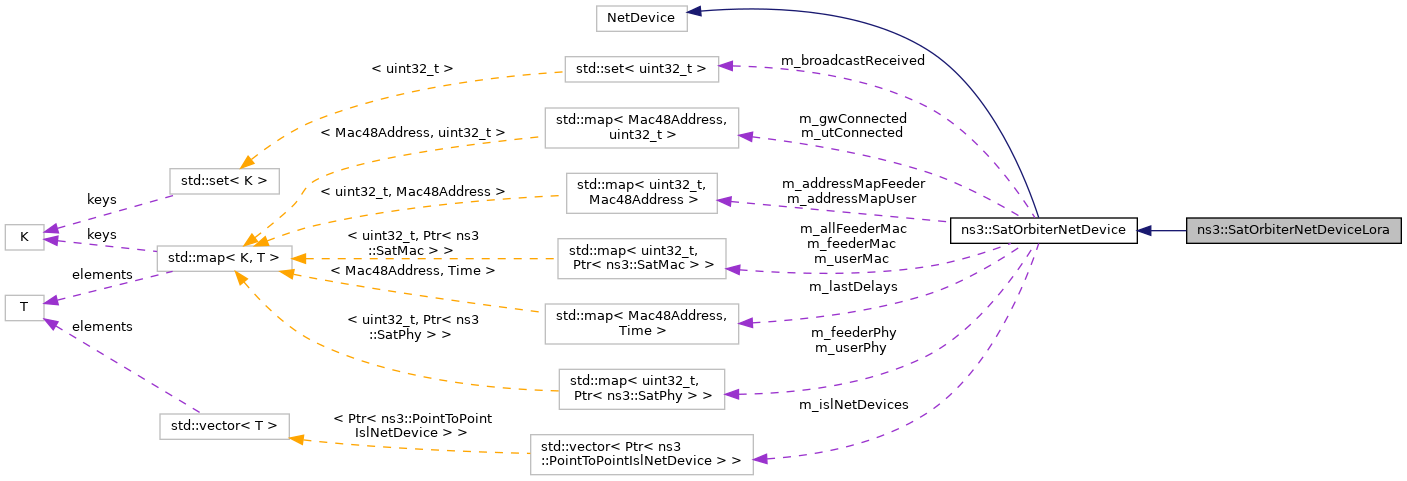

Collaboration diagram for ns3::SatOrbiterNetDeviceLora:

Public Member Functions
	SatOrbiterNetDeviceLora ()
	Default constructor. More...

virtual void	ConnectUt (Mac48Address utAddress, uint32_t beamId)
	Connect a UT to this satellite. More...

virtual void	DisconnectUt (Mac48Address utAddress, uint32_t beamId)
	Disconnect a UT to this satellite. More...

void	ReceiveFromIsl (Ptr< Packet > packet, Mac48Address destination)
	Receive a packet from ISL. More...

void	ReceivePacketFeeder (Ptr< Packet > packet, const Address &feederAddress)
	Receive the packet from the lower layers, in network regeneration on forward link. More...

void	ReceivePacketUser (Ptr< Packet > packet, const Address &userAddress)
	Receive the packet from the lower layers, in network regeneration on return link. More...

virtual bool	SendControlMsgToFeeder (Ptr< SatControlMessage > msg, const Address &dest, Ptr< SatSignalParameters > rxParams)
	Send a control packet on the feeder link. More...

Public Member Functions inherited from ns3::SatOrbiterNetDevice
	SatOrbiterNetDevice ()
	Default constructor. More...

void	AddFeederMac (Ptr< SatMac > mac, Ptr< SatMac > macUsed, uint32_t beamId)
	Add the Feeder MAC object for the beam. More...

void	AddFeederPair (uint32_t beamId, Mac48Address satelliteFeederAddress)
	Add an entry in the database to get satellite feeder address from beam ID. More...

void	AddFeederPhy (Ptr< SatPhy > phy, uint32_t beamId)
	Add the Feeder Phy object for the beam. More...

void	AddIslsNetDevice (Ptr< PointToPointIslNetDevice > islNetDevices)
	Add a ISL Net Device to this satellite. More...

virtual void	AddLinkChangeCallback (Callback< void > callback)

void	AddUserMac (Ptr< SatMac > mac, uint32_t beamId)
	Add the User MAC object for the beam. More...

void	AddUserPair (uint32_t beamId, Mac48Address satelliteUserAddress)
	Add an entry in the database to get satellite user address from beam ID. More...

void	AddUserPhy (Ptr< SatPhy > phy, uint32_t beamId)
	Add the User Phy object for the beam. More...

void	ConnectGw (Mac48Address gwAddress, uint32_t beamId)
	Connect a GW to this satellite. More...

void	DisconnectGw (Mac48Address gwAddress, uint32_t beamId)
	Disconnect a GW to this satellite. More...

virtual Address	GetAddress (void) const

std::map< uint32_t, Ptr< SatMac > >	GetAllFeederMac ()
	Get all Feeder MAC objects attached to this satellite. More...

Ptr< SatIslArbiter >	GetArbiter ()
	Get the arbiter for ISL routing. More...

virtual Address	GetBroadcast (void) const

virtual Ptr< Channel >	GetChannel (void) const

std::map< uint32_t, Ptr< SatMac > >	GetFeederMac ()
	Get all Feeder MAC objects attached to this satellite that are in use. More...

Ptr< SatMac >	GetFeederMac (uint32_t beamId)
	Get the Feeder MAC object for the beam. More...

std::map< uint32_t, Ptr< SatPhy > >	GetFeederPhy ()
	Get all Feeder Phy objects attached to this satellite. More...

Ptr< SatPhy >	GetFeederPhy (uint32_t beamId)
	Get the Feeder Phy object for the beam. More...

std::set< Mac48Address >	GetGwConnected ()
	The the list of MAC GW connected to this satellite. More...

virtual uint32_t	GetIfIndex (void) const

std::vector< Ptr< PointToPointIslNetDevice > >	GetIslsNetDevices ()
	Get all the ISL Net devices. More...

virtual uint16_t	GetMtu (void) const

virtual Address	GetMulticast (Ipv4Address multicastGroup) const

virtual Address	GetMulticast (Ipv6Address addr) const

virtual Ptr< Node >	GetNode (void) const

Mac48Address	GetSatelliteFeederAddress (uint32_t beamId)
	Get satellite feeder entry from associated beam ID. More...

Mac48Address	GetSatelliteUserAddress (uint32_t beamId)
	Get satellite user entry from associated beam ID. More...

std::map< uint32_t, Ptr< SatMac > >	GetUserMac ()
	Get all User MAC objects attached to this satellite. More...

Ptr< SatMac >	GetUserMac (uint32_t beamId)
	Get the User MAC object for the beam. More...

std::map< uint32_t, Ptr< SatPhy > >	GetUserPhy ()
	Get all User Phy objects attached to this satellite. More...

Ptr< SatPhy >	GetUserPhy (uint32_t beamId)
	Get the User Phy object for the beam. More...

std::set< Mac48Address >	GetUtConnected ()
	The the list of UT MAC connected to this satellite. More...

virtual bool	IsBridge (void) const

virtual bool	IsBroadcast (void) const

virtual bool	IsLinkUp (void) const

virtual bool	IsMulticast (void) const

virtual bool	IsPointToPoint (void) const

virtual bool	NeedsArp (void) const

void	ReceiveFeeder (SatPhy::PacketContainer_t packets, Ptr< SatSignalParameters > rxParams)
	Receive the packet from the lower layers. More...

void	ReceiveUser (SatPhy::PacketContainer_t packets, Ptr< SatSignalParameters > rxParams)
	Receive the packet from the lower layers. More...

virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)

virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)

void	SendToIsl (Ptr< Packet > packet, Mac48Address destination)
	Send a packet to ISL. More...

virtual void	SetAddress (Address address)

void	SetArbiter (Ptr< SatIslArbiter > arbiter)
	Set the arbiter for ISL routing. More...

void	SetForwardLinkRegenerationMode (SatEnums::RegenerationMode_t forwardLinkRegenerationMode)
	Set the forward link regeneration mode. More...

virtual void	SetIfIndex (const uint32_t index)

virtual bool	SetMtu (const uint16_t mtu)

virtual void	SetNode (Ptr< Node > node)

void	SetNodeId (uint32_t nodeId)

virtual void	SetPromiscReceiveCallback (PromiscReceiveCallback cb)

virtual void	SetReceiveCallback (NetDevice::ReceiveCallback cb)

void	SetReceiveErrorModel (Ptr< ErrorModel > em)
	Attach a receive ErrorModel to the SatOrbiterNetDevice. More...

void	SetReturnLinkRegenerationMode (SatEnums::RegenerationMode_t returnLinkRegenerationMode)
	Set the return link regeneration mode. More...

virtual bool	SupportsSendFrom (void) const

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::SatOrbiterNetDevice
static TypeId	GetTypeId (void)
	Get the type ID. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::SatOrbiterNetDevice
virtual void	DoDispose (void)
	Dispose of this class instance. More...

Address	GetRxUtAddress (Ptr< Packet > packet, SatEnums::SatLinkDir_t ld)
	Get UT MAC address associated to this packet. More...

Protected Attributes inherited from ns3::SatOrbiterNetDevice
Mac48Address	m_address

std::map< uint32_t, Mac48Address >	m_addressMapFeeder

std::map< uint32_t, Mac48Address >	m_addressMapUser

std::map< uint32_t, Ptr< SatMac > >	m_allFeederMac

Ptr< SatIslArbiter >	m_arbiter
	Arbiter used to route on ISLs. More...

std::set< uint32_t >	m_broadcastReceived
	Keep a count of all incoming broadcast data to avoid handling them several times. More...

std::map< uint32_t, Ptr< SatMac > >	m_feederMac

std::map< uint32_t, Ptr< SatPhy > >	m_feederPhy

SatEnums::RegenerationMode_t	m_forwardLinkRegenerationMode

std::map< Mac48Address, uint32_t >	m_gwConnected
	Set containing all connected GWs. More...

uint32_t	m_ifIndex

std::vector< Ptr< PointToPointIslNetDevice > >	m_islNetDevices
	List of ISLs starting from this node. More...

bool	m_isStatisticsTagsEnabled

std::map< Mac48Address, Time >	m_lastDelays

uint16_t	m_mtu

Ptr< Node >	m_node

uint32_t	m_nodeId

TracedCallback< Time, SatEnums::SatPacketEvent_t, SatEnums::SatNodeType_t, uint32_t, Mac48Address, SatEnums::SatLogLevel_t, SatEnums::SatLinkDir_t, std::string >	m_packetTrace

NetDevice::PromiscReceiveCallback	m_promiscCallback

Ptr< ErrorModel >	m_receiveErrorModel

SatEnums::RegenerationMode_t	m_returnLinkRegenerationMode

NetDevice::ReceiveCallback	m_rxCallback

TracedCallback< const Time &, const Address & >	m_rxFeederLinkDelayTrace
	Traced callback for all received packets, including feeder link delay information and the address of the senders. More...

TracedCallback< const Time &, const Address & >	m_rxFeederLinkJitterTrace
	Traced callback for all received packets, including feeder link jitter information and the address of the senders. More...

TracedCallback< Ptr< const Packet >, const Address & >	m_rxFeederTrace
	Traced callback for all received packets on feeder, including the address of the senders. More...

TracedCallback< const Time &, const Address & >	m_rxUserLinkDelayTrace
	Traced callback for all received packets, including user link delay information and the address of the senders. More...

TracedCallback< const Time &, const Address & >	m_rxUserLinkJitterTrace
	Traced callback for all received packets, including user link jitter information and the address of the senders. More...

TracedCallback< Ptr< const Packet >, const Address & >	m_rxUserTrace
	Traced callback for all received packets on user, including the address of the senders. More...

TracedCallback< Ptr< const Packet >, const Address & >	m_signallingTxTrace
	Traced callback for all signalling (control message) packets sent, including the destination address. More...

TracedCallback< Ptr< const Packet > >	m_txTrace
	Traced callback for all packets received to be transmitted. More...

std::map< uint32_t, Ptr< SatMac > >	m_userMac

std::map< uint32_t, Ptr< SatPhy > >	m_userPhy

std::map< Mac48Address, uint32_t >	m_utConnected
	Set containing all connected UTs. More...

Detailed Description

SatOrbiterNetDeviceLora to be utilized in geostationary satellite.

SatOrbiterNetDeviceLora holds a set of phy layers towards user and feeder links; one pair of phy layers for each spot-beam. The SatNetDevice implements a simple switching between all user and feeder links modeling transparent payload.

Definition at line 55 of file satellite-orbiter-net-device-lora.h.

Constructor & Destructor Documentation

◆ SatOrbiterNetDeviceLora()

ns3::SatOrbiterNetDeviceLora::SatOrbiterNetDeviceLora ( )

Default constructor.

Definition at line 74 of file satellite-orbiter-net-device-lora.cc.

Member Function Documentation

◆ ConnectUt()

void ns3::SatOrbiterNetDeviceLora::ConnectUt	(	Mac48Address	utAddress,
		uint32_t	beamId
	)

virtual

Connect a UT to this satellite.

Parameters

utAddress	MAC address of the UT to connect
beamId	beam used by satellite to reach this UT

Implements ns3::SatOrbiterNetDevice.

Definition at line 306 of file satellite-orbiter-net-device-lora.cc.

References ns3::SatOrbiterNetDevice::m_nodeId, and ns3::SatOrbiterNetDevice::m_utConnected.

◆ DisconnectUt()

void ns3::SatOrbiterNetDeviceLora::DisconnectUt	(	Mac48Address	utAddress,
		uint32_t	beamId
	)

virtual

Disconnect a UT to this satellite.

Parameters

utAddress	MAC address of the UT to disconnect
beamId	beam used by satellite to reach this UT

Implements ns3::SatOrbiterNetDevice.

Definition at line 318 of file satellite-orbiter-net-device-lora.cc.

References ns3::SatOrbiterNetDevice::m_utConnected.

◆ GetTypeId()

TypeId ns3::SatOrbiterNetDeviceLora::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 66 of file satellite-orbiter-net-device-lora.cc.

◆ ReceiveFromIsl()

void ns3::SatOrbiterNetDeviceLora::ReceiveFromIsl	(	Ptr< Packet >	packet,
		Mac48Address	destination
	)

virtual

Receive a packet from ISL.

Parameters

packet	The packet to send
destination	The MAC address of ground station that will receive the packet

Implements ns3::SatOrbiterNetDevice.

Definition at line 233 of file satellite-orbiter-net-device-lora.cc.

References ns3::SatUplinkInfoTag::GetBeamId(), ns3::SatOrbiterNetDevice::m_broadcastReceived, ns3::SatOrbiterNetDevice::m_feederMac, ns3::SatOrbiterNetDevice::m_gwConnected, ns3::SatOrbiterNetDevice::m_islNetDevices, ns3::SatOrbiterNetDevice::m_isStatisticsTagsEnabled, ns3::SatOrbiterNetDevice::m_userMac, ns3::SatOrbiterNetDevice::m_utConnected, and ns3::SatOrbiterNetDevice::SendToIsl().

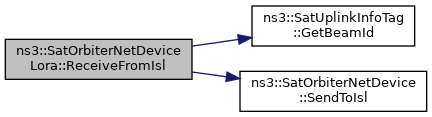

Here is the call graph for this function:

◆ ReceivePacketFeeder()

void ns3::SatOrbiterNetDeviceLora::ReceivePacketFeeder	(	Ptr< Packet >	packet,
		const Address &	feederAddress
	)

virtual

Receive the packet from the lower layers, in network regeneration on forward link.

Parameters

packet	Packet received
feederAddress	MAC address of feeder that received this packet

Implements ns3::SatOrbiterNetDevice.

Definition at line 156 of file satellite-orbiter-net-device-lora.cc.

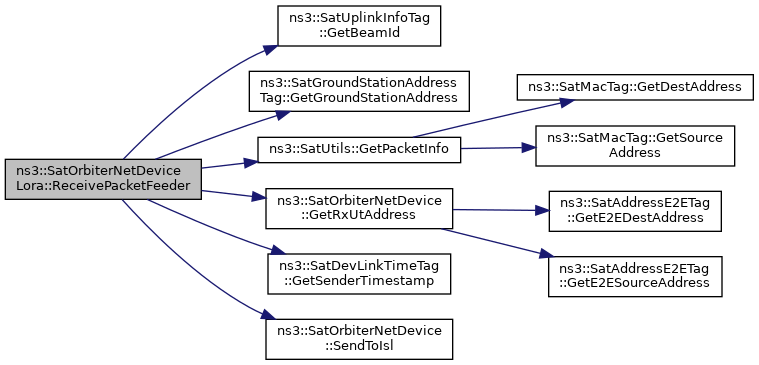

Here is the call graph for this function:

◆ ReceivePacketUser()

void ns3::SatOrbiterNetDeviceLora::ReceivePacketUser	(	Ptr< Packet >	packet,
		const Address &	userAddress
	)

virtual

Receive the packet from the lower layers, in network regeneration on return link.

Parameters

packet	Packet received
userAddress	MAC address of user that received this packet

Implements ns3::SatOrbiterNetDevice.

Definition at line 81 of file satellite-orbiter-net-device-lora.cc.

Here is the call graph for this function:

◆ SendControlMsgToFeeder()

bool ns3::SatOrbiterNetDeviceLora::SendControlMsgToFeeder	(	Ptr< SatControlMessage >	msg,
		const Address &	dest,
		Ptr< SatSignalParameters >	rxParams
	)

virtual

Send a control packet on the feeder link.

Parameters

msg	The control message to send
dest	The MAC destination
rxParams	Strucutre storing additional parameters

Returns: True if success

Implements ns3::SatOrbiterNetDevice.

Definition at line 296 of file satellite-orbiter-net-device-lora.cc.

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-orbiter-net-device-lora.h
/builds/sns3/satellite/satellite/model/satellite-orbiter-net-device-lora.cc

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SatOrbiterNetDeviceLora()

Member Function Documentation

◆ ConnectUt()

◆ DisconnectUt()

◆ GetTypeId()

◆ ReceiveFromIsl()

◆ ReceivePacketFeeder()

◆ ReceivePacketUser()

◆ SendControlMsgToFeeder()
